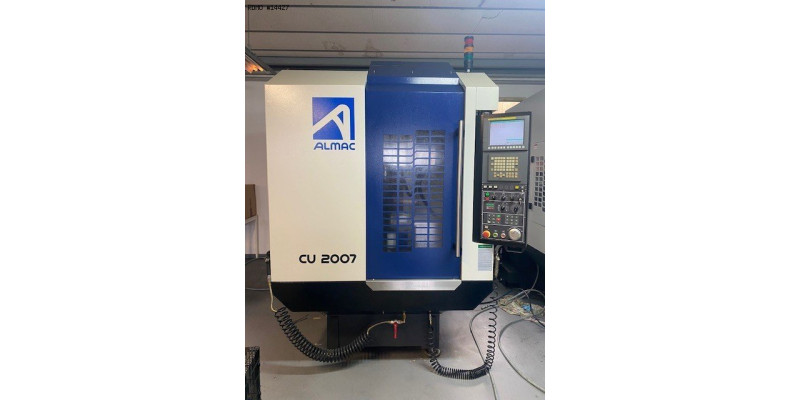

ALMAC CU 2007 3 assi

14427
Marca: ALMAC
Modello: CU 2007
Anno: 2017
Nr Serie: 57 - 180508
14427
ALMAC CU 2007 3 assi
Marca: ALMAC
Modello: CU 2007
Anno: 2017
Nr Serie: 57 - 180508

Caratteristiche & Attrezzatura

Caratteristiche
- Number of axes : 3
MILLING SPINDLE
- Tool holder type : HSK40
- Spindle power : 3.7 [kW]
- Spindle speeds : 20000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 500 / 400 / 470 [mm]
- Rapid traverses rates (X/Y/Z) : 60 [m/min]
TOOL CHANGER
- Auto. Tool Changer type : Loading arm
- Tool magazine capacity : 40
TABLE
- Table dimensions : 650 x 400 [mm]
- Maximum weight upon table : 250 [kg]
- Distance table center / spindle axis (min./max.) : 150 - 620 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 10 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 1600 x 2410 [mm]
- Machine height : 2500 [mm]
- Machine weight : 2500 [kg]
Attrezzatura

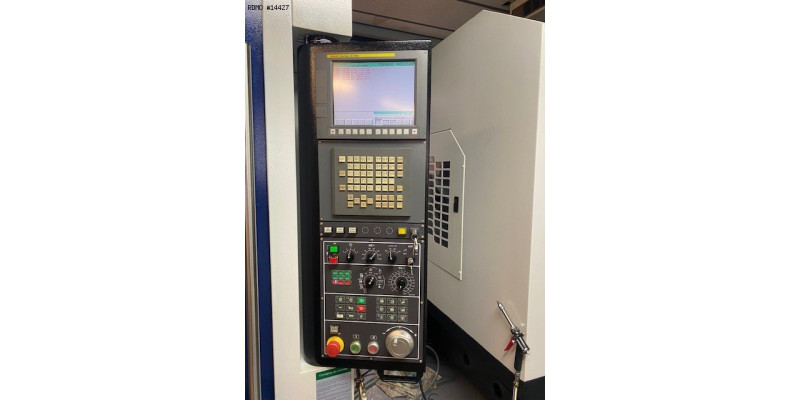

- CNC : Fanuc Oi-MD
- 3 colors status lamp
- COOLANT TANK : 200 [l]
- Oil mist extractor : LNS FOX WS2-1000
- Spindle cooling unit : Type HBO-250PTSB4

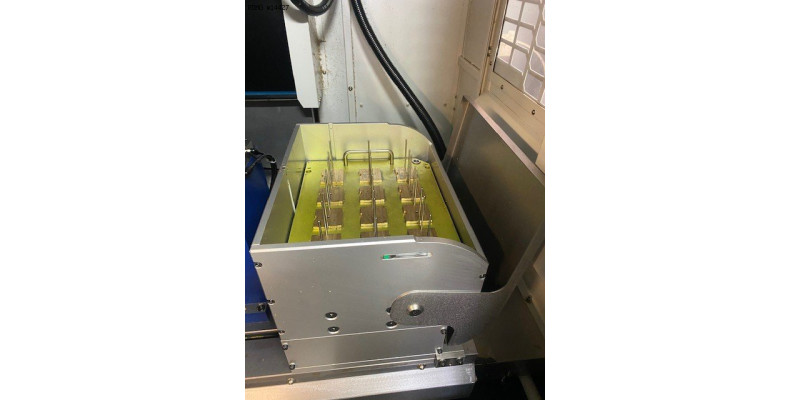

- Pick & Place system
