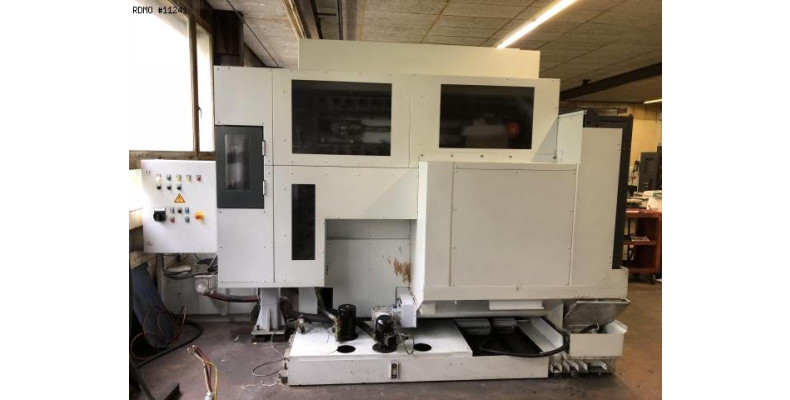

MORI SEIKI NV5000 alpha 1B/40 5 assi

Fresatura Centro di lavoro verticale

11241

Specifiche tecniche per il download

Marca: MORI SEIKI

Modello: NV5000 alpha 1B/40

Anno: 2005

Nr Serie: NV501EC2715

11241

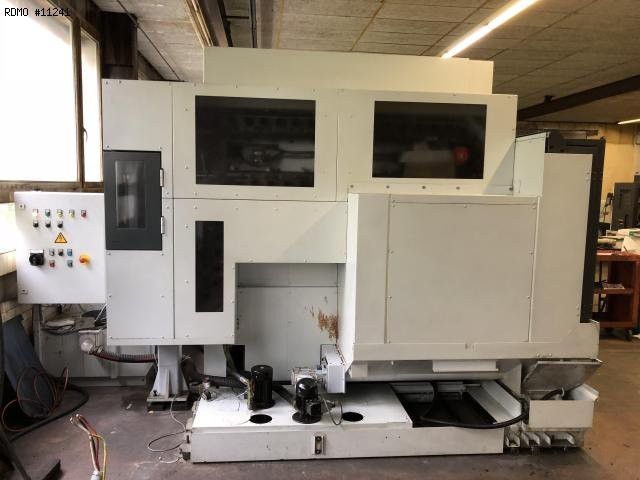

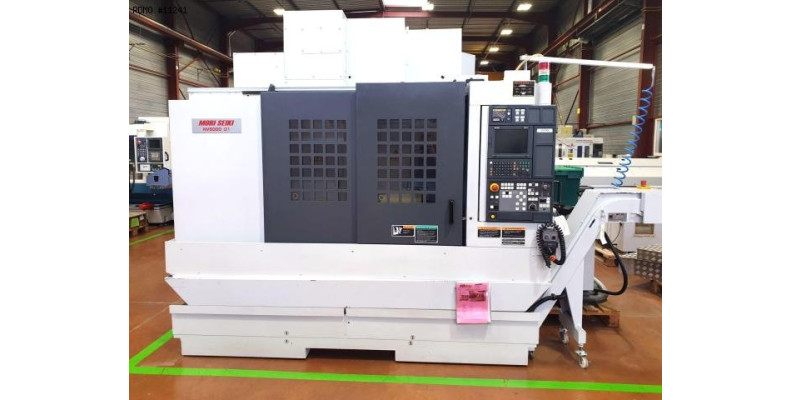

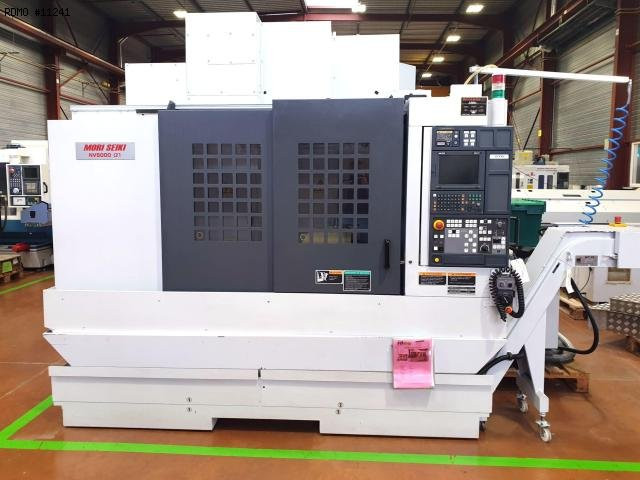

MORI SEIKI NV5000 alpha 1B/40 5 assi

Fresatura Centro di lavoro verticale

Specifiche tecniche per il download

Marca: MORI SEIKI

Modello: NV5000 alpha 1B/40

Anno: 2005

Nr Serie: NV501EC2715

Richieda un prezzo

Caratteristiche

- Number of axes : 5

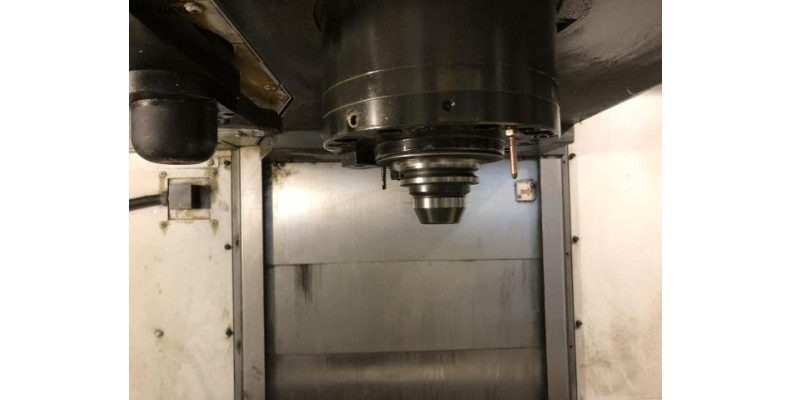

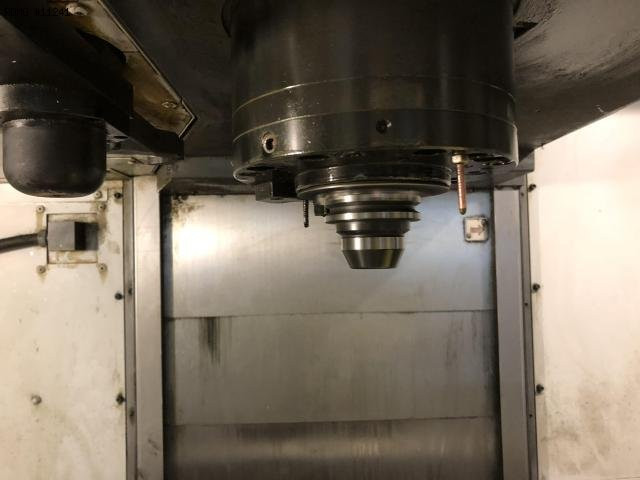

MILLING SPINDLE
- Tool holder type : CA40 (Big+)
- Spindle power : 22 [kW]
- Spindle speeds : 14000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 1020 x 510 x 510 [mm]
- Rapid traverses rates (X/Y/Z) : 42/42/42 [m/min]
TOOL CHANGER
- Tool magazine capacity : 60

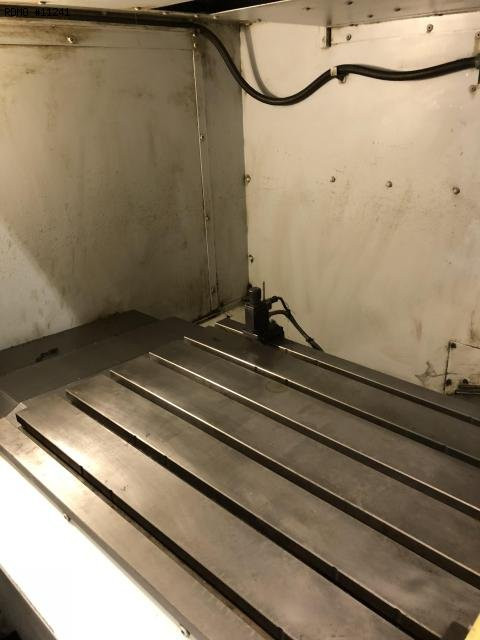

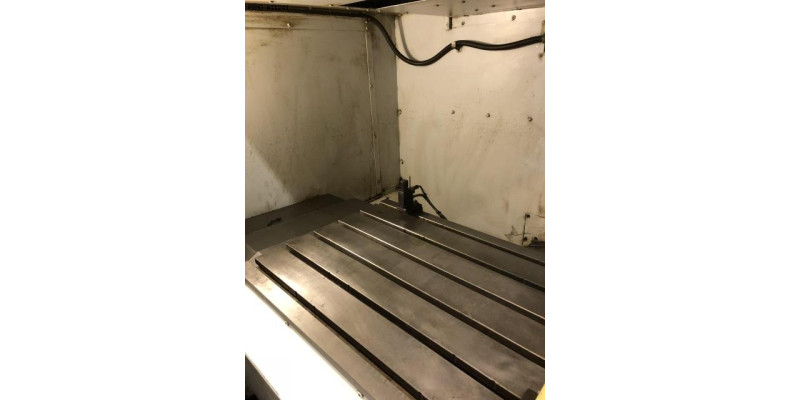

TABLE
- Table dimensions : 1320 x 660 [mm]
- Distance table / spindle nose (min./max.) : 150-660 [mm]
- Maximum weight upon table : 1200 [kg]
WEIGHT & DIMENSIONS
- Machine floor space : 2788 x 3040 [mm]
- Machine height : 2603 [mm]
- Machine weight : 8600 [kg]
MACHINE HOURS
- Number of hours under power : 14466 [h]
- Number of working hours : 2962 [h]

Attrezzatura

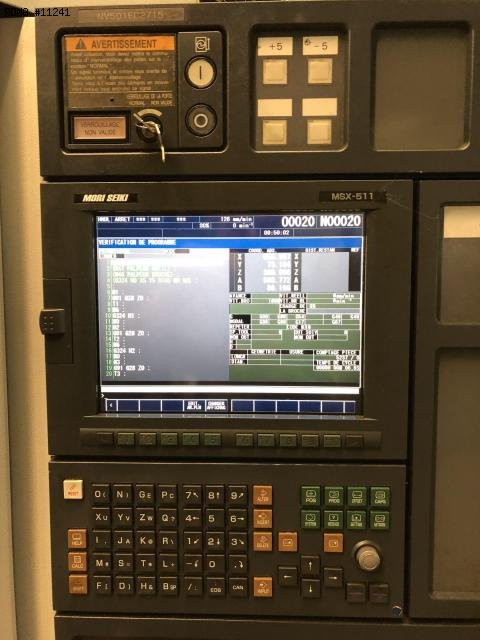

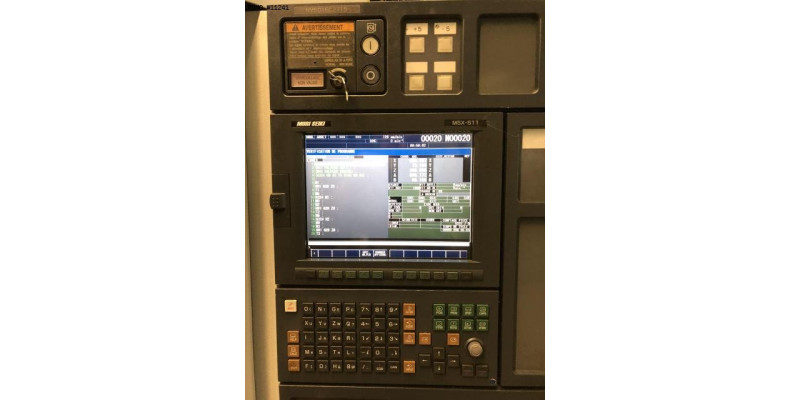

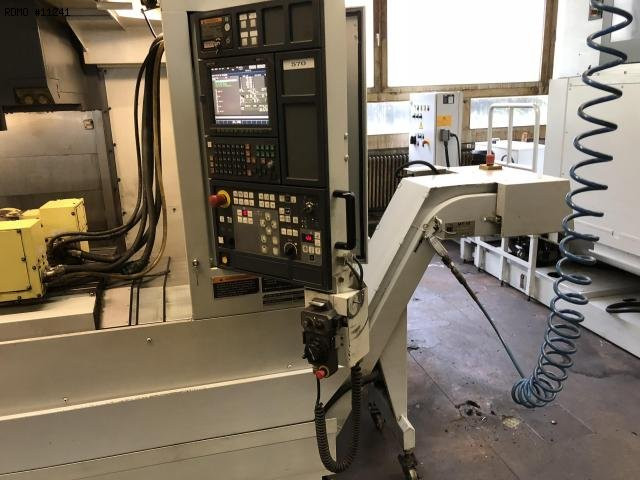

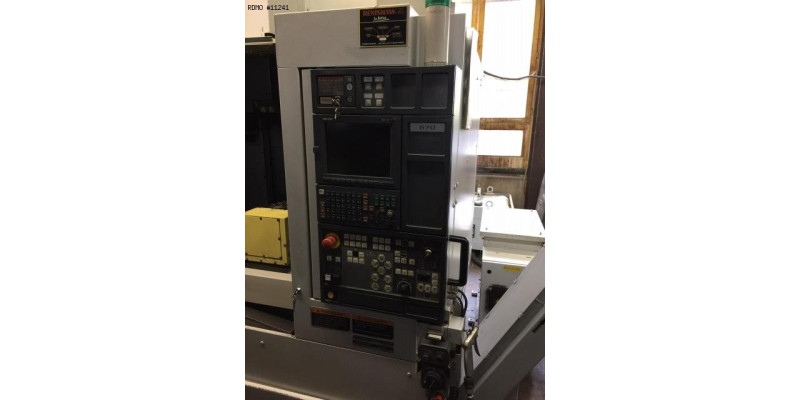

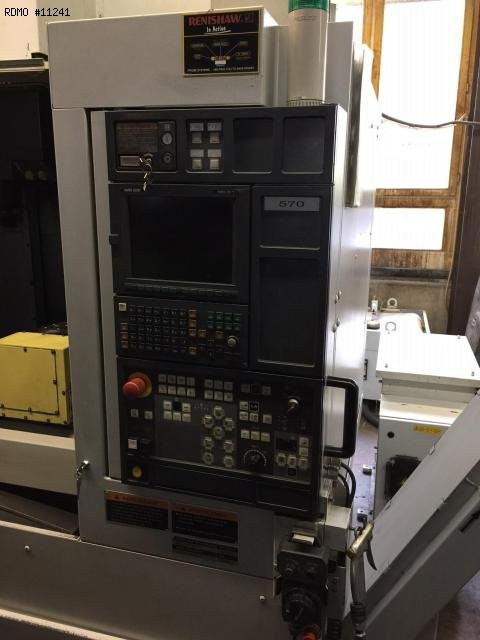

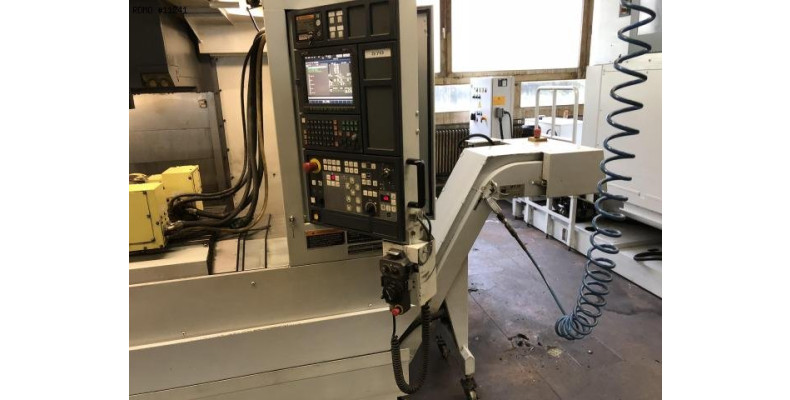

- CNC : FANUC 18iMB5
- Interactive programming : MAPPS
- 3 colors status lamp

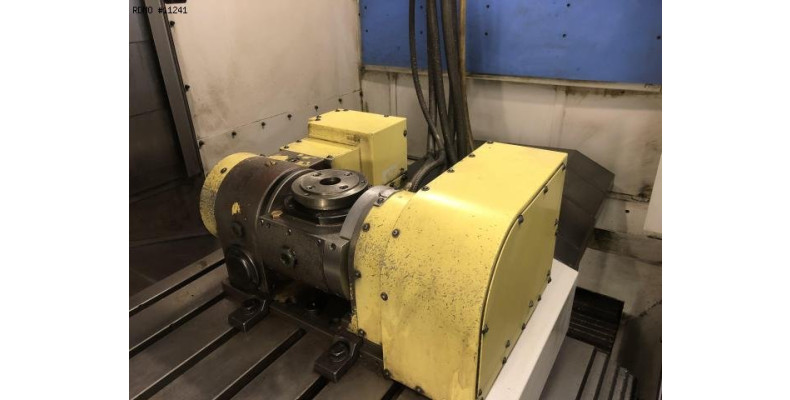

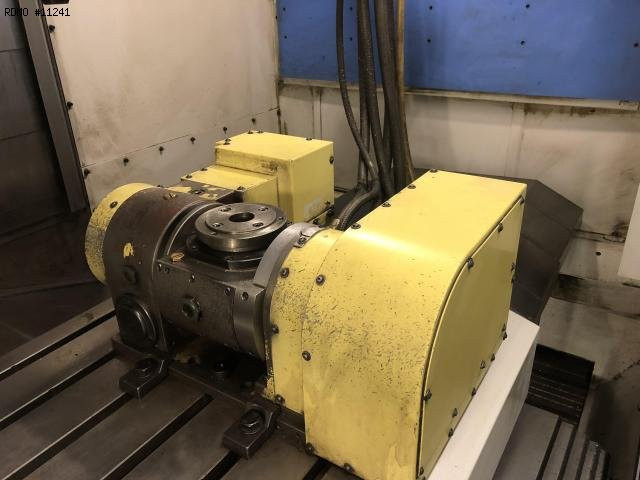

- Type of divisor : 4e-5e axe intégré
* manufacturer : NIKKEN
* model : 5AX-130-FA

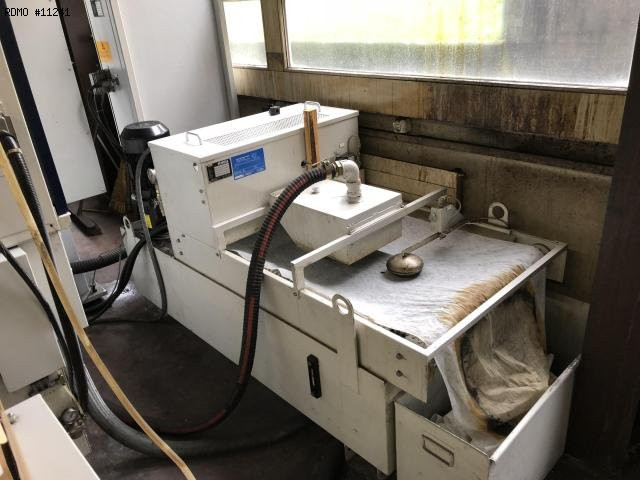

- Coolant tank
* with high-pressure pump : 15 [bars]

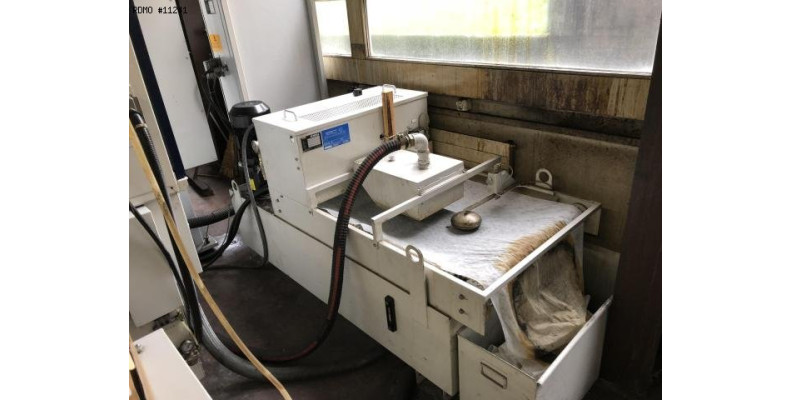

* with paper filtering unit
- Coolant through spindle
- Chips conveyor

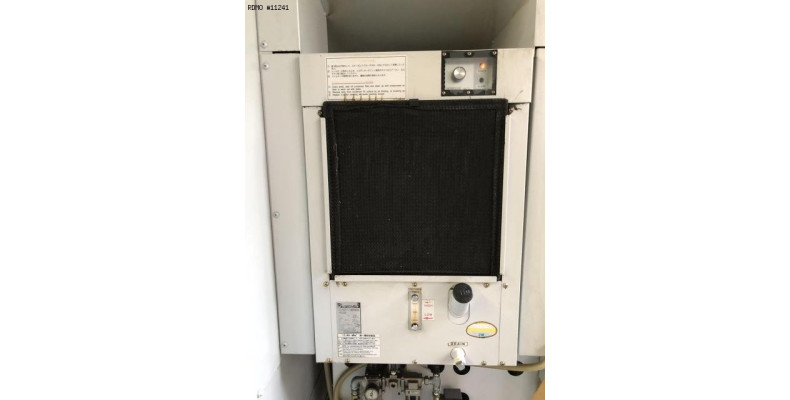

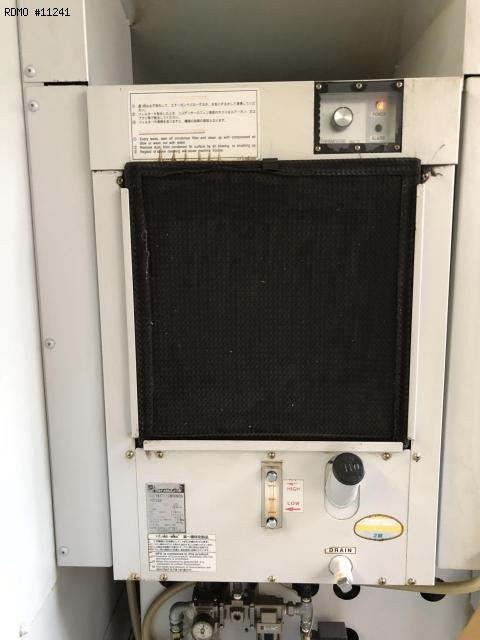

- Spindle cooling unit

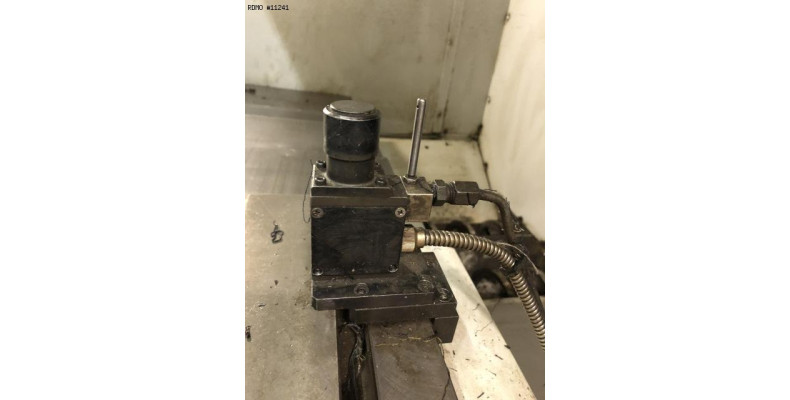

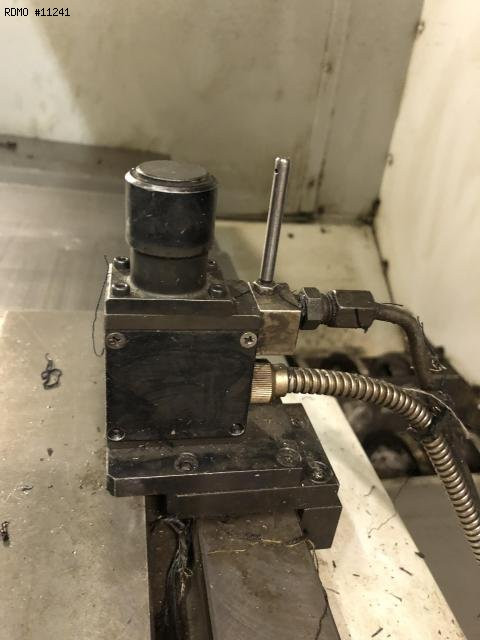

- Tool probe : OMRON

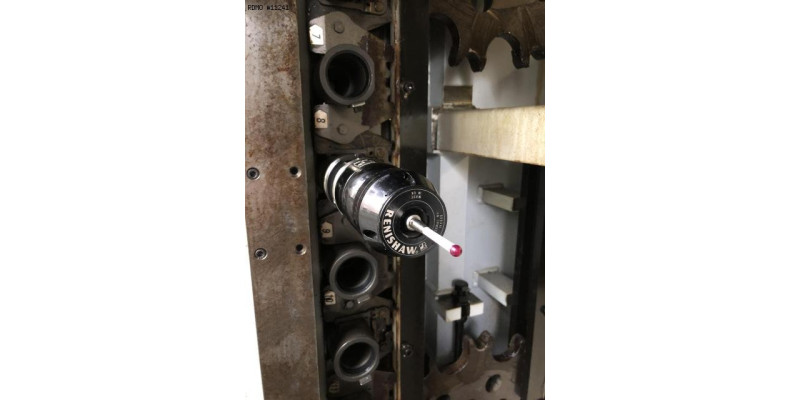

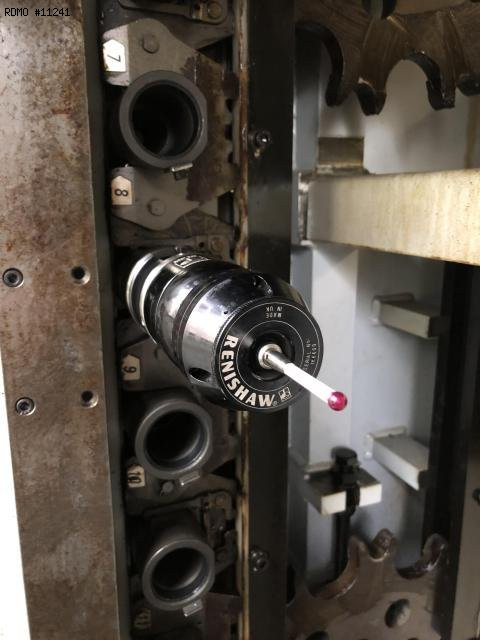

- Workpiece probe : RENISHAW
- Electric transformer
- Electronic handwheel
