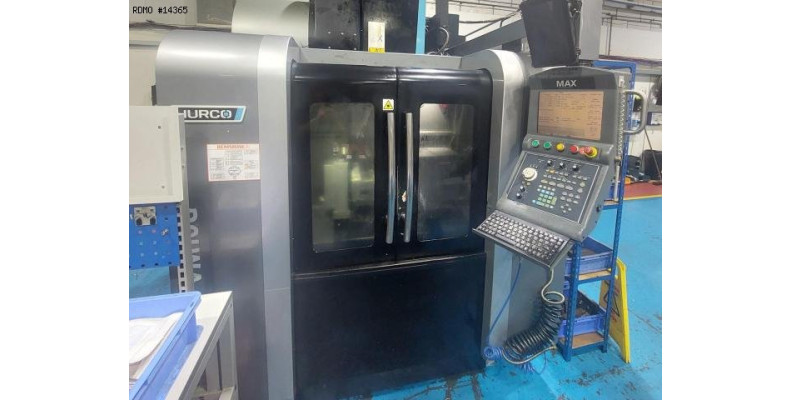

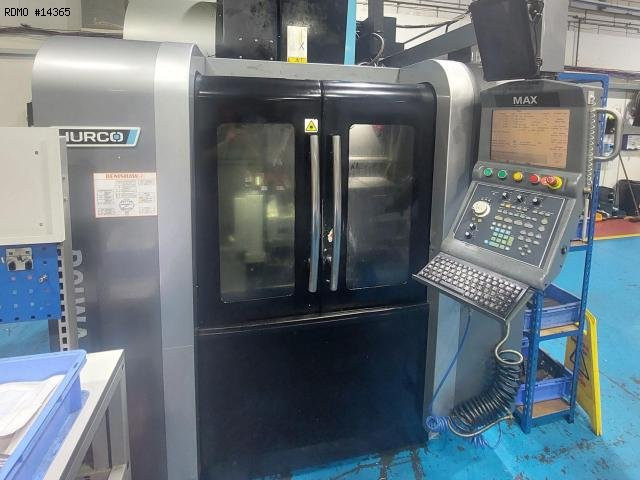

HURCO VM10U 5 assi

Fresatura Centro di lavoro verticale

14365

Specifiche tecniche per il download

Marca: HURCO

Modello: VM10U

Anno: 2012

Nr Serie: VM10U-16403122CRBH

14365

HURCO VM10U 5 assi

Fresatura Centro di lavoro verticale

Specifiche tecniche per il download

Marca: HURCO

Modello: VM10U

Anno: 2012

Nr Serie: VM10U-16403122CRBH

Richieda un prezzo

Caratteristiche

- Number of axes : 5
MILLING SPINDLE
- Tool holder type : BT40
- Spindle power : 8.9 [kW]
- Spindle speeds : 10.000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 533 x 406 483 [mm]
- Rapid traverses rates (X/Y/Z) : 24 [m/min]
- Distance table / spindle nose (min./max.) : 36-519 [mm]
TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 20
TABLE
- Table dimensions : 198 [mm]
- Maximum weight upon table : 150 [kg]
* Distance table / spindle nose (min./max.) : 36-519 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 22 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2994 x 2666 mm [mm]
- Machine height : 2669 [mm]
- Machine weight : 3360 [kg]
MACHINE HOURS
- Number of working hours : 22000 [h]

Attrezzatura

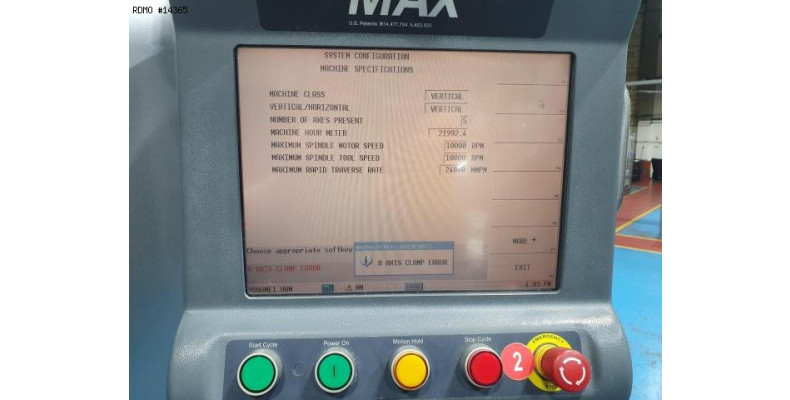

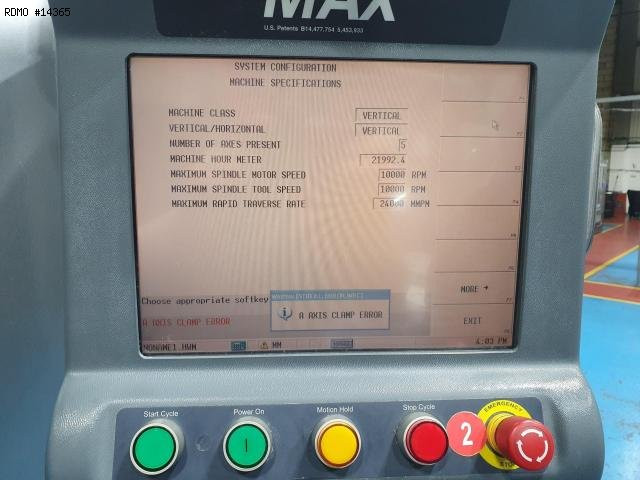

- CNC : HURCO WINMAX V09.01.393.24
- Rigid tapping
- 3 colors status lamp

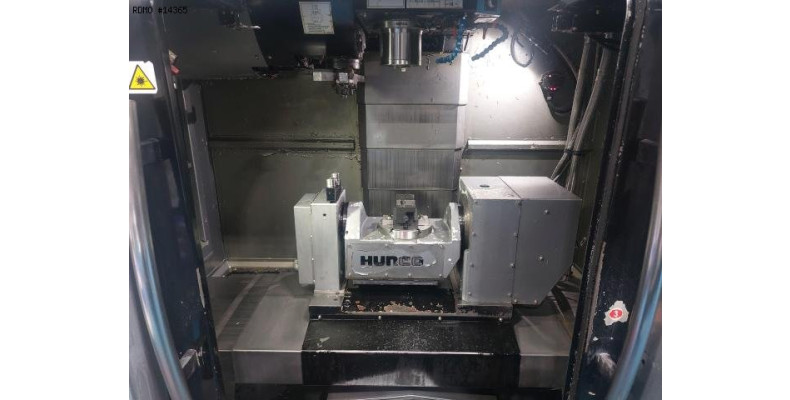

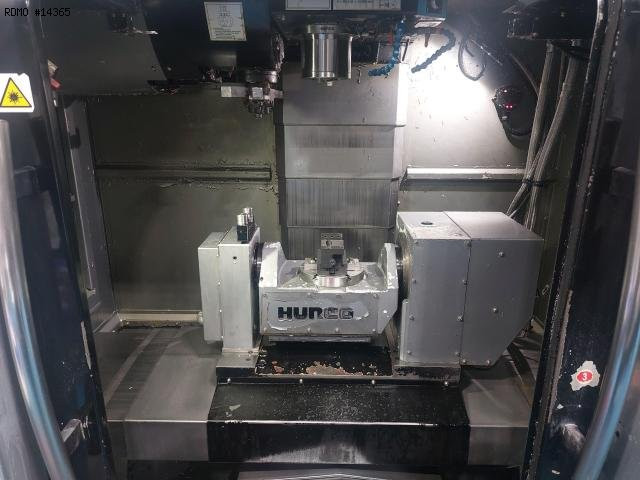

- Type of divisor : 4e-5e axe intégré
* manufacturer : HURCO
* travel 4th axis : -30 / +110 [°]
* indexing precision 4th axis : 0,001 [°]
* travel 5th axis : 360 [°]
* indexing precision 5th axis : 0,001 [°]

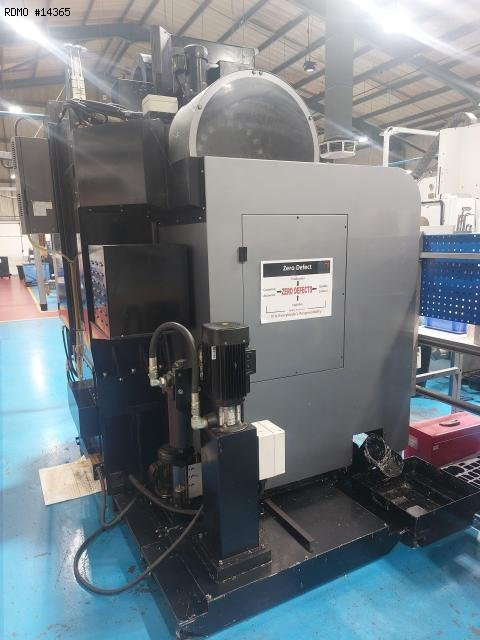

- Coolant tank
* with high-pressure pump : 20 [bars]
- Coolant through spindle
- Chip auger

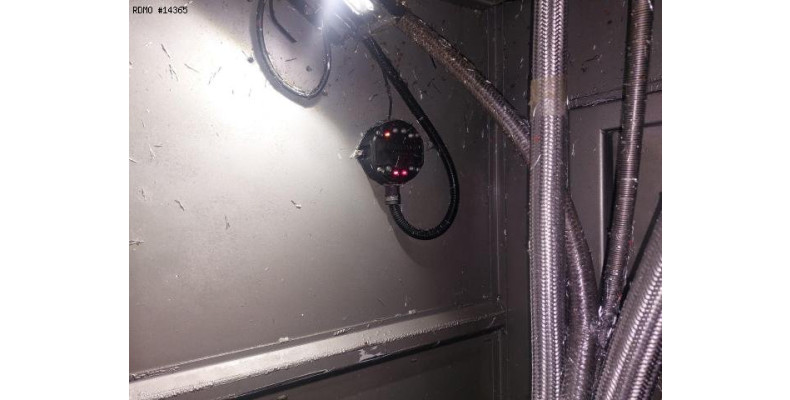

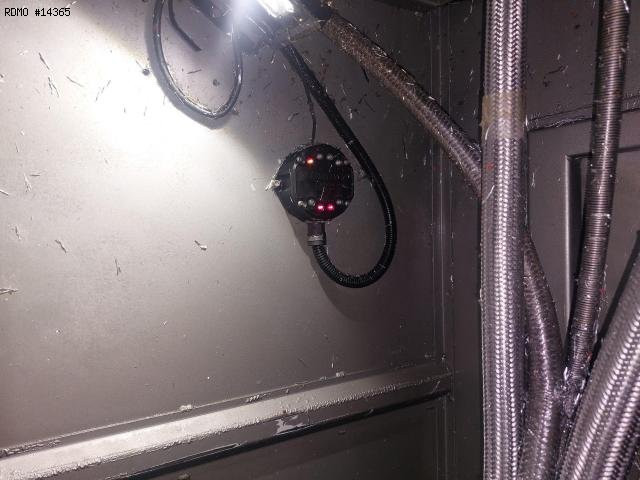

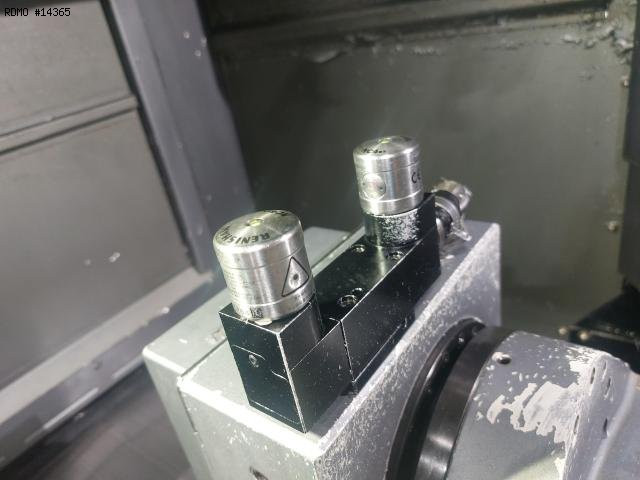

- Tool probe : Renishaw NCRTX/RX
