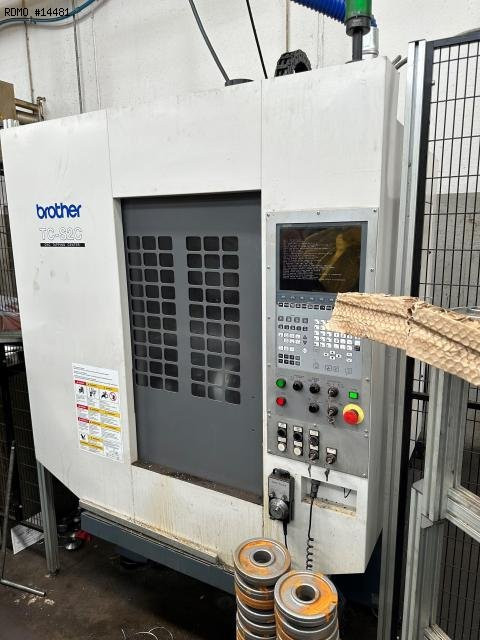

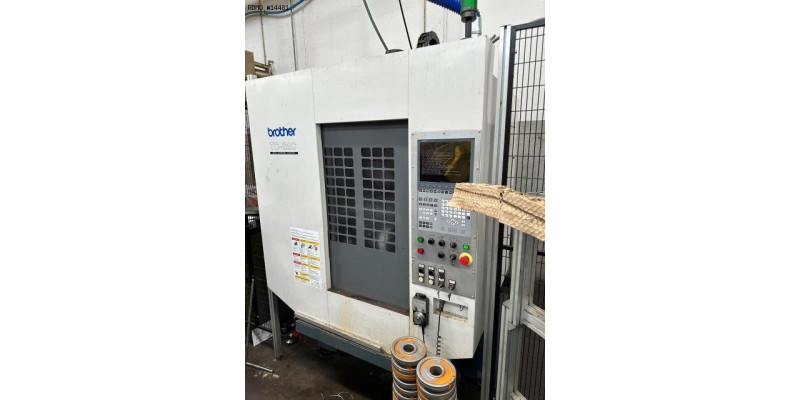

BROTHER TC-S2C 4 assi

Fresatura Centro di lavoro verticale

14481

Specifiche tecniche per il download

Marca: BROTHER

Modello: TC-S2C

Anno: 2006

Nr Serie: 111855

14481

BROTHER TC-S2C 4 assi

Fresatura Centro di lavoro verticale

Specifiche tecniche per il download

Marca: BROTHER

Modello: TC-S2C

Anno: 2006

Nr Serie: 111855

Richieda un prezzo

Caratteristiche

- Number of axes : 4
MILLING SPINDLE
- Tool holder type : BT30
- Spindle power : 10.1 [kW]
- Spindle speeds : 10 - 10.000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 500 x 400 x 300 [mm]
- Rapid traverses rates (X/Y/Z) : 50/50/50 [m/min]
- Cutting feed rates (X/Y/Z) : 10/10/10 [m/min]

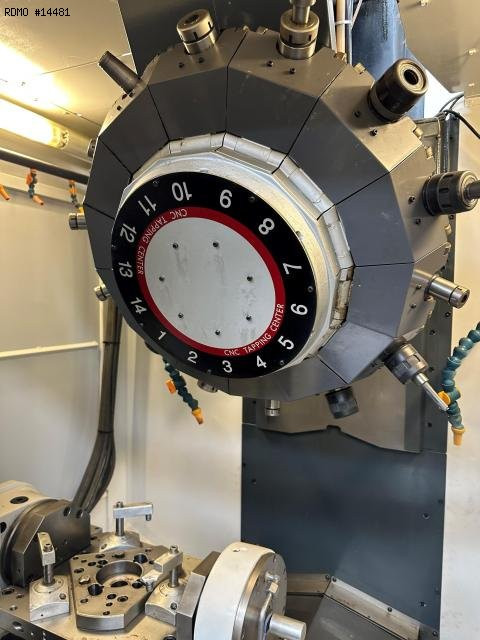

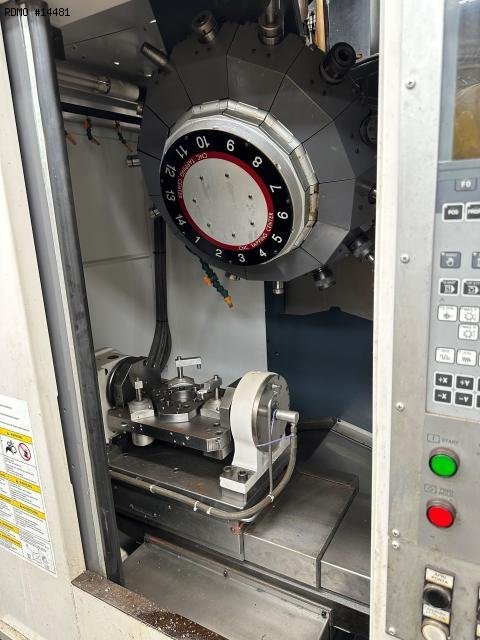

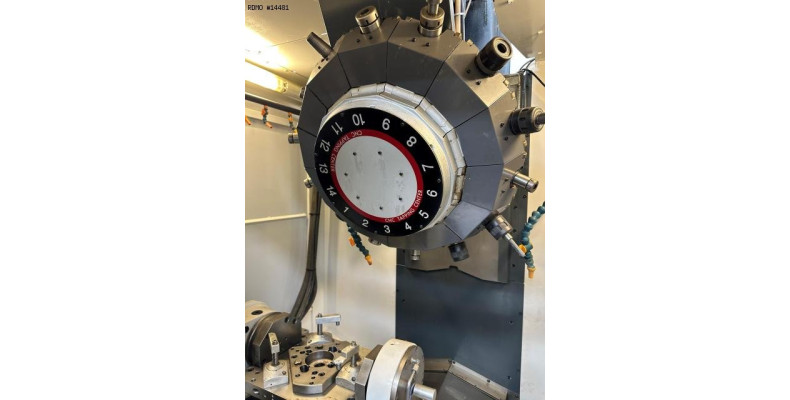

TOOL CHANGER
- Auto. Tool Changer type : Parapluie
- Tool magazine capacity : 14
- Tool exchange time : 1,7 [sec]
TABLE
- Table dimensions : 600 x 320 [mm]
- Maximum weight upon table : 250 [kg]
POWER SUPPLY
- Supply voltage : 380 [V]
- Total installed power : 15.9 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 1,624×2,829 [mm]
- Machine height : 2,608 [mm]
- Machine weight : 2300 [kg]
MACHINE HOURS
- Number of hours under power : 1479 [h]
- Number of working hours : 631 [h]

Attrezzatura

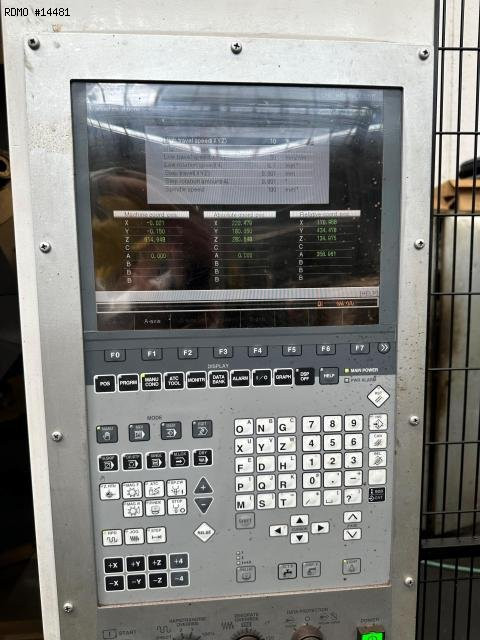

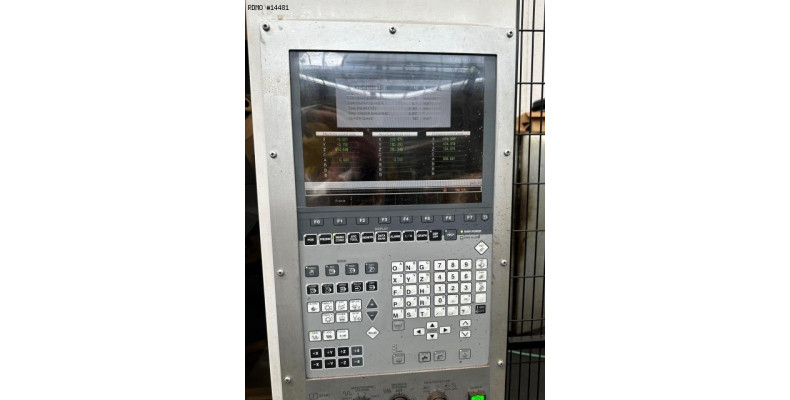

- CNC : BROTHER CNC-B00
- Electronic handwheel

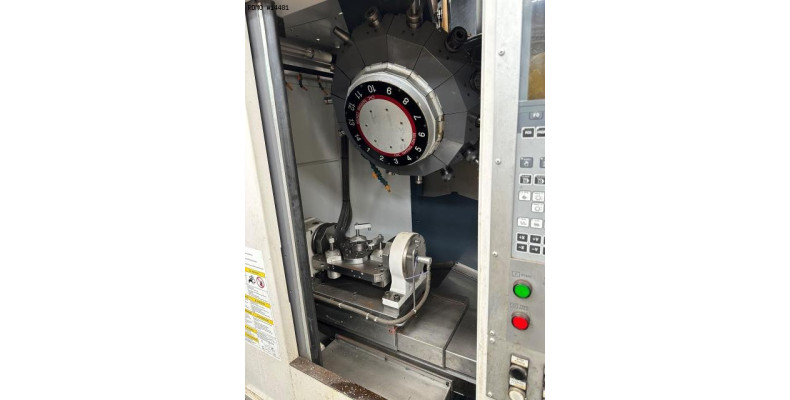

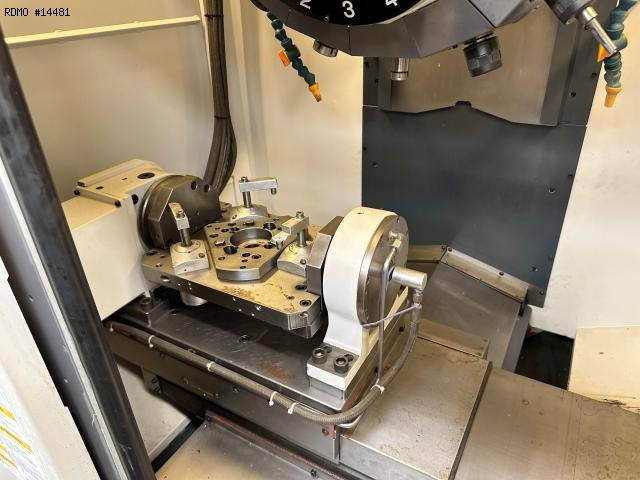

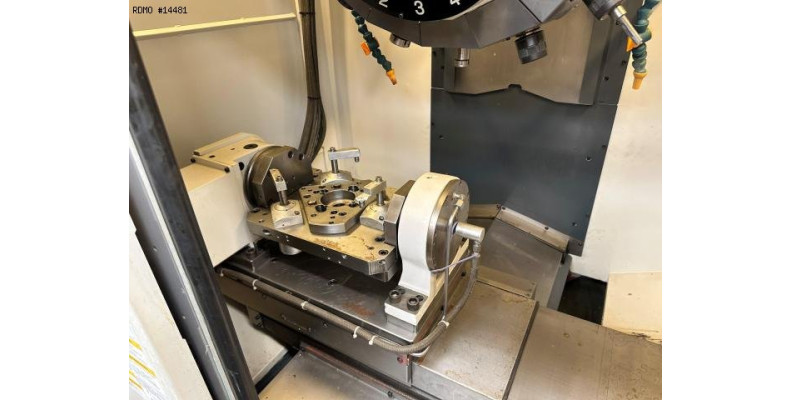

- DIVIDING UNIT
* manufacturer : KITAGAWA
* model : MR160LAS16
- Coolant tank
- Robot interface
- Automatic gate
- Electric transformer
- Tool-holders : 15
