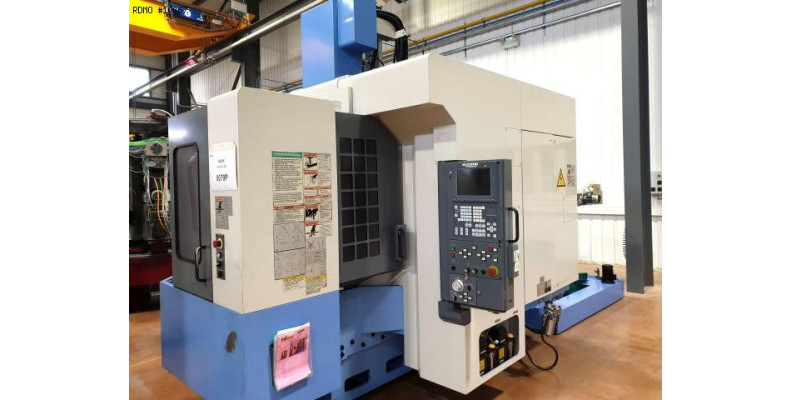

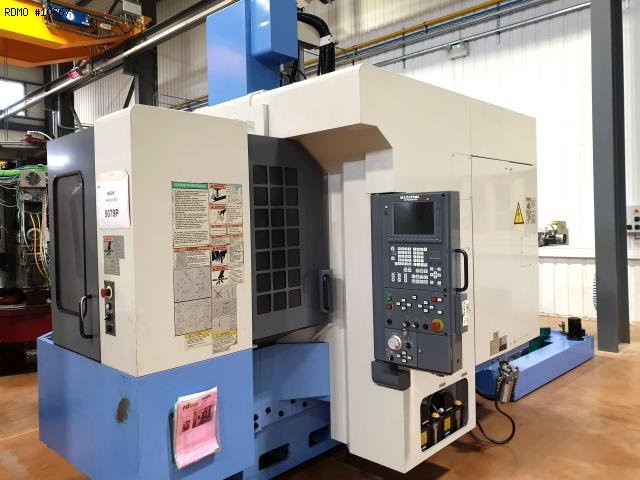

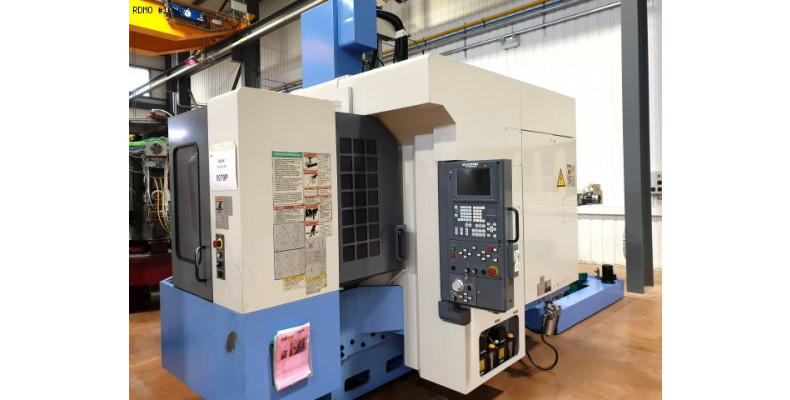

MAZAK VARIAXIS 500 5 assi

Fresatura Centro di lavoro verticale

10867

Specifiche tecniche per il download

Marca: MAZAK

Modello: VARIAXIS 500

Anno: 2002

Nr Serie: 156886

10867

MAZAK VARIAXIS 500 5 assi

Fresatura Centro di lavoro verticale

Specifiche tecniche per il download

Marca: MAZAK

Modello: VARIAXIS 500

Anno: 2002

Nr Serie: 156886

Richieda un prezzo

Caratteristiche

- Number of axes : 5

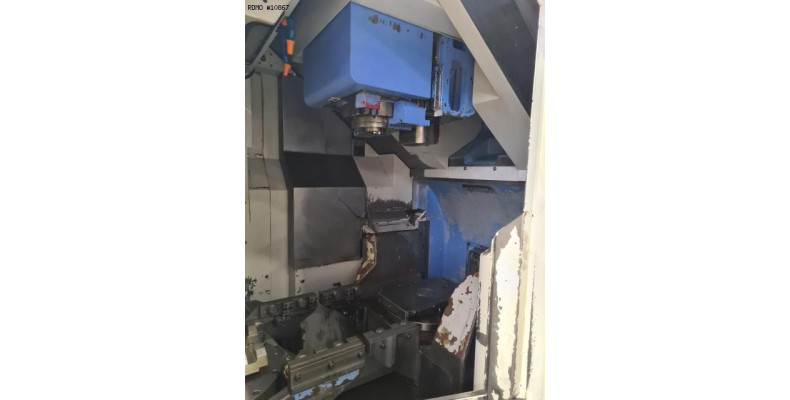

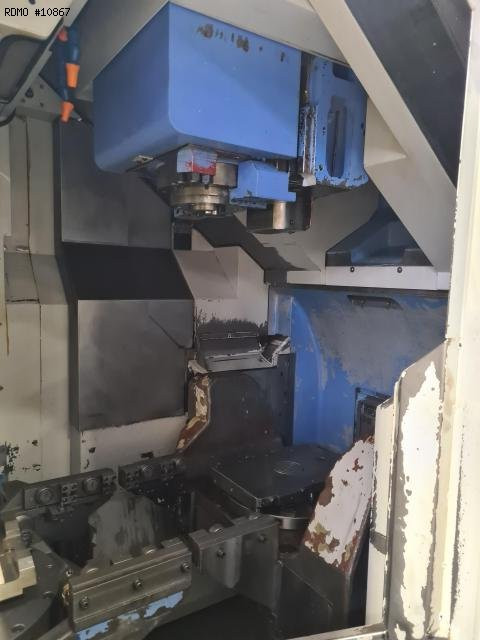

MILLING SPINDLE
- Tool holder type : SK 40
- Spindle power : 12 [kW]
- Spindle speeds : 12.000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 510 x 510 x 460 [mm]
A ROTARY AXIS
- Travel : +30 / -120 [°]
- Indexing precision : 0,001 [°]
B ROTARY AXIS
- Travel : 360 [°]
- Indexing precision : 0,001 [°]

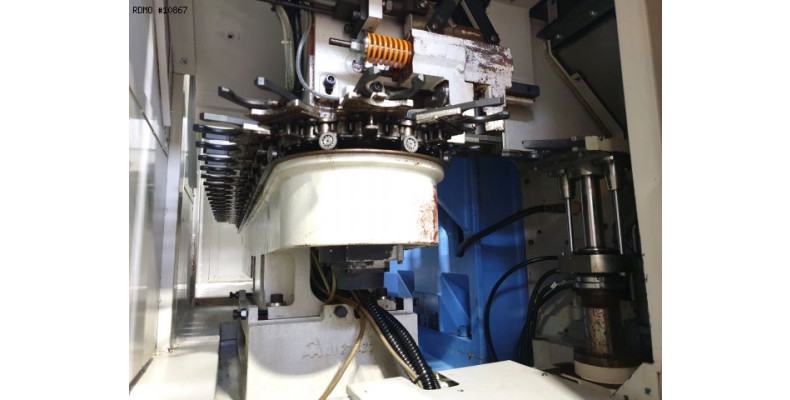

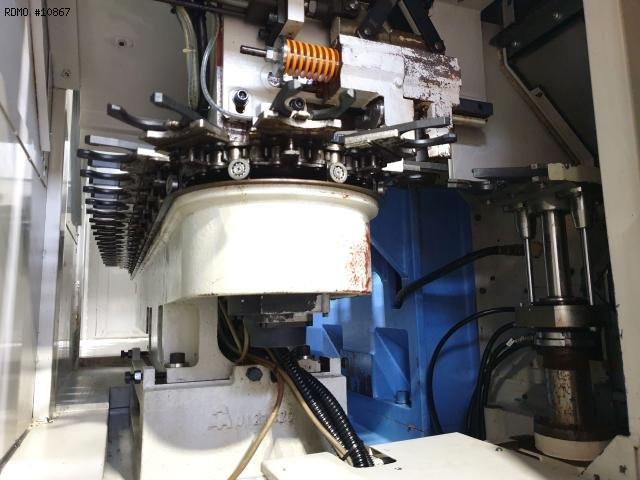

TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 40

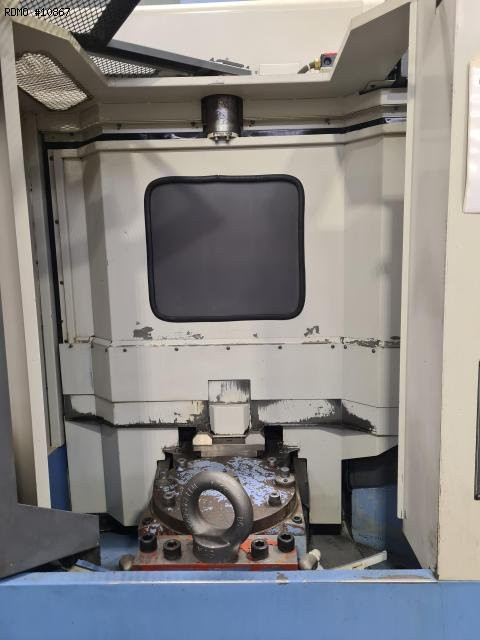

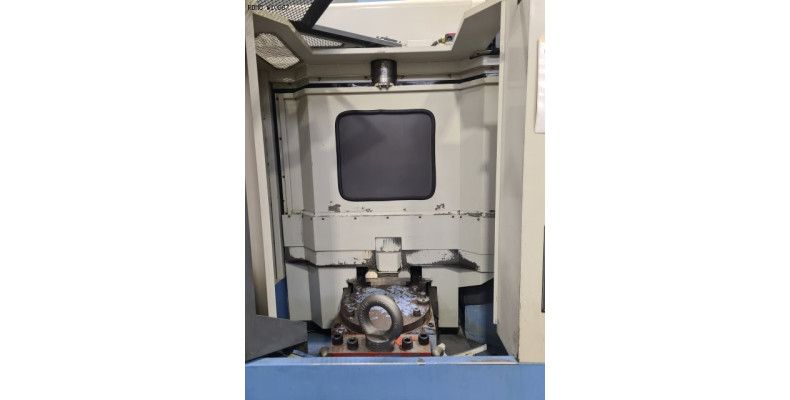

TABLE
- Table dimensions : 400 x 400 [mm]
- Maximum weight upon table : 300 [kg]
- Max. turning diameter : 500 [mm]
- Max. machining height : 405 [mm]
PALLET CHANGER
- Pallet size : 400 X 400 [mm]
- Pallets number : 2
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 50 [kVA]
WEIGHT & DIMENSIONS
- Machine weight : 11500 [kg]
MACHINE HOURS
- Number of working hours : 32763 [h]

Attrezzatura

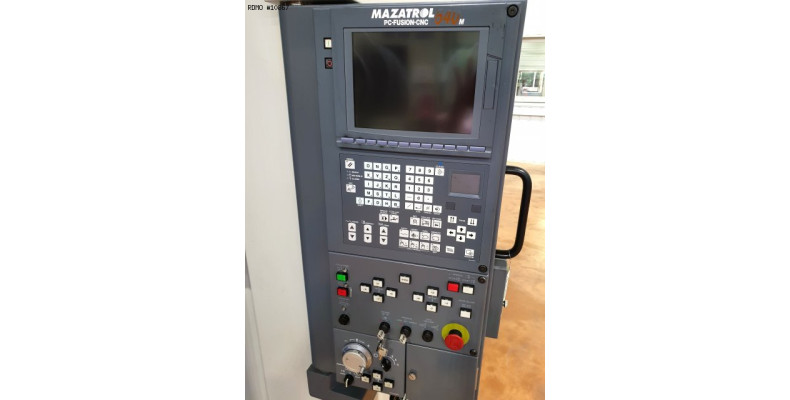

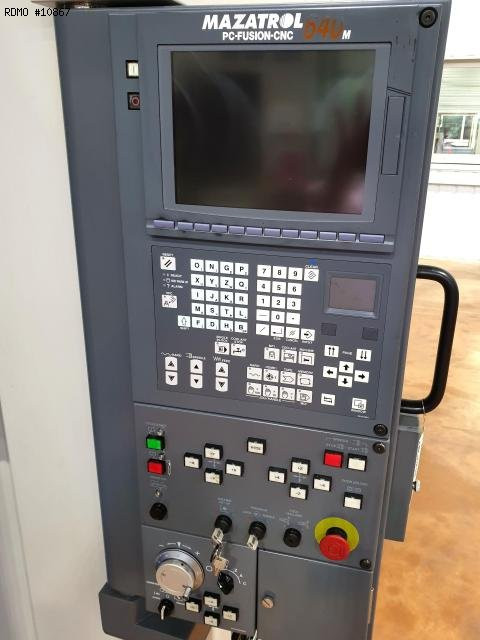

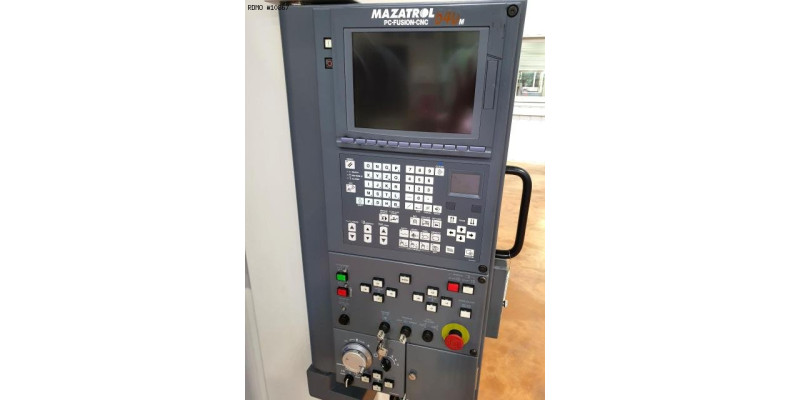

- CNC : Mazatrol PC-Fusion 640
- Interactive programming
- Supports : RS232/RJ45/PCMCIA
- Rigid tapping
- Coolant tank
* with high-pressure pump : 15 [bars]
- Coolant through spindle
- Spindle cooling unit

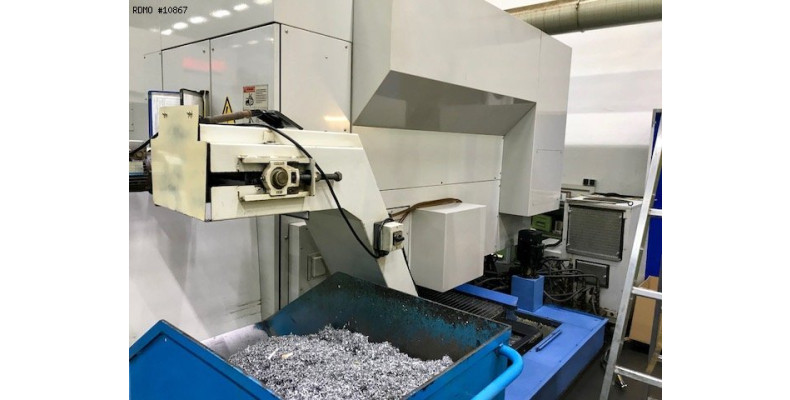

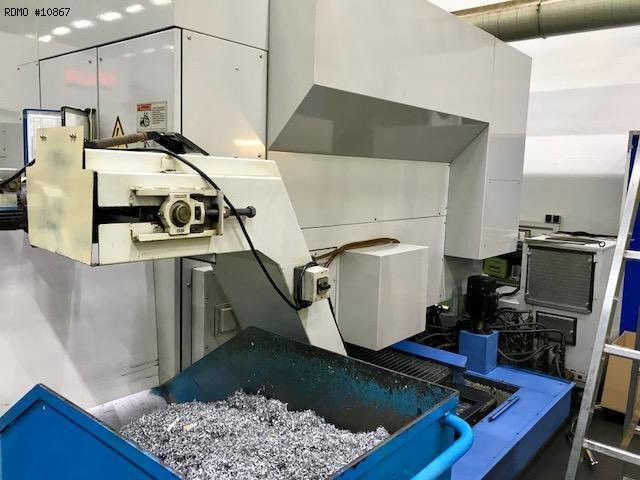

- Chips conveyor : MAYFRAN
- Tool probe
