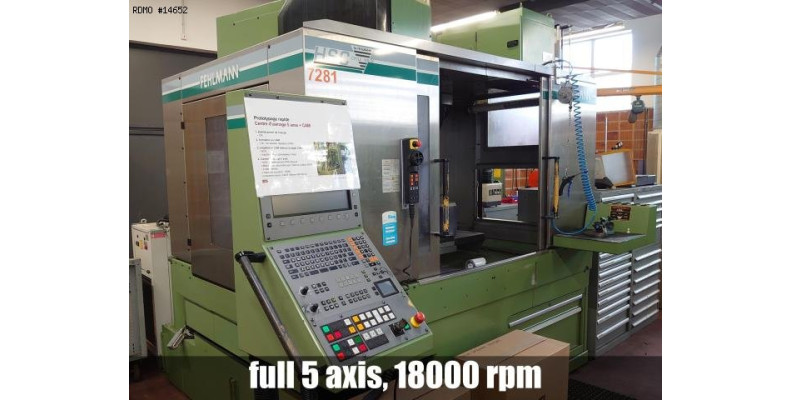

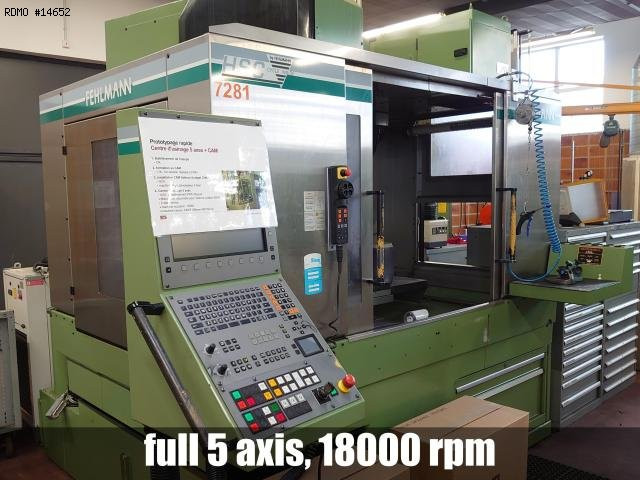

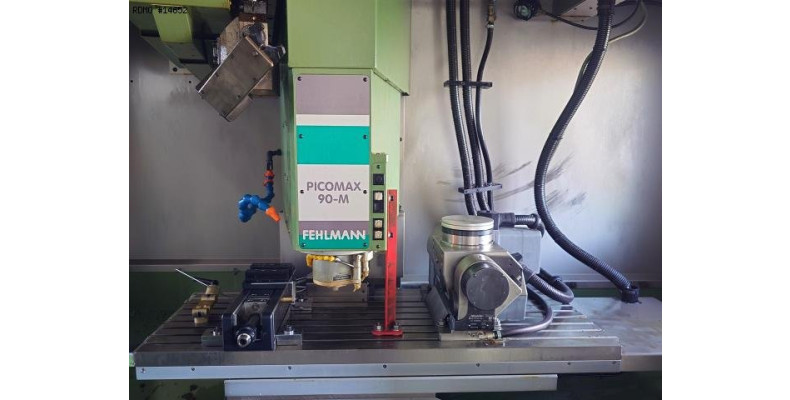

FEHLMANN Picomax 90-M 5 assi

Fresatura Centro di lavoro verticale

14652

Specifiche tecniche per il download

Marca: FEHLMANN

Modello: Picomax 90-M

Anno: 2007

Nr Serie: 15508101

14652

FEHLMANN Picomax 90-M 5 assi

Fresatura Centro di lavoro verticale

Specifiche tecniche per il download

Marca: FEHLMANN

Modello: Picomax 90-M

Anno: 2007

Nr Serie: 15508101

Richieda un prezzo

Caratteristiche

- Number of axes : 5

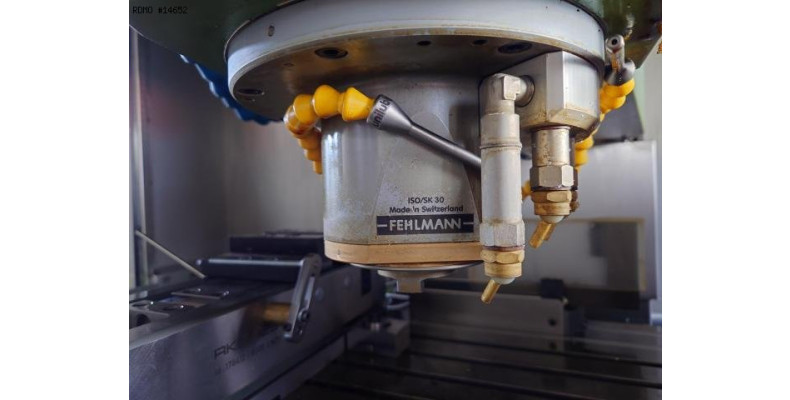

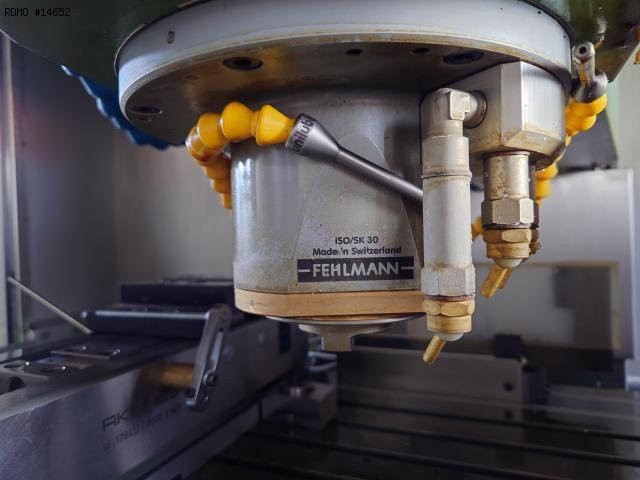

MILLING SPINDLE
- Tool holder type : ISO30
- Spindle speeds : 18000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 705 / 425 / 610 [mm]
A ROTARY AXIS
- Travel : 360 [°] (+/-)
- Indexing precision : 0.001 [°]
B ROTARY AXIS
- Travel : +180/-5 [°] (+/-)
- Indexing precision : 0.001 [°]
TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 32
TABLE
- Table dimensions : 1260 x 490 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 22 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2600 x 2300 [mm]
- Machine height : 3000 [mm]
- Machine weight : 5100 [kg]

Attrezzatura

- CNC : iTNC 530
- Electronic handwheel

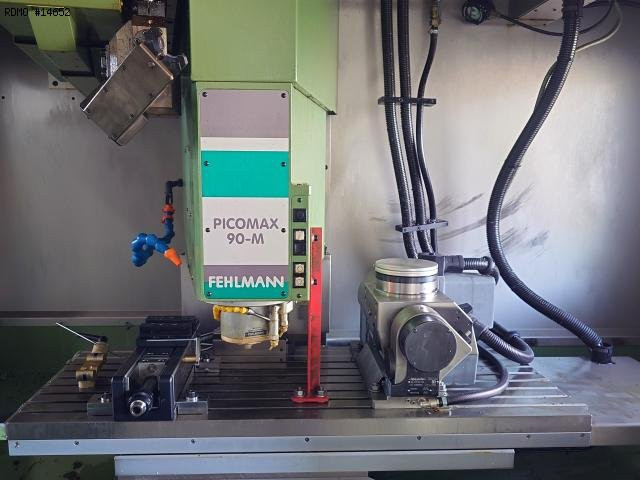

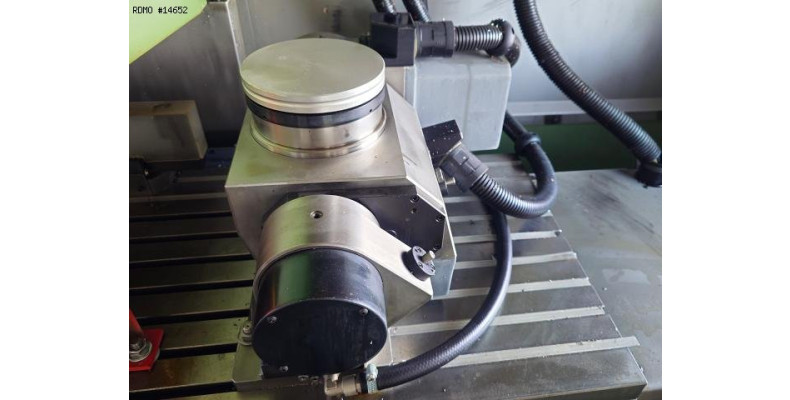

- Type of divisor : 4e-5e axe intégré
* manufacturer : Fehlmann
* model : ATS 160 CNC
* clamping diameter : 300 [mm]
* center height : 160 [mm]
* tightening type : Pneumatique

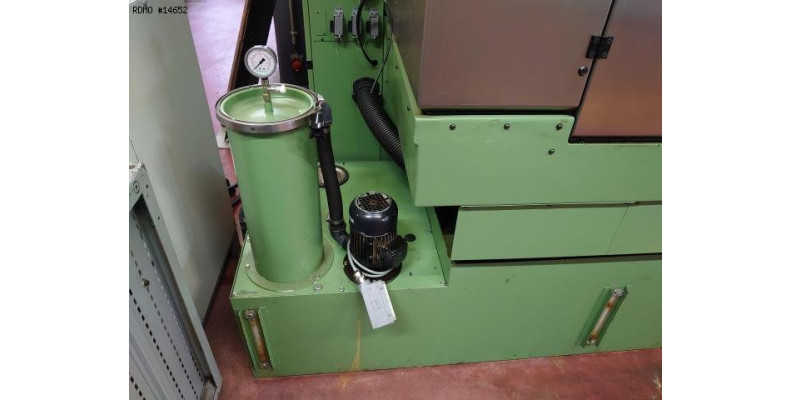

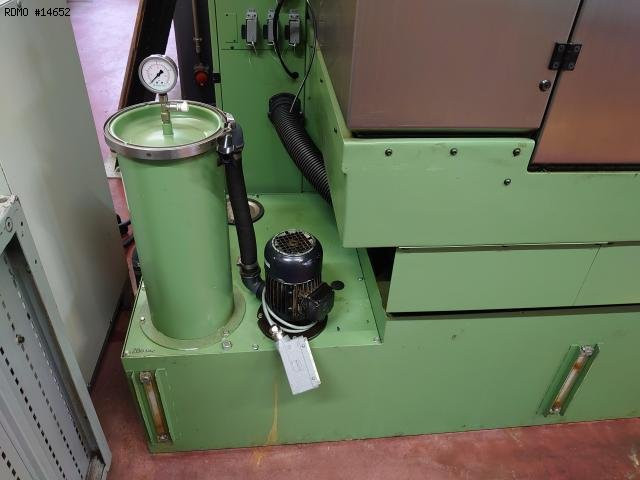

- Coolant tank
* with high-pressure pump
- Oil mist extractor

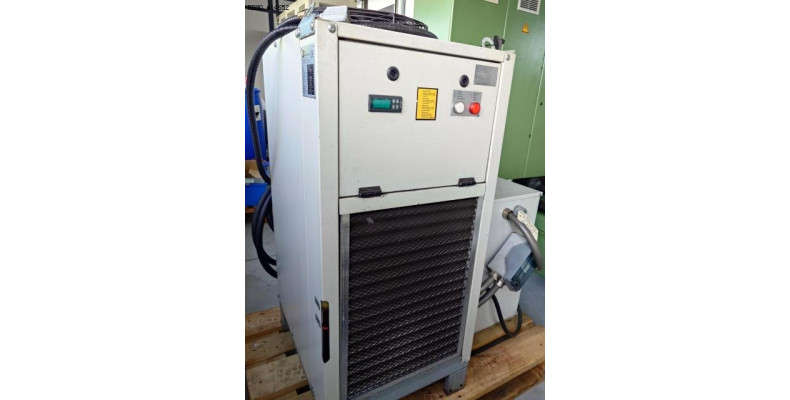

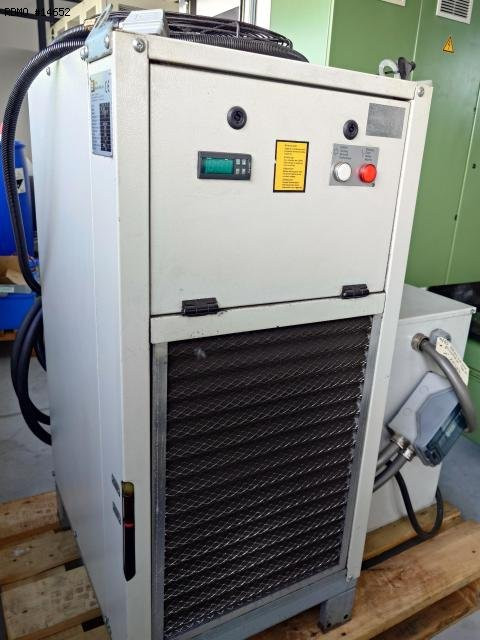

- Spindle cooling unit
- Workpiece probe : Renishaw OMP 40-2
- Electric transformer
