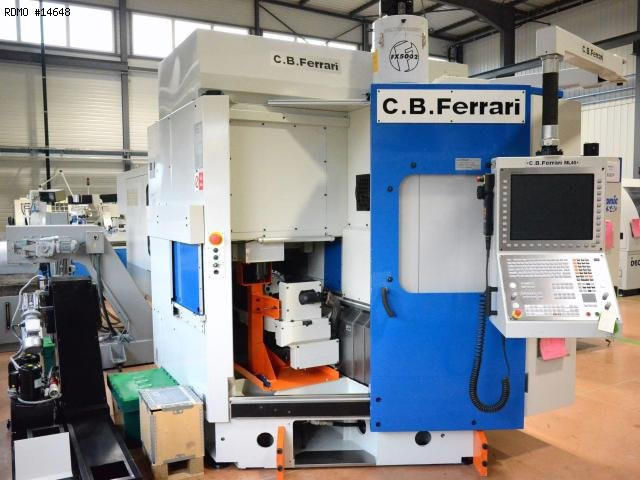

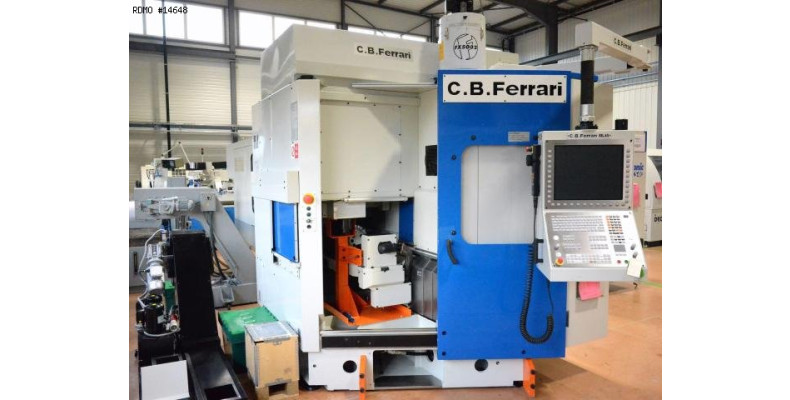

C.B. FERRARI ML 45 5 assi

Fresatura Centro di lavoro verticale

14648

Specifiche tecniche per il download

Marca: C.B. FERRARI

Modello: ML 45

Anno: 2014

Nr Serie: 2013041

14648

C.B. FERRARI ML 45 5 assi

Fresatura Centro di lavoro verticale

Specifiche tecniche per il download

Marca: C.B. FERRARI

Modello: ML 45

Anno: 2014

Nr Serie: 2013041

Richieda un prezzo

Caratteristiche

- Number of axes : 5

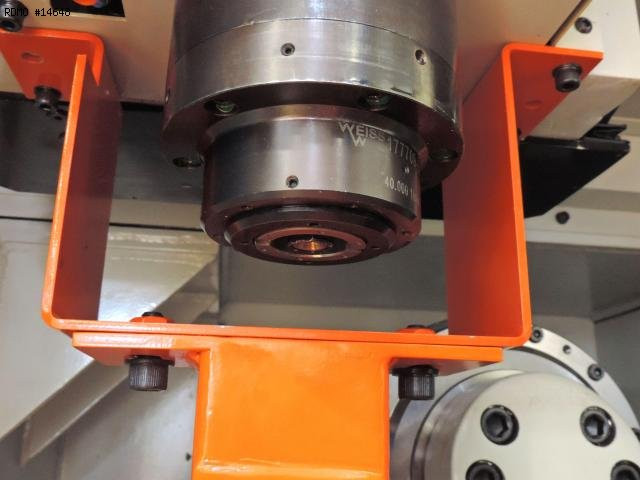

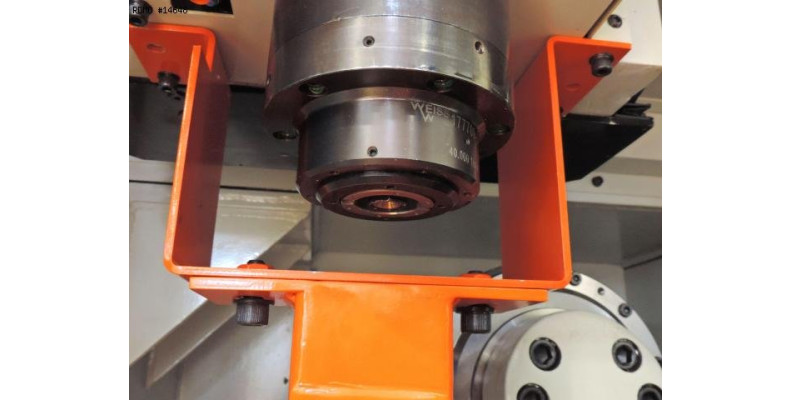

MILLING SPINDLE
- Tool holder type : HSK40
- Spindle power : 32,5 [kW]
- Spindle speeds : 40.000 [rpm]
- Number of spindle hours : 1.211 [h]
LINEAR AXES
- Travels on X/Y/Z axes : 420 / 320 / 320 [mm]
- Cutting feed rates (X/Y/Z) : 60.000 [mm/min]

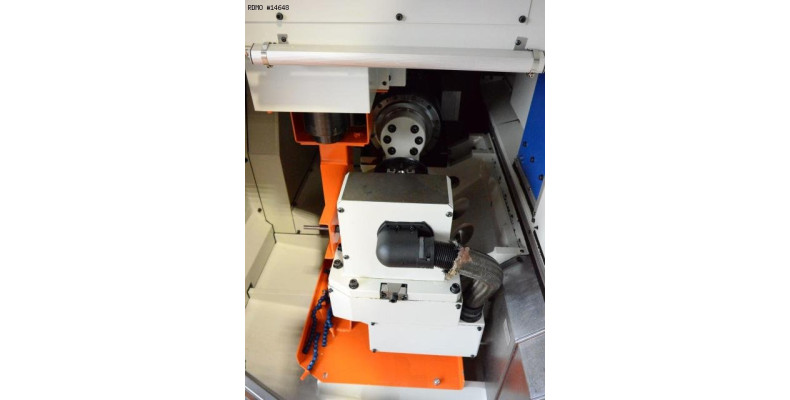

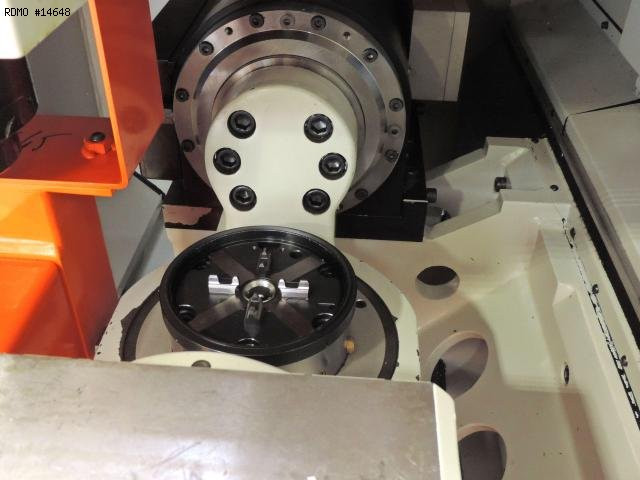

A ROTARY AXIS
- Travel : 360 [°]
- Indexing precision : 0,001 [°]
- Cutting feed rate : 200 [rpm]
B ROTARY AXIS
- Travel : 100 [°] (+/-)
- Indexing precision : 0,001 [°]
- Cutting feed rate : 200 [rpm]
TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 60
- Tool exchange time : 5 [sec]

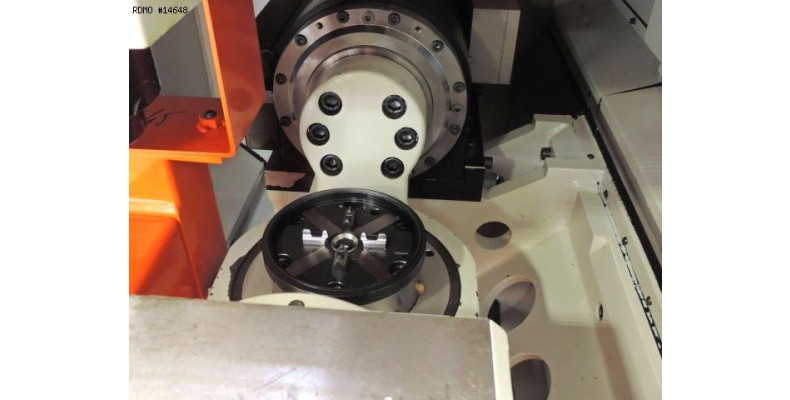

TABLE
- Table dimensions : Ø 250 [mm]
- Maximum weight upon table : 20 [kg]
- Distance table / spindle nose (min./max.) : 40 / 360 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 35 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 2.050 x 2.555 [mm]
- Machine height : 2.520 [mm]
- Machine weight : 5.000 [kg]
MACHINE HOURS
- Number of hours under power : 4873 [h]

Attrezzatura

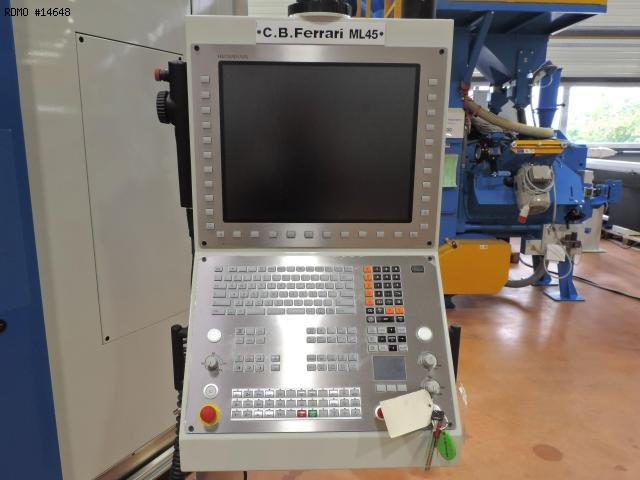

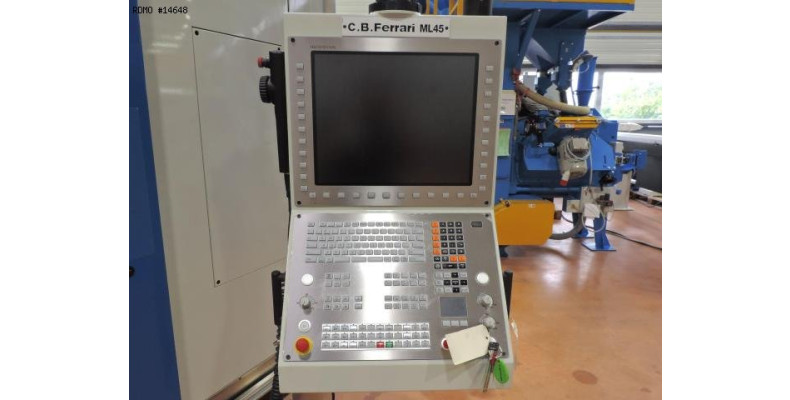

- CNC : Heidenhain iTNC530
- Electronic handwheel
- Linear scales
- 3 colors status lamp
- Coolant tank
* With washing gun

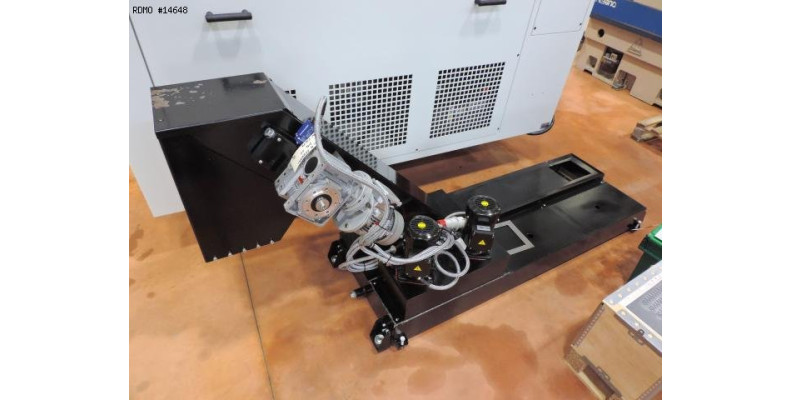

- Chips conveyor

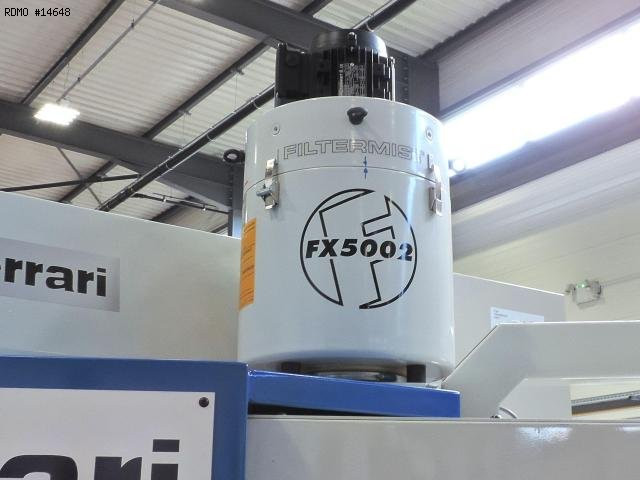

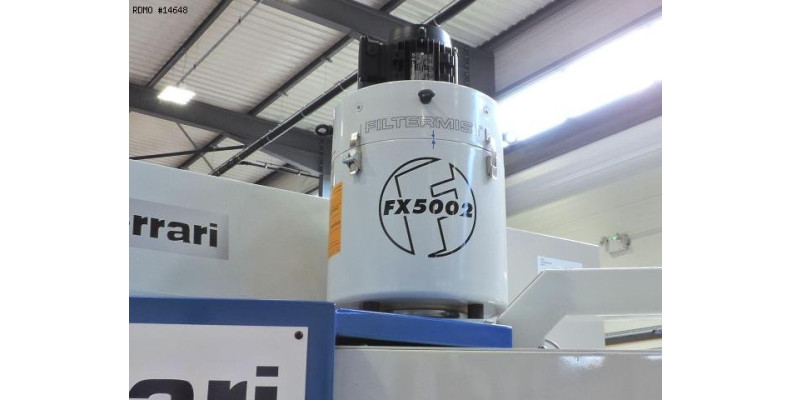

- Oil mist extractor : FILTERMIST FX5002
- Spindle cooling unit
- Electrical cabinet air conditioning
- Tool probe : Renishaw
- Workpiece probe : Renishaw
- Tool-holders : 60
- Tool preparation bench
