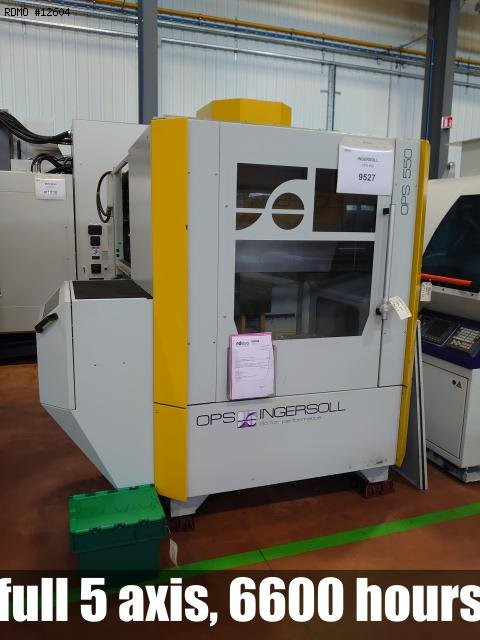

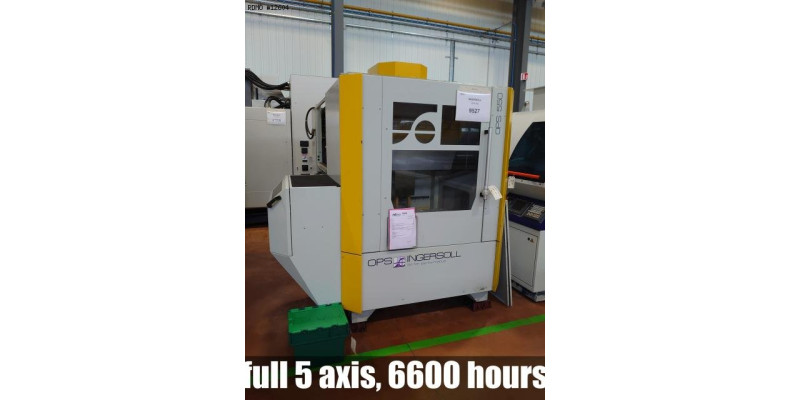

OPS INGERSOLL OPS 550

Fresatura Centro di lavoro verticale

12604

Specifiche tecniche per il download

Marca: OPS INGERSOLL

Modello: OPS 550

Anno: 2007

Nr Serie: 655043

12604

OPS INGERSOLL OPS 550

Fresatura Centro di lavoro verticale

Specifiche tecniche per il download

Marca: OPS INGERSOLL

Modello: OPS 550

Anno: 2007

Nr Serie: 655043

Richieda un prezzo

Caratteristiche

- Number of axes : 5
MILLING SPINDLE
- Tool holder type : HSK32
- Spindle power : 17 [kW]
- Spindle speeds : 30-42000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 550/400/400 [mm]
- Rapid traverses rates (X/Y/Z) : 30 [m/min]
A ROTARY AXIS
- Travel : 120 [°] (+/-)
- Indexing precision : 0.0001 [°]
B ROTARY AXIS
- Travel : 360 [°]
- Indexing precision : 0.0001 [°]
TOOL CHANGER
- Auto. Tool Changer type : Parapluie
- Tool magazine capacity : 32
TABLE
- Table dimensions : 450 [mm]
- Maximum weight upon table : 500 [kg]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 1900X2580 [mm]
- Machine height : 2260 [mm]
- Machine weight : 7200 [kg]

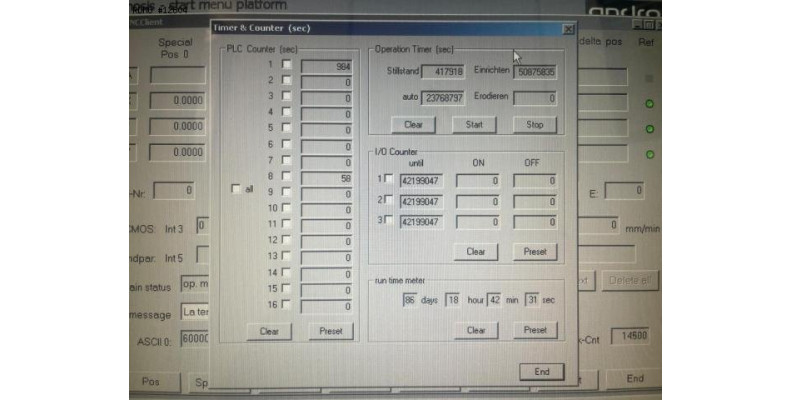

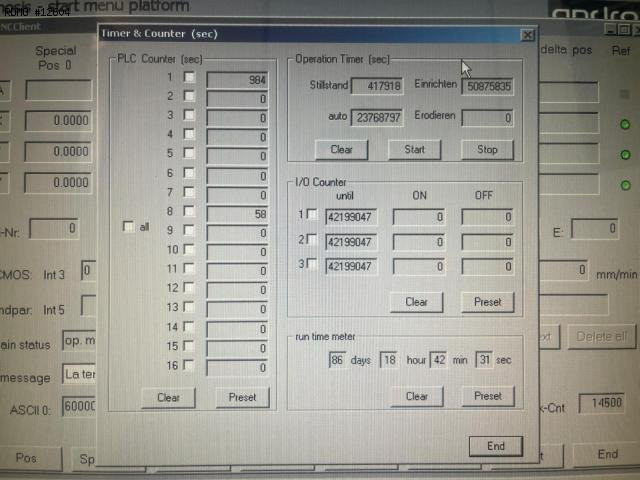

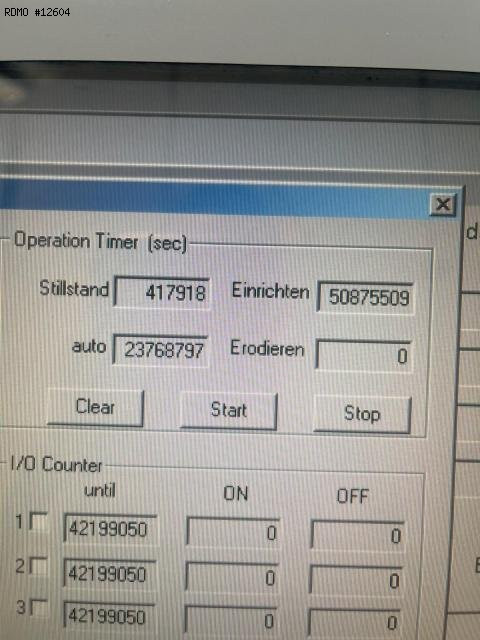

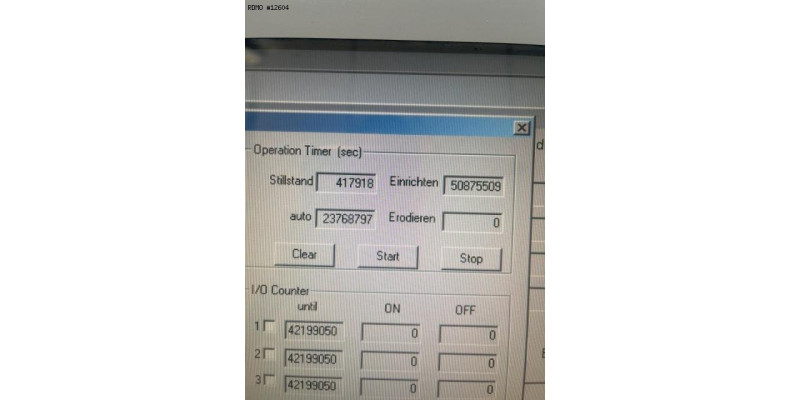

MACHINE HOURS

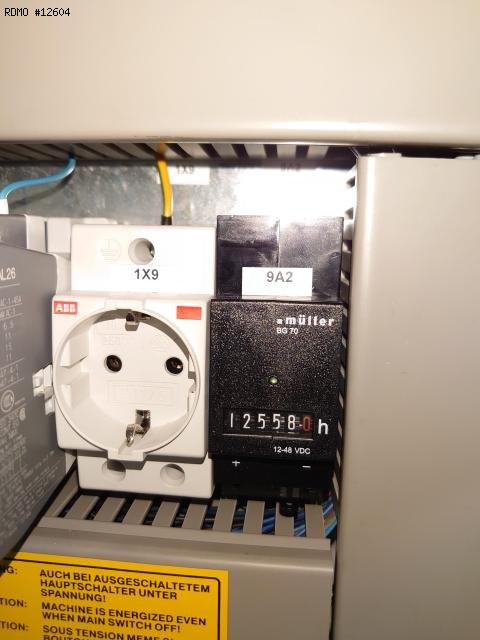

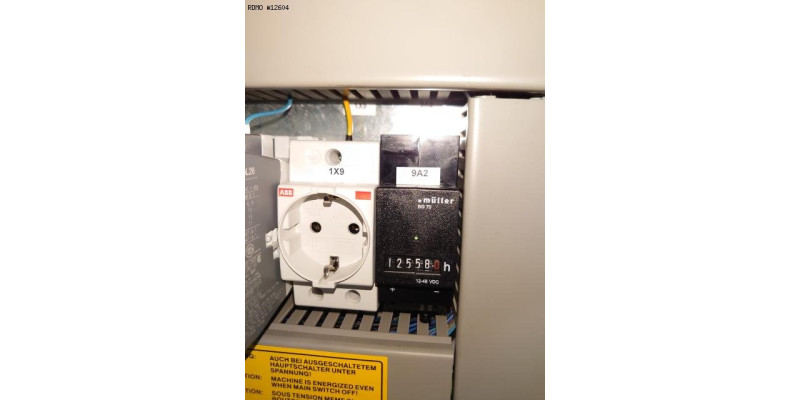

- Number of hours under power : 12558 [h]
- Number of working hours : 6602 [h]

Attrezzatura

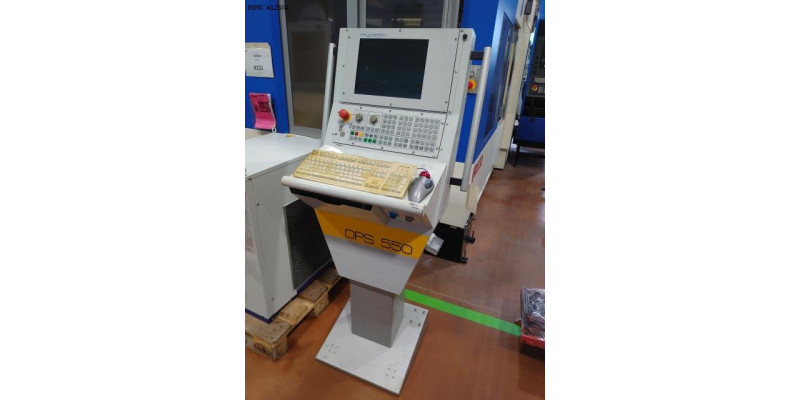

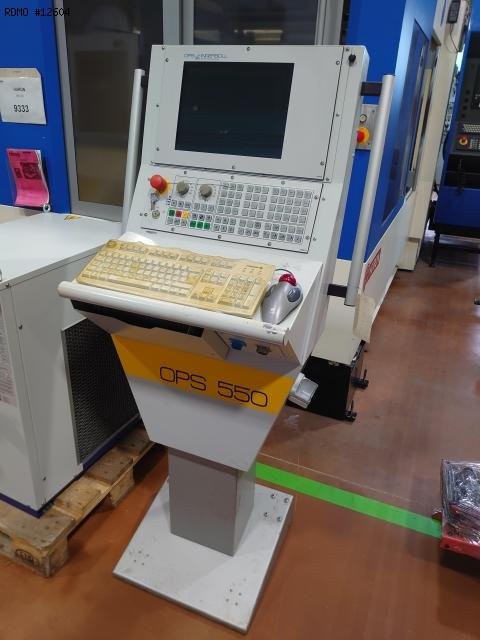

- CNC : INGERSOLL ANDRONIC
- Interface : Ethernet / RS232 / USB / PCMCIA
- Interactive programming
- Electronic handwheel
- Linear scales
- 3 colors status lamp

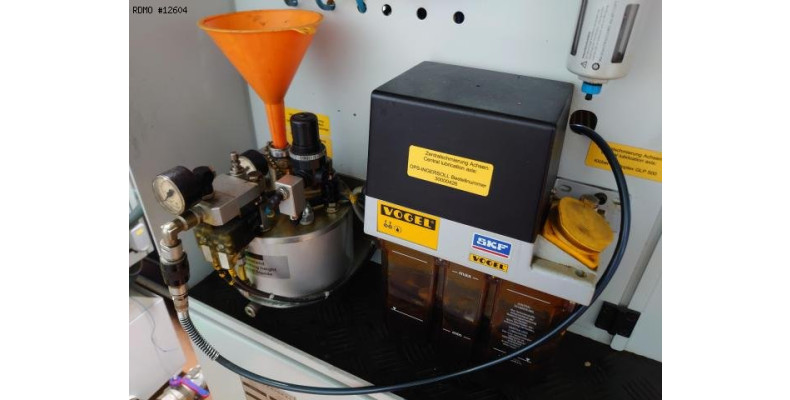

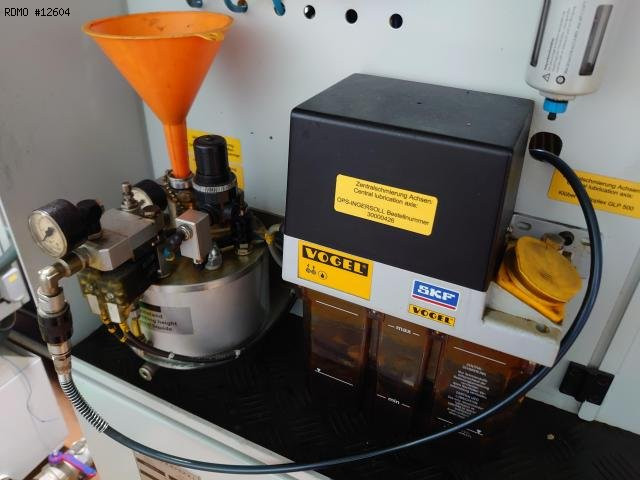

- Micro-lubrification coolant

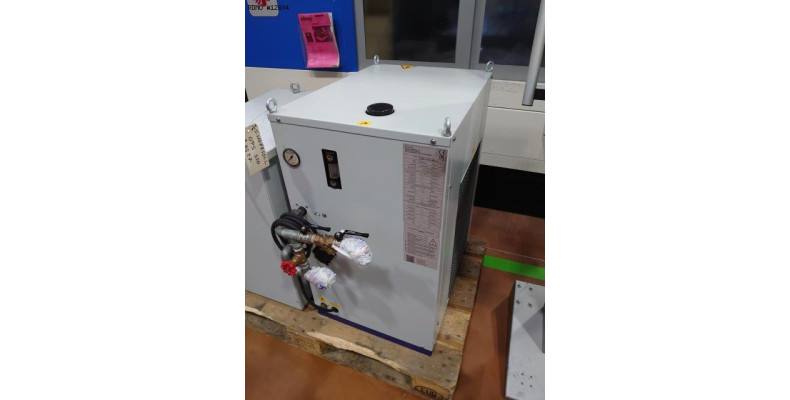

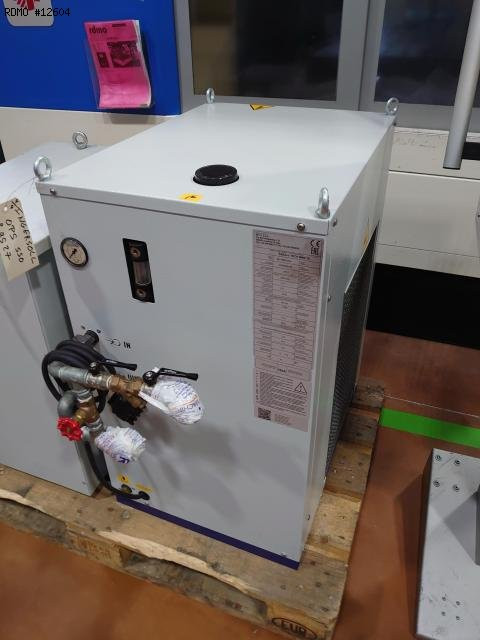

- Spindle cooling unit

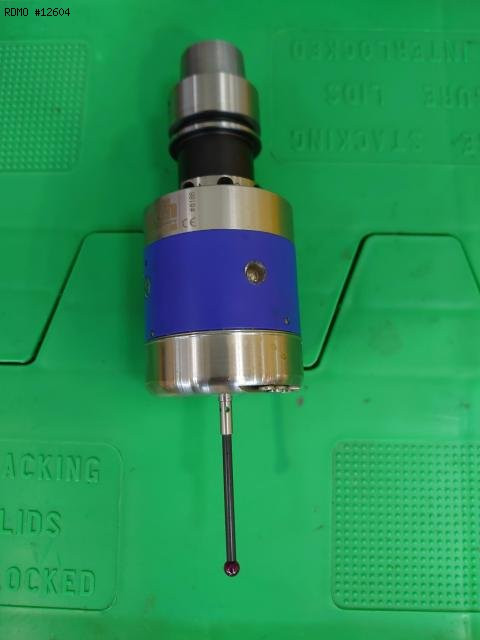

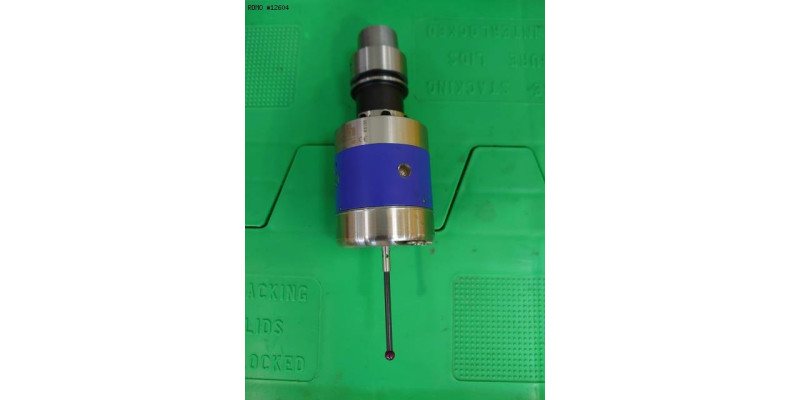

- Tool probe : BLUM
