- Number of axes : 8
- Number of spindles : 2
MAIN SPINDLE
- Spindle power : 5.5 [kW]
- Spindle speeds : 6500 [rpm]
- Max. bar diameter : 42 [mm]
- Z stroke : 120 [mm]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Spindle power : 3.7 [kW]
- Spindle speeds : 6500 [rpm]
- Max. bar diameter : 38 [mm]
- C axis indexing precision : 0.001 [°]
- X/Z stroke : 326 / 320 [mm]
- Rapid traverse rate : 18 [m/min]

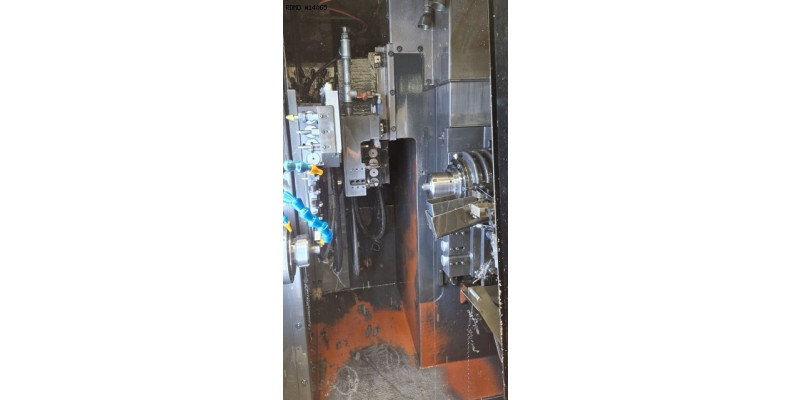

TOOL-HOLDERS SLIDE 1
- X stroke : 65 [mm]
- Y stroke : 350 [mm]

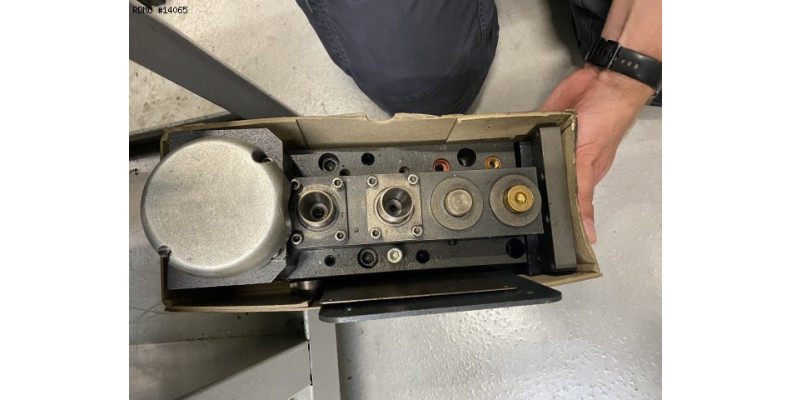

- Number of fixed tool holders : 5
- Number of turning tool holders : 3
- Live tools speed : 5000 [rpm]
TOOL-HOLDERS SLIDE 2
- Y stroke : 326 [mm]
- Number of fixed tool holders : 4
- Number of turning tool holders : 4
- Live tools speed : 5000 [rpm]

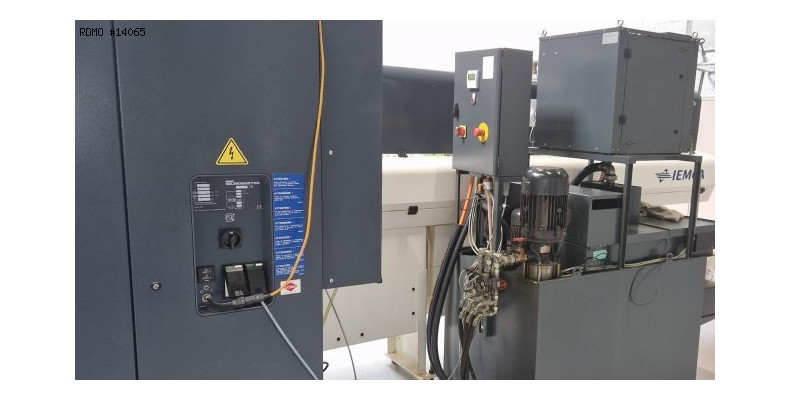

POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 40 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 5.350 x 2.000 [mm]
- Machine height : 2.300 [mm]
- Machine weight : 4700 [kg]
MACHINE HOURS
- Number of hours under power : 60 389 [h]
- Number of working hours : 40 723 [h]
Attrezzatura

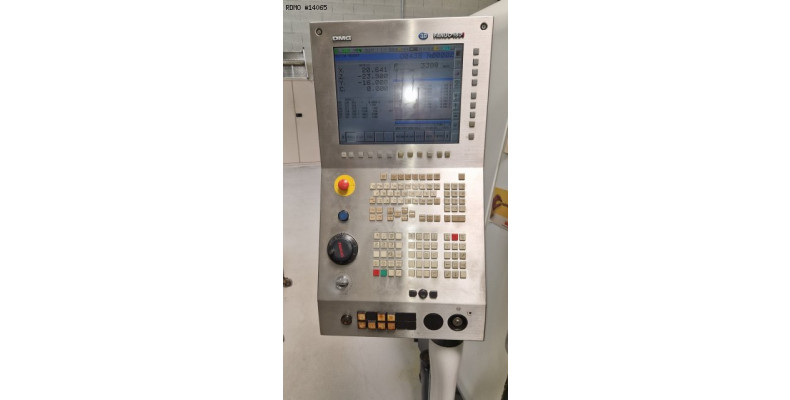

- CNC : Fanuc 160i
- 3 colors status lamp

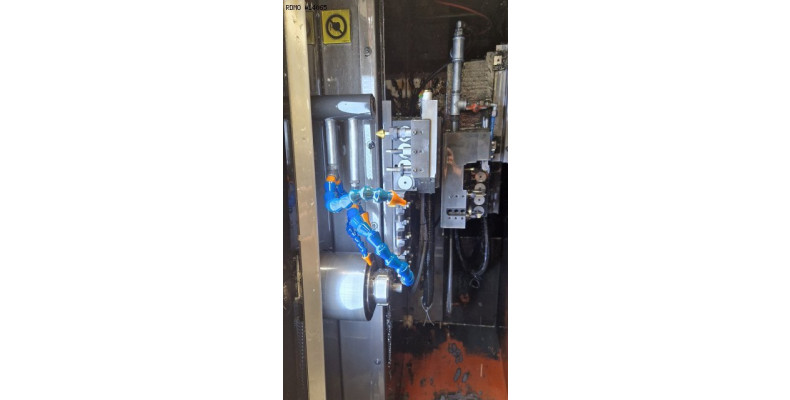

- Coolant tank
* with high-pressure pump : 20 [bars]
- Chips conveyor

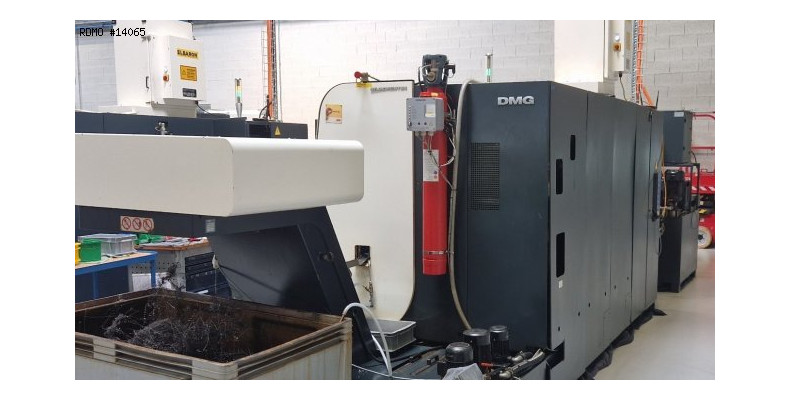

- Oil mist extractor : ELBARON
- Parts catcher
- Parts conveying strip

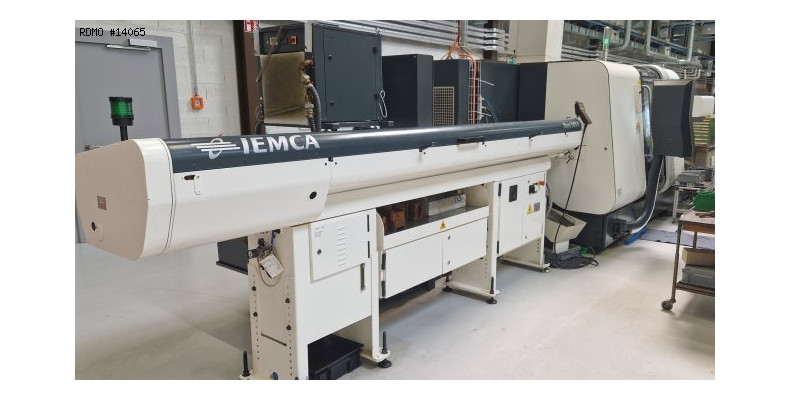

- Bar loader : IEMCA BOSS 545-E
- Fire extinguisher *
* NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
- Number of turning tool holders : 6
