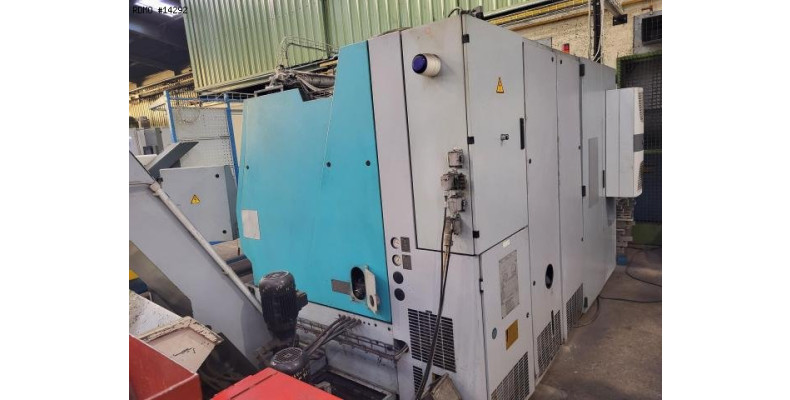

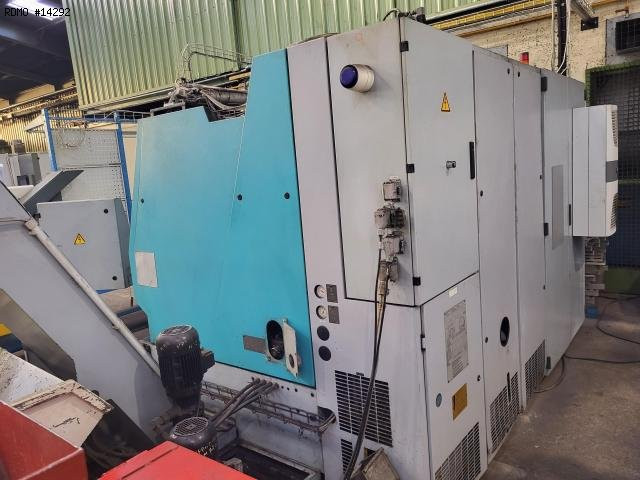

INDEX G200 YB 9 assi

- Number of axes : 9
- Number of spindles : 2
- Number of turrets : 2
MAIN SPINDLE
- Spindle nose : A2-5"
- Spindle power : 20/29 [kW]
- Spindle speeds : 5.000 [rpm]
- Max. bar diameter : 65 [mm]
- Max. turning diameter : 200 [mm]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Spindle nose : A2-5"
- Spindle power : 13/22 [kW]
- Spindle speeds : 5.000 [rpm]
- Max. bar diameter : 60 [mm]
- C axis indexing precision : 0,001 [°]
- Travel : 445 [mm]
TURRET
- Number of positions : 14
- Number of motorized positions : 14
- X/Z stroke : 155/590 [mm]
- Y stroke : 120 [mm]
- B Axis stroke : 360 [°]
- Tool holder type : VDI 25
- Live tools speed : 6.000 [rpm]
MILLING SPINDLE
- Spindle speeds : 6.000 [rpm]
- Spindle power : 5,5 [kW]
LOWER LEFT TURRET
- Number of positions : 14
- Number of motorized positions : 14
- X/Z stroke : 105/400 [mm]
- Tool holder type : VDI 25
- Live tools speed : 6.000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 39 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 3.450 x 2.520 [mm]
- Machine height : 2.650 [mm]
- Machine weight : 4.800 [kg]

- CNC : INDEX C200-4 (Siemens 840C)
- Tailstock option with counterspindle
- Coolant tank
- Chips conveyor : Droite KNOLL
- Tool probe : Renishaw
- Tool breakage detection

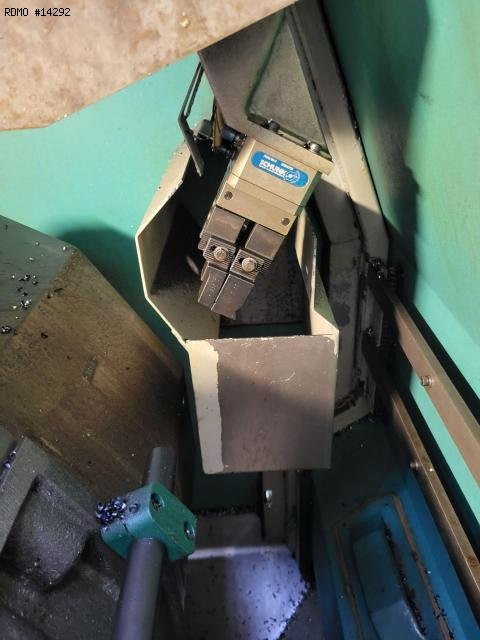

- Parts catcher
- Chuck 3 jaws : SMW 210BH
- Collet chuck : HAINBUCH Spanntop 65
- Number of fixed tool holders : 28
- Number of turning tool holders : 5
