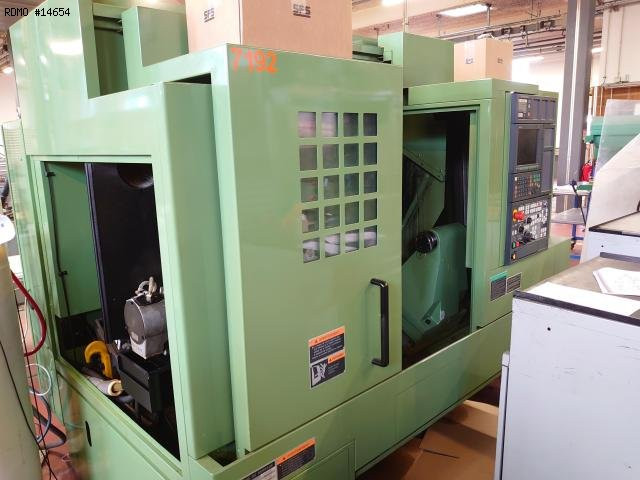

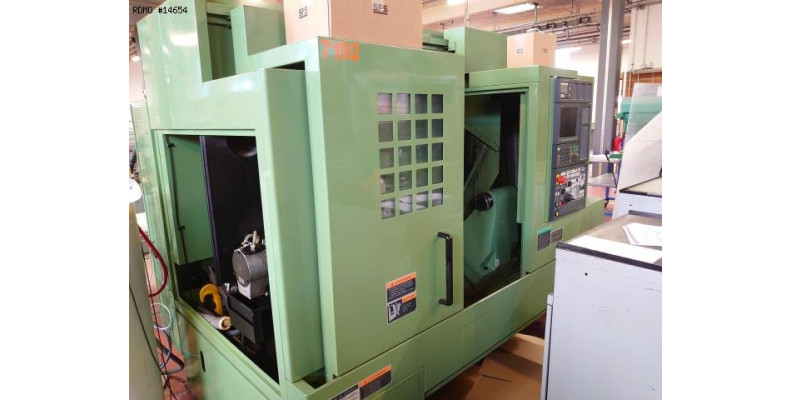

MORI SEIKI NL1500/500 2 assi

Tornitura Tornio a controllo numerico

Specifiche tecniche per il download

Marca: MORI SEIKI

Modello: NL1500/500

Anno: 2008

Nr Serie: NL151HG1016

Richieda un prezzo

Caratteristiche

- Number of axes : 2

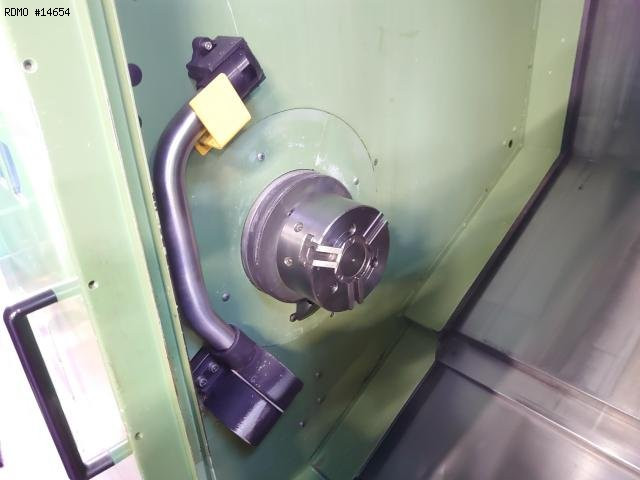

MAIN SPINDLE
- Spindle nose : A2-5
- Spindle power : 11 [kW]
- Spindle speeds : 6000 [rpm]
- Max. bar diameter : 52 [mm]
- Max. turning diameter : 350 [mm]
- Max. diameter on bench : 923 [mm]

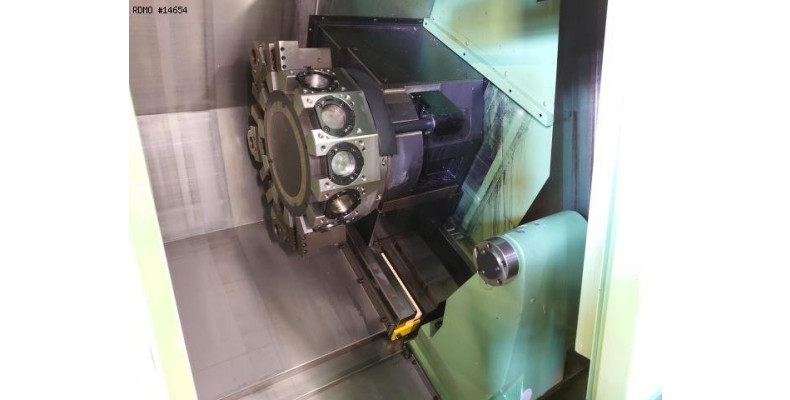

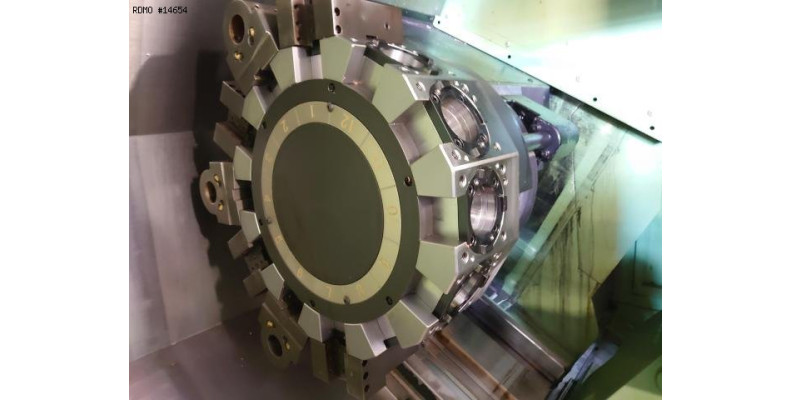

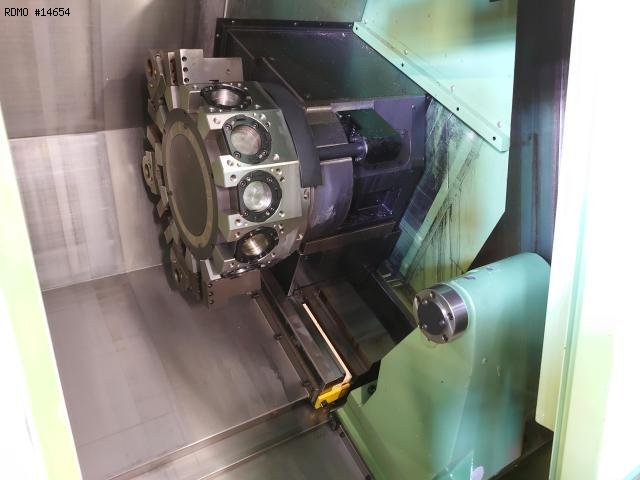

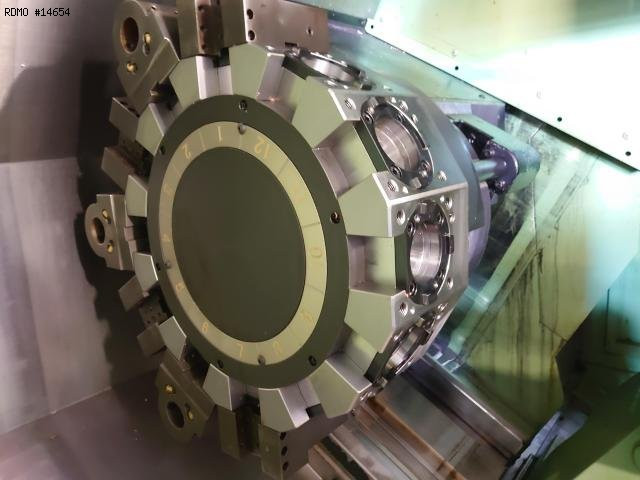

TURRET
- Number of positions : 12
- X/Z stroke : 260/590 [mm]
TAILSTOCK
- Tailstock type : Numérique
- Tailstock stroke : 564 [mm]
- Distance between centers : 694 [mm]
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 19 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2460 x 2000 [mm]
- Machine height : 2185 [mm]
- Machine weight : 5300 [kg]

Attrezzatura

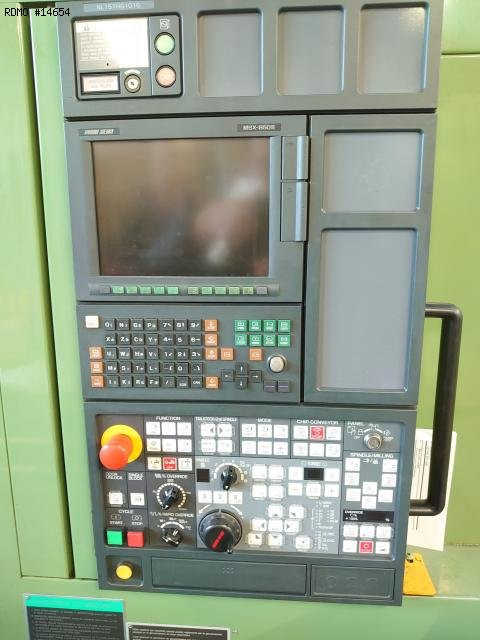

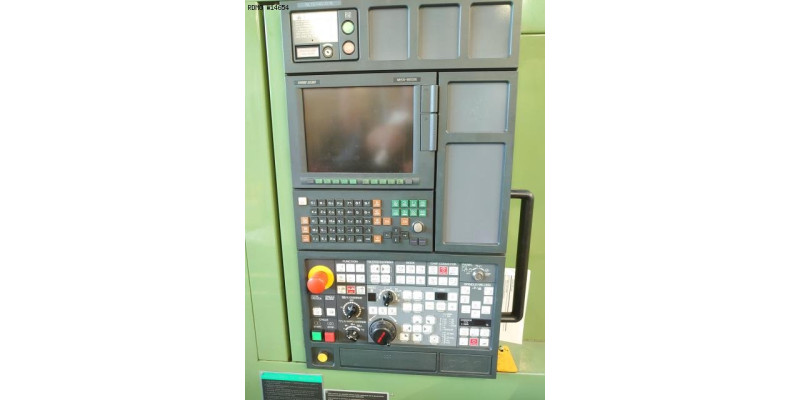

- CNC : MORI MSX-850 III (Mitsubishi)

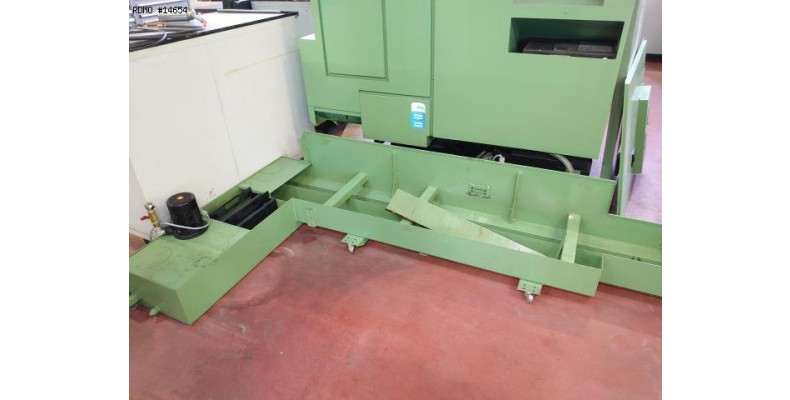

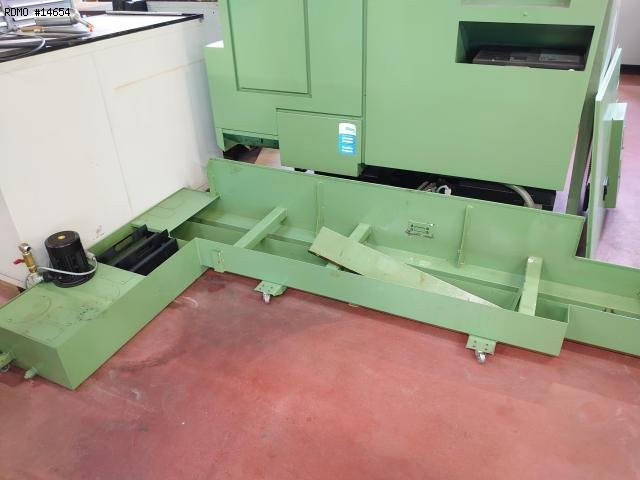

- Coolant tank

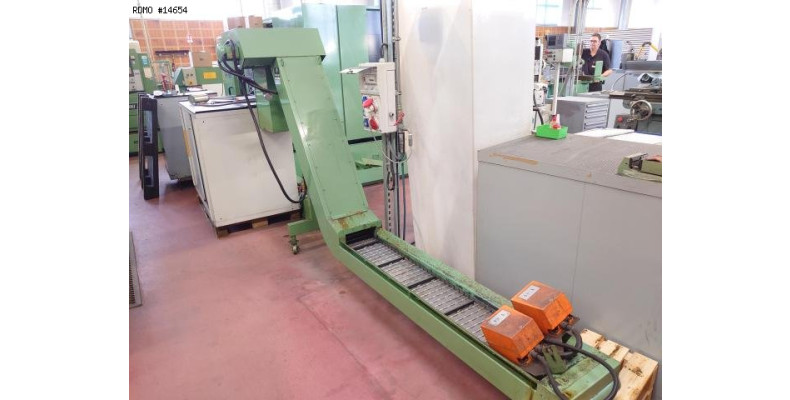

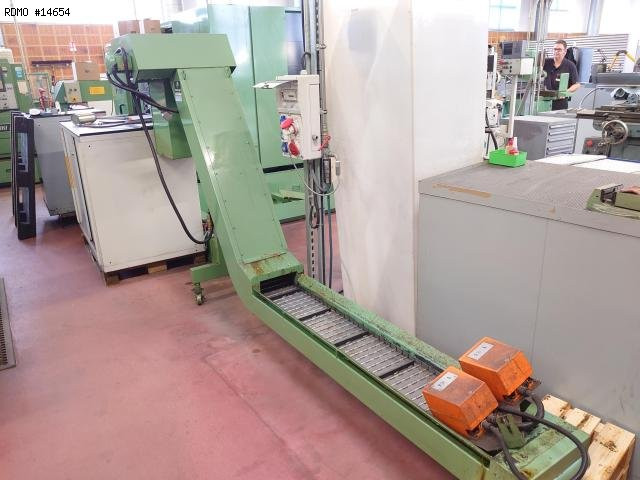

- Chips conveyor

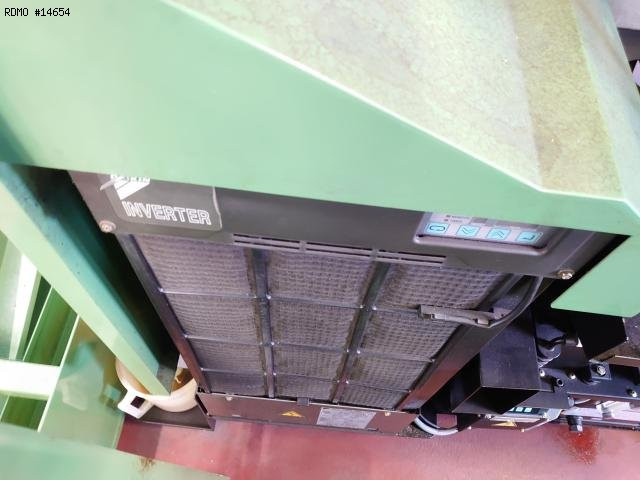

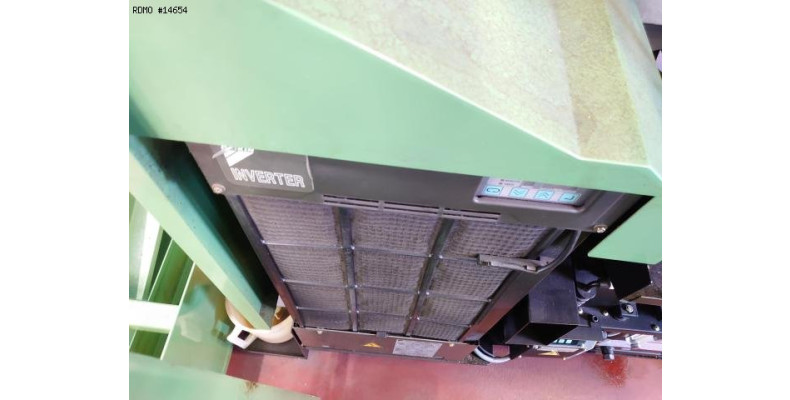

- Spindle cooling unit
- Tool probe
- Electric transformer
