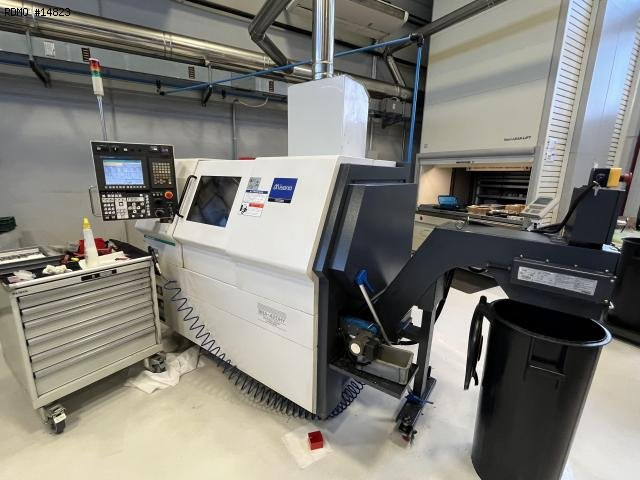

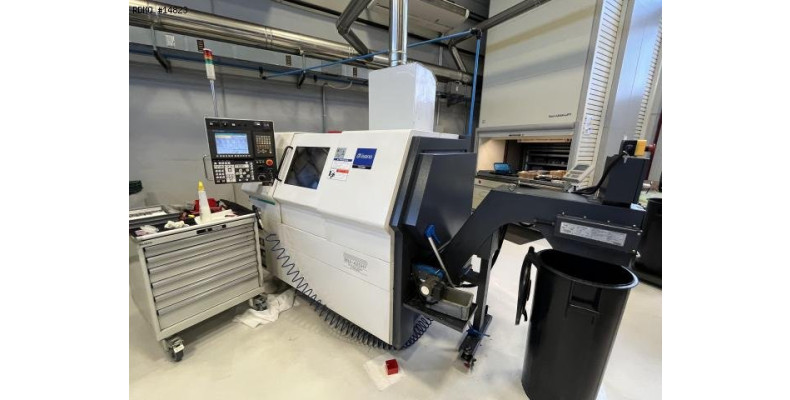

MIYANO BNA-42DHY 8 assi

Tornitura Tornio a controllo numerico

14823

Specifiche tecniche per il download

Marca: MIYANO

Modello: BNA-42DHY

Anno: 2011

Nr Serie: CL4Y0075

14823

MIYANO BNA-42DHY 8 assi

Tornitura Tornio a controllo numerico

Specifiche tecniche per il download

Marca: MIYANO

Modello: BNA-42DHY

Anno: 2011

Nr Serie: CL4Y0075

Richieda un prezzo

Caratteristiche

- Number of spindles : 2

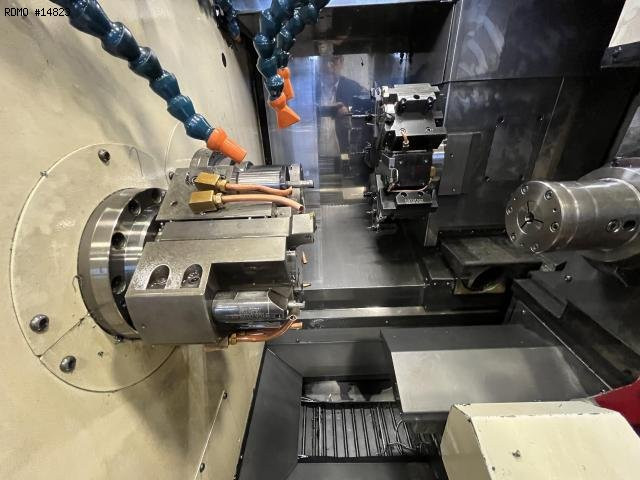

MAIN SPINDLE
- Max. bar diameter : 42 [mm]
- Travel : 100 [mm]
- Spindle speeds : 6000 [rpm]
- Spindle power : 7.5/5.5 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 34 [mm]
- Spindle speeds : 5000 [rpm]
- Spindle power : 5.5/3.7 [kW]
- C axis indexing precision : 0.001 [°]

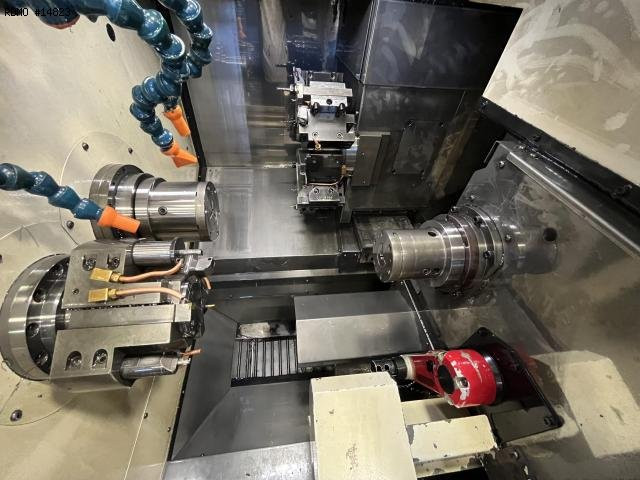

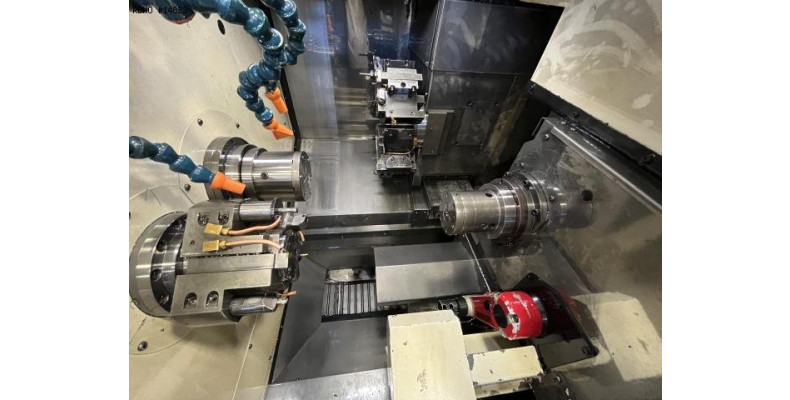

- Number of turrets : 2

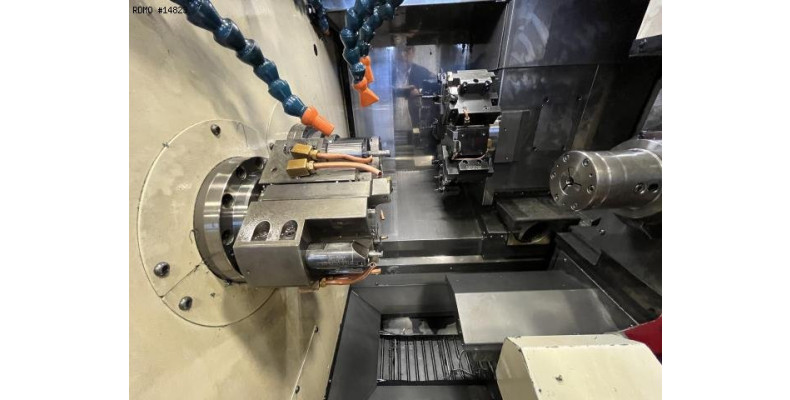

UPPER TURRET
- Number of positions : 8
- X stroke : 140 [mm]
- Z stroke : 235 [mm]
- Y stroke : 70 (+/-35) [mm]
- Live tools speed : 5000 [rpm]
- Live tools power : 1.0 [kW]
LOWER TURRET
- Number of positions : 6
- X/Z stroke : 140 / 310 [mm]
POWER SUPPLY
- Total installed power : 30 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.220 x 1.460 [mm]
- Machine height : 1.700 [mm]
- Machine weight : 3100 [kg]
MACHINE HOURS
- Number of working hours : 16787 [h]

Attrezzatura

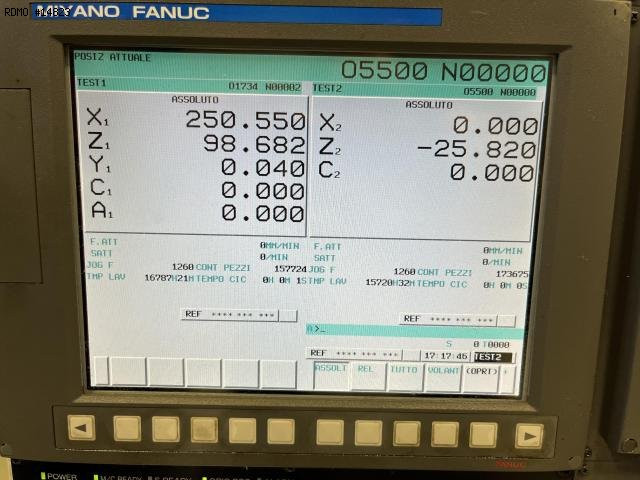

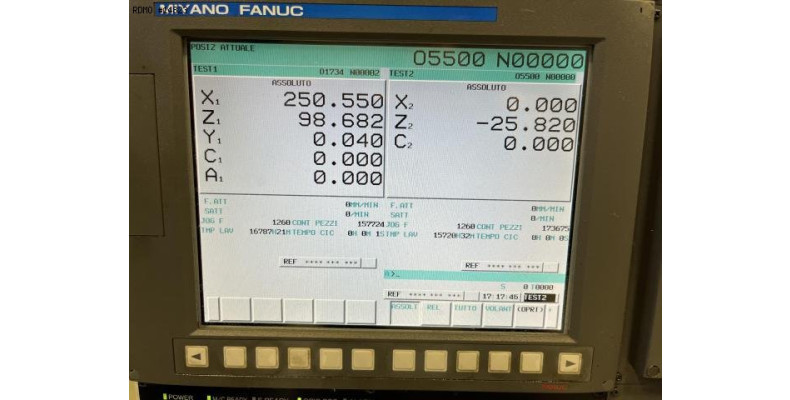

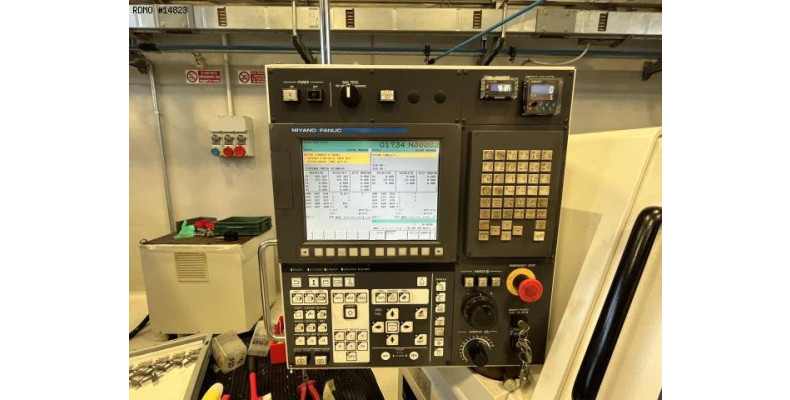

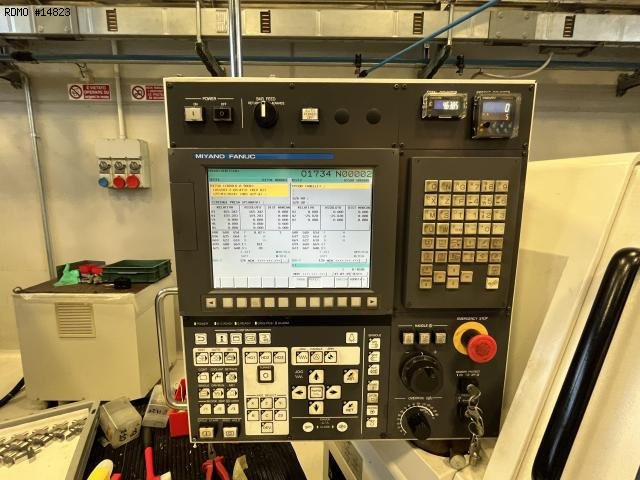

- CNC : Fanuc Oi-TD
- Parts catcher
- Parts conveying strip
- Ejection of workpiece

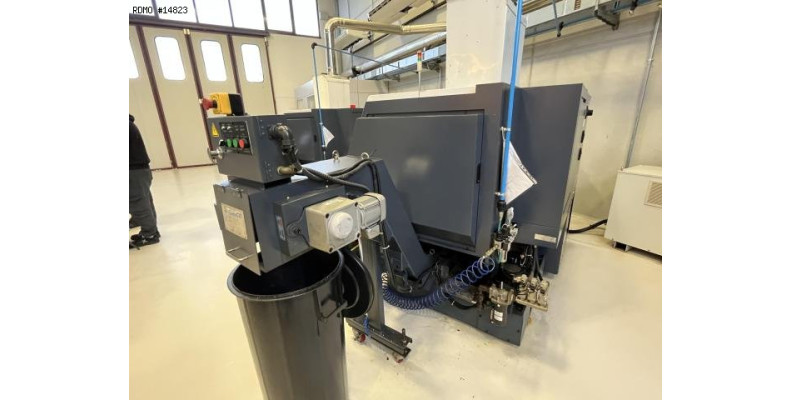

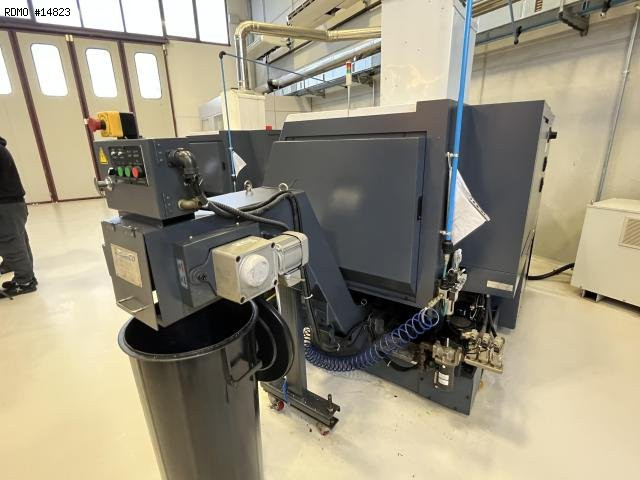

- Chips conveyor

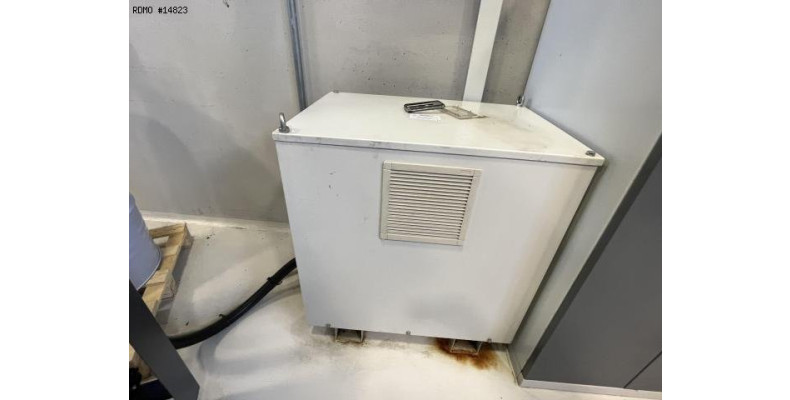

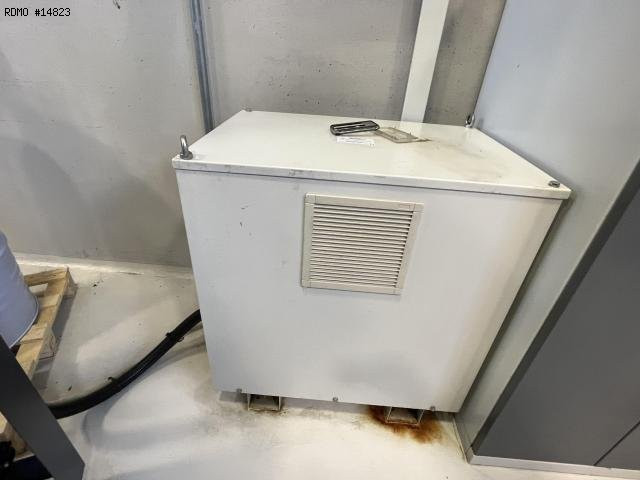

- Electric transformer
