- Number of axes : 6
- Number of spindles : 1
MAIN SPINDLE
- Spindle nose : A2-5
- Spindle power : 20/27 [kW]
- Spindle speeds : 6300 [rpm]
- Max. bar diameter : 42 [mm]
- Max. diameter on bench : 200 [mm]
- Max. chuck diameter : 160 [mm]
- C axis indexing precision : 0.001 [°]

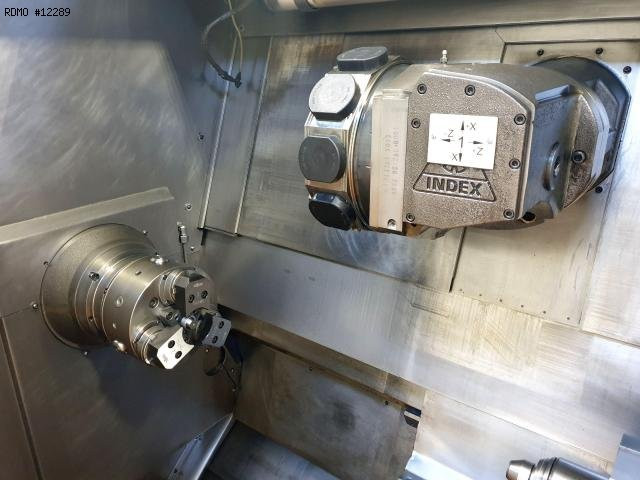

UPPER TURRET
* Number of positions : 12
* Number of motorized positions : 12
- Tool type : VDI 25
* Live tools speed : 6000 [rpm]
* Live tools power : 8 [kW]

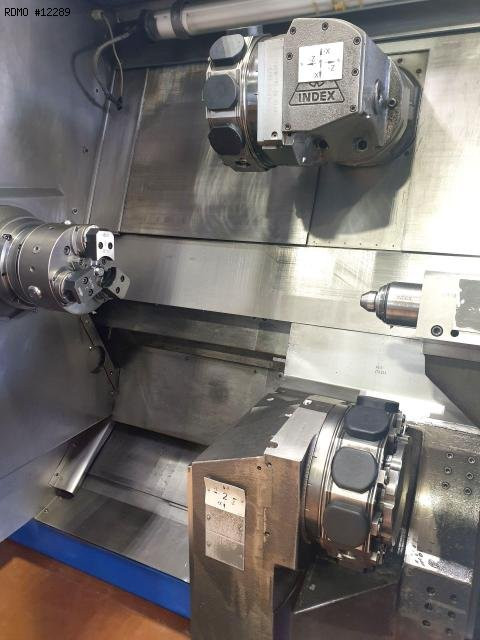

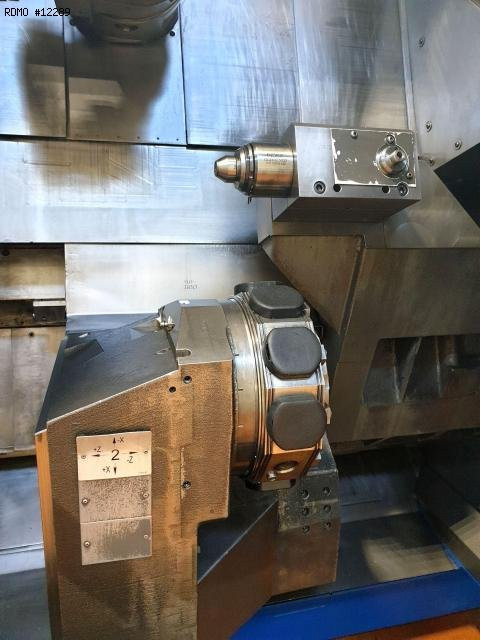

LOWER TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 110/800 [mm]
- Tool type : VDI 25
- Live tools speed : 6000 [rpm]
- Live tools power : 5,5 [kW]
TAILSTOCK
- Tailstock type : Numérique
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 43 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 4435x1950 [mm]
- Machine height : 1930 [mm]
- Machine weight : 7500 [kg]
Attrezzatura

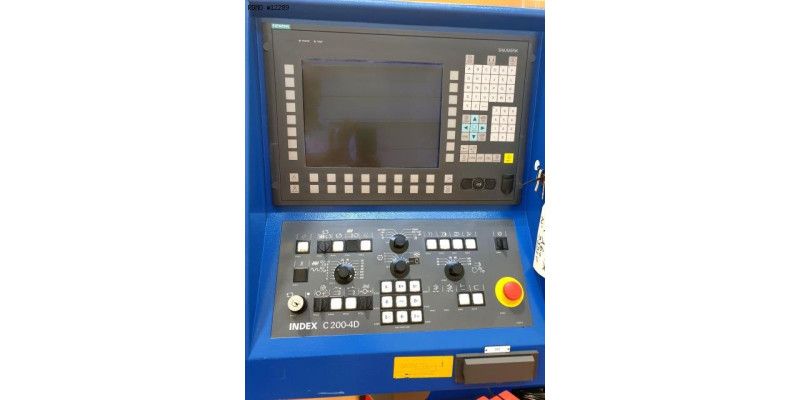

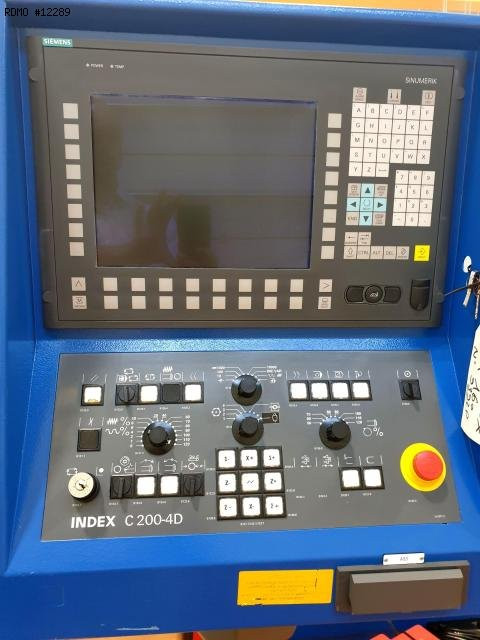

- CNC : INDEX C200-4D
- Linear scales

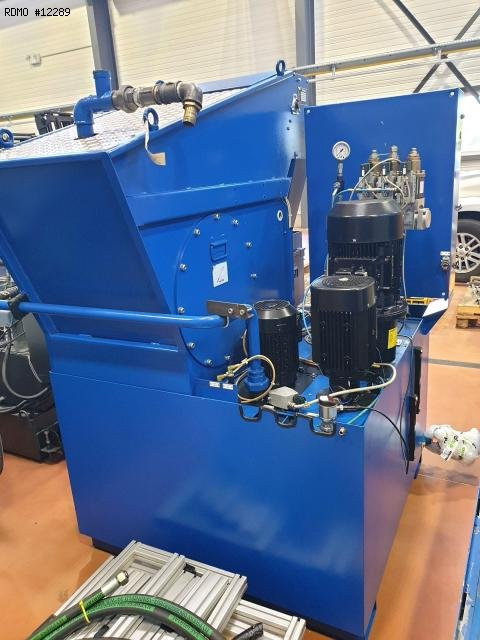

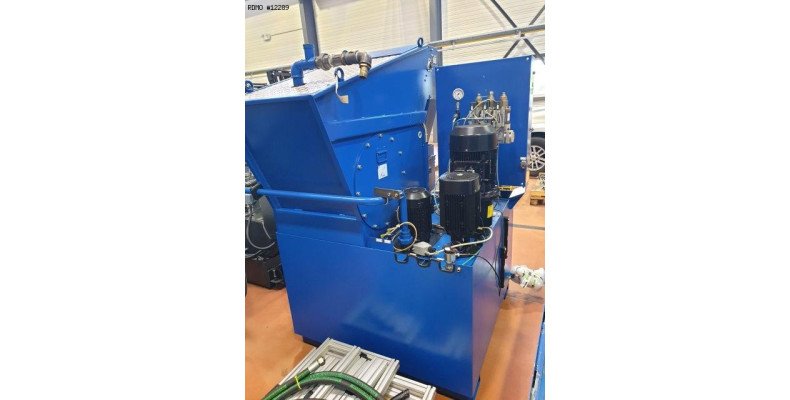

- Coolant tank
* with high-pressure pump : 80 [bars]
* with paper filtering unit
- Chips conveyor

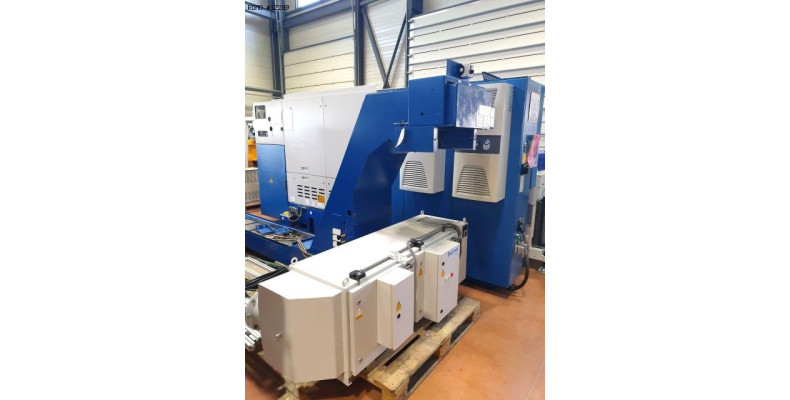

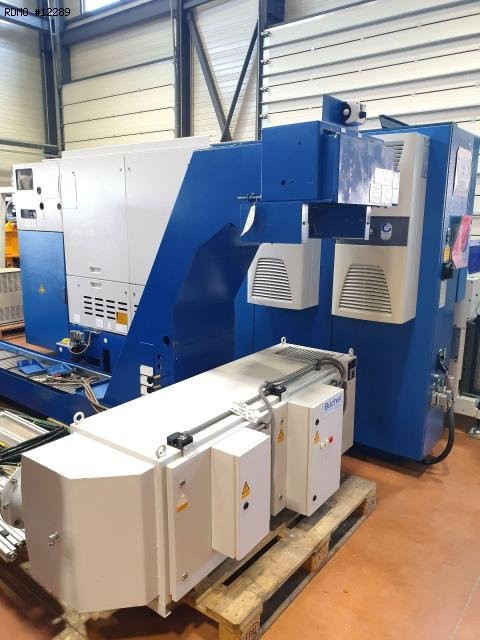

- Oil mist extractor
- Chuck 3 jaws
