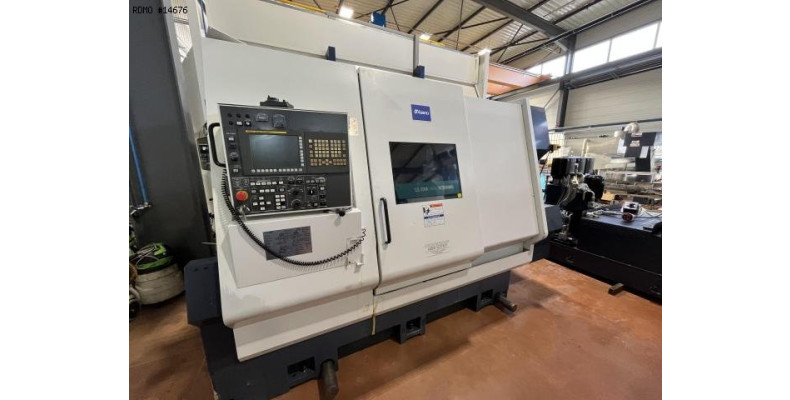

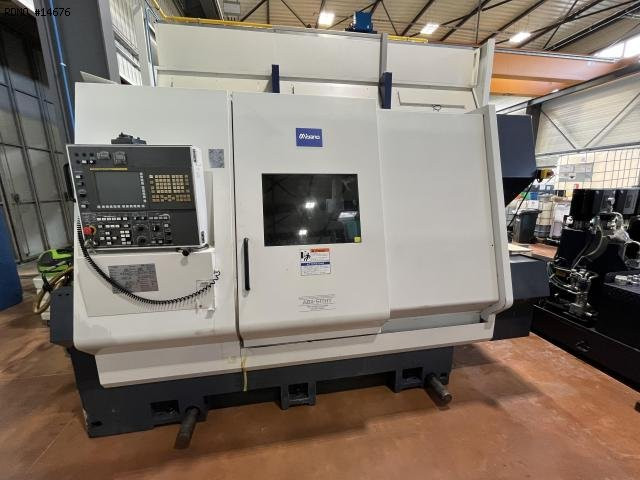

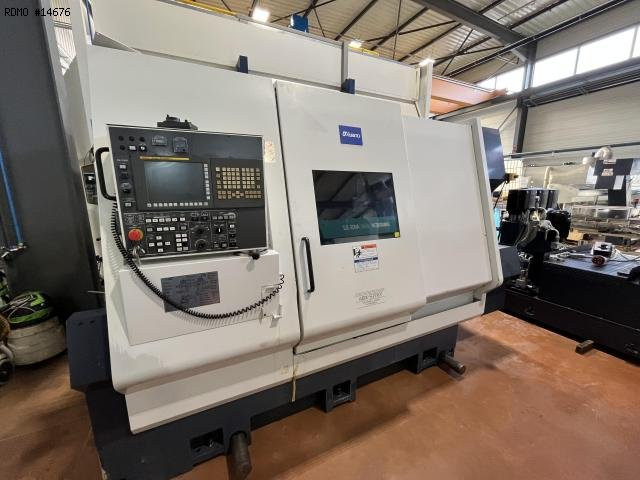

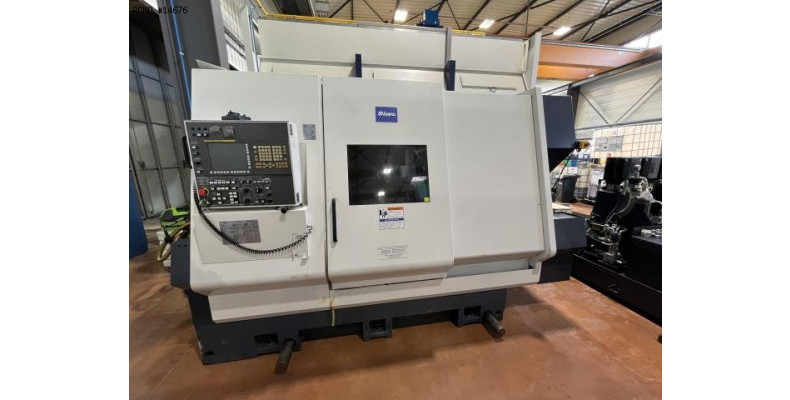

MIYANO ABX-51THY 12 assi

- Number of spindles : 2
- Number of axes : 12
- Number of turrets : 3
MAIN SPINDLE
- Spindle power : 15 [kW]
- Spindle speeds : 50 - 5000 [rpm]
- Max. bar diameter : 51 [mm]
- Max. machining length : 125 [mm]
- Max. chuck diameter : 165 [mm]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Spindle power : 7,5 [kW]
- Spindle speeds : 50 - 5000 [rpm]
- Max. bar diameter : 51 [mm]
- Max. machining length : 125
- Max. turning diameter : 165 [mm]
- C axis indexing precision : 0,001 [°]

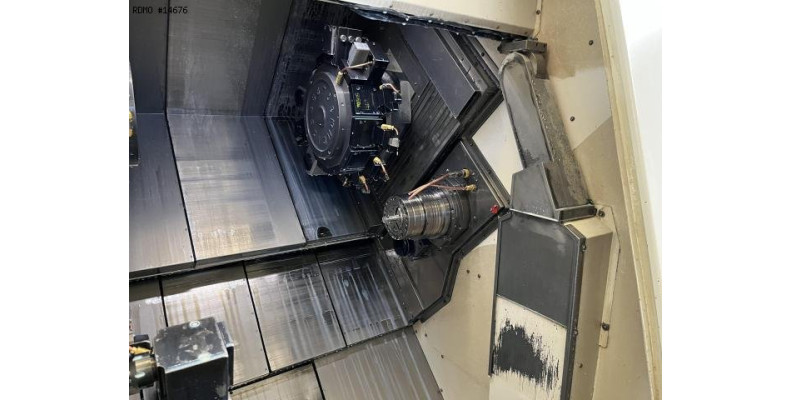

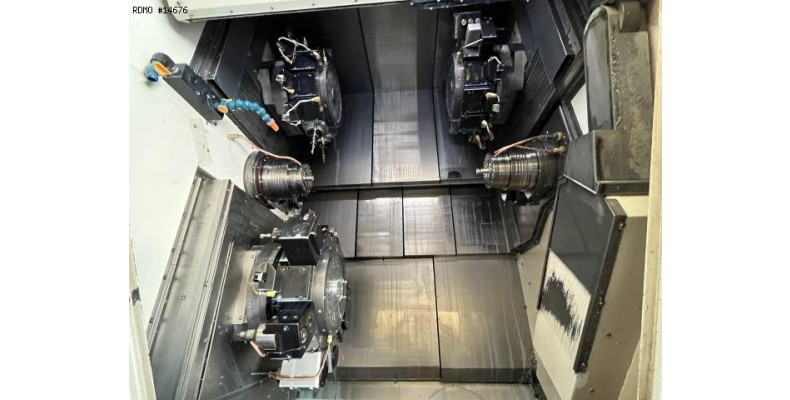

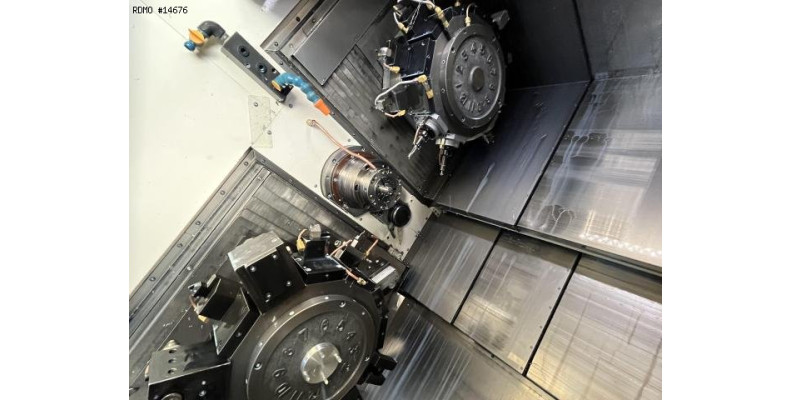

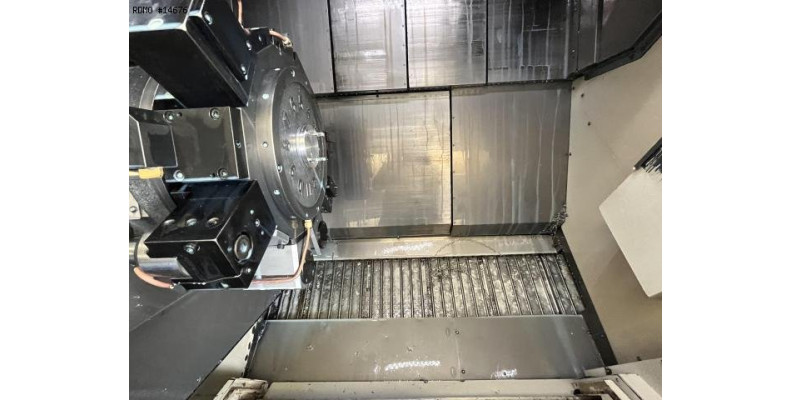

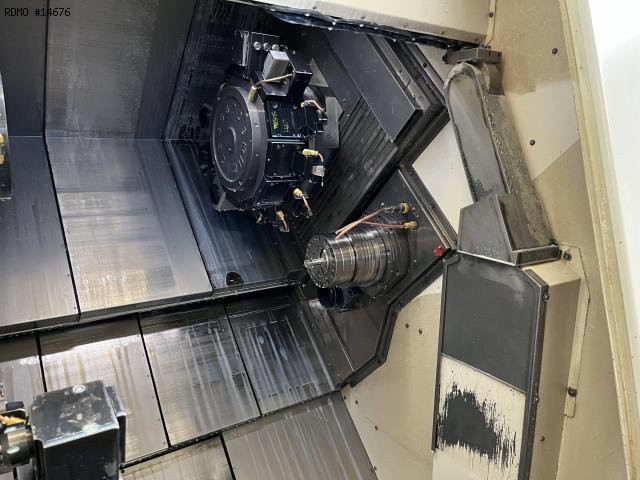

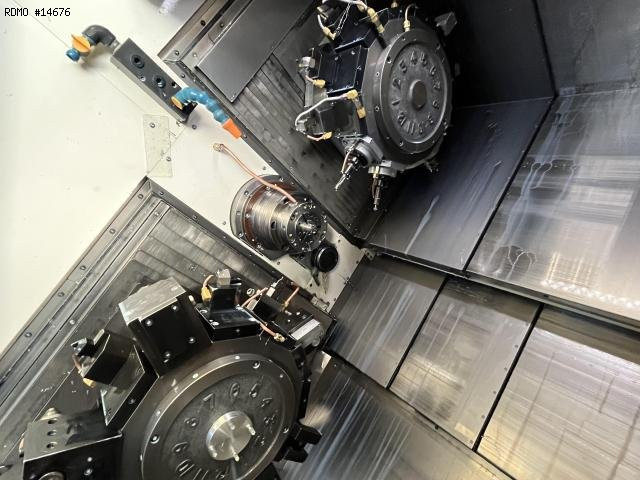

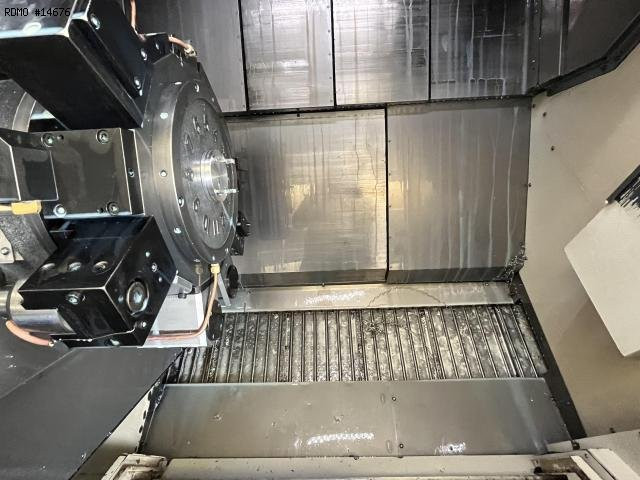

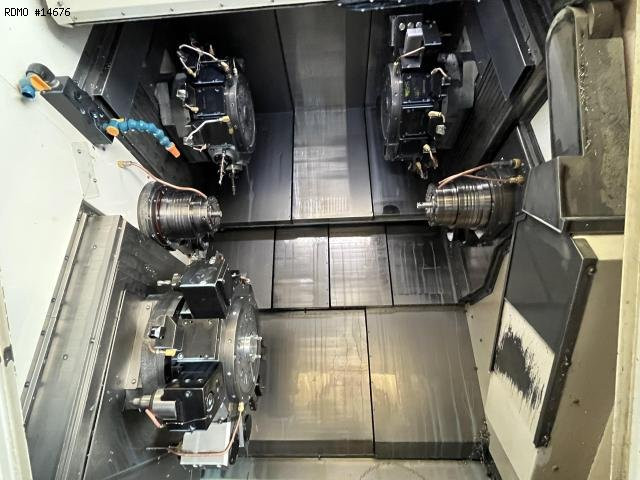

UPPER LEFT TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 190 x 270 [mm]
- Y stroke : +/- 40 [mm]
- Live tools speed : 6000 [rpm]
- Live tools power : 4.5 [kW]
UPPER RIGHT TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 190 x 270 [mm]
- Y stroke : +/- 40 [mm]
- Live tools speed : 6000 [rpm]
- Live tools power : 4.5 [kW]
LOWER LEFT TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 190 x 550 [mm]
- Live tools speed : 6000 [rpm]
- Live tools power : 4.5 [kW]
POWER SUPPLY
- Supply voltage : 220 [V]
- Total installed power : 64 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 3.290 x 2.204 [mm]
- Machine height : 2.222 [mm]
- Machine weight : 11.100 [kg]
MACHINE HOURS
- Number of working hours : 42151 [h]

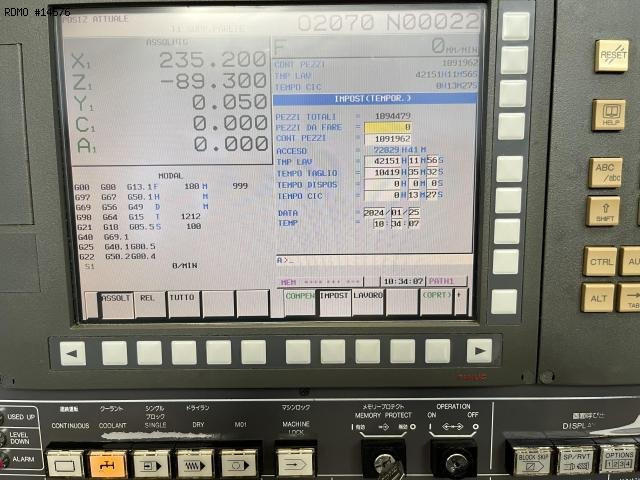

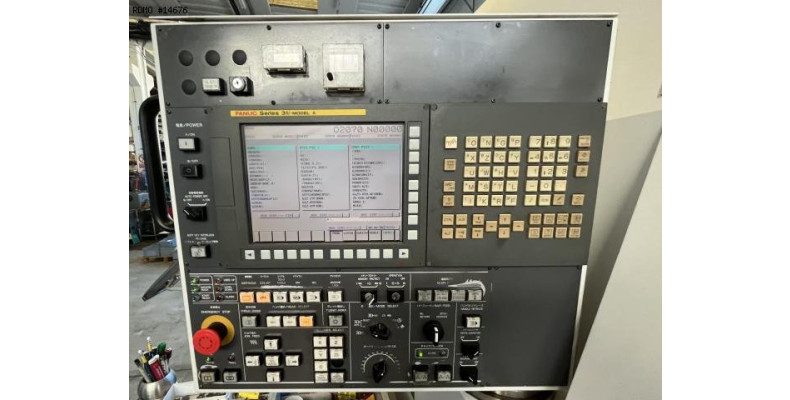

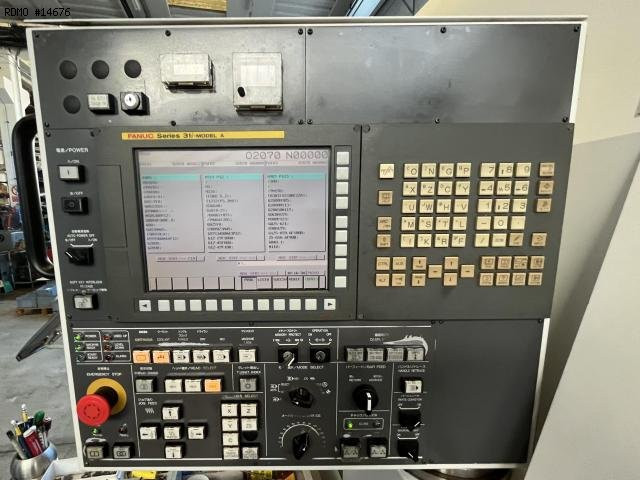

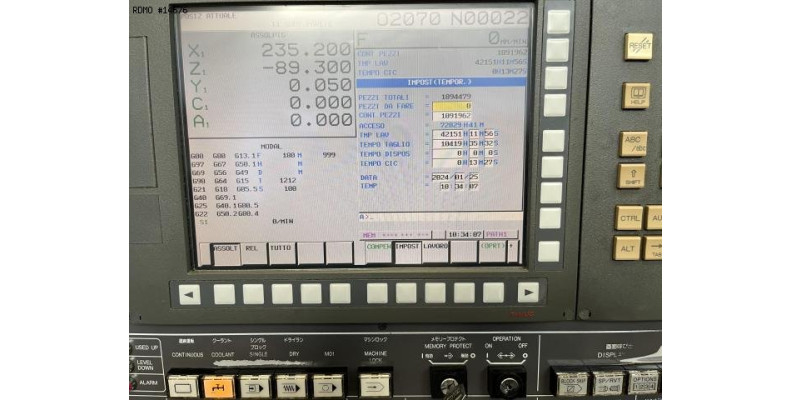

- CNC : Fanuc 31i-Model A
- Tool probe : RENISHAW
- Electronic handwheel
- 3 colors status lamp

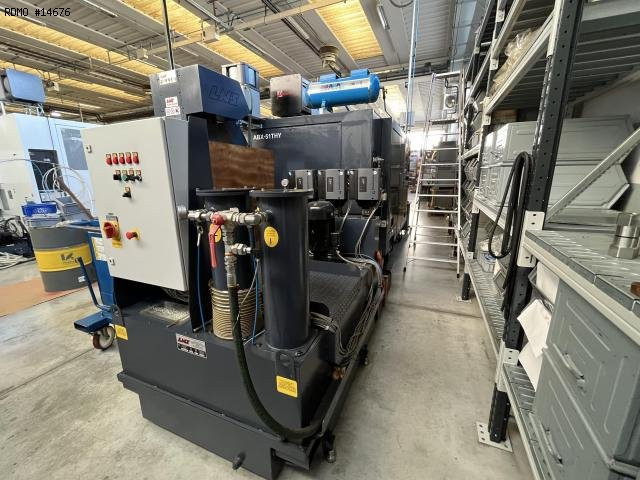

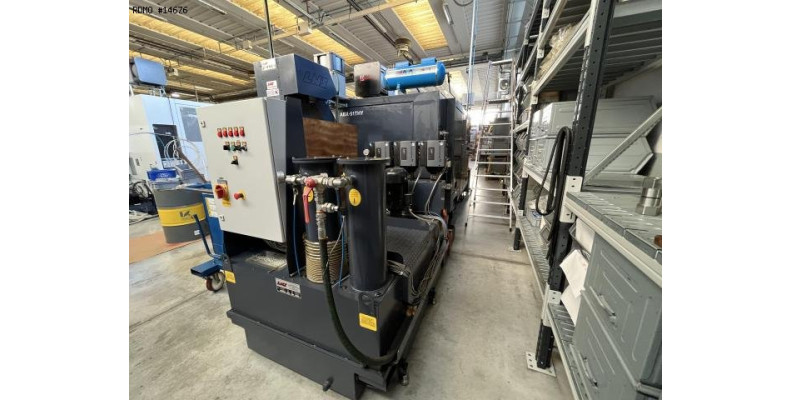

- Coolant tank

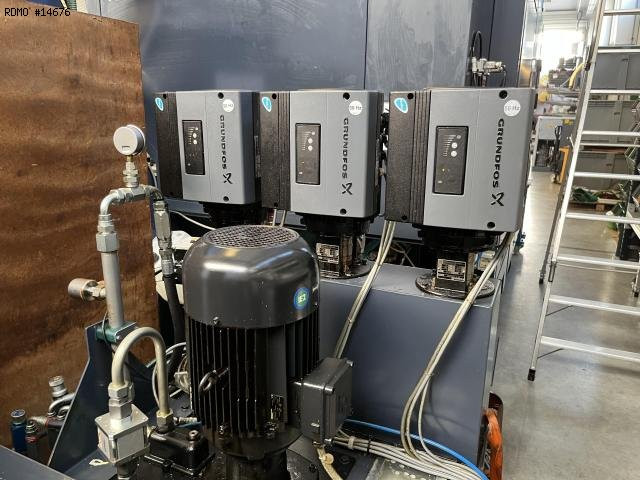

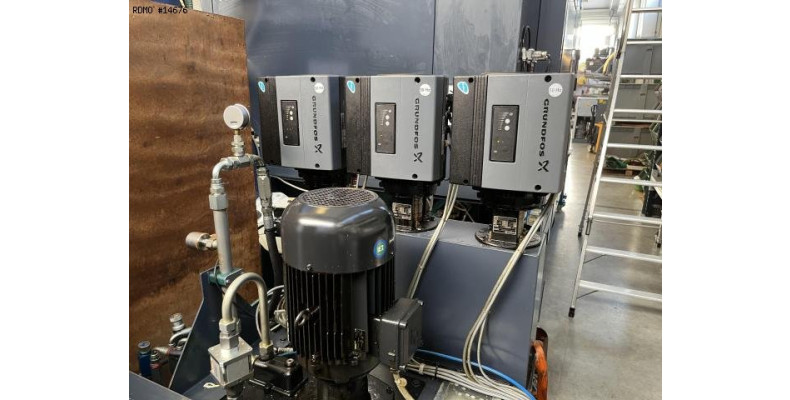

* with high-pressure pump

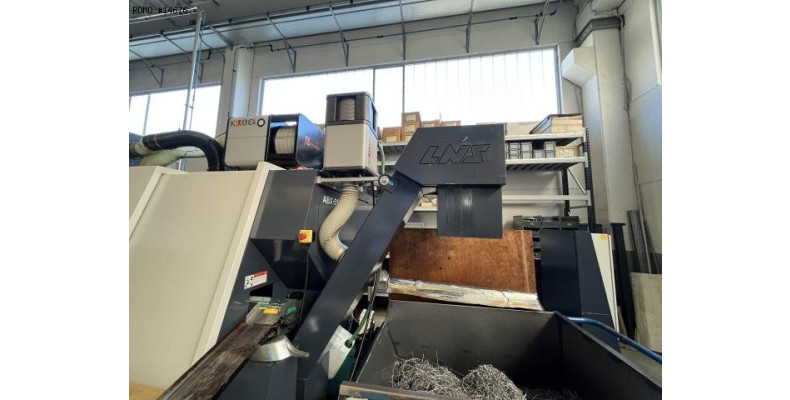

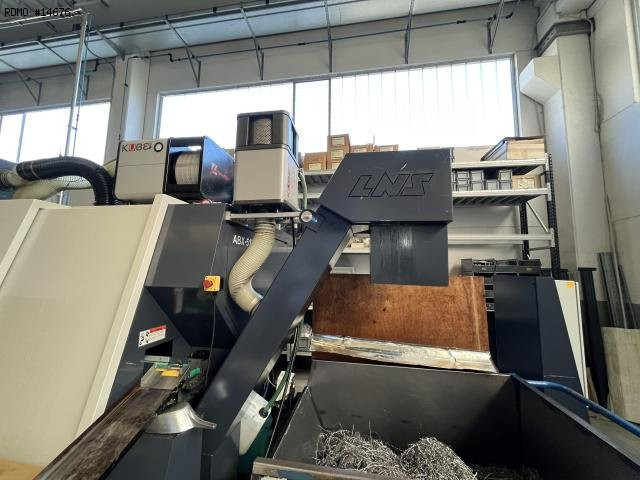

- Chips conveyor : Droite LNS
- Parts catcher
- Parts conveying strip

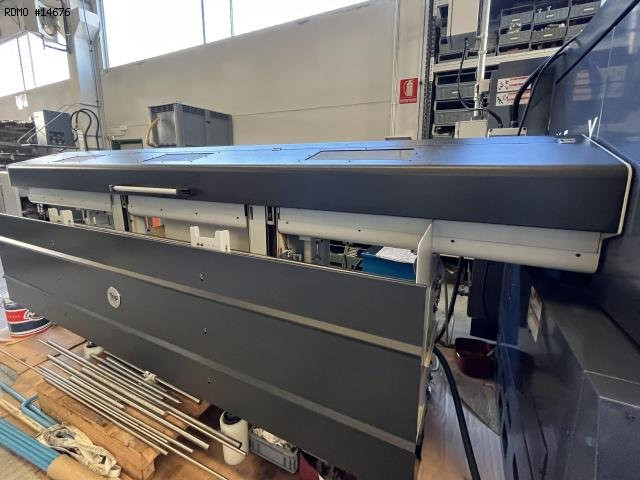

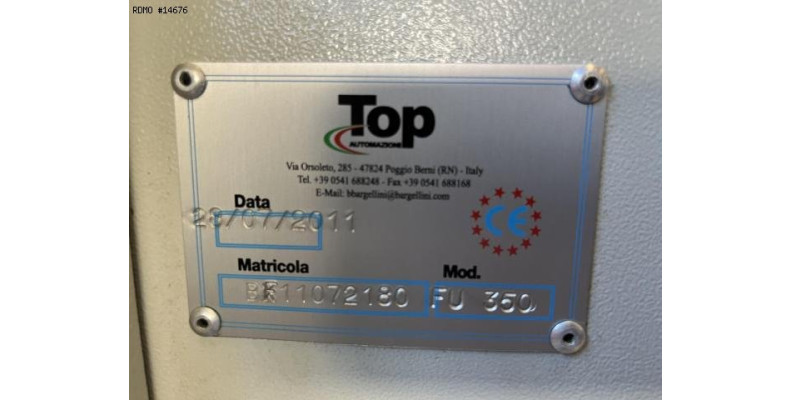

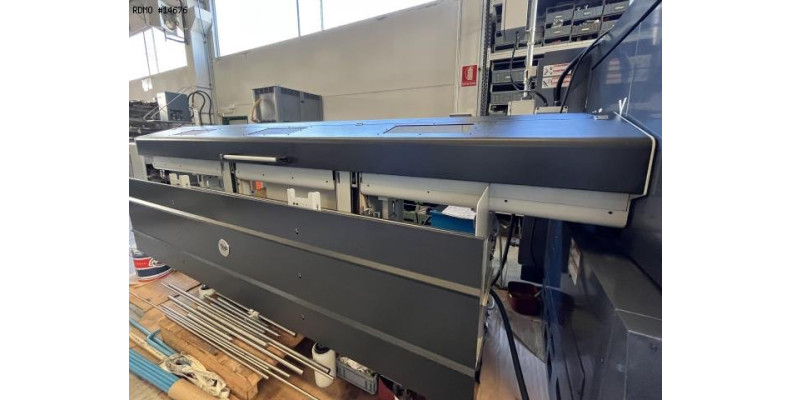

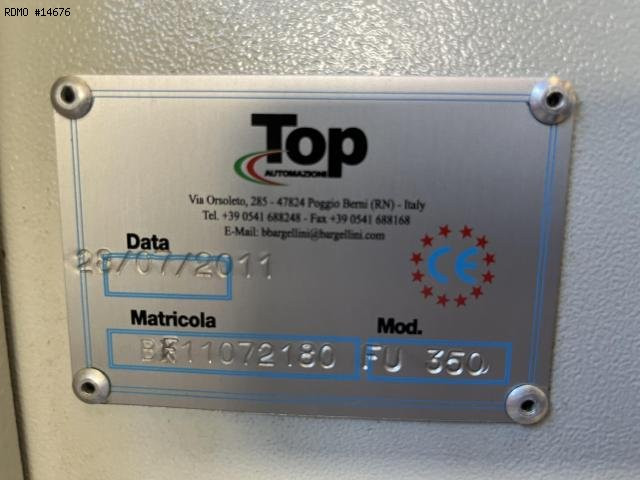

- Bar loader : TOP AUTOMAZIONI FU 350
- Electric transformer
- Collets set
