- Number of spindles : 6 independent
- Bar clearance : 52 [mm]
- Max. spindle speed : 5000 [Rpm]
- Spindle power : 29 [kW]
- Slide unit 1.1 : axes X and Z controlled by CN
- Slide unit 2.2 : axes X and Z controlled by CN
- Slide unit 3.1 : axes X and Z controlled by CN
- Slide unit 3.2 : axes X and Z controlled by CN
- Slide unit 4.1 : axes X and Z controlled by CN
- Slide unit 4.2 : axes X and Z controlled by CN
- Slide unit 5.1 : axes X and Z controlled by CN
- Slide unit 5.2 : axes X and Z controlled by CN
- Slide unit 6.2 : axis Z controlled by CN + SCARA axis
TRANSFORMATION X and Y
- Supply : TN 50 Hz, 400 [V]
- Weight : 6000 [kg]

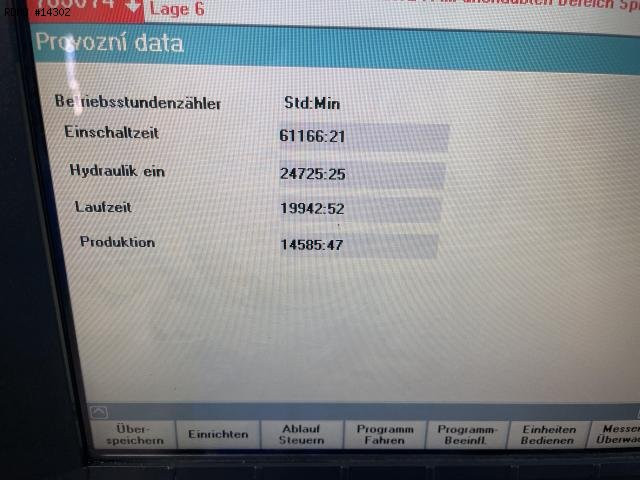

- Functioning hours : 61 166 hours
- Production hours : 14 585 hours
Attrezzatura
- Control INDEX C200-4D
- Filtration Knoll
- HP pump 40 bars/55l/mm
- Fire extinguisher Kraft & Bauer
- Robot Staubli TX90
- Coolant through tool
- 6 coolant through spindles
- Chip conveyor
- Isolation transformer
- Refrigerating unit
- Oil mist extractor Buchël
- Status lamp 3 colors
