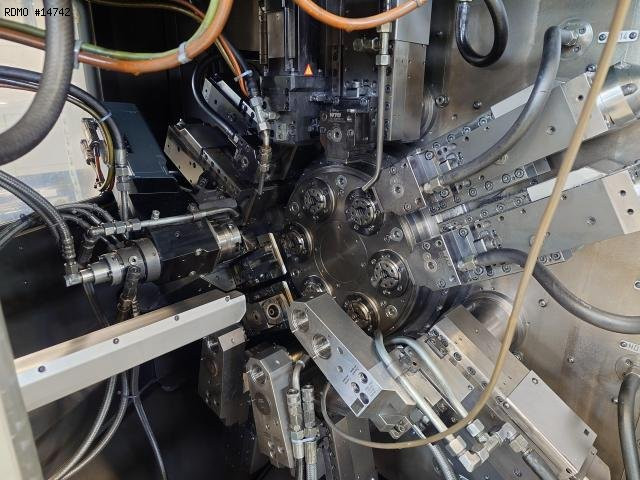

- Number of spindles : 6
- Max. bar diameter : 32 [mm]
- Spindle speed : 6300 [rpm]
- slide unity 1.1 : X and Z axes controlled by CNC
- slide unity 1.2 : X and Z axes controlled by CNC
- slide unity 2.1 : X and Z axes controlled by CNC
- slide unity 2.2 : X and Z axes controlled by CNC
- slide unity 3.1 : X and Z axes controlled by CNC
- slide unity 3.2 : X and Z axes controlled by CNC
- slide unity 4.1 : X and Z axes controlled by CNC
- slide unity 4.2 : X and Z axes controlled by CNC
- slide unity 5.1 : X and Z axes controlled by CNC
- slide unity 5.2 : X and Z axes controlled by CNC
- slide unity 6.1 : X and Z axes controlled by CNC
- slide unity 6.2 : X and Z axes controlled by CNC
- synchronous unit, spindle position 6.1
Attrezzatura

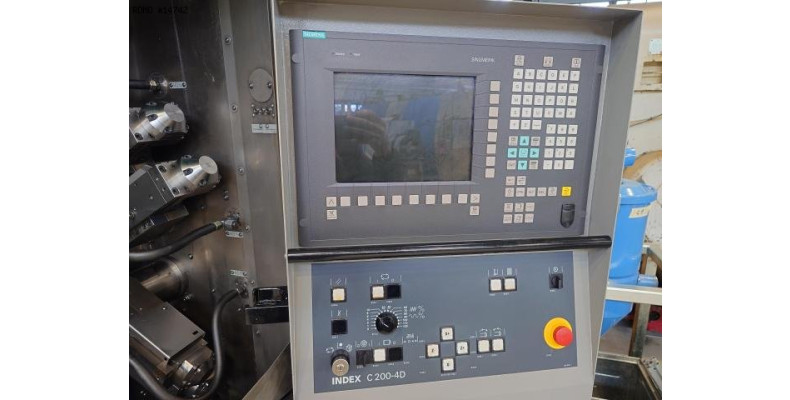

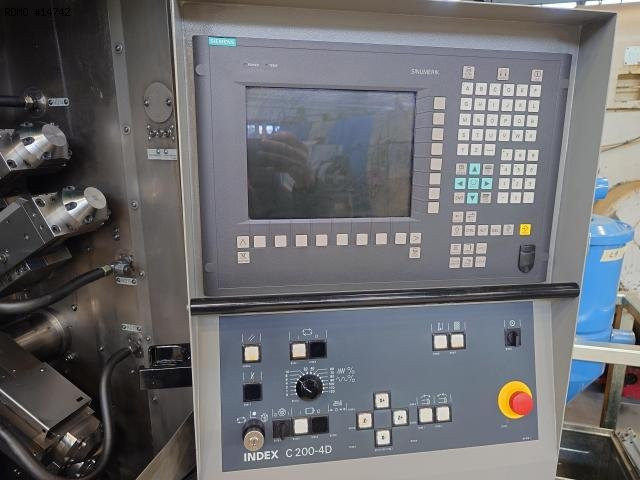

- CNC Siemens 840D
- Counter spindle
- Double control panel
- 2 NCU
- Bar loader : IEMCA SIR MS32 F

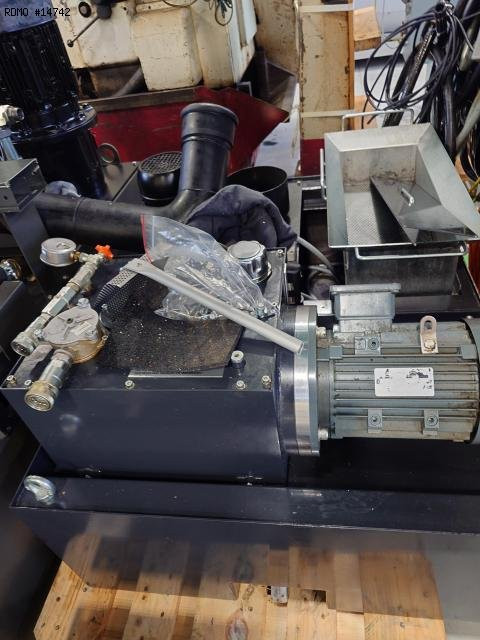

- Coolant tank : KNOLL
* with high pressure pump
- Chip conveyor : KNOLL
- Cooling unit: Riedel WTS 030.02-NE
- Unloading system with 2 CNC axes
- Fire extinguisher : KRAFT UND BAUER
*NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
