- number of spindles : 6 independent
- bar clearance : 32 [mm]
- maxi spindle speed : 6 300 [rpm]
- machine equipped with 32 numerical axes
- slide unity 1.1 : X and Z axes controlled by CNC
- slide unity 1.2 : fixed X axis, Z axis controlled by CNC
- slide unity 2.1 : fixed X axis, Z axis controlled by CNC
- slide unity 2.2 : X and Z axes controlled by CNC
- slide unity 3.1 : X and Z axes controlled by CNC
- slide unity 3.2 : fixed X axis, Z axis controlled by CNC
- slide unity 4.1 : X and Z axes controlled by CNC
- slide unity 4.2 : fixed X axis, Z axis controlled by CNC
- slide unity 5.1 : fixed X axis, Z axis controlled by CNC
- slide unity 5.2 : X and Z axes controlled by CNC
- slide unity 6.1 : X and Z axes controlled by CNC
- slide unity 6.2 : X and Z axes controlled by CNC
- counter-spindle position 6.1
Attrezzatura
- INDEX C200-4 control (Siemens SINUMERIK 840D)
- Simple NCU

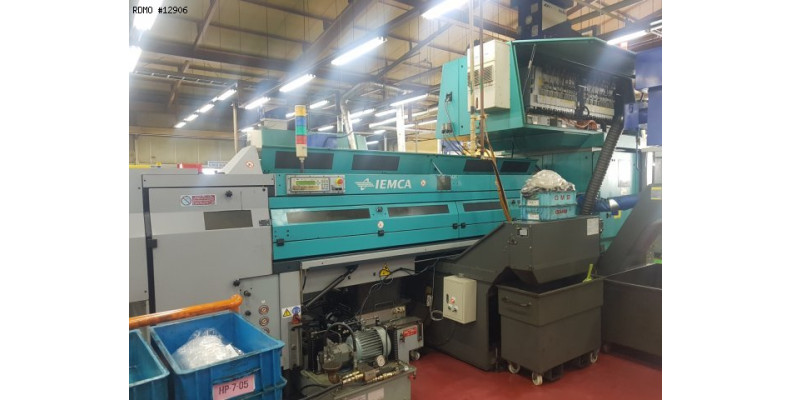

- IEMCA SIR MS32/33/P bar loader
- Coolant tank with HP pump
- KNOLL chips conveyor
- RIEDEL cooling unit
- Parts catcher with conveyor in position 6
- Cross drilling device in position 3.1 et 4.1
