Caratteristiche
8 spindles, bar capacity : 21 (round),
18 (hex.), 14 (square) [mm]
- Spindle speed : 620-6 000 [rpm]
- Production cycle : 1 to 50 [parts/min]
- Standard voltage : 380 [V] 50 [Hz]
- Bar reel length : 3 [m]
- Reel housing
Attrezzatura

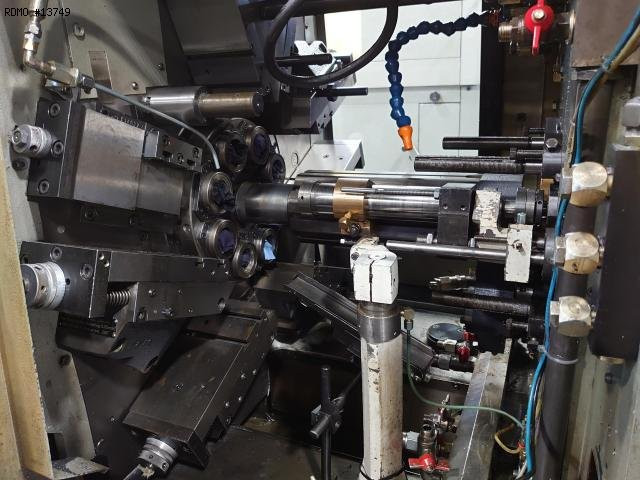

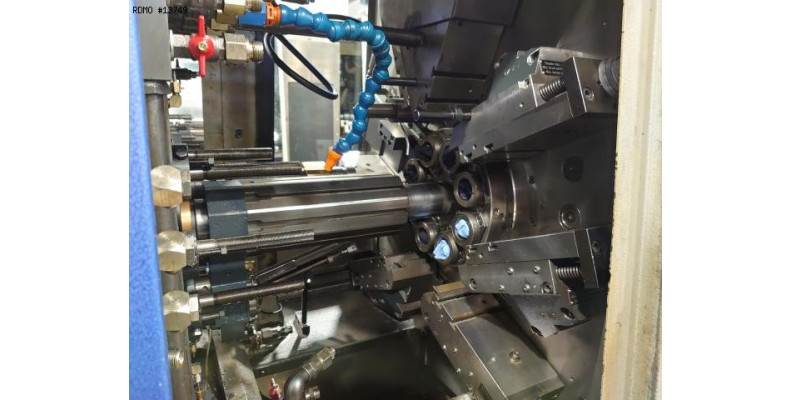

- Standard cross slide pos. 1,2,3,4,5,6,7 and 8
- 1 Bar feed cam parts 60 [mm]
- 1 Auxiliary camshaft drive
- 1 Pick-up. 20 [mm] with lever
- Hirth cylinder barrel locking
- 8 cross slides, stroke 30 [mm], optional
- Central slide, stroke 60 [mm]
- Cutting oil tank with magnetic drum conveyor
- Coolant pump capacity 150 [l/min]

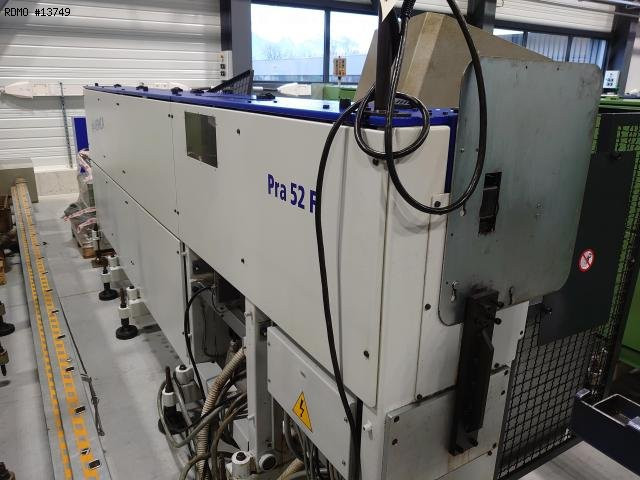

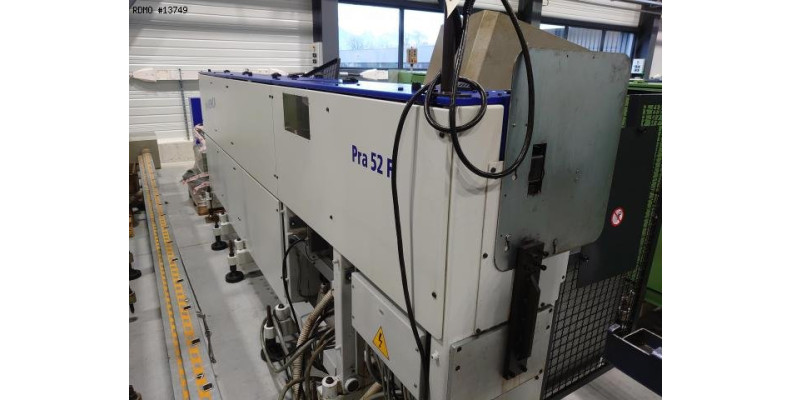

- Iemca PRA52/33F bar loader n°020651PA03, year 2006
