- axes number : 3
CAPACITY
- machining diameter : 250 [mm]
- travels (X/Z) : 1600 / 300 [mm]
- rapid feeds (X/Z) : 60 / 30 [m/min]
SPINDLE
- spindle nose : DIN55026 - size 6
- power : 18 / 22 [kW]
- torque : 202 / 250 [Nm]
- speeds : 0 - 6.000 [rpm]
- indexing precision axis C : 0,001 [°]

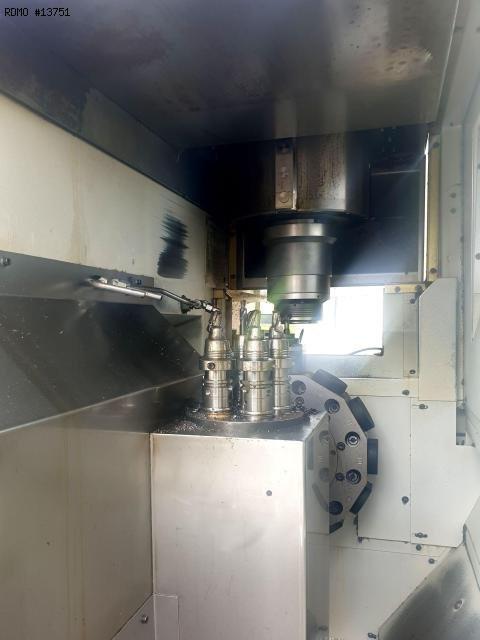

TURRET
- number of positions : 12
- tool holders : VDI40
- number of rotary positions : 12
- rotary tools speed : 6.000 [rpm]
- rotary tools power : 8,5 [kW]

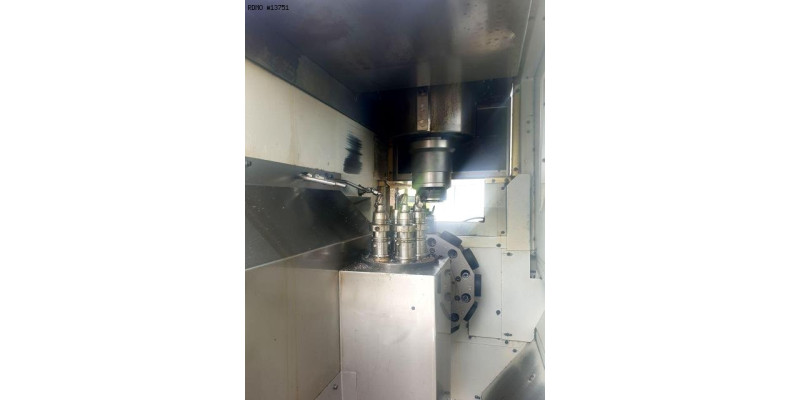

MILLING HEAD
- number of spindles : 6
- 5 HSK 50 spindles upon Ø : 107,95 [mm]
- 1 HSK40 spindle : at center
ELECTRICAL SUPPLY
- voltage : 400 [V]
- installed power : 45 [kW]
DIMENSIONS
- floor space : 4.550 x 2.810 [mm]
- height : 3.600 [mm]
- weight : 10.000 [kg]
Attrezzatura

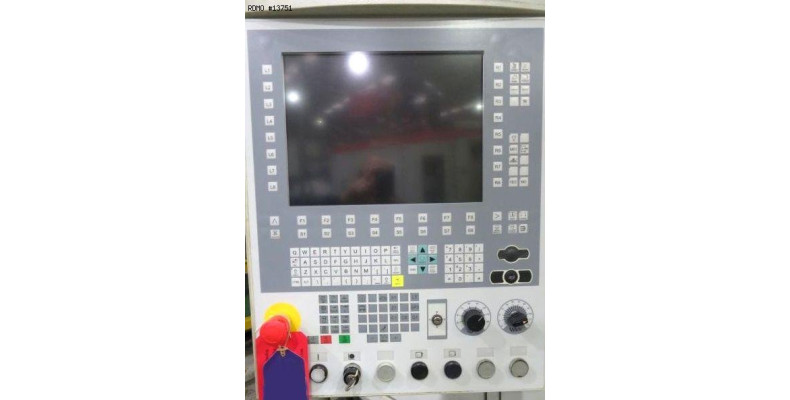

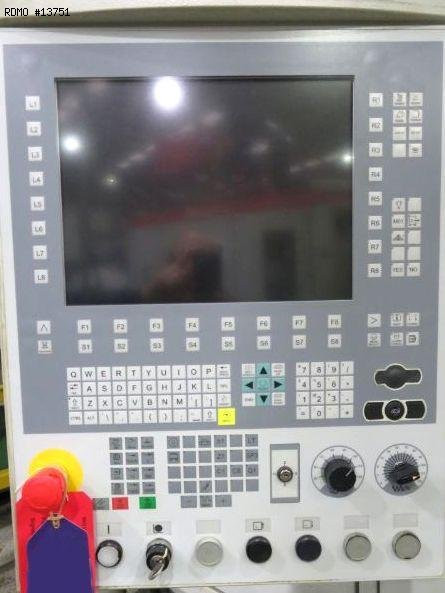

- control CNC SIEMENS 840D-sl
- 3 colors status lamp
- linear scales : HEIDENHAIN

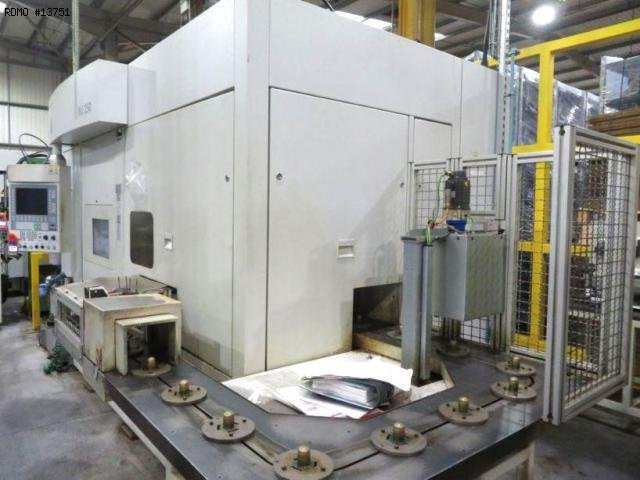

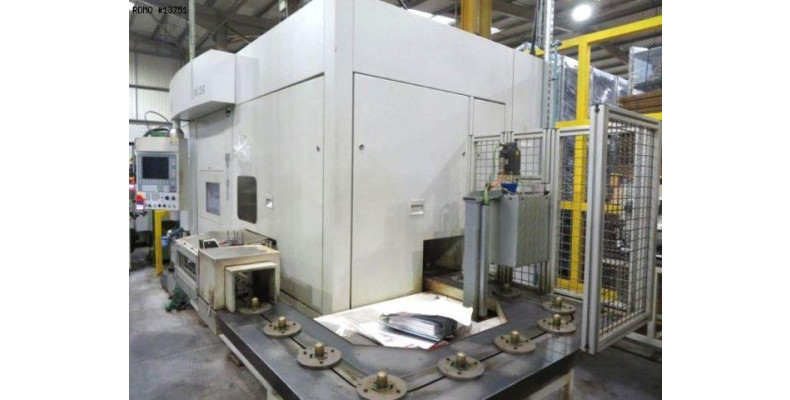

- automatic part loader with conveyor
- chips conveyor
- coolant tank
* with pump 10 bars
* with washing gun
- coolant through spindle

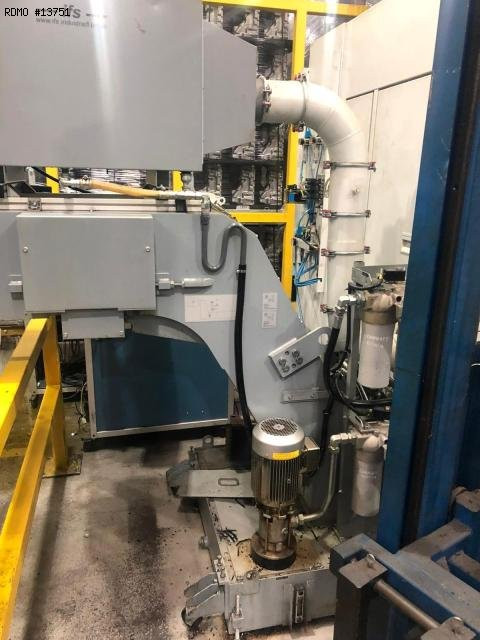

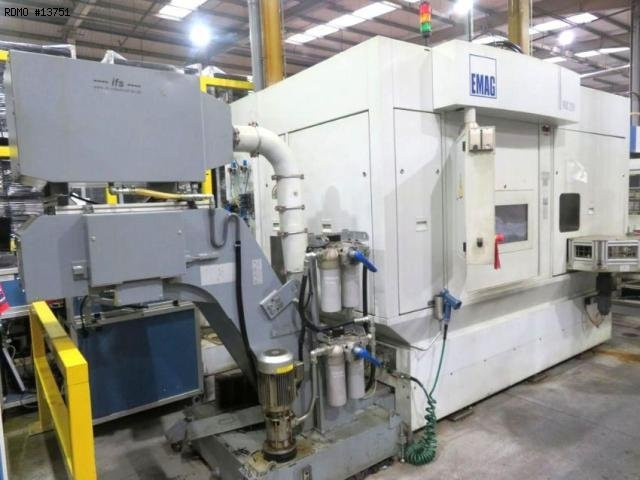

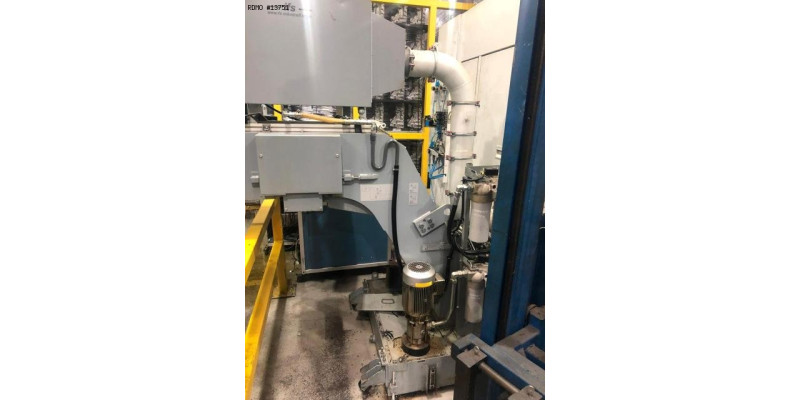

- IFS mist separator
- collection of parts supports
- collet chuck
- 3 live tool-holders
