- max. diameter over bed : 270 [mm]
- max diameter over slide : 130 [mm]
- distance between centers : 440 [mm]
- spindle nose : CAMLOCK D1-3'
- max bar diameter : 28 [mm]
- power : 7.5 [kW]
- spindle speed : 0-5000 [rpm] with variator
- strokes X x Z : 180 x 400 [mm]
- work feeds : 0-5000 [mm/min] with variator
- quick feeds : 7500 [mm/min]
- supply : tri 380V 50Hz 14kW
- size : 1700 x 1226 x 1660 [mm]
- weight : 1415 [kg]
Attrezzatura

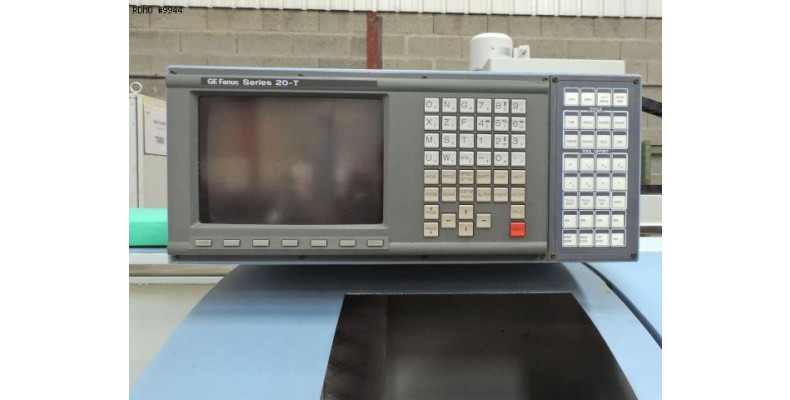

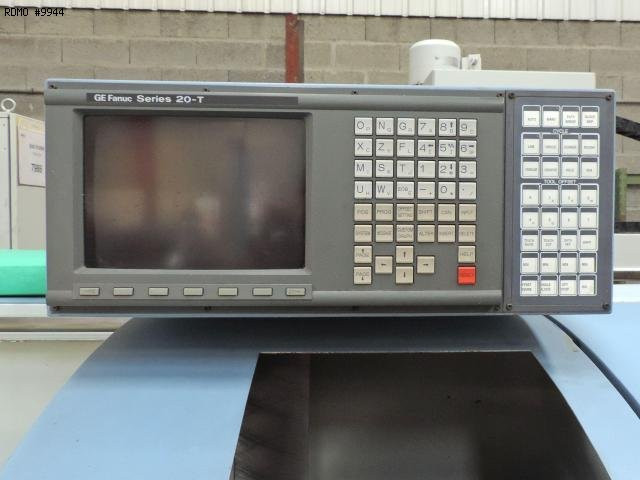

- numerical control FANUC 20-T
- quick change turret Multifix 'A'
- collets chuck SCHAUBLIN B32
- tail stock with capstan
- coolant tank with pump
