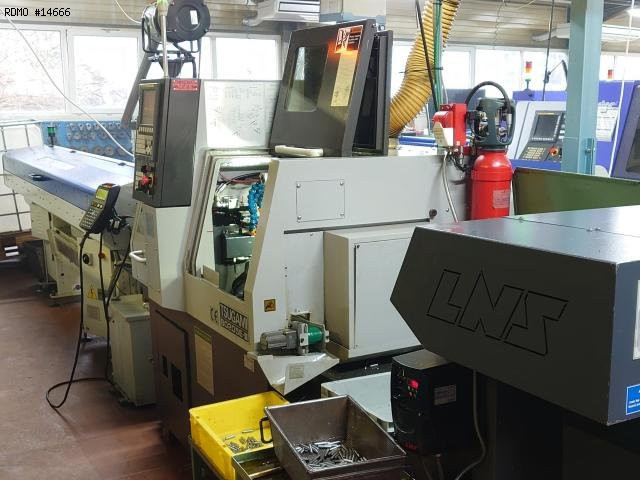

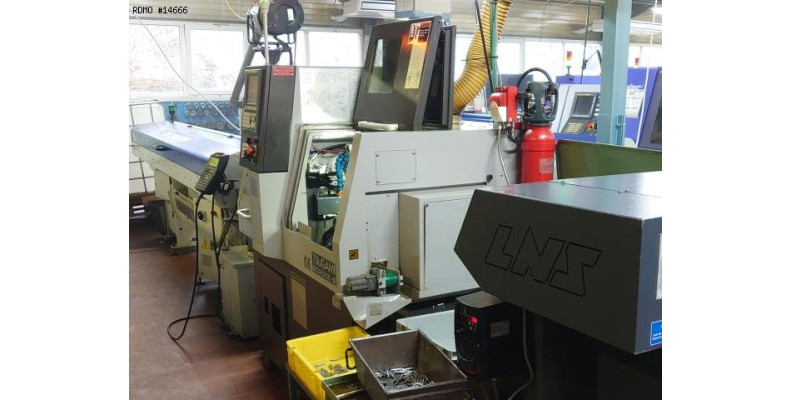

TSUGAMI B0205E-III 5 assi

- Number of axes : 5
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Max. machining length : 210 [mm]
- Spindle speeds : 200 - 10000 [rpm]
- Spindle power : 2.2 / 3.7 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 200 - 12000 [rpm]
- Spindle power : 2.2 / 3.7 [kW]
- C axis indexing precision : 0.001 [°]
GUIDE BUSH HOLDER 1
- Number of positions : 5
- Number of motorized positions : 3
- Live tools speed : 8000 [rpm]
GUIDE BUSH HOLDER 2
- Number of positions : 3
END ATTACHMENT
- Number of positions : 8
SECONDARY OPERATION
- Number of positions : 4
- Number of motorized positions : 2
- Live tools speed : 8000 [rpm]
POWER SUPPLY
- Total installed power : 11 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 1655 x 1125 [mm]
- Machine height : 1700 [mm]
- Machine weight : 2000 [kg]
MACHINE HOURS
- Number of working hours : 13.837 [h]

- CNC : Fanuc Oi-TD
- 3 colors status lamp
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece
- Chips conveyor
- Coolant tank

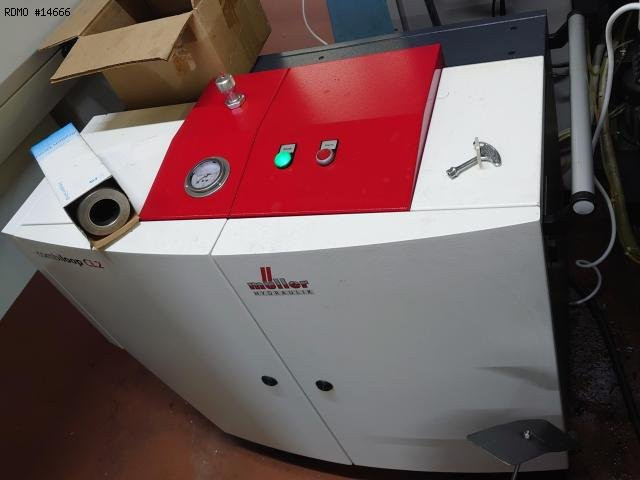

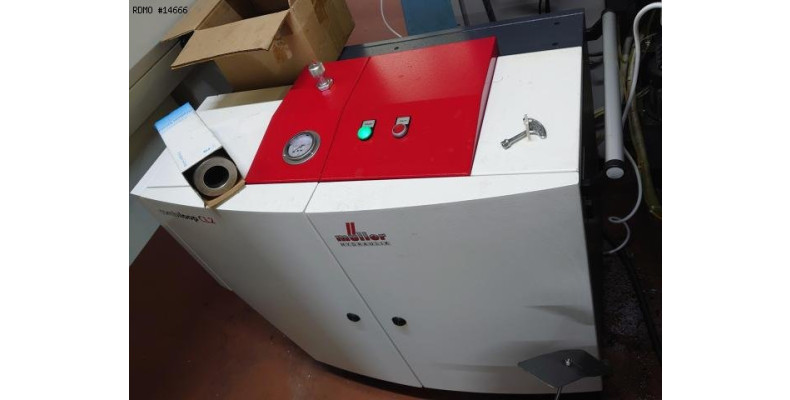

* with high-pressure pump : 70 [bars]

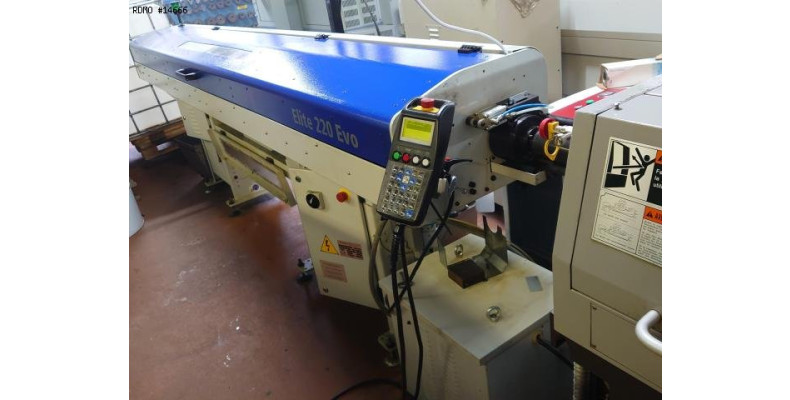

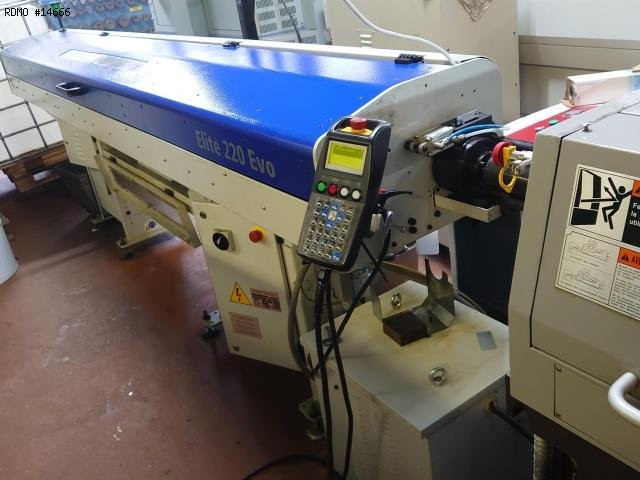

- Bar loader : IEMCA ELITE 220 E / 32 LL
- Fire extinguisher *
NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
- Electric transformer
