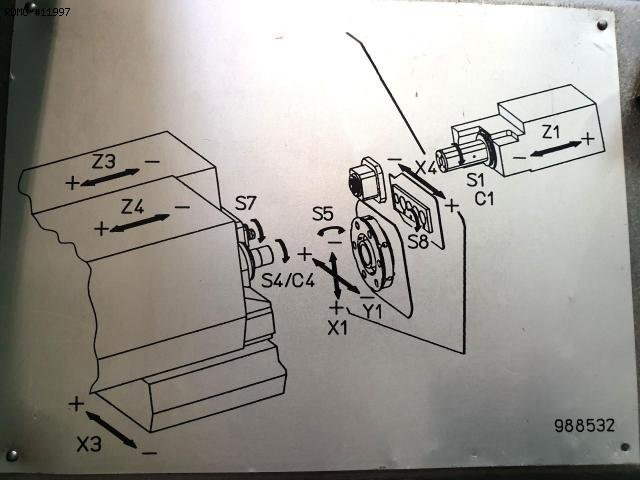

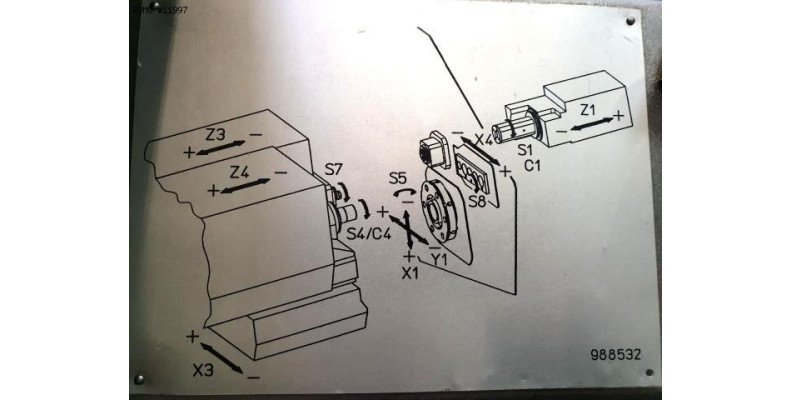

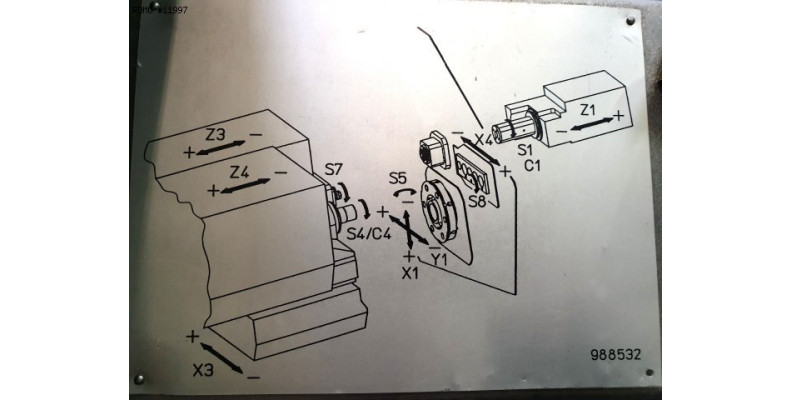

- Number of axes : 7
- Number of spindles : 2
- Number of turrets : 1
MAIN SPINDLE
- Max. bar diameter : 12,7 [mm]
- Max. machining length : 130 [mm]
- Spindle speeds : 12.000 [rpm]
- Spindle power : 2,5 [kW]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 12,7 [mm]
- Spindle speeds : 12.000 [rpm]
- Spindle power : 2,5 [kW]

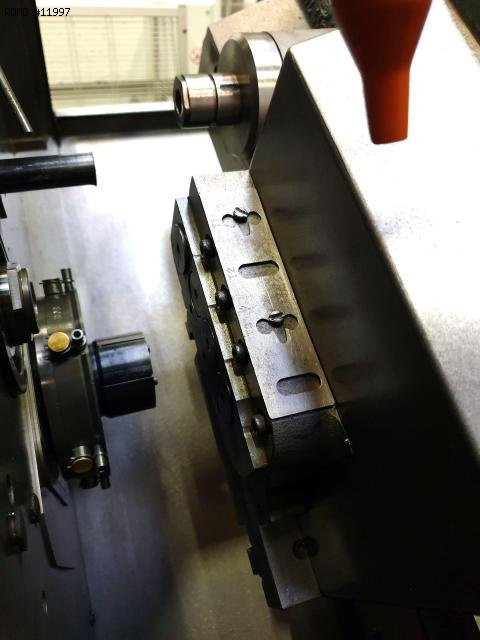

LOWER TURRET
- Number of positions : 6
- Number of motorized positions : 6
- X/Z stroke : 35/50 [mm]
- Live tools speed : 8.000 [rpm]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 4
- Number of motorized positions : 4
- Live tools speed : 12.000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 18 [kW]
Attrezzatura

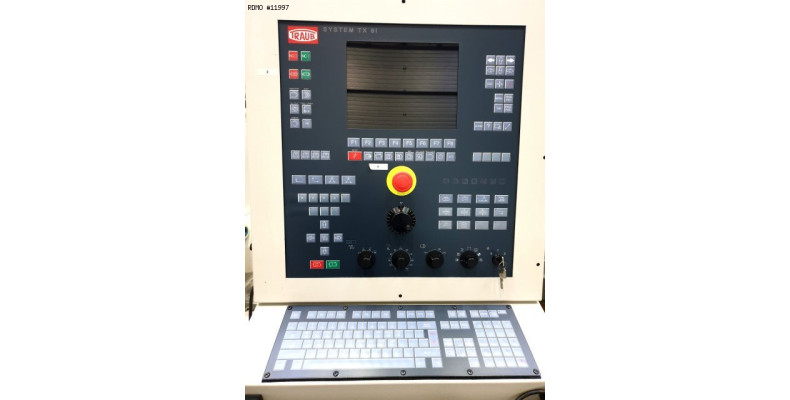

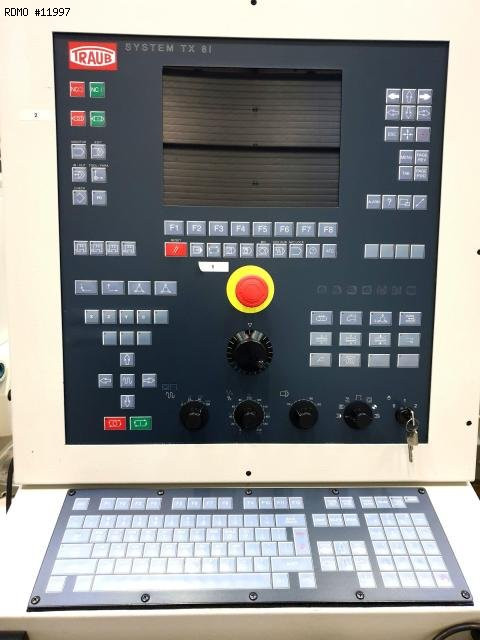

- CNC : Traub TX8i
- Interface : RJ45 / PCMCIA
- Spindle brake : on main spindle
- Parts catcher
- Coolant tank : 200 [l]
- Chips conveyor : KNOLL
- Bar loader : FMB Minimag 3200 C

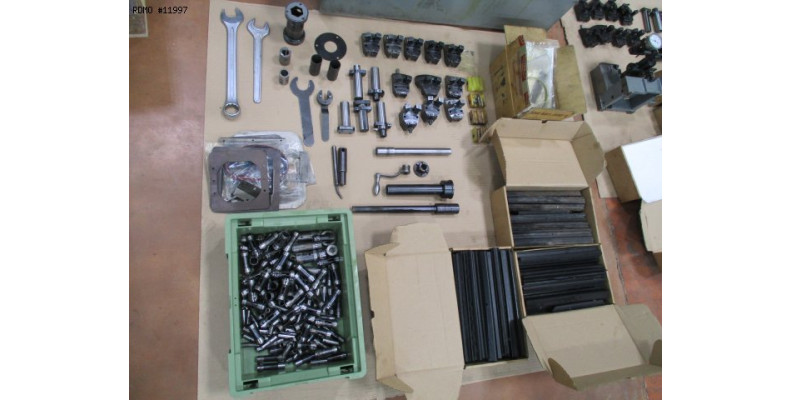

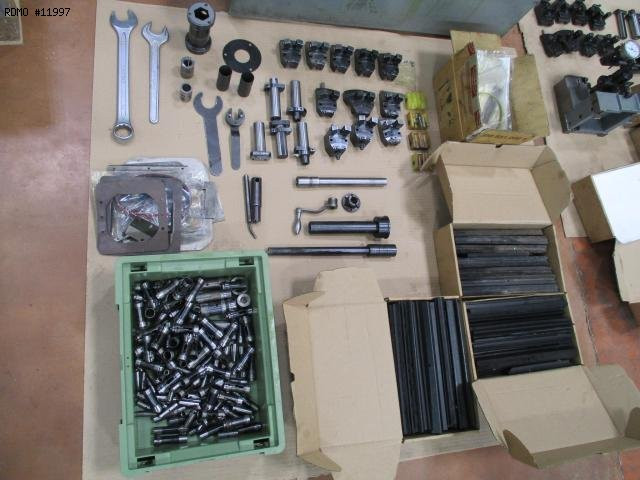

- Number of turning tool holders : 2
- Number of fixed tool holders : 14
- Collets collection for chuck : F20
- Collets collection for chuck : F16
- Sockets : 4
- Set of shells and collets for bar feeder
- Set of spare parts
