- maxi bar diameter : 12.7 [mm]
- main headstock strokes (fixed/rotary sleeve) : 130/80 [mm]
- spindle power : 4 [kW]
- rotation speed : 12 000 [rpm]

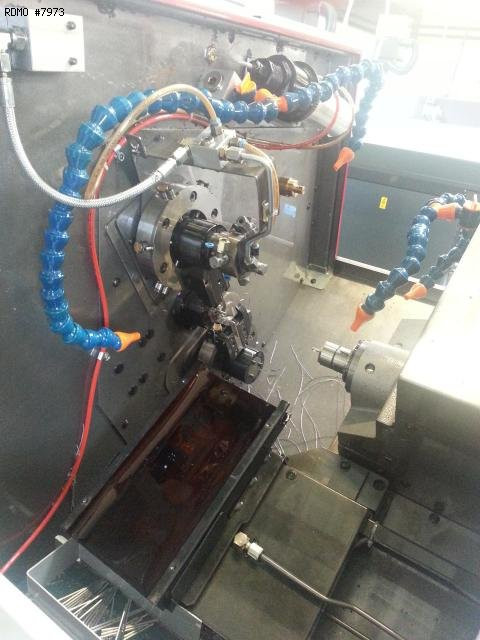

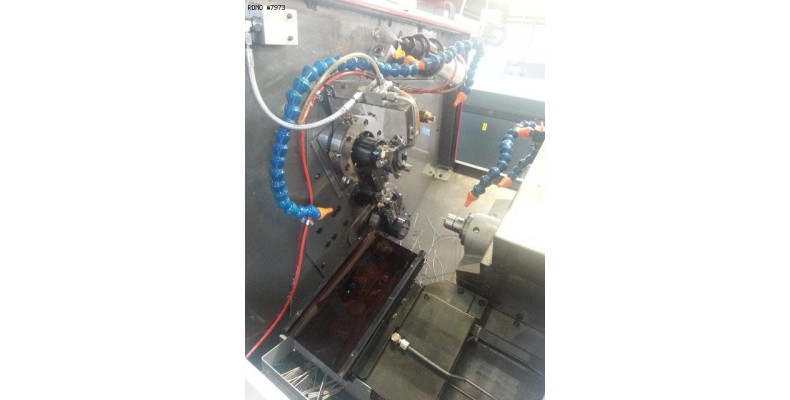

- upper turret : 6 positions
- lower turret : 6 positions
- number of rotary positions on turret : 6
- sub-spindle maxi diameter : 12.7 [mm]
- sub-spindle rotation speed : 12 000 [rpm]
- dimensions : 2850 x 110 x 1480 [mm]

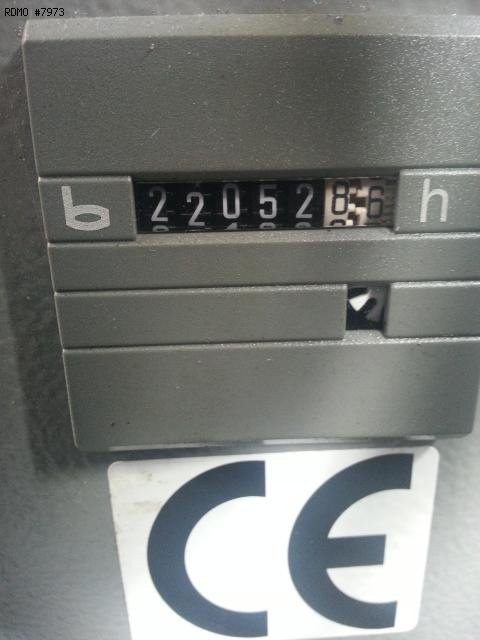

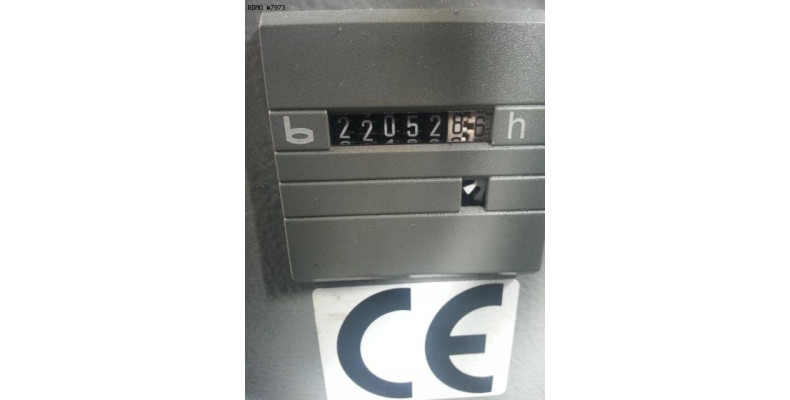

- hours in production : 12408 [H]
- spindle hours : 9400 [H]
Attrezzatura

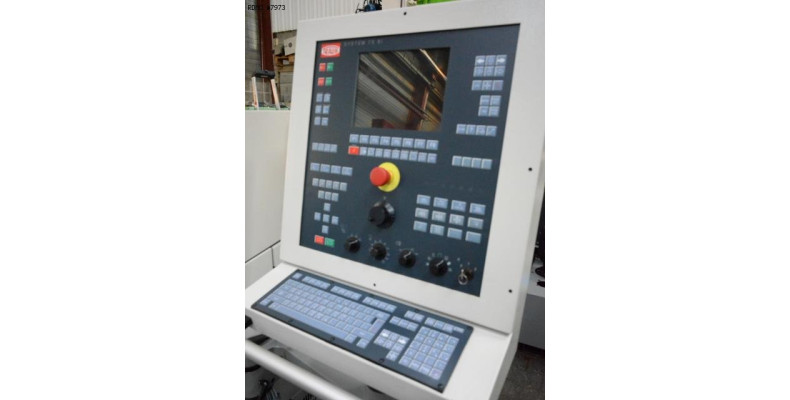

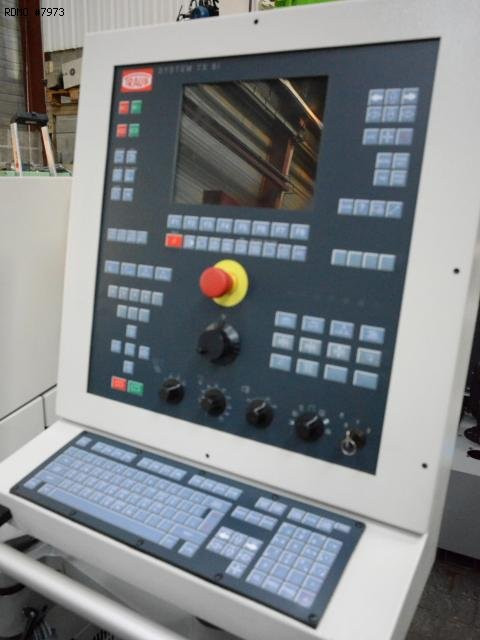

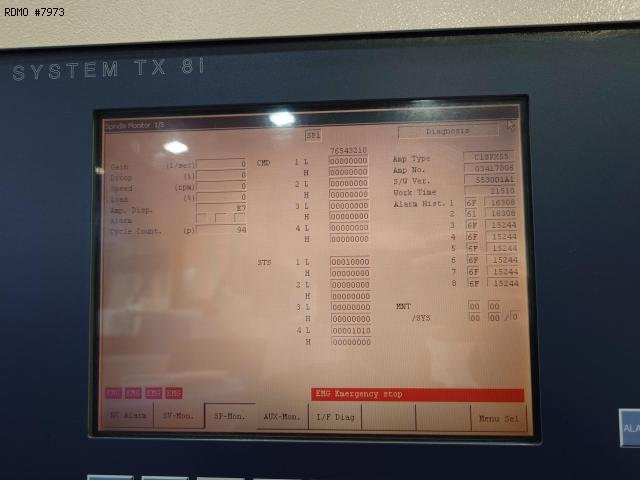

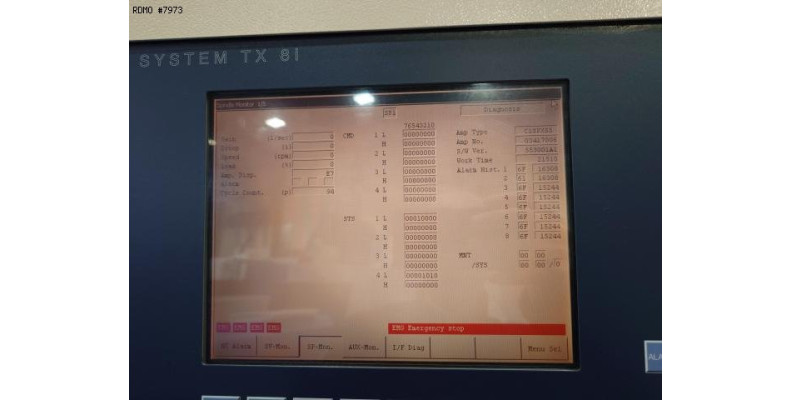

- CNC TRAUB TX 8i control

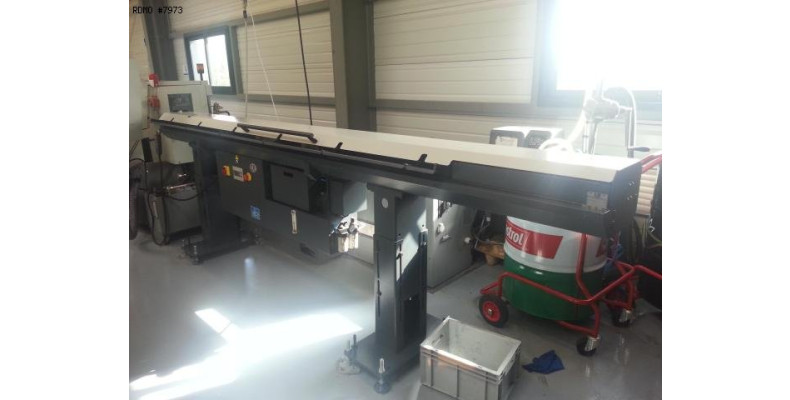

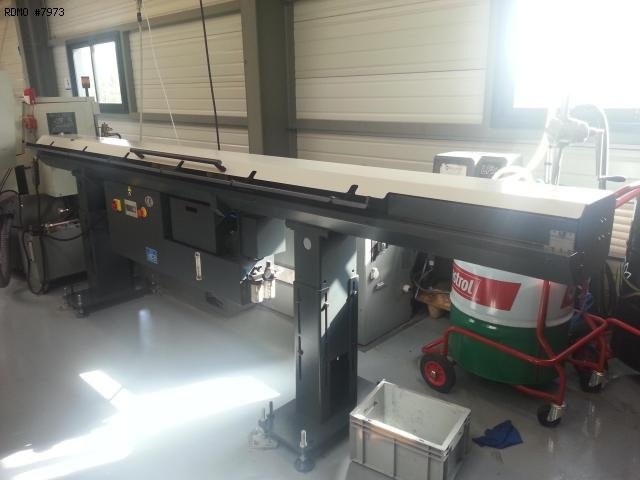

- bar feeder LNS Alpha ST 320
- C axis on main spindle and sub-spindle
- brake on main spindle and sub-spindle
- parts catcher with conveying strip

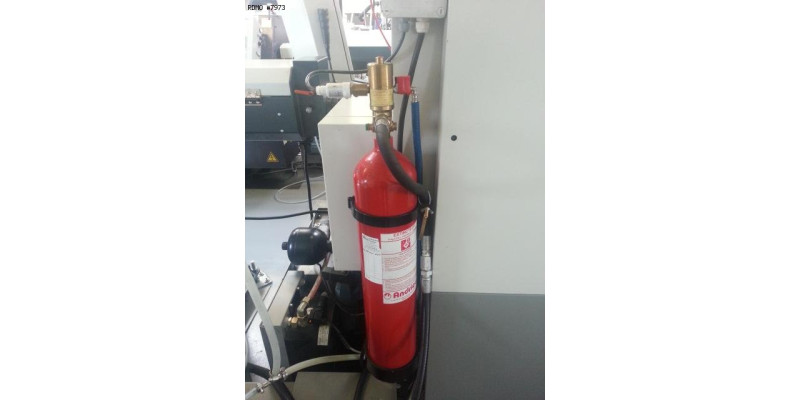

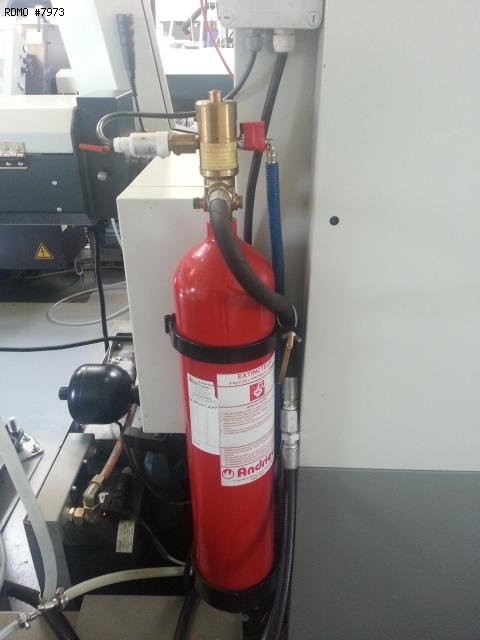

- anti fire device

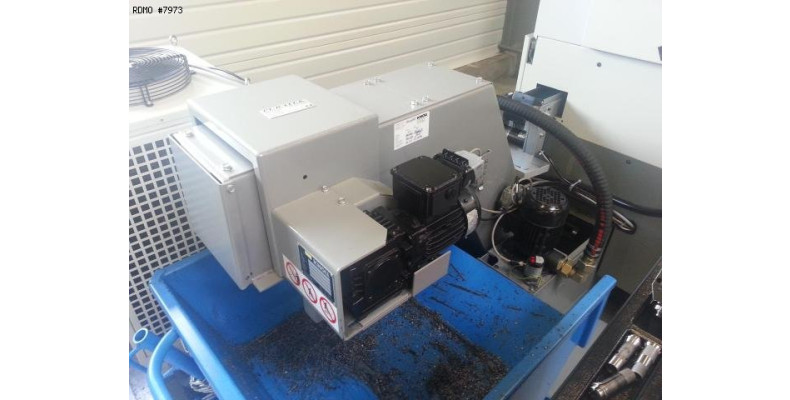

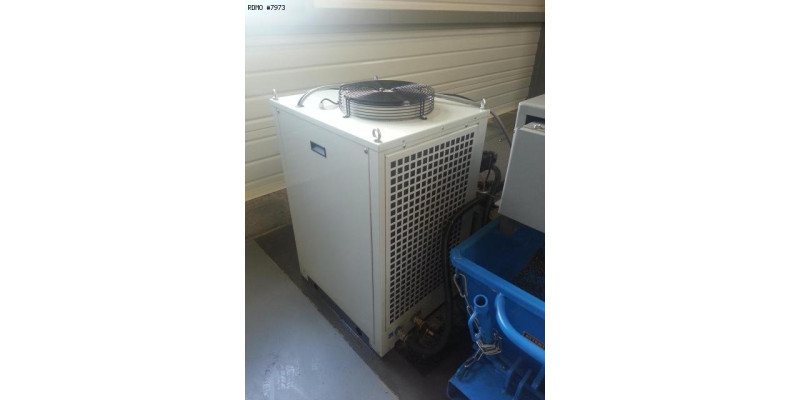

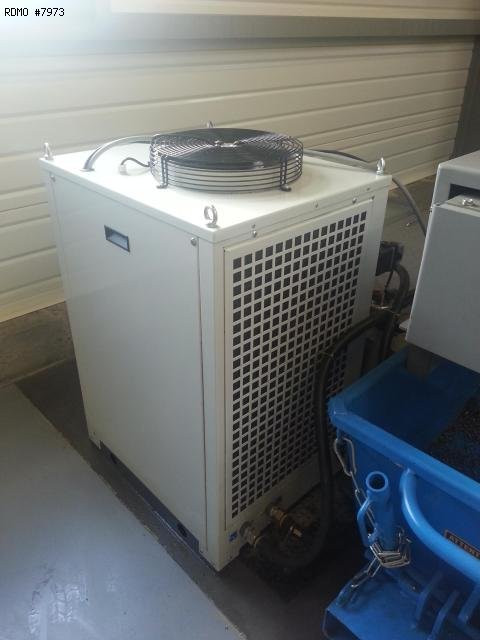

- lubricating tank with pump with cooling unit

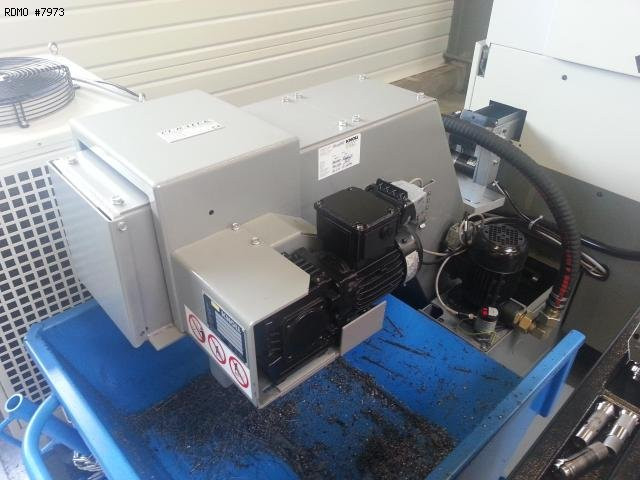

- chip conveyor

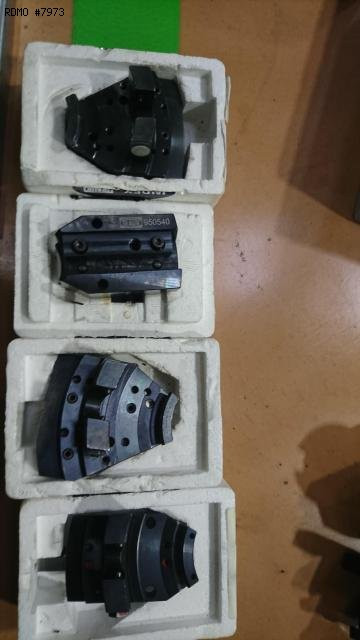

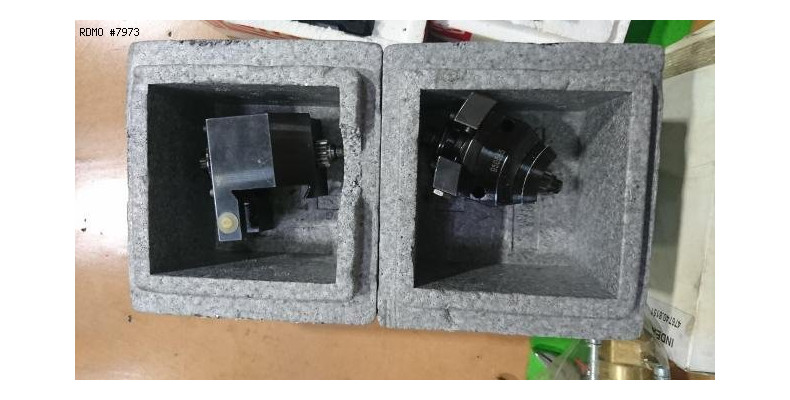

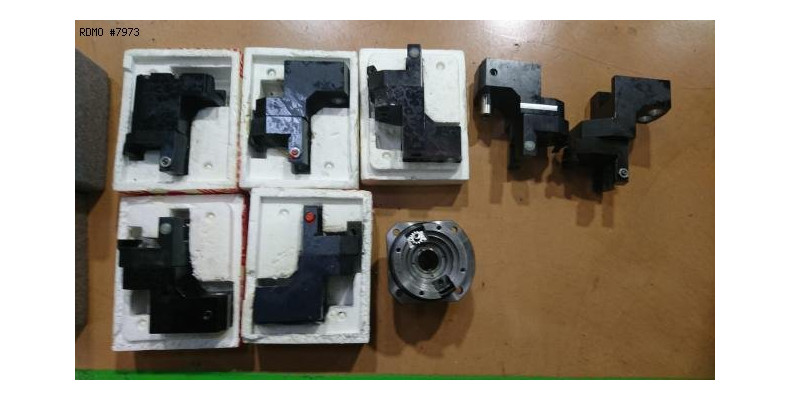

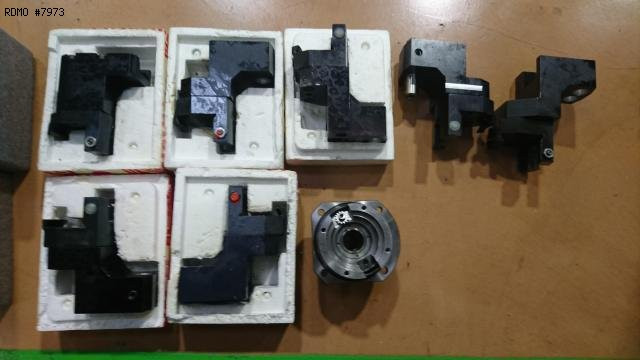

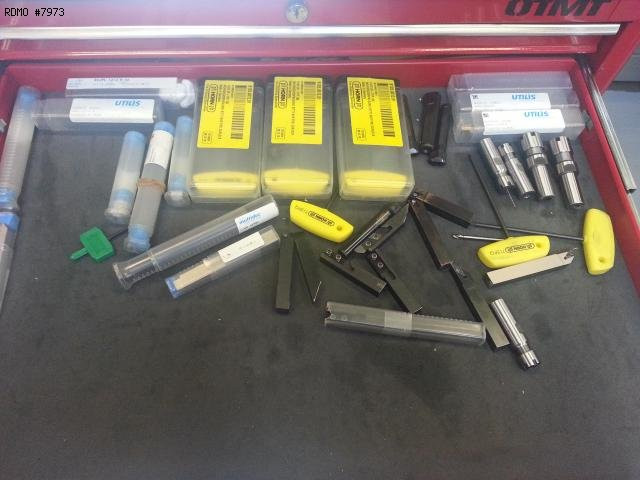

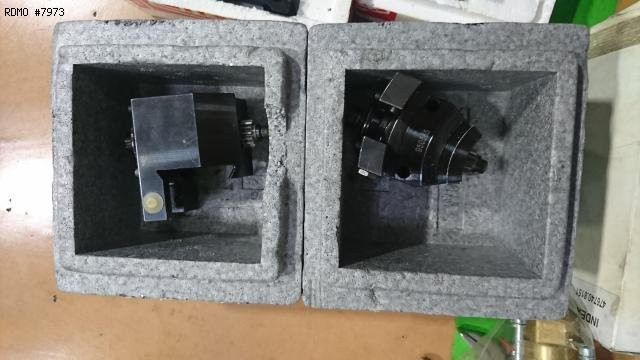

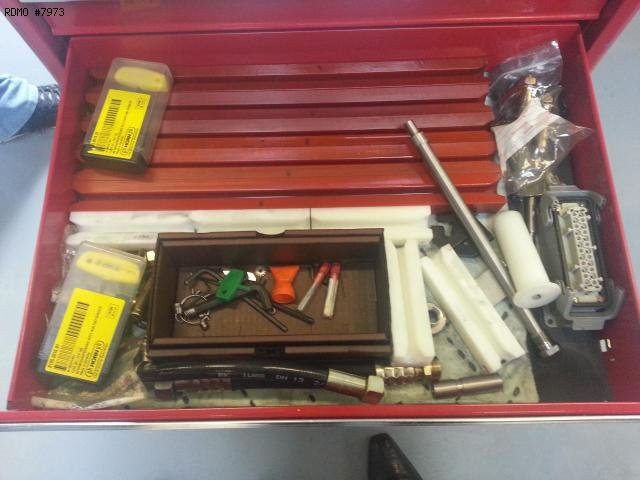

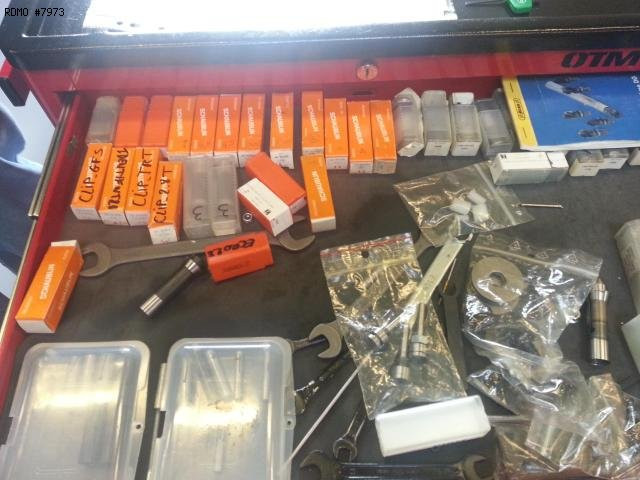

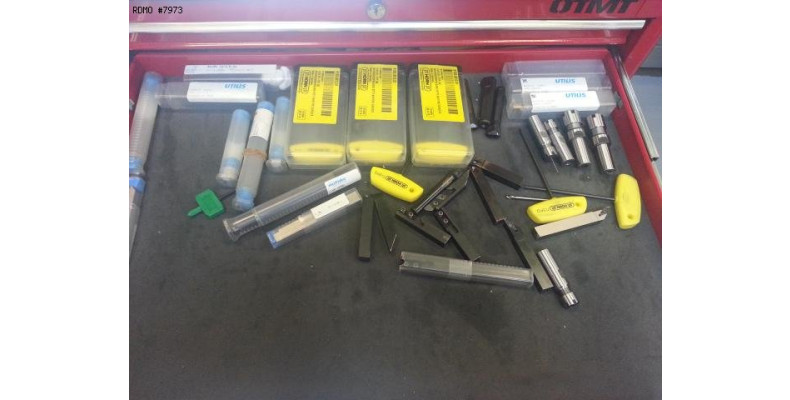

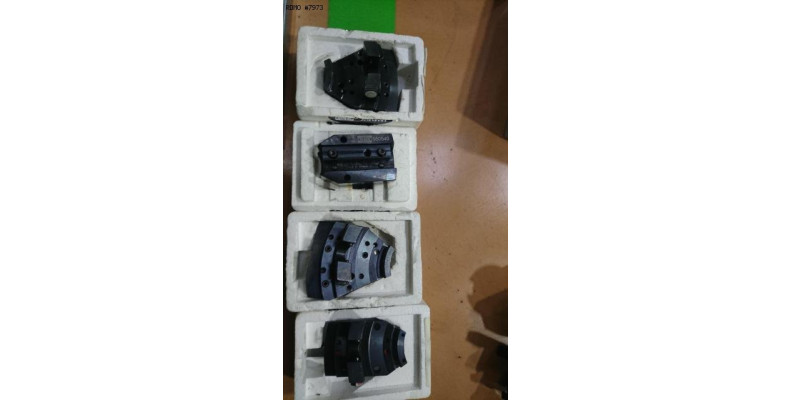

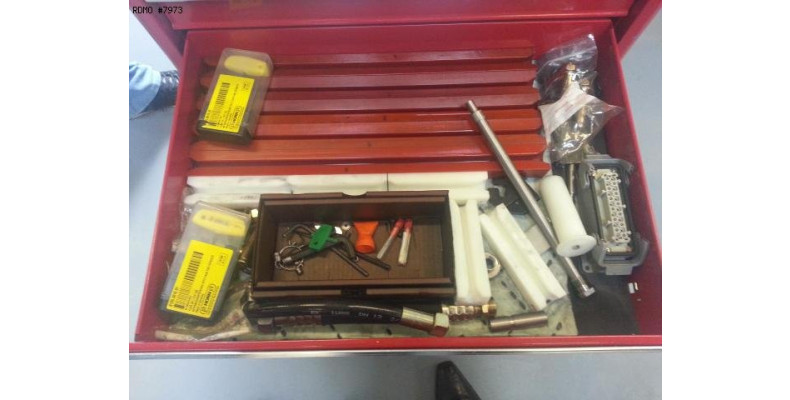

- various fixed and driven tool holders
