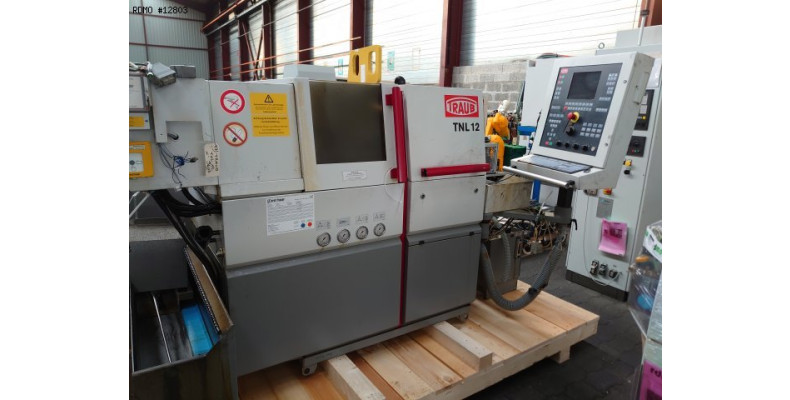

Marca: TRAUB
Modello: TNL 12
Anno: 2007
Nr Serie: 6000789
Marca: TRAUB
Modello: TNL 12
Anno: 2007
Nr Serie: 6000789

Caratteristiche & Attrezzatura

Caratteristiche
- Number of axes : 11
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 12.7 [mm]
- Max. machining length : 130 [mm]
- Spindle speeds : 12000 [rpm]
- Spindle power : 2.5 [kW]
- C axis indexing precision : 0.001 [°]

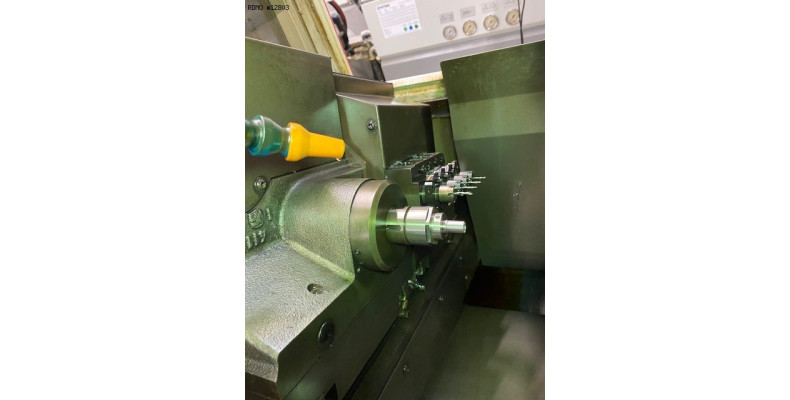

COUNTER-SPINDLE
- Max. bar diameter : 12.7 [mm]
- Z stroke : 139 [mm]
- Spindle speeds : 12000 [rpm]
- Spindle power : 2.5 [kW]
- C axis indexing precision : 0.001 [°]
- Number of turrets : 2

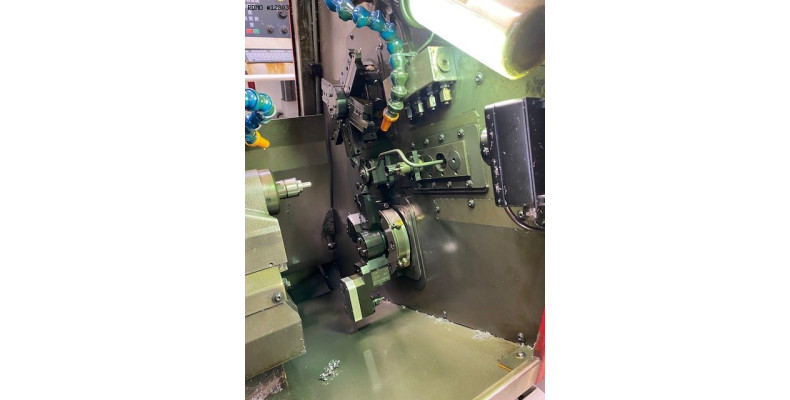

UPPER TURRET
- Number of positions : 6
- Number of motorized positions : 6
- X stroke : 35 [mm]
- Z stroke : 50 [mm]
- Live tools speed : 8000 [rpm]
- Live tools power : 1.5 [kW]
LOWER TURRET
- Number of positions : 6
- Number of motorized positions : 6
- X/Y stroke : 35/80 [mm]
- Live tools speed : 8000 [rpm]
- Live tools power : 1.5 [kW]
END ATTACHMENT
- Number of positions : 4
- X/Z stroke : 222/134 [mm]
SECONDARY OPERATION
- Number of positions : 4
- Number of motorized positions : 4
- Live tools speed : 8000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 16 [kW]
MACHINE HOURS
- Number of working hours : 74389 [h]
Attrezzatura

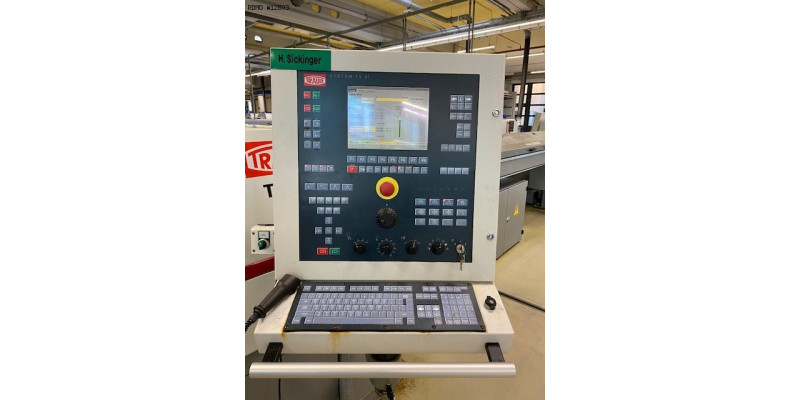

- CNC : Traub TX8i
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece

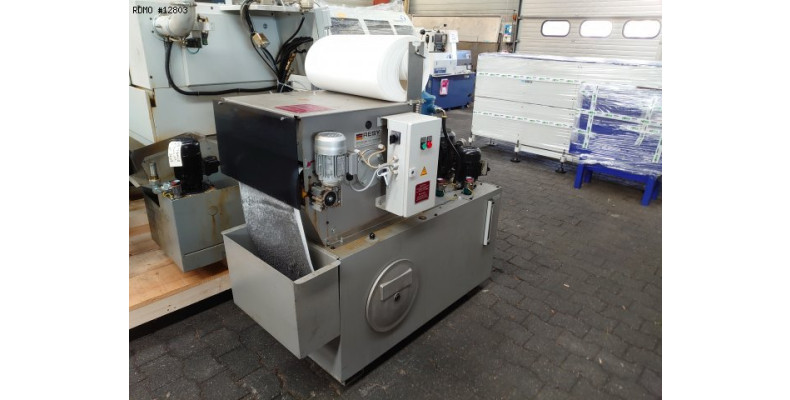

- Coolant tank
* with high-pressure pump : 150 [bars]
* with paper filtering unit

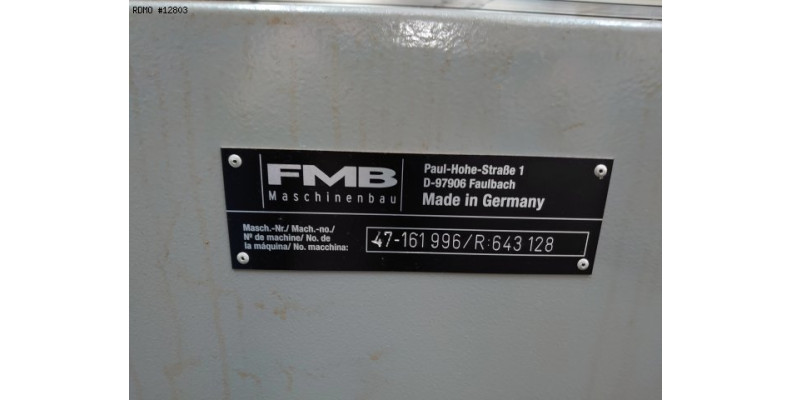

- Bar loader : FMB MINIMAG 18/4200

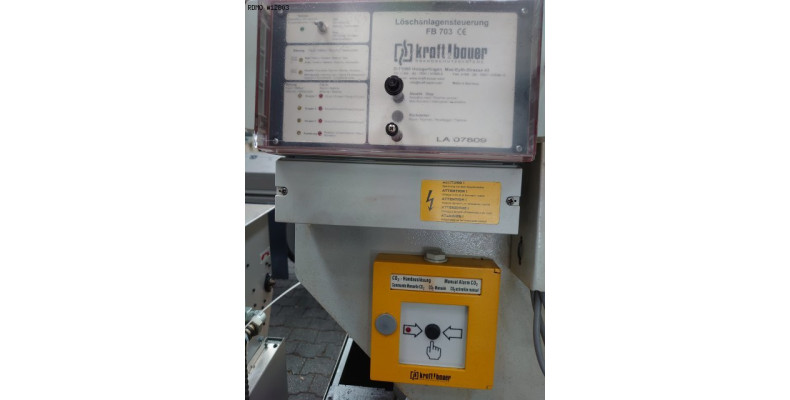

- Fire extinguisher : Kraft & Bauer
