UNA MACCHINA UTENSILE:

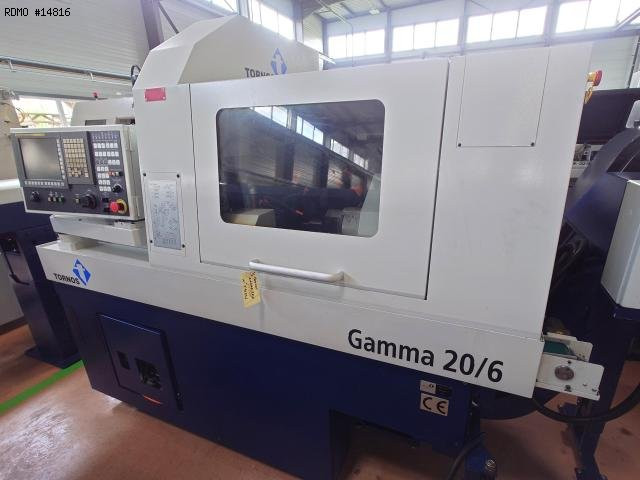

TORNOS GAMMA 20/6 6 assi

Tornitura Tornio a controllo numerico a fantina mobile
14816
Specifiche tecniche per il download
Marca: TORNOS
Modello: GAMMA 20/6
Anno: 2012
Nr Serie: 20620555
14816

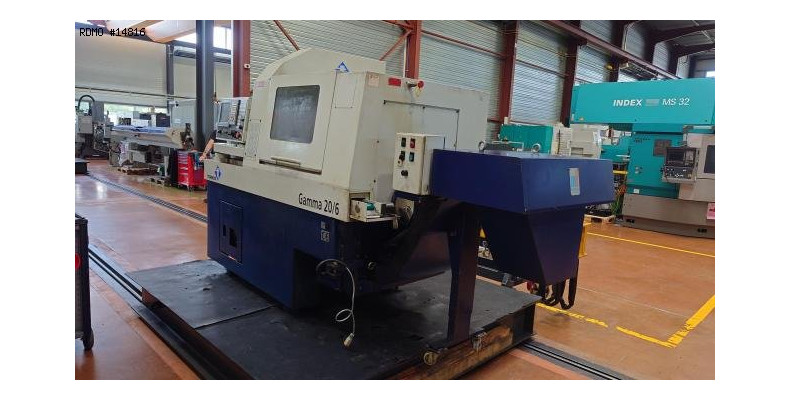

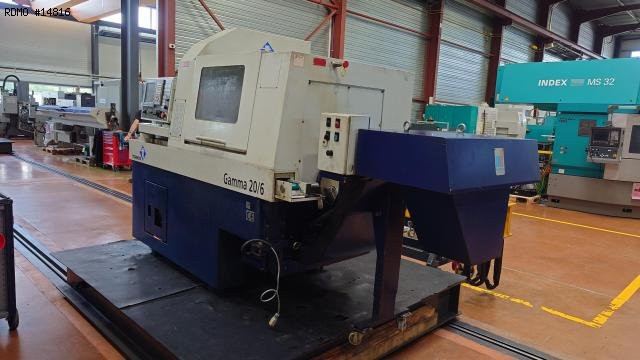

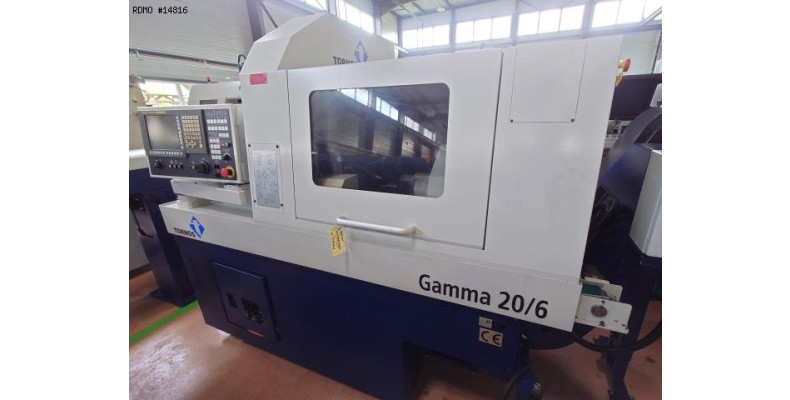

TORNOS GAMMA 20/6 6 assi
Specifiche tecniche per il download
Marca: TORNOS
Modello: GAMMA 20/6
Anno: 2012
Nr Serie: 20620555
Richieda un prezzo

Caratteristiche & Attrezzatura

Caratteristiche
- Number of axes : 8
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Max. machining length : 210 [mm]
- Spindle speeds : 12000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.001 [°]

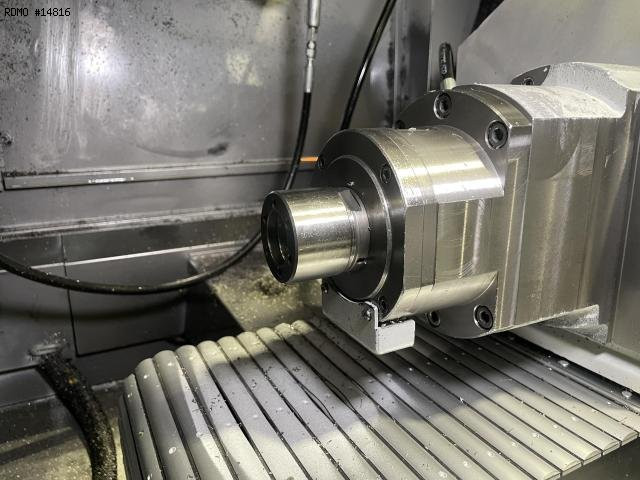

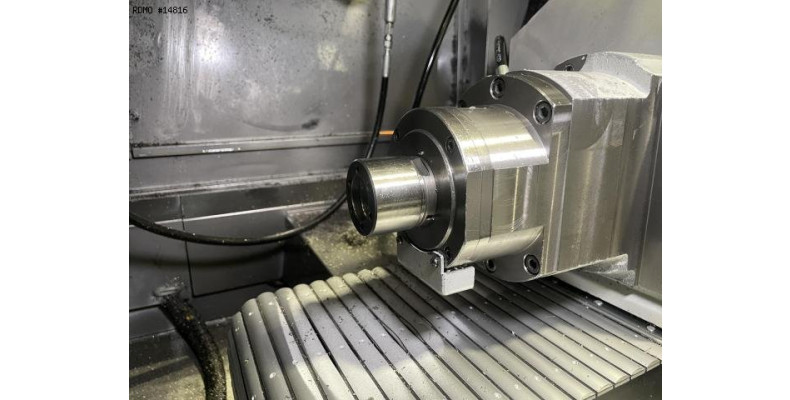

COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 12000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.001 [°]
- Number of guide bush holders : 2

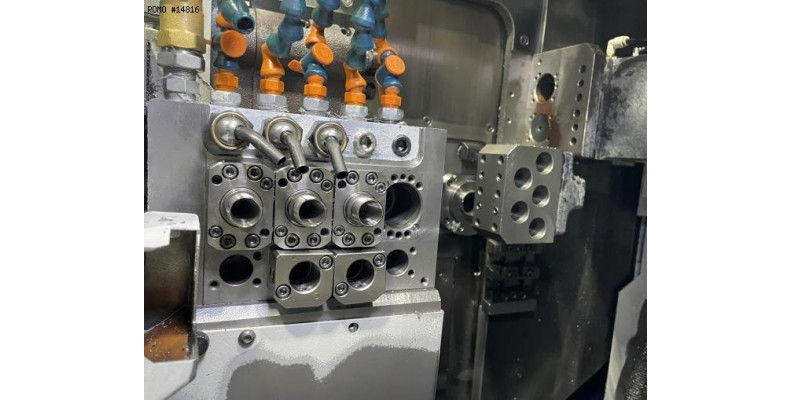

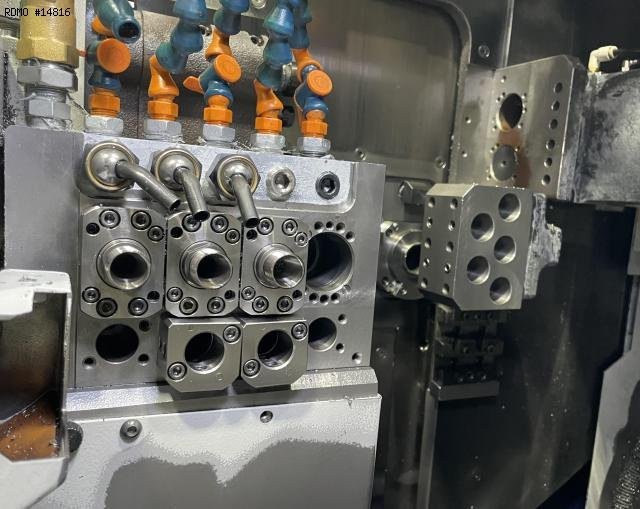

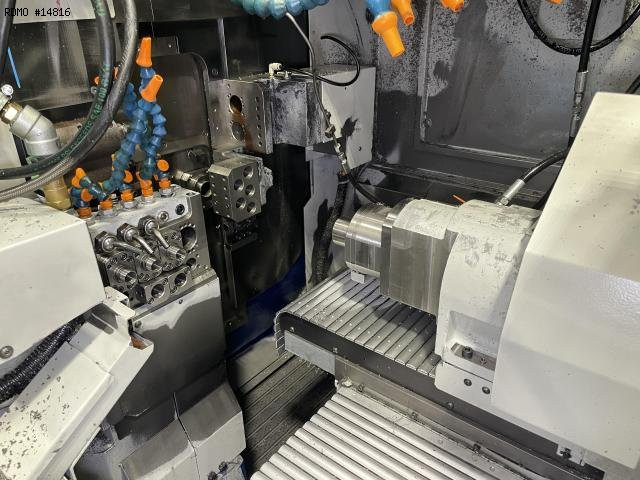

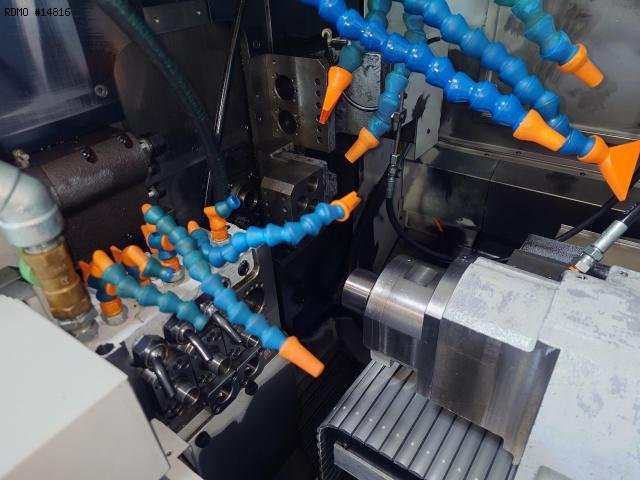

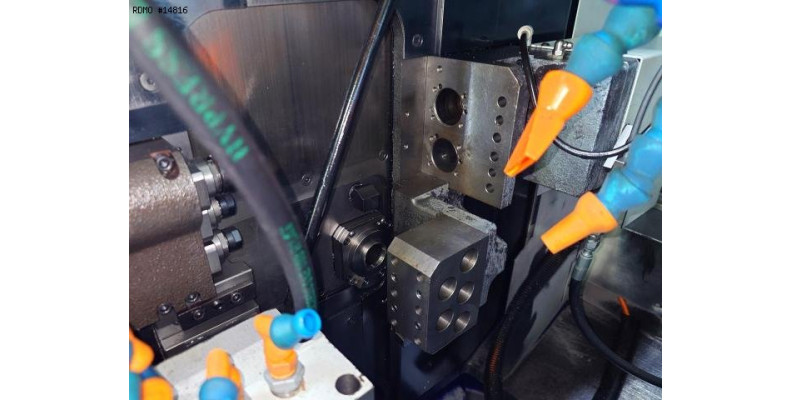

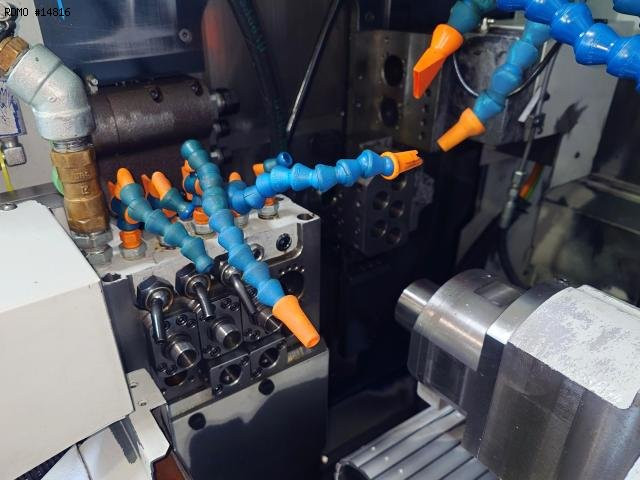

GUIDE BUSH HOLDER 1
- Number of positions : 8
- Number of motorized positions : 3
- Live tools speed : 8000 [rpm]
GUIDE BUSH HOLDER 2
- Number of positions : 5
- Number of motorized positions : 2
END ATTACHMENT
- Number of positions : 11
SECONDARY OPERATION
- Number of positions : 16
- Number of motorized positions : 4
- Live tools speed : 8000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
MACHINE HOURS
- Number of hours under power : 84207 [h]
Attrezzatura

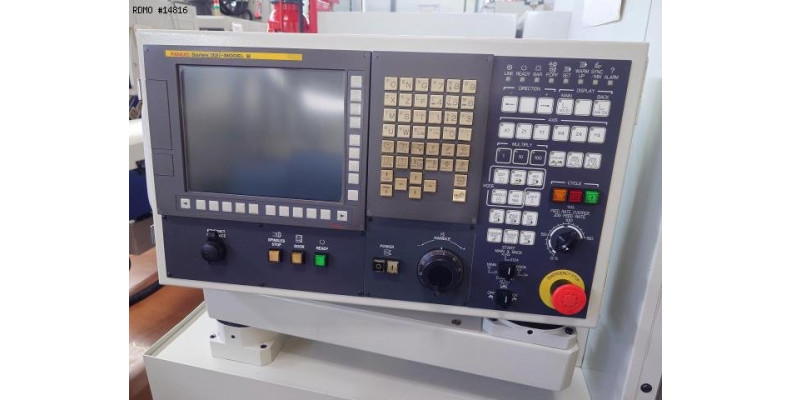

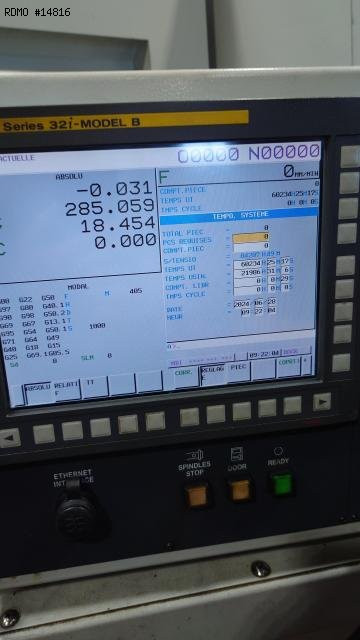

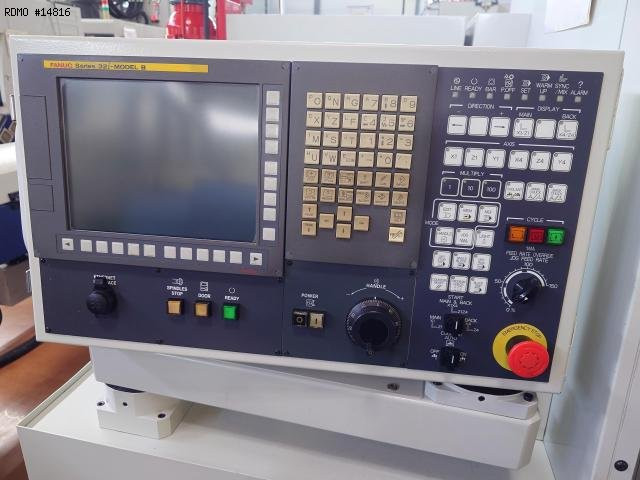

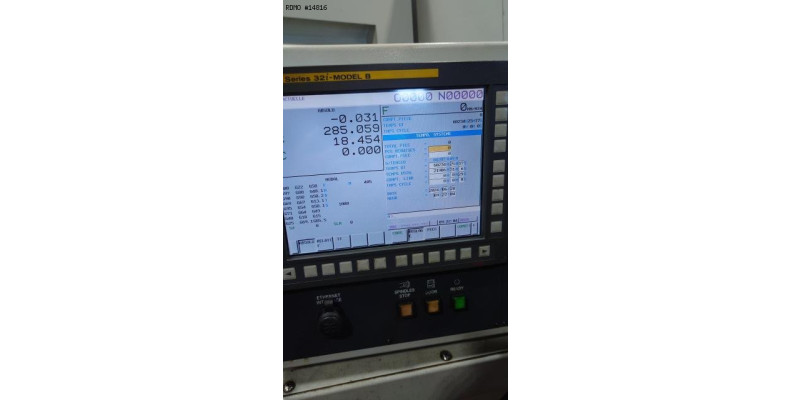

- CNC : Fanuc 32i-model B
- Rotating tool motor on : S11,S21,S51
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece

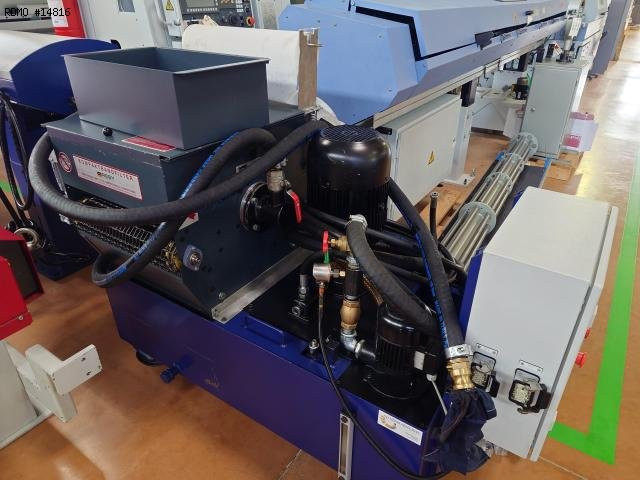

- Chips conveyor : MAYFRAN

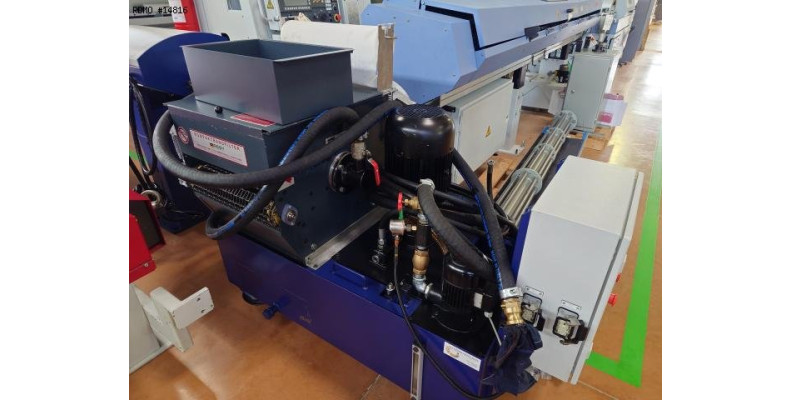

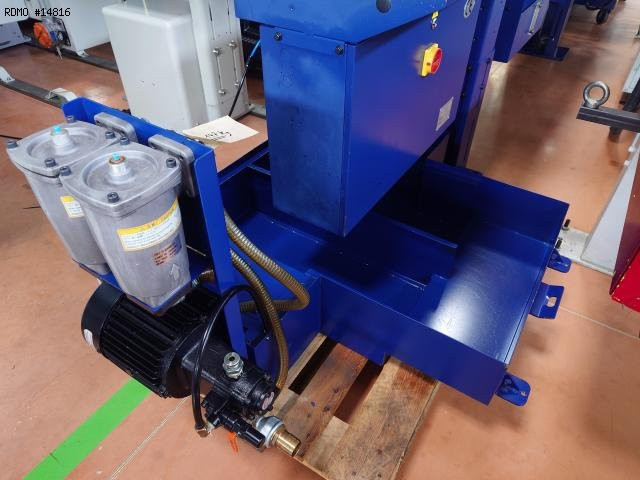

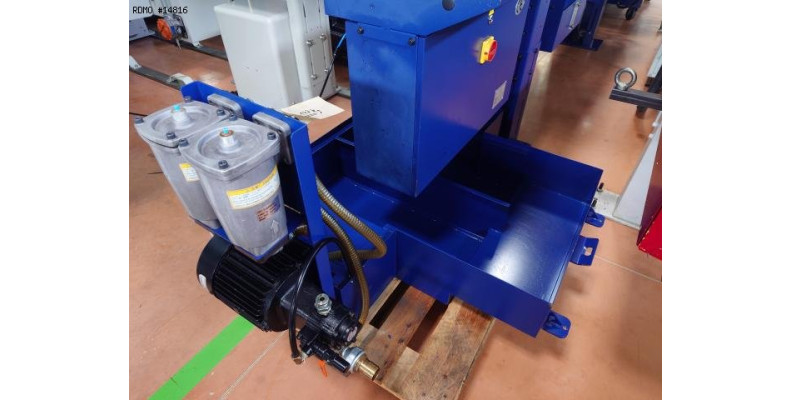

- Coolant tank
* with high-pressure pump : 20 [bars]

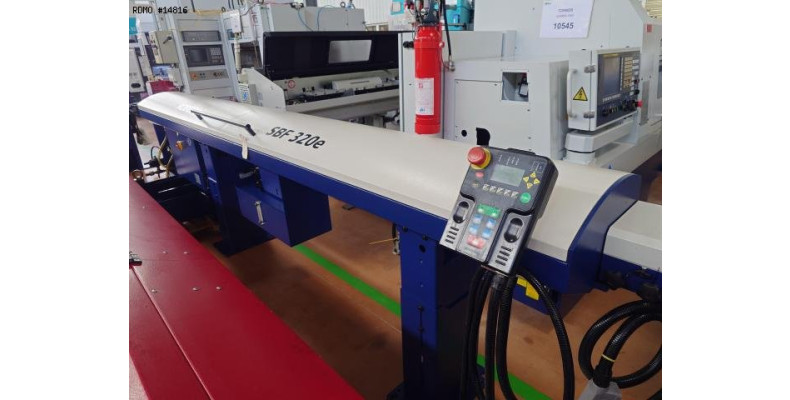

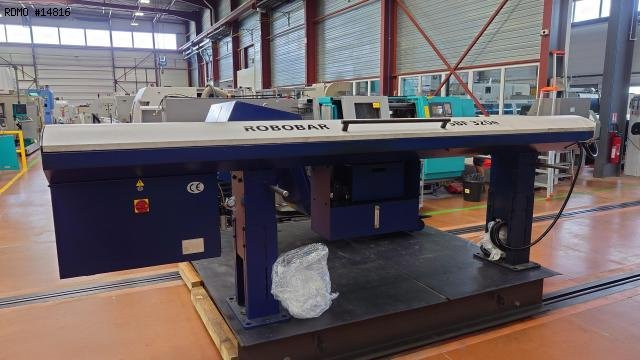

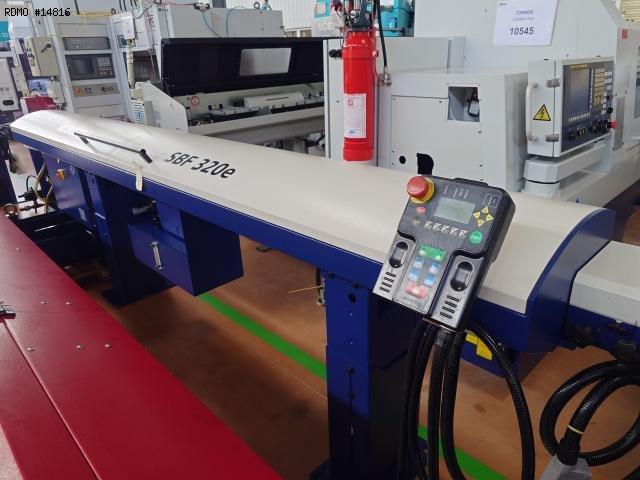

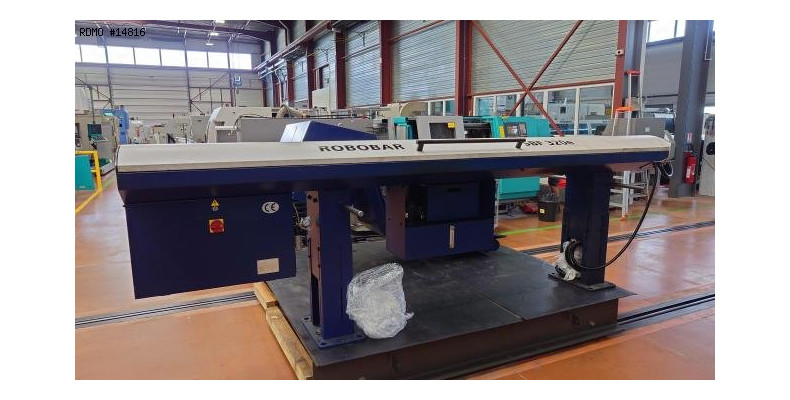

- Bar loader : TORNOS SBF320E

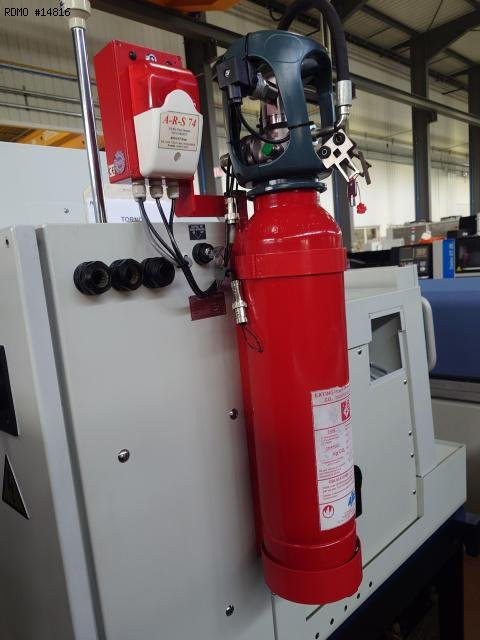

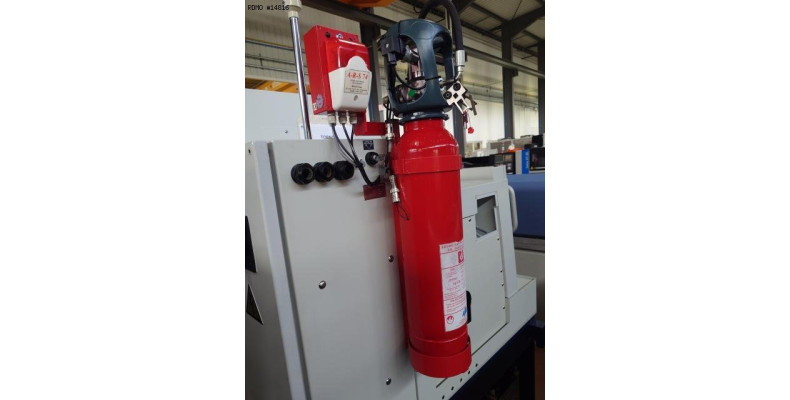

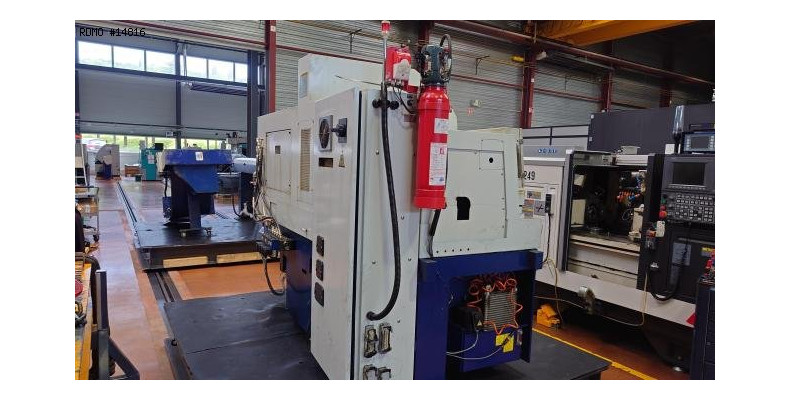

- Fire extinguisher *
NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
- Electric transformer

Specifiche tecniche in PDF

Specifiche tecniche per il download

Descrizione
