- Number of axes : 9
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 10 [mm]
- Travel : 66 [mm]
- Spindle speeds : 16000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.1 [°]
COUNTER-SPINDLE
- Max. bar diameter : 10 [mm]
- Spindle speeds : 12000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.1 [°]

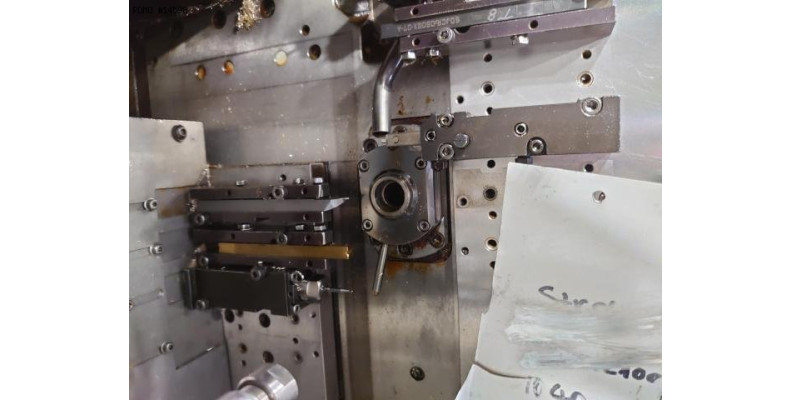

GUIDE BUSH HOLDER 1
- Number of positions : 4
GUIDE BUSH HOLDER 2
- Number of positions : 4
- Number of motorized positions : 3
- Live tools speed : 12000 [rpm]
END ATTACHMENT
- Number of positions : 3
- Number of motorized positions : 3
- Live tools speed : 12000 [rpm]

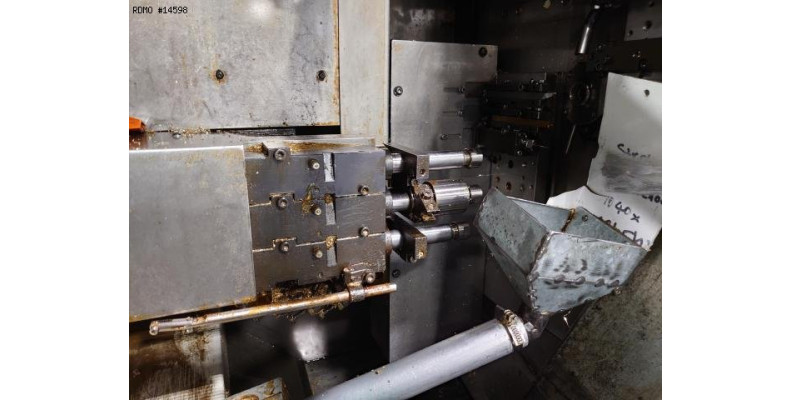

SECONDARY OPERATION
- Number of positions : 4
- Number of motorized positions : 4
- Live tools speed : 9000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 1700 X 1010 [mm]
- Machine height : 2000 [mm]
- Machine weight : 1500 [kg]
Attrezzatura

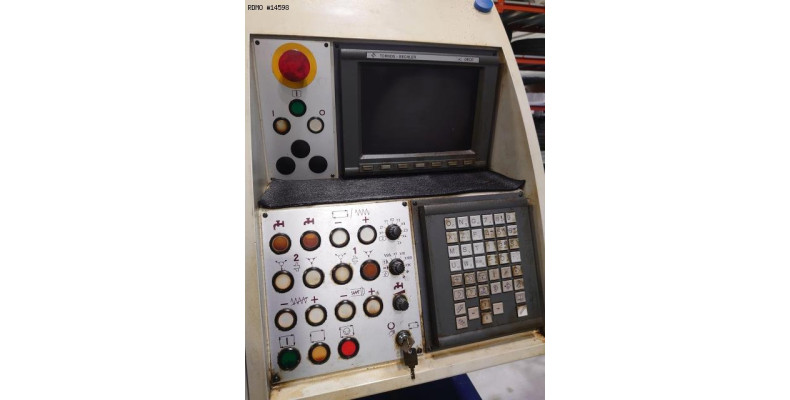

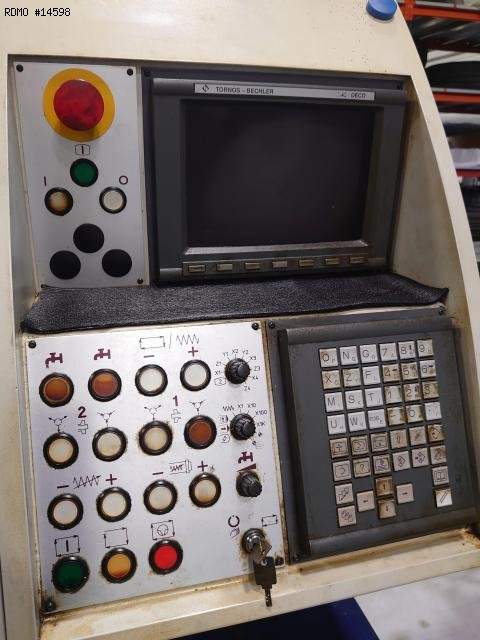

- CNC : Fanuc
- Rotating tool motor on : S2,S3,S5
- Rotating guide bush
- Parts catcher
- Ejection of workpiece
- Coolant tank
- Number of turning tool holders : 4
- Number of fixed tool holders : 6
- Number of turning tool holders : 7
