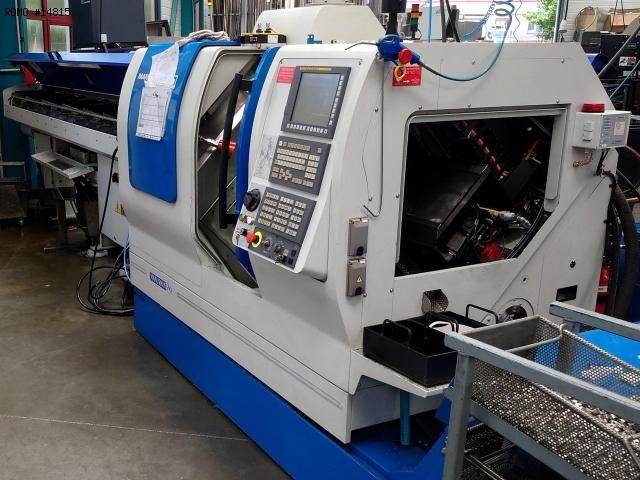

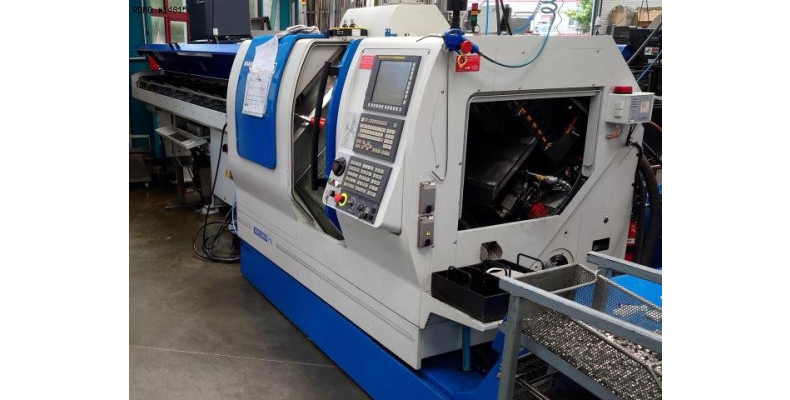

MANURHIN KMX 920 CLEVER 9 assi

- Number of axes : 9
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 12000 [rpm]
- Spindle power : 3,7/5,5 [kW]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 12000 [rpm]
- Spindle power : 3,7 / 5,5 [kW]
- C axis indexing precision : 0,001 [°]
- Number of turrets : 1

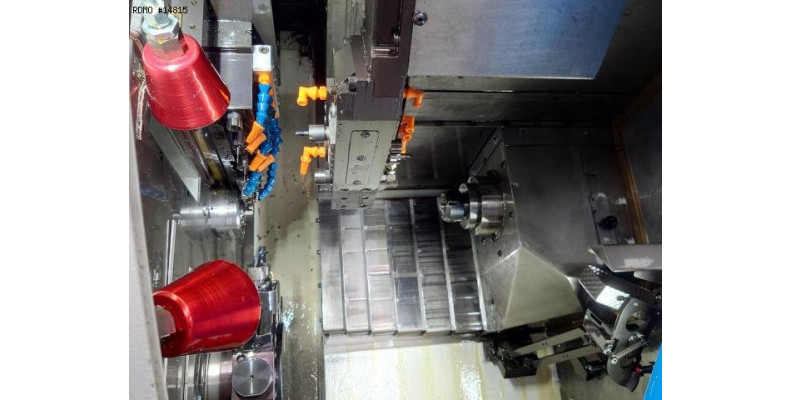

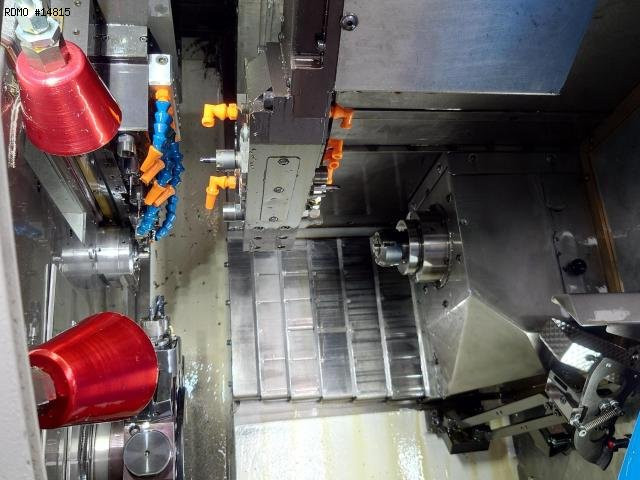

LOWER TURRET
- Number of positions : 12
- X/Z stroke : 90x65 [mm]
- Y stroke : 50 [mm]
- Number of guide bush holders : 2
GUIDE BUSH HOLDER 1
- Number of positions : 10
- Number of motorized positions : 4
- X/Y stroke : 90 / 319 [mm]
END ATTACHMENT
- Number of positions : 12
- X/Z stroke : 215x305 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 2000x1280 [mm]
- Machine height : 1720 [mm]
- Machine weight : 3600 [kg]
MACHINE HOURS
- Number of hours under power : 23167 [h]

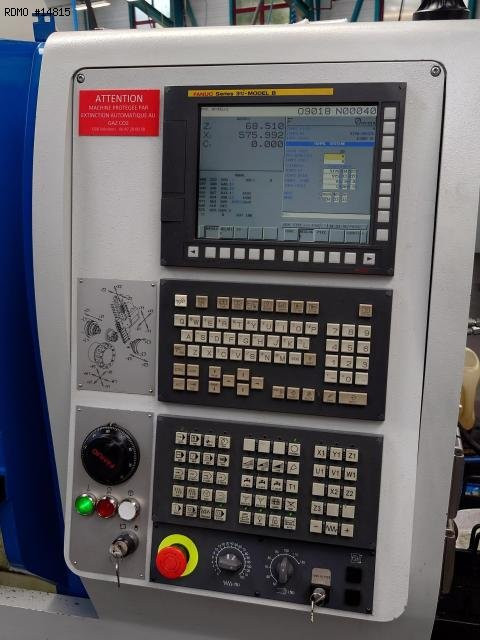

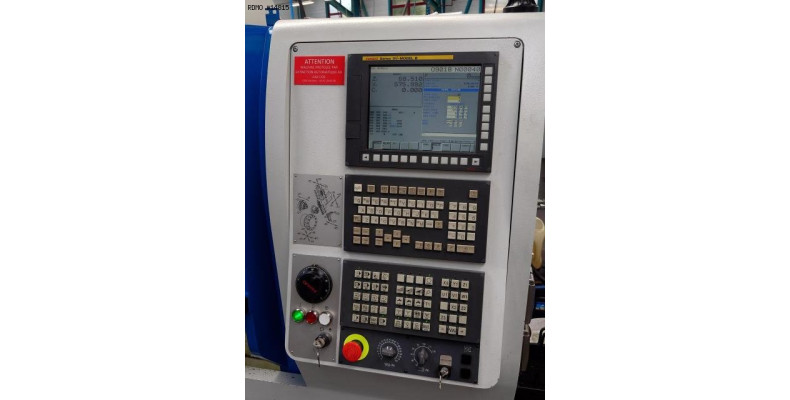

- CNC : Fanuc 31i-B
- Interface : Ethernet / RS232 / USB / PCMCIA
- 3 colors status lamp
- Rotating guide bush
- Parts catcher
- Ejection of workpiece
- Coolant tank

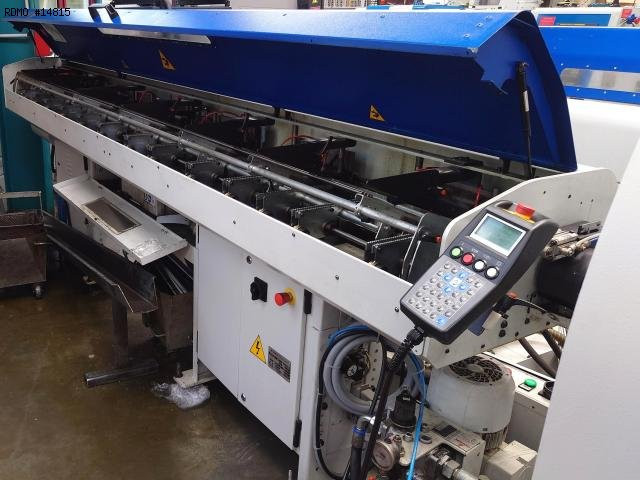

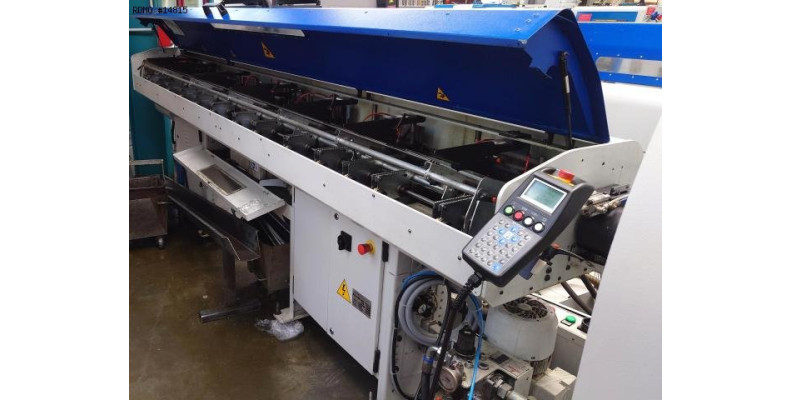

- Bar loader : Iemca Elite 220 (2010)
- Fire extinguisher *
NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
