MANURHIN KMX 732 EVO 7 assi

- Number of axes : 7
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 32 [mm]
- Travel : 380 [mm]
- Spindle speeds : 8.000 [rpm]
- Spindle power : 7,5 / 10,5 [kW]
- C axis indexing precision : 0,001 [°]

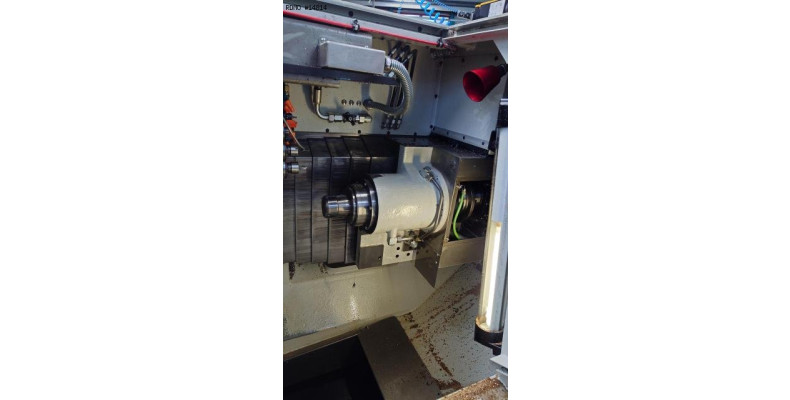

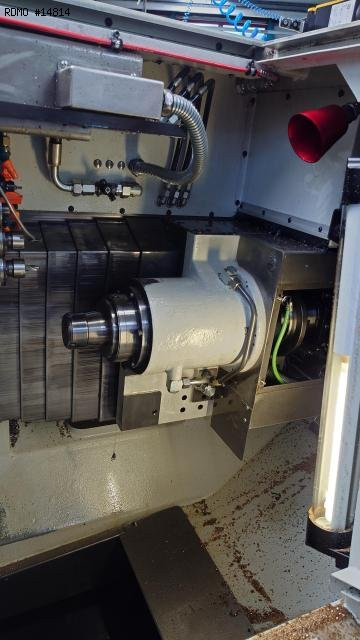

COUNTER-SPINDLE
- Max. bar diameter : 32 [mm]
- Z stroke : 295 [mm]
- Spindle speeds : 8.000 [rpm]
- Spindle power : 3,7 / 5,5 [kW]
- C axis indexing precision : 0,001 [°]
- Number of guide bush holders : 2

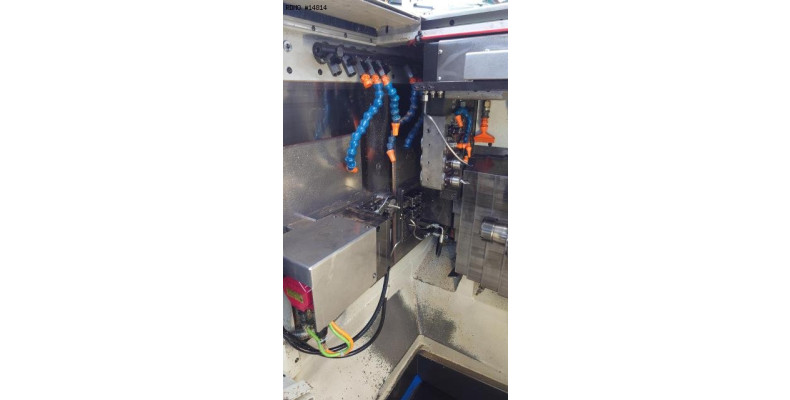

GUIDE BUSH HOLDER 1
- Number of positions : 5
- Number of motorized positions : 3
- X/Y stroke : 45 / 180 [mm]
GUIDE BUSH HOLDER 2
- Number of positions : 5
- Number of motorized positions : 3
- X/Y stroke : 45 / 180 [mm]
END ATTACHMENT
- Number of positions : 4
- Number of motorized positions : 3
- Y stroke : 260 [mm]
SECONDARY OPERATION
- Number of positions : 4
- Number of motorized positions : 3
* Y stroke : 260 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 32 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 3.000 x 1.400 [mm]
- Machine height : 1.857 [mm]
- Machine weight : 4300 [kg]
MACHINE HOURS
- Number of hours under power : 25310 [h]
- Number of working hours : 6402 [h]

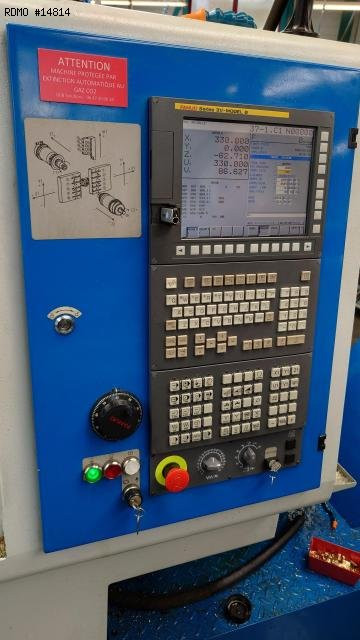

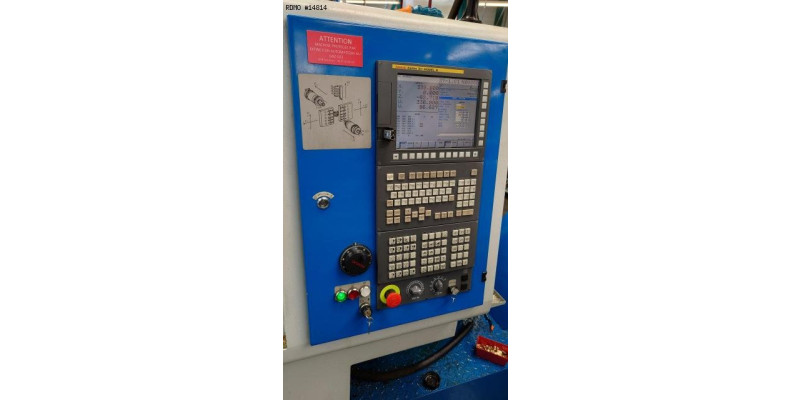

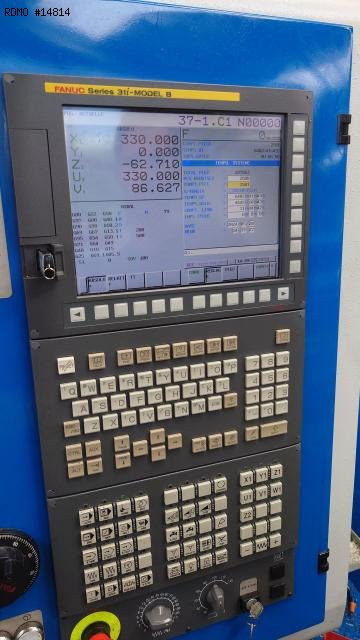

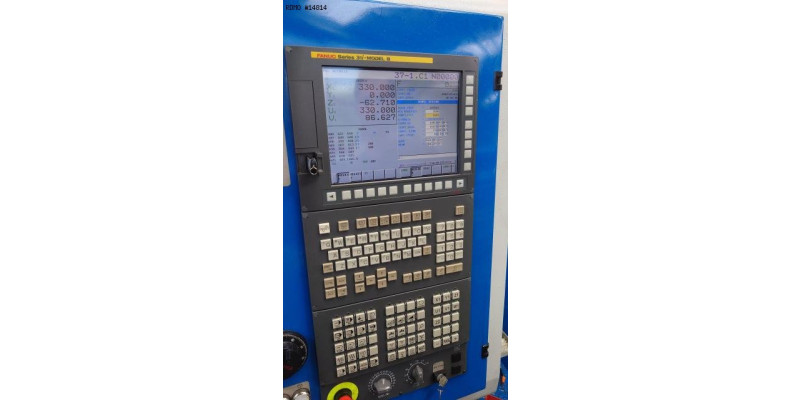

- CNC : Fanuc 31i-B
- Interface : Ethernet / RS232 / USB / PCMCIA
- 3 colors status lamp
- Rotating guide bush
- Parts catcher
- Ejection of workpiece

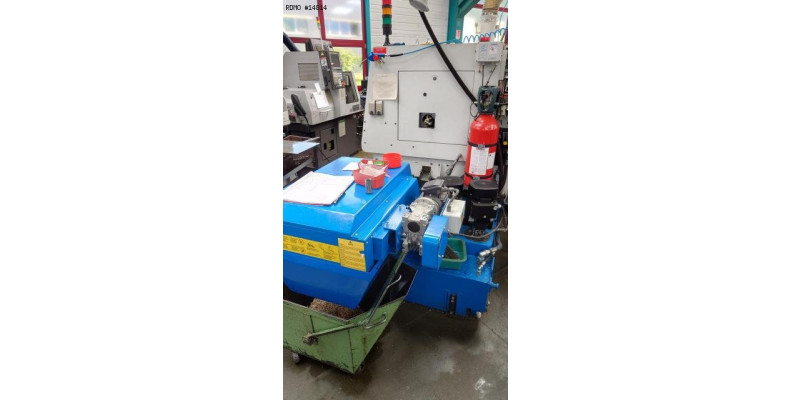

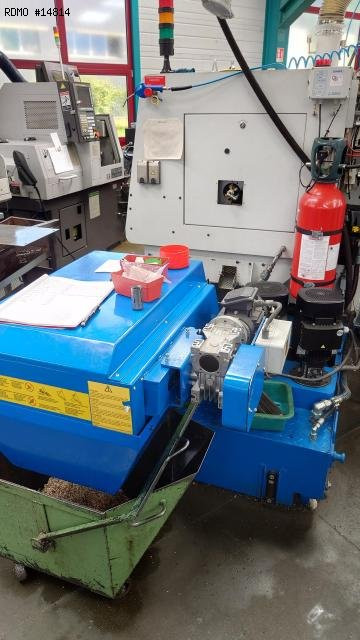

- Coolant tank

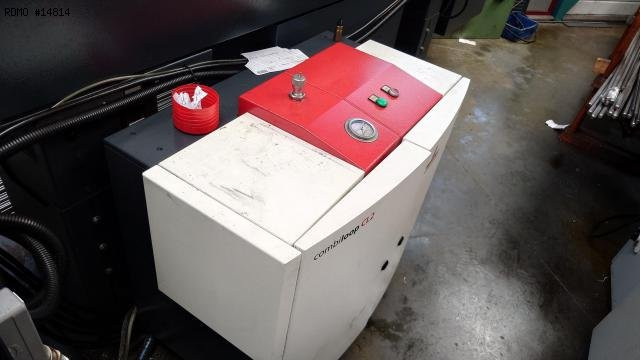

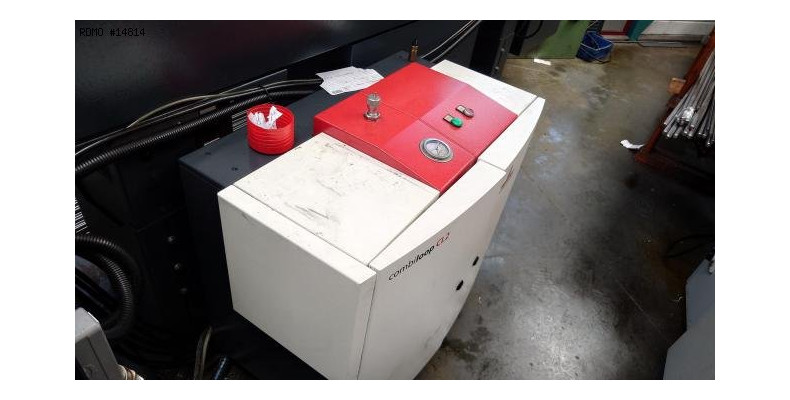

* with high-pressure pump : HP Muller Combiloop CL2 (2016)

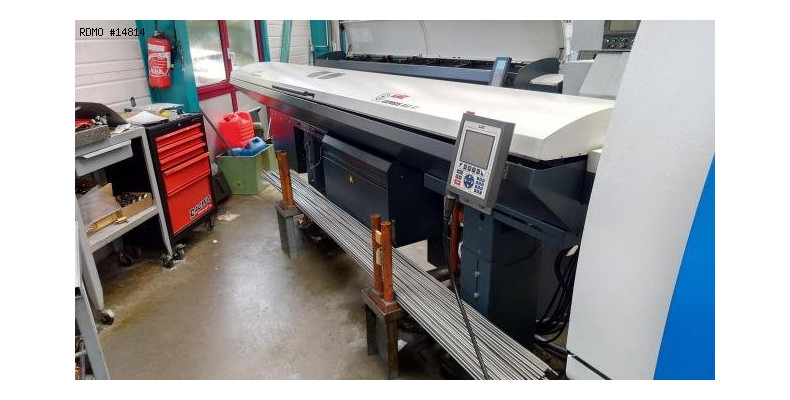

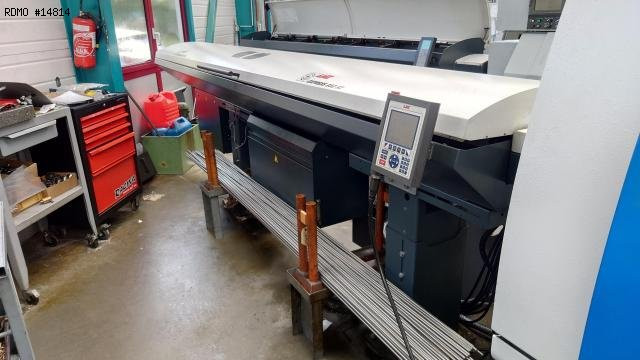

- Bar loader : LNS Express 332 S2 (2016)
- Fire extinguisher *
NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
- Number of turning tool holders : 5
- Number of fixed tool holders : 10
- Bar loader channel : 32 mm max
- 2nd bar loader channel : 10 mm max without pusher
