- Number of axes : 11
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 32 [mm]
- Travel : 320 [mm]
- Spindle speeds : 8000 [rpm]
- Spindle power : 8 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 32 [mm]
- Spindle speeds : 8000 [rpm]
- Spindle power : 8 [kW]
- C axis indexing precision : 0.001 [°]
- Number of turrets : 1

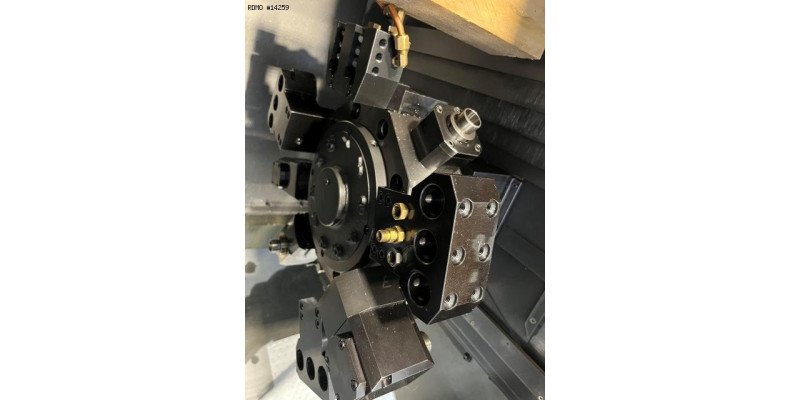

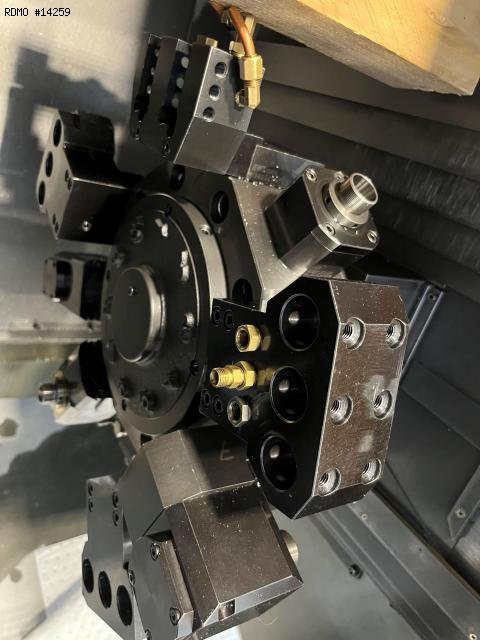

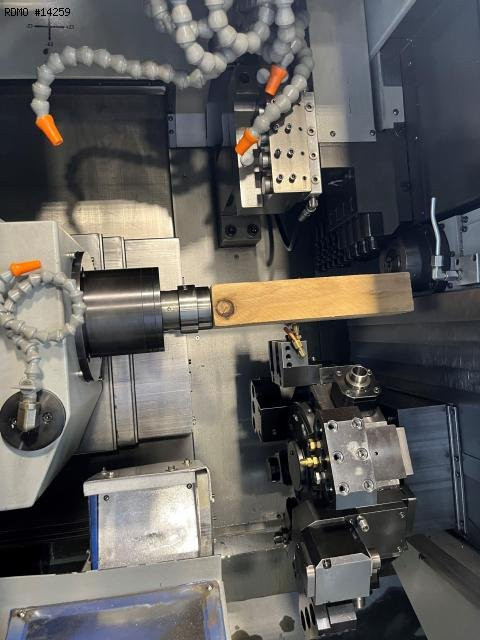

LOWER TURRET
- Number of positions : 10
- Number of motorized positions : 10
- X/Z stroke : 115/120 [mm]
- Y stroke : 100 [mm]
- Live tools speed : 6000 [rpm]
- Live tools power : 1 [kW]
- Number of guide bush holders : 1

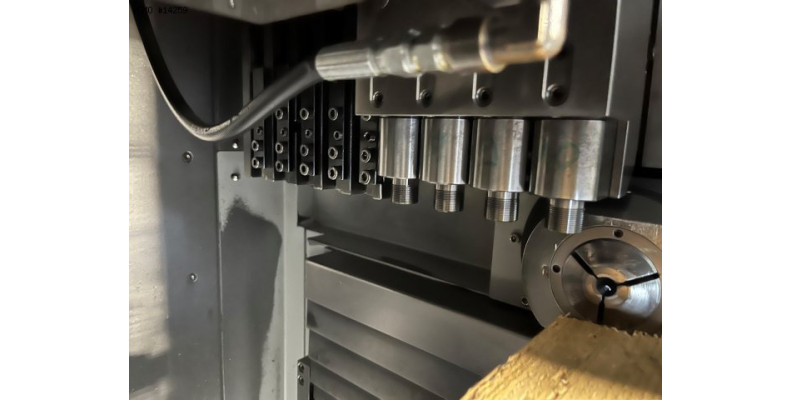

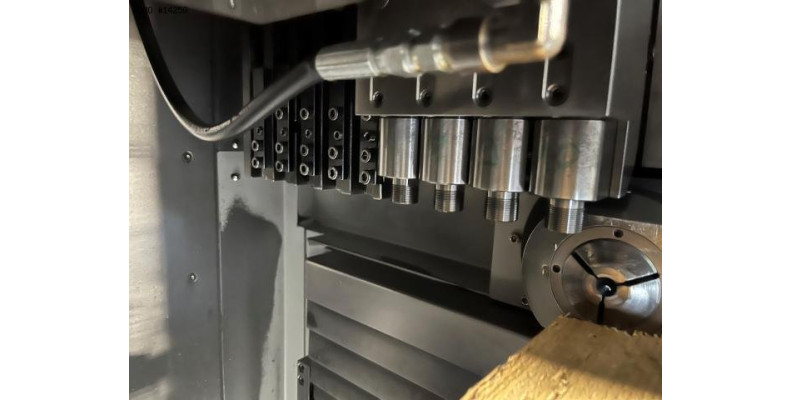

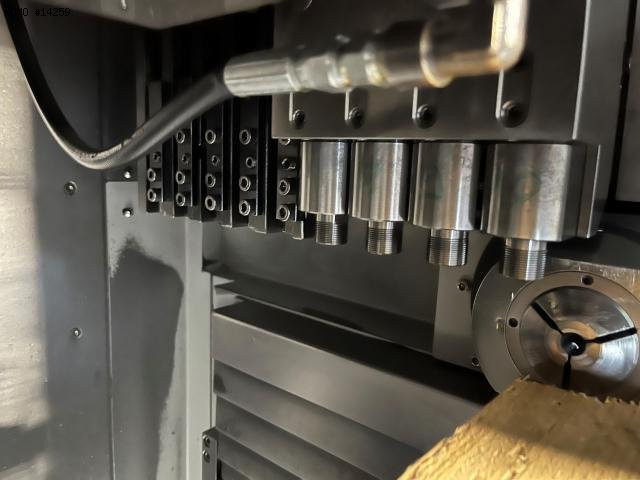

GUIDE BUSH HOLDER 1
- Number of positions : 9
- Number of motorized positions : 4
- Live tools speed : 6000 [rpm]
SECONDARY OPERATION
- Number of positions : 4
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 40 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 3600 X 2200 [mm]
- Machine height : 1780 [mm]
- Machine weight : 4400 [kg]
Attrezzatura
- CNC : Siemens 840 D
- 3 colors status lamp
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece
- Chips conveyor

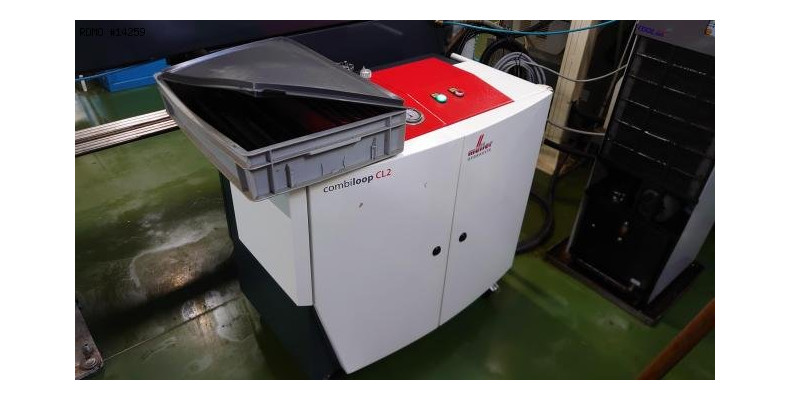

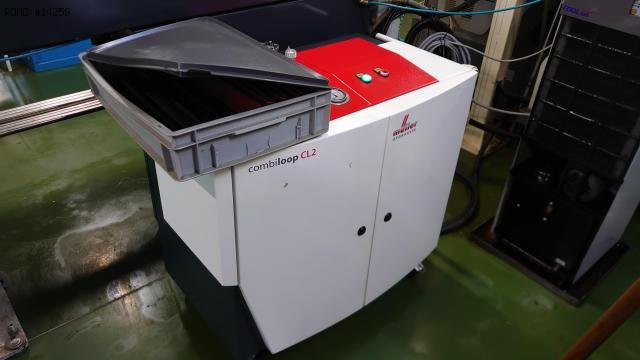

- Coolant tank : Müller Combiloop CL2
* with high-pressure pump

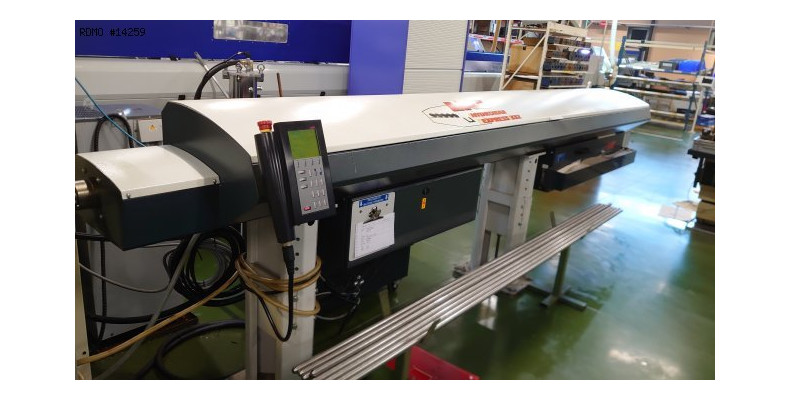

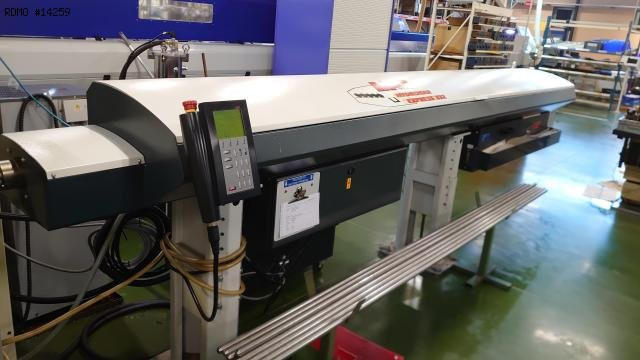

- Bar loader : LNS HYDROBAR EXPRESS 332

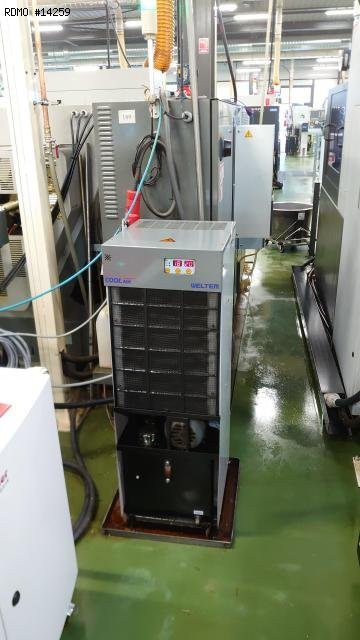

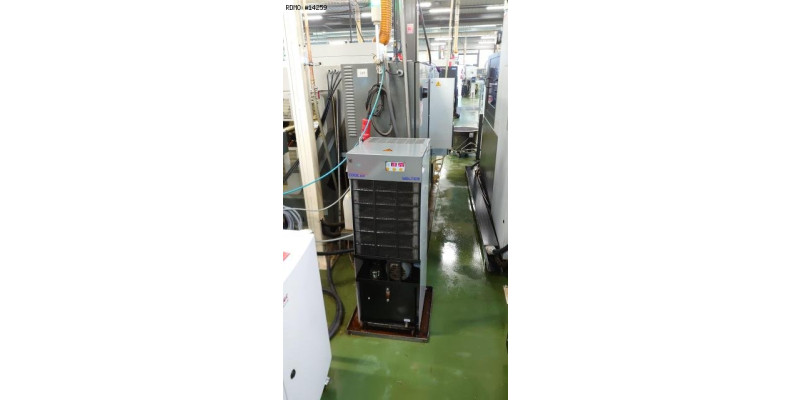

- Cooling unit
- Fire extinguisher *
NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

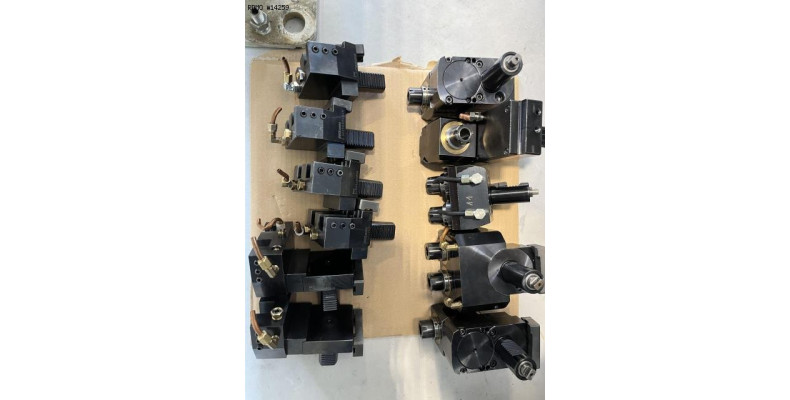

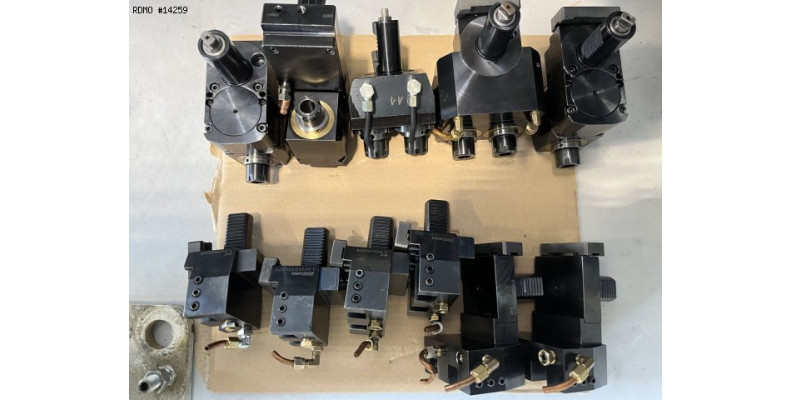

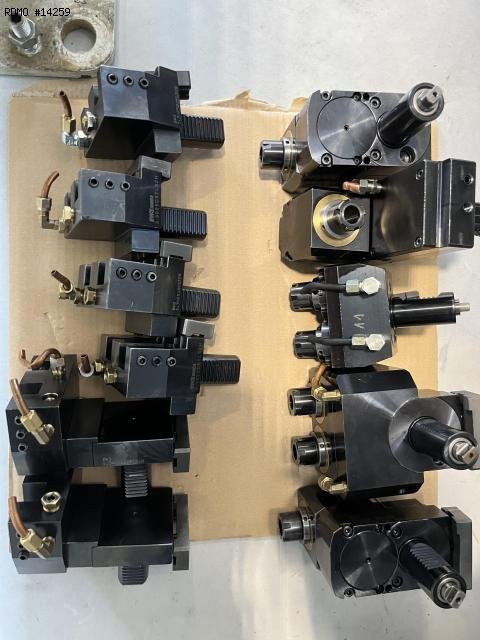

- Number of turning tool holders : 7
- Number of fixed tool holders : 11
