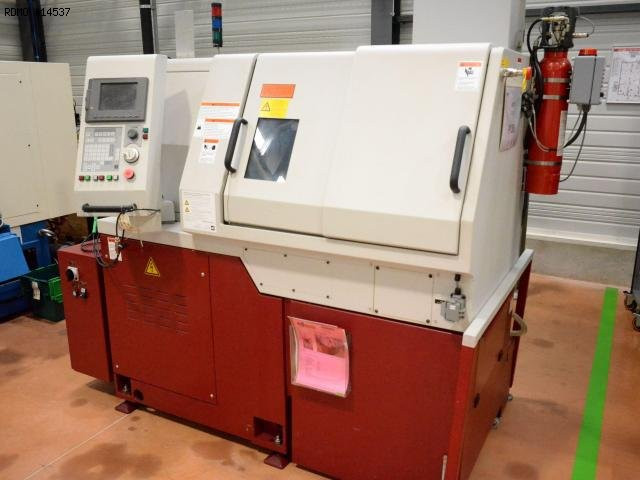

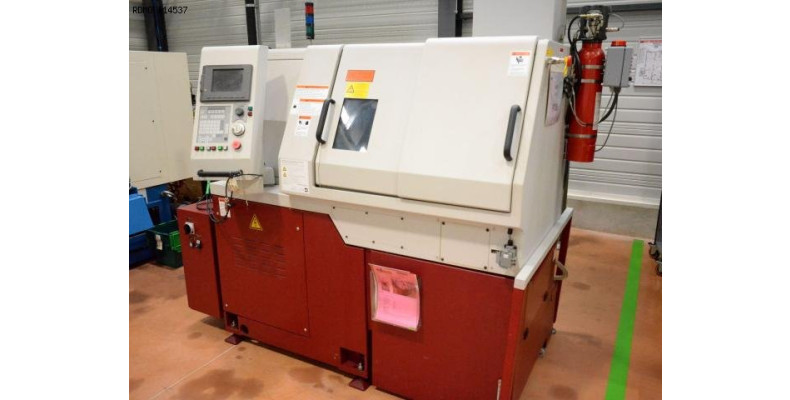

BOLEY BC20-VI 6 assi

Tornitura Tornio a controllo numerico a fantina mobile

14537

Specifiche tecniche per il download

Marca: BOLEY

Modello: BC20-VI

Anno: 2005

Nr Serie: 89016

14537

BOLEY BC20-VI 6 assi

Tornitura Tornio a controllo numerico a fantina mobile

Specifiche tecniche per il download

Marca: BOLEY

Modello: BC20-VI

Anno: 2005

Nr Serie: 89016

Richieda un prezzo

Caratteristiche

- Number of axes : 5
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Max. machining length : 50 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 3.7 [kW]

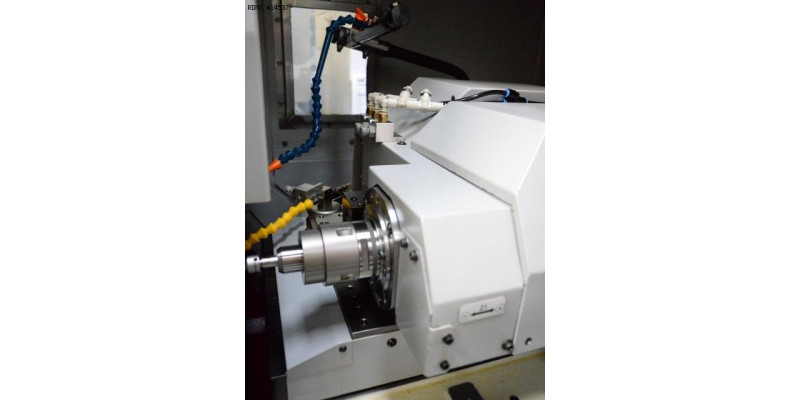

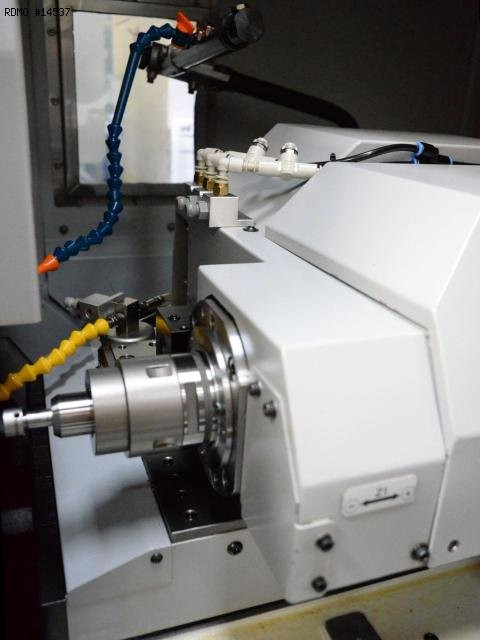

COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Z stroke : 150 [mm]
- X stroke : 225 [mm]
- Spindle speeds : 8000 [rpm]
- Spindle power : 1.1 [kW]
- Number of guide bush holders : 1

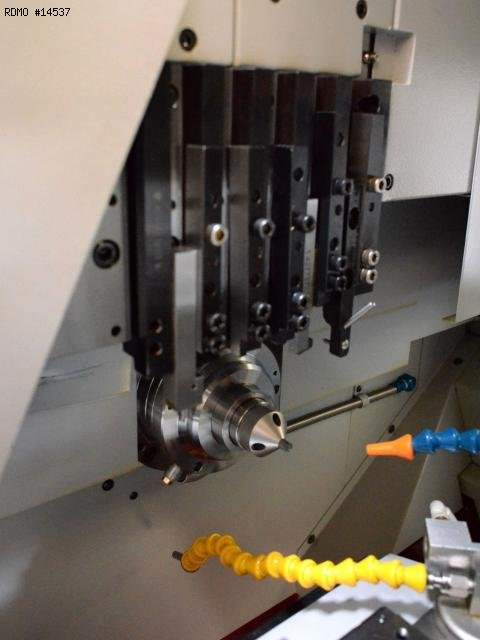

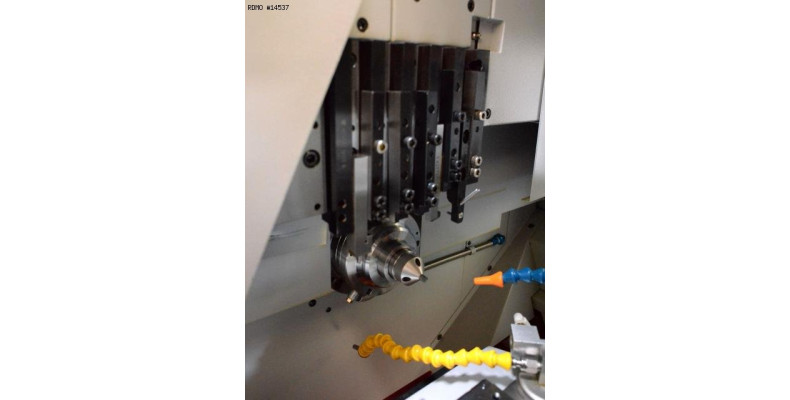

GUIDE BUSH HOLDER 1
- Number of positions : 5
- X/Y stroke : 97/133 [mm]

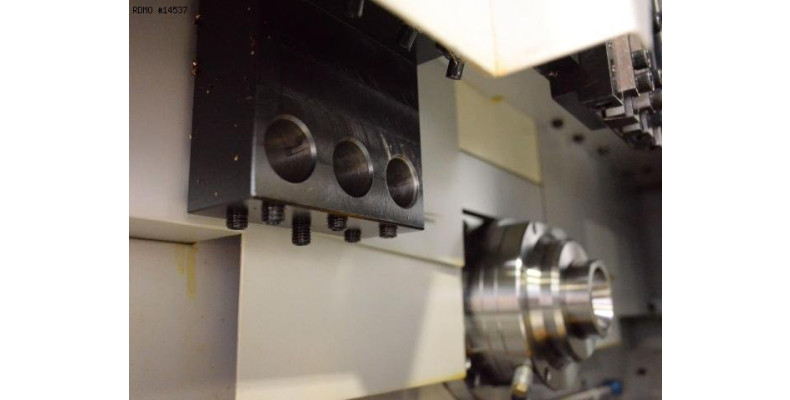

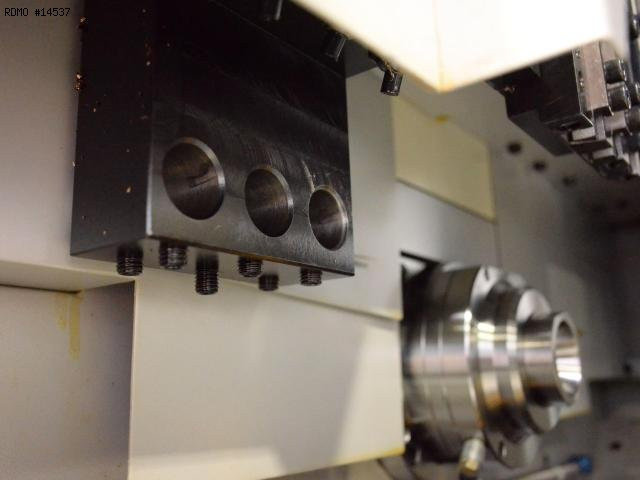

SECONDARY OPERATION
- Number of positions : 3
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 6 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 1063/2033 [mm]
- Machine height : 1666 [mm]
- Machine weight : 1700 [kg]

Attrezzatura

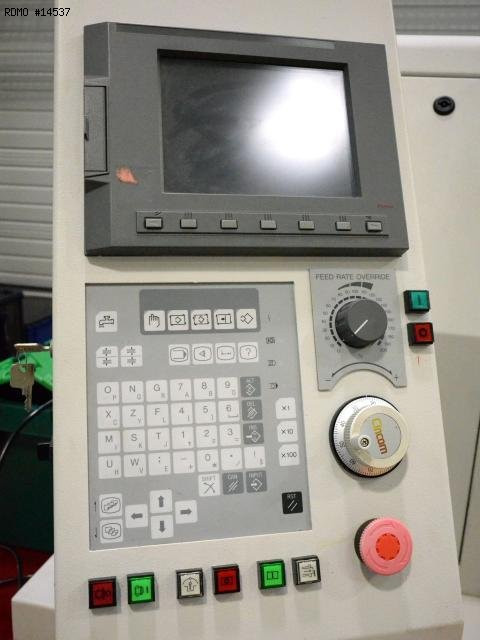

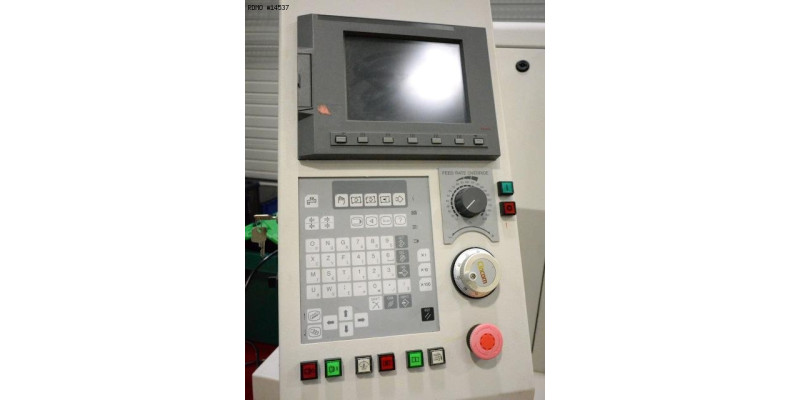

- CNC : CINCOM 18iTB
- Coolant tank
- Bar loader : IEMCA SMART 320
