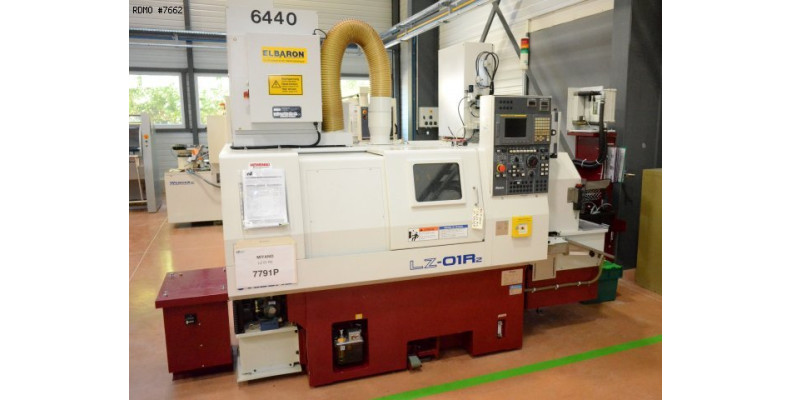

MIYANO LZ 01 R2 3 assi

Tornitura Tornio a controllo numerico

7662

Marca: MIYANO

Modello: LZ 01 R2

Anno: 2008

Nr Serie: 3WR21048

7662

MIYANO LZ 01 R2 3 assi

Tornitura Tornio a controllo numerico

Marca: MIYANO

Modello: LZ 01 R2

Anno: 2008

Nr Serie: 3WR21048

Richieda un prezzo

Caratteristiche

- Max. turning diameter : 70 [mm]
- Max. turning length : 80 [mm]
- Strokes X x Z : 245 x 240 [mm]
- Max. working weight : 0.7 x 2 [kg]
- Spindle speed : 60 - 6000 [Rpm]
- Main spindle power : 5.5/7.5 [kW]

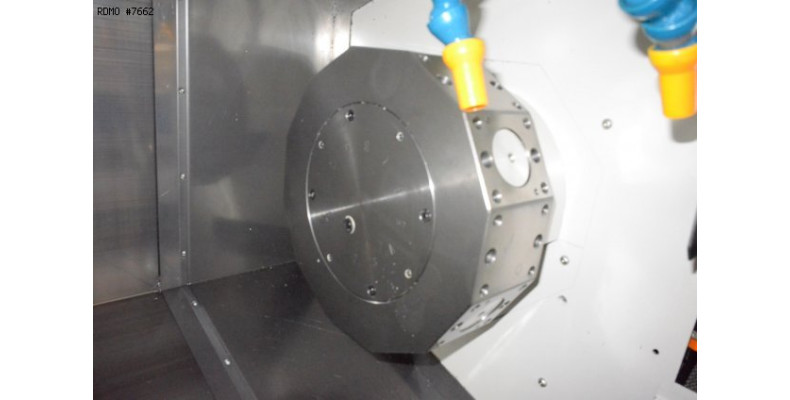

- Turret 12 positions
- Number of motorized positions : 6
- Rotary tools speed : 100 - 4000 [RPm]
- Rotary tools power : 2,5 [kW]
- Dimensions : 2100 x 1600 x 1700 [mm]
- Machine weight : 3600 [kg]
- Working hours : 1863 [h]

Attrezzatura

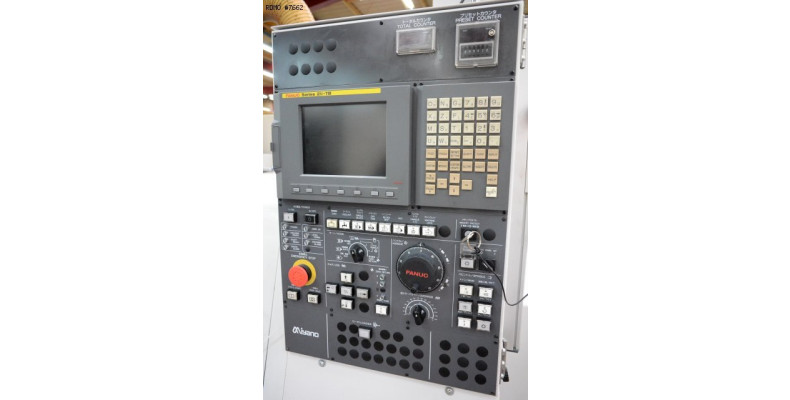

- CN FANUC 21 iB
- Axis C 360.000 positions
- Driven tools

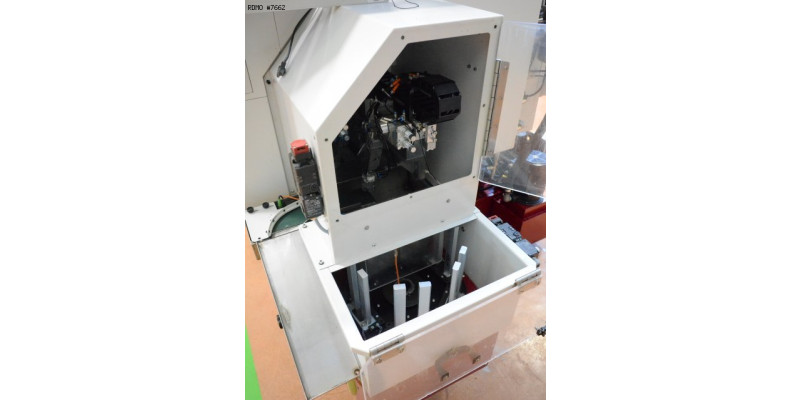

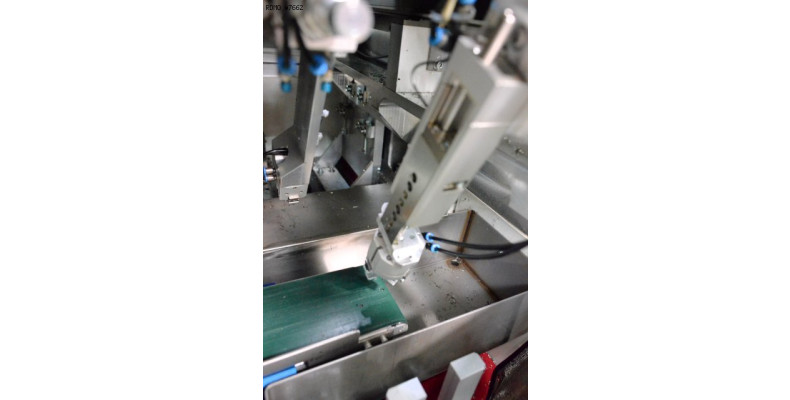

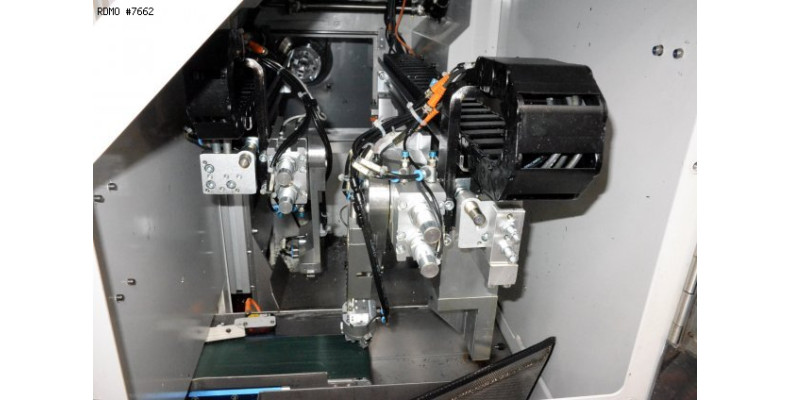

- Part loader + automation WICK

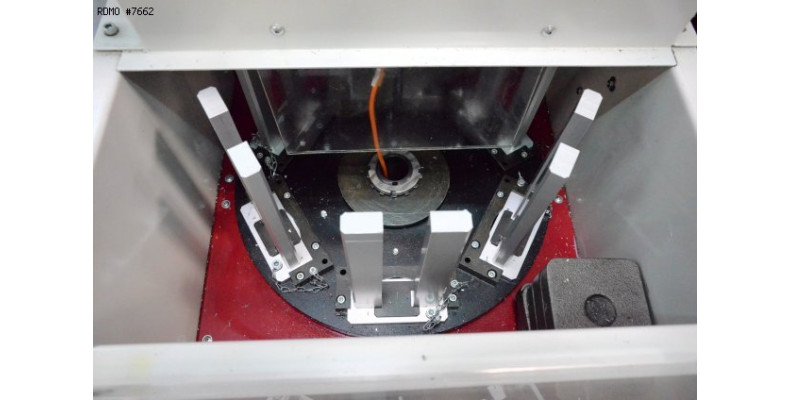

- Part palletization
- Lubricating tank with pump

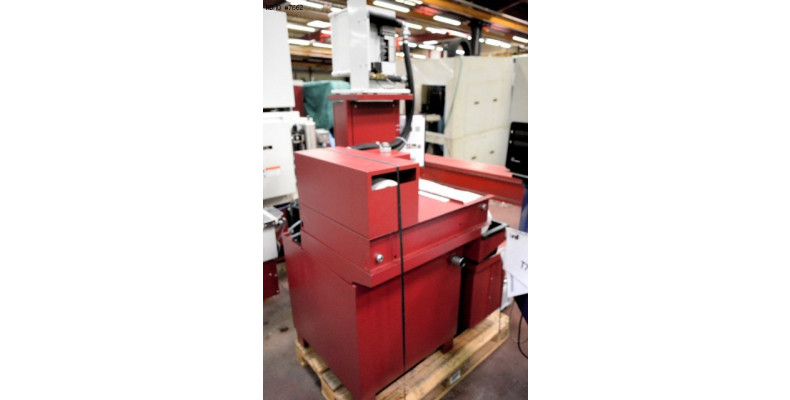

- Oil filtration with cooling and paper band
- Coolant through spindle
- Air blowing through spindle

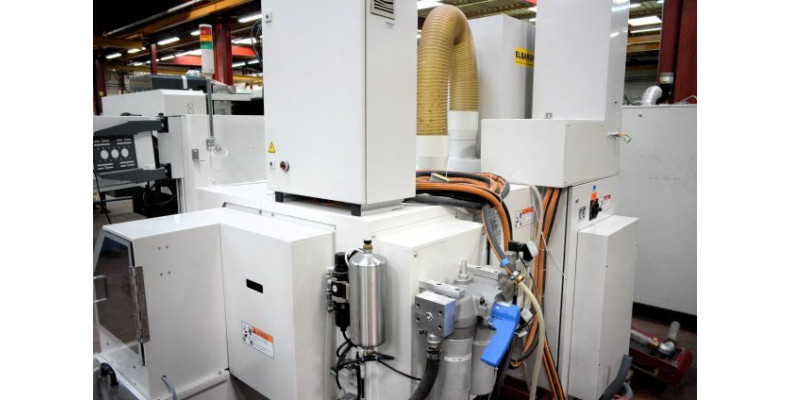

- Oil mist extractor ELBARON Ron A100 DV

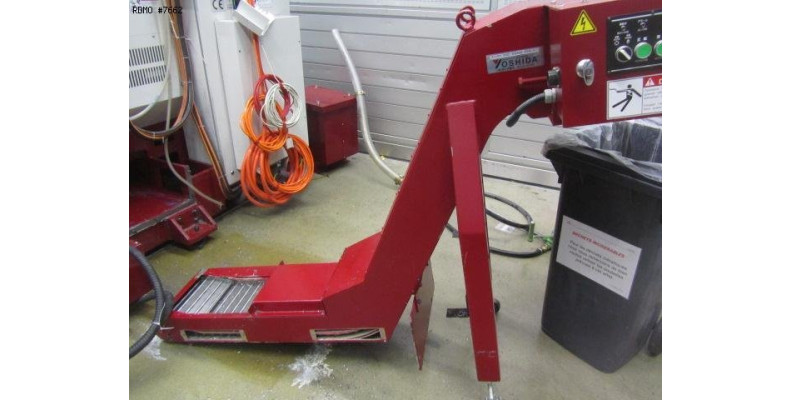

- Chip conveyor OSHIDA
- Mechanical stop
- Part counter

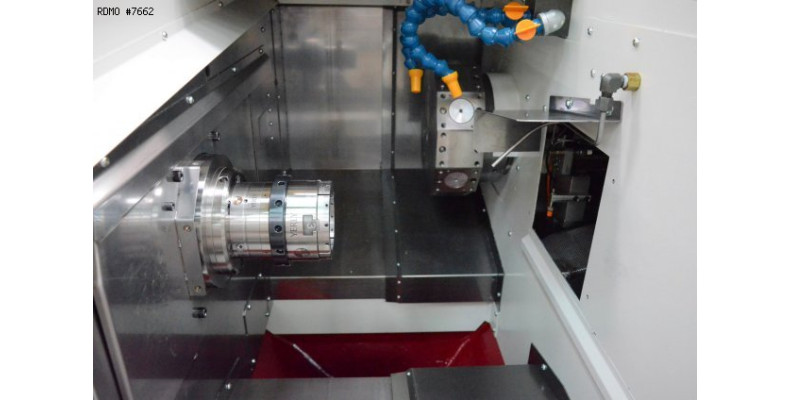

- Chuck YERLI

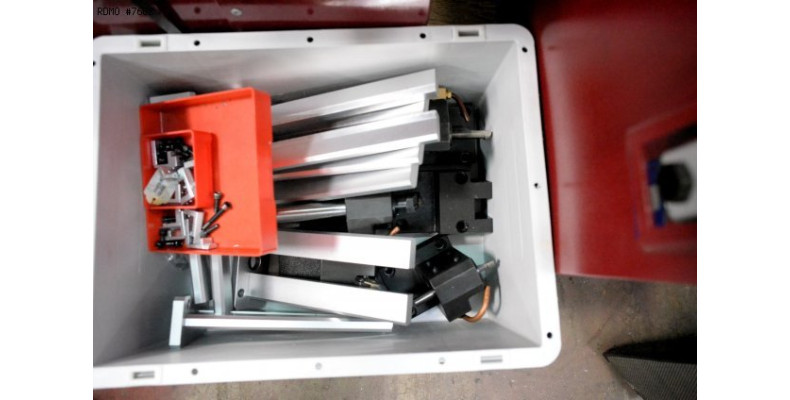

- 3 fixed tool holders for turning
- 3 fixed tool holders for drilling

Descrizione

Lathe with turret, axis C, driven tools, automatic part loading with palletization. Machine has worked 1863 hours, with straight oil, in clock-making sector.

Questa macchina utensile é già venduta. Alcuni modelli equivalenti sono certamente disponibili.
