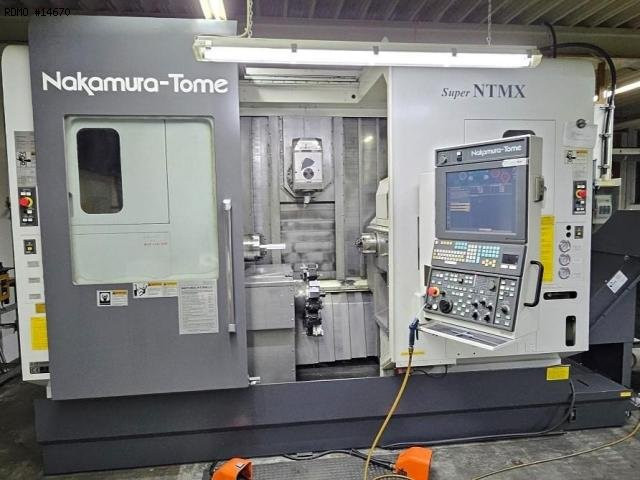

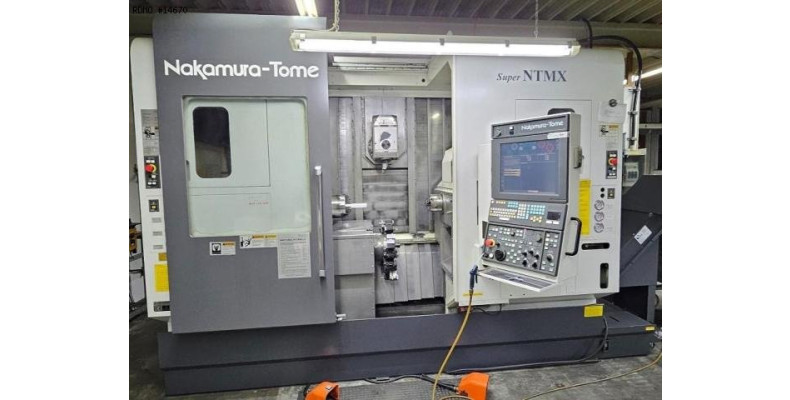

NAKAMURA NTMX 9 assi

Tornitura Centro di tornitura/fresatura

14670

Specifiche tecniche per il download

Marca: NAKAMURA

Modello: NTMX

Anno: 2016

Nr Serie: V251506

14670

NAKAMURA NTMX 9 assi

Tornitura Centro di tornitura/fresatura

Specifiche tecniche per il download

Marca: NAKAMURA

Modello: NTMX

Anno: 2016

Nr Serie: V251506

Richieda un prezzo

Caratteristiche

- Number of axes : 9
- Number of spindles : 2
MAIN SPINDLE
- Spindle nose : A2-5
- Spindle power : 11 [kW]
- Spindle speeds : 4500 [rpm]
- Max. bar diameter : 65 [mm]
- Max. turning diameter : 200 [mm]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Spindle nose : A2-5
- Spindle power : 11 [kW]
- Spindle speeds : 5000 [rpm]
- Max. bar diameter : 51 [mm]
- Max. turning diameter : 200 [mm]
- C axis indexing precision : 0,001 [°]
- Travel : 780 [mm]
- Spindle / counter-spindle distance : 980 [mm]
TURNING-MILLING SPINDLE
- X/Z stroke : 570/1297 [mm]
- Y stroke : +/- 100 [mm]
- B Axis stroke : 190 (+/-95) [°]
- Tool type : Capto C4
- Spindle speeds : 12000 [rpm]
- Spindle power : 7,5 [kW]
TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 48 (2x24)
LOWER TURRET
- Number of positions : 24
- Number of motorized positions : 24
- X/Z stroke : 130,5/658 [mm]
- Live tools speed : 6000 [rpm]
- Live tools power : 7,1 [kW]
POWER SUPPLY
- Supply voltage : 380 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 2700x3460 [mm]
- Machine height : 2857 [mm]
- Machine weight : 14500 [kg]
MACHINE HOURS
- Number of working hours : 11000 [h]

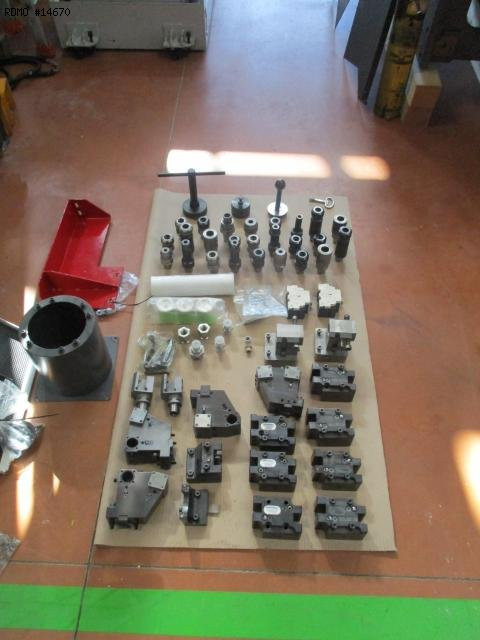

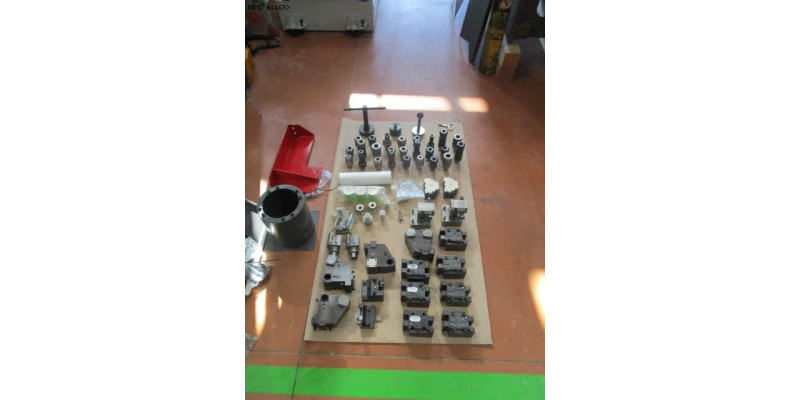

Attrezzatura

- CNC : Fanuc 31iA-5

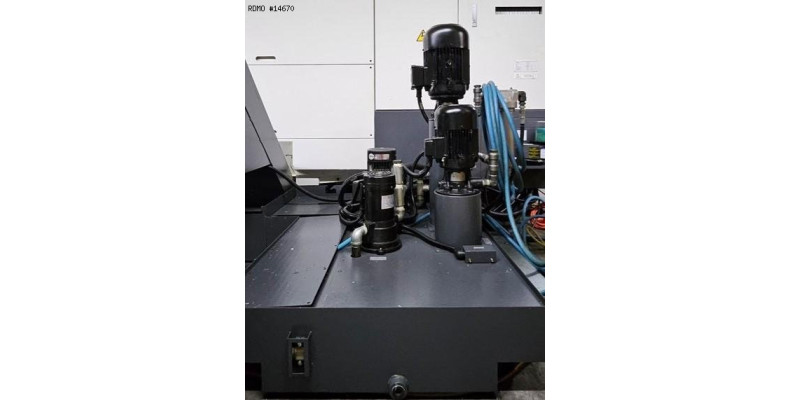

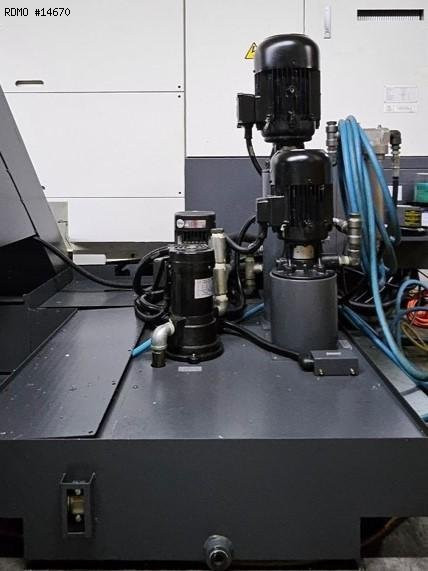

- Coolant tank
* with high-pressure pump : 25 [bars]
* Coolant through spindle
- Chips conveyor : Droite
- Spindle cooling unit
- Predisposition for barfeeder
- Electric transformer
- Chuck 3 jaws : SCHUNK 215 / SCHUNK 165
