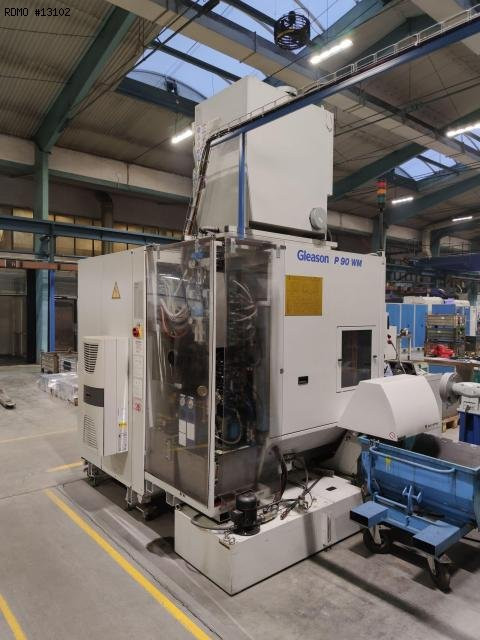

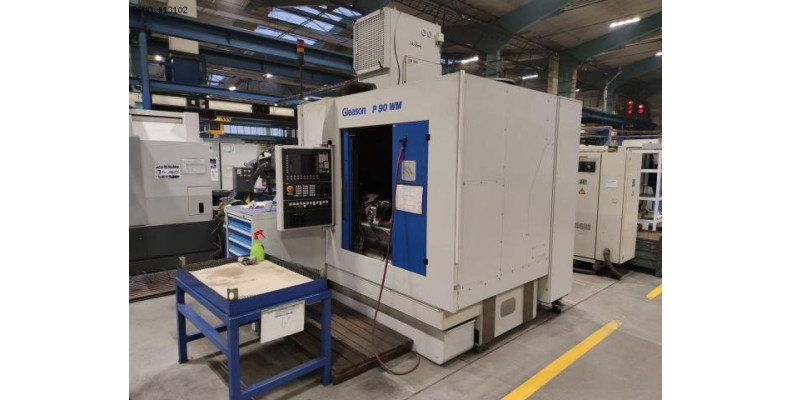

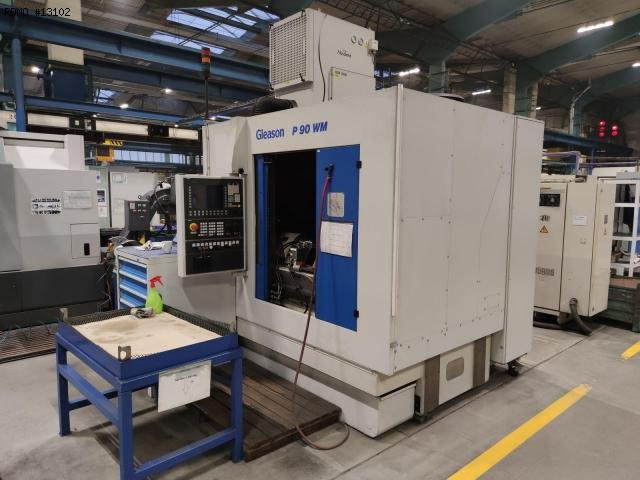

Marca: GLEASON PFAUTER
Modello: P90WM
Anno: 2009
Nr Serie: 30648
Marca: GLEASON PFAUTER
Modello: P90WM
Anno: 2009
Nr Serie: 30648

Caratteristiche & Attrezzatura

Caratteristiche
- Part diameter : 100 [mm]
- Nominal module
* gear hobbing : approx. 3.0 [mm]
* endless screw milling : approx. 5.0 [mm]
- Max. axial movement : 320 [mm]
- Cutting head orientation : -45 / + 115 [°]
- Main mill max. diameter : 118 [mm]
- Max. cut out length of the mail mill : 180 [mm]
- Max. mill movement (Shifting) : 160 [mm]
- Max. part-holder spindle speed : 3000 [t/mm]
- Min./max. distance between axes : 10/100 [mm]
- Cutting head motor power : 14 [kW]
- Main mill speed : 50-12000 [t/mm]
- Weight : 5000 [kg]
Attrezzatura

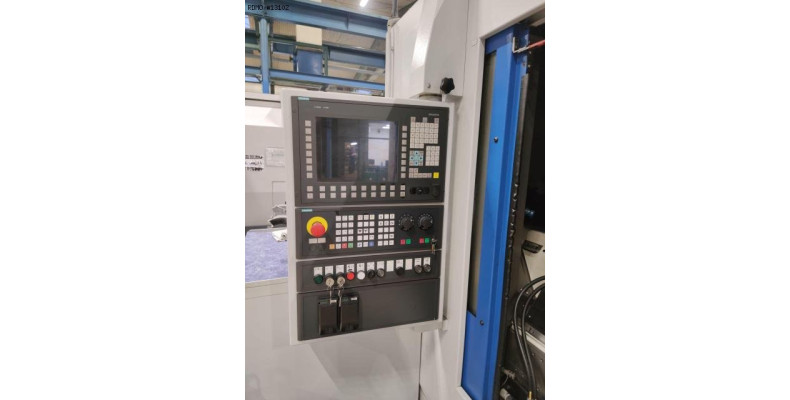

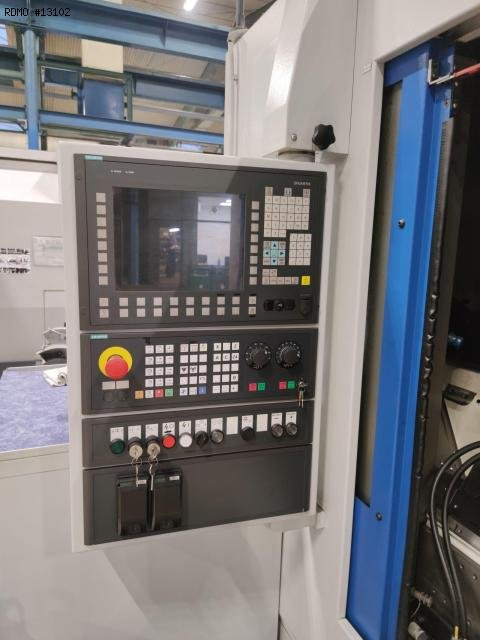

- CNC Siemens 840D
- Cooling tank
- Chip conveyor
Specifiche tecniche per il download

Descrizione

Macchine utensili per la vendita

In order to view this video, first you have to authorize the use of web youtube cookies.

Configure
The machine has been added to the quote

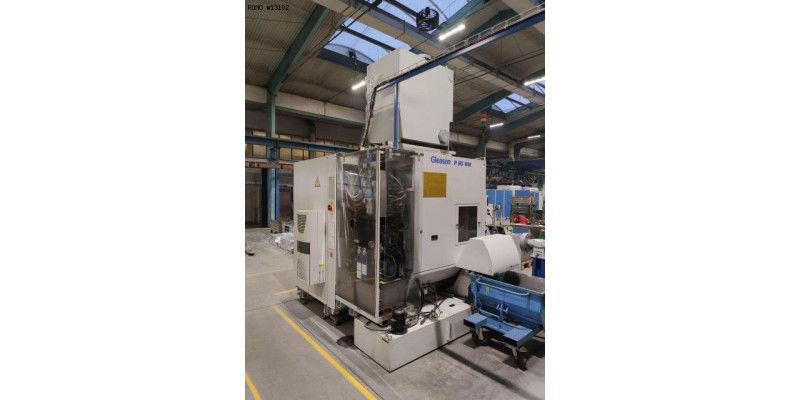

GLEASON PFAUTER P90WM
