- Capacity in the round : 360 [mm]
- Capacity in the square : 360 [mm]
- Capacity in the rectangle : 360 x 360 [mm]
- Blade dimensions : 5250 x 41 x 1,3 [mm]
- Main motor power : 4 [kW]
- Cutting speed : from 20 to 120 [m/min]
- Machine dimensions : 1700 x 2000 x 2150 [mm]
- Weight : 2600 [kg]
Attrezzatura
- New advanced RÜSCH CNC operating console
- Cutting speed variator
- Hydraulic tension of the band saw
- Powered chip removal brush
- Lubricating tank with pump

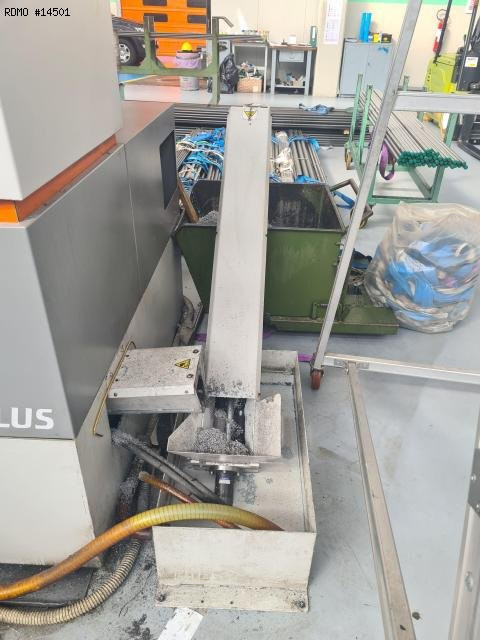

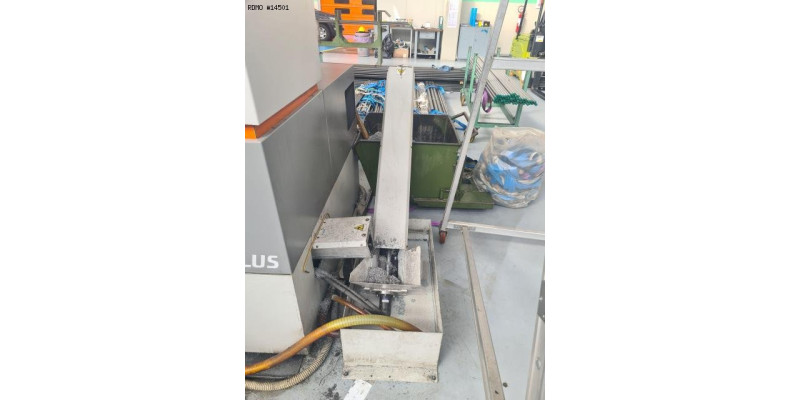

- Chips conveyor
- Oil mist for tubes cutting
