- distance between centers : 650 [mm]
- centers height : 175 [mm]
- strokes (X/Z) : 285 / 800 [mm]
- table orientation : 0 - 8,5 [°]

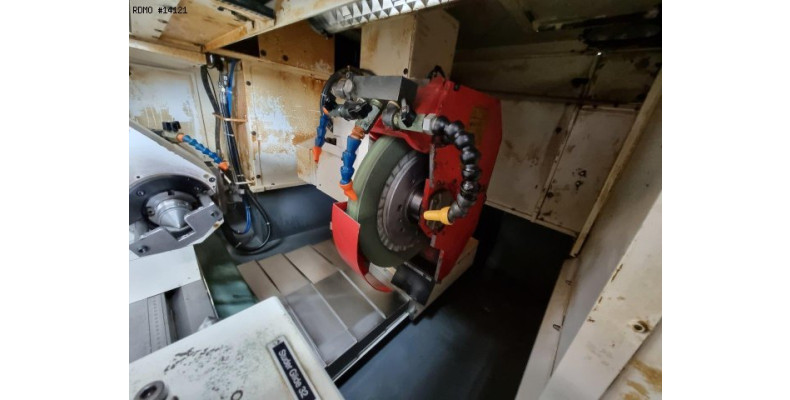

GRINDING WHEEL HOLDER HEADSTOCK
- grinding wheels dimensions : 500 x 63 x 203,2 [mm]
- peripheral speed : 50 [m/sec]
- power : 7,5 [kW]
- manual orientation on stops : 0 and 30 [°]

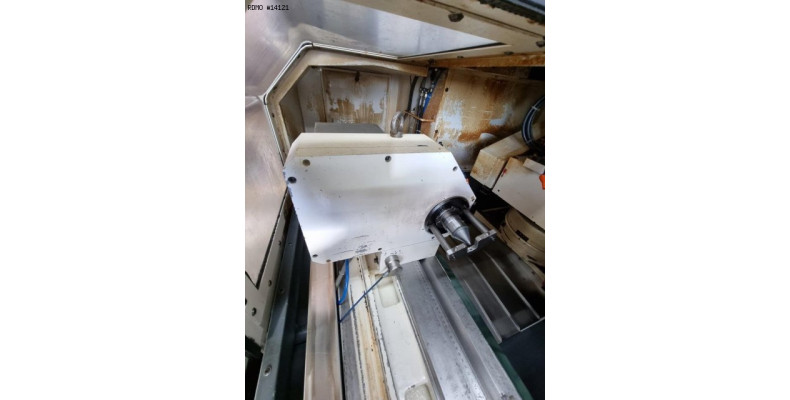

PART HOLDER HEADSTOCK
- taper : CM5
- speeds : 1 - 1500 [Rpm]
- power : 3 [kW]
- boring : 30 [mm]
- indexing precision axis C : +/- 0,5 [°]

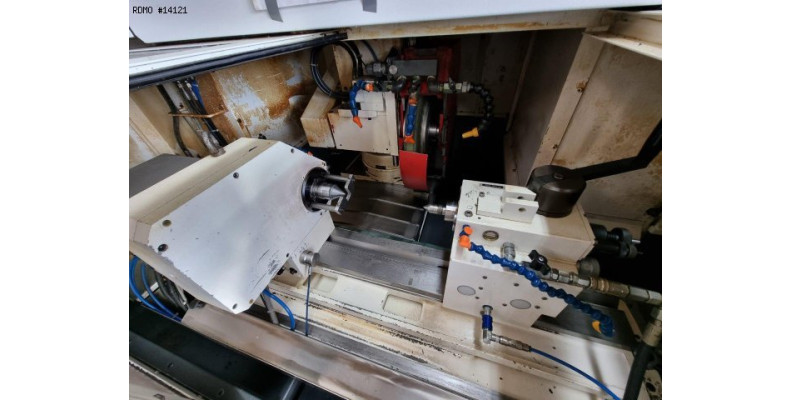

TAILSTOCK
- taper : CM4
- quill diameter : 50 [mm]
- quill stroke : 35 [mm]
POWER SUPPLY
- voltage : 400 [V]
- frequency : 50 [Hz]
WEIGHT
- Machine weight : 11350 [kg]
MACHINE HOURS

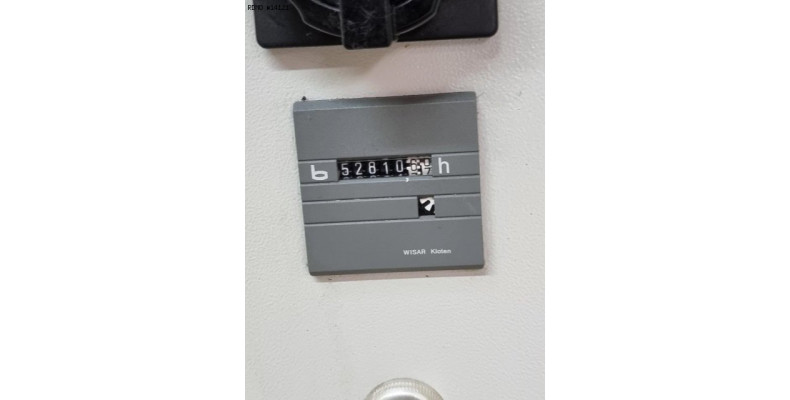

- Number of hours under power : 52810 [h]
Attrezzatura
- control CNC FANUC 2li-TB
- constant programmable cutting speed
- electronic deported crank handle
- direct measuring rules on X and Z
- pneumatic assistance on part-holder headstock and
tail stock
- part holder headstock with fine concentricity adjustment
- tailstock with fine concentricity adjustment
- hydraulic recoil of the tailstock quill
- touch detector SENSITRON 6

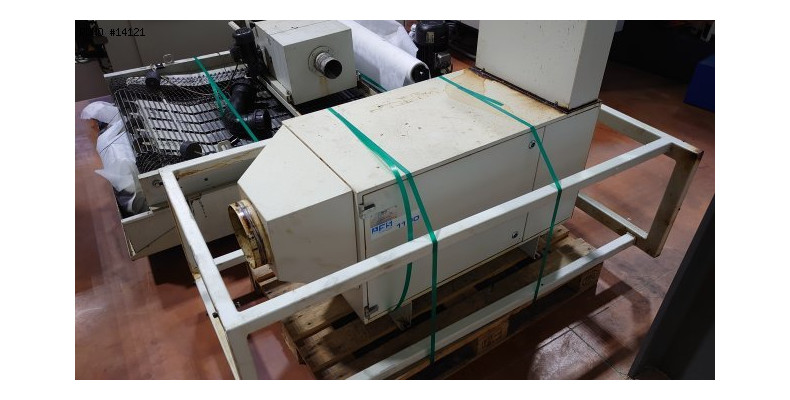

- Oil mist extractor

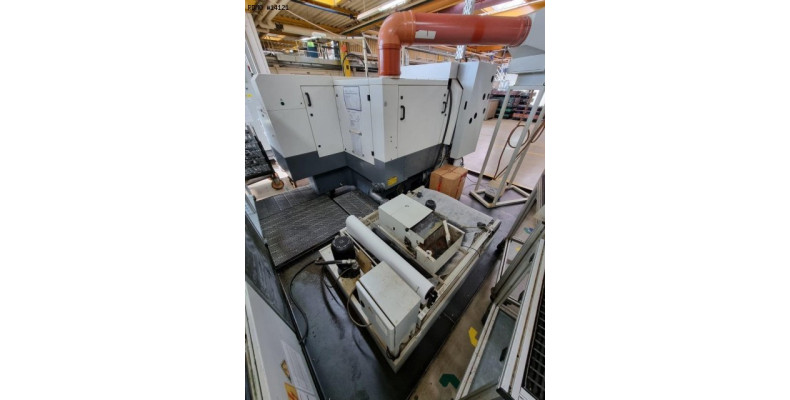

- coolant tank
* with paper filter
- fixed dressing on part holder headstock
Questa macchina utensile é già venduta. Alcuni modelli equivalenti sono certamente disponibili.
