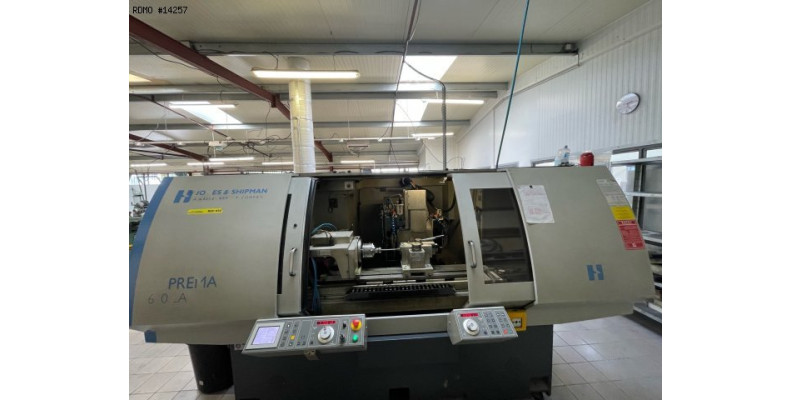

JONES & SHIPMAN SUPREMA 650 M

Rettifica / affilatura / lappatura / sbavatura / levigatura Rettificatrice cilindrica a cnc
14257
Marca: JONES & SHIPMAN
Modello: SUPREMA 650 M
Anno: 2013
Nr Serie: 29177
14257
JONES & SHIPMAN SUPREMA 650 M
Marca: JONES & SHIPMAN
Modello: SUPREMA 650 M
Anno: 2013
Nr Serie: 29177
Richieda un prezzo

Caratteristiche & Attrezzatura

Caratteristiche
TECHNICAL CHARACTERISTICS

- Number of axles: 3
- Distance between points: 650 [mm]
- Peak height: 160 [mm]
LINEAR AXES
- Stroke X x Z: 260 / 750 [mm]

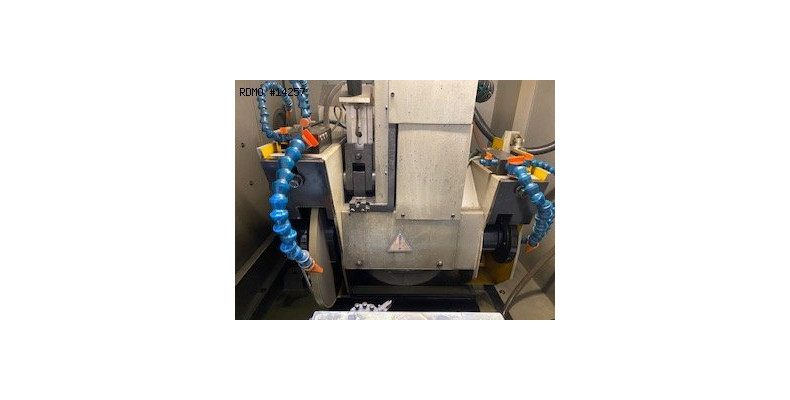

WHEEL HOLDER WITH 2 LEFT / RIGHT WHEELS Then 1 INSIDE
- Manual pivoting of the grinding wheel headstock: -190 / +45 [°]
- Indexing accuracy: 0.01 [°]
- Outer grinding wheel dimensions G: 350 x 50 x 127 [mm]
- External grinding wheel dimensions D: 300 x 25 x 127 [mm]
- External wheel speeds: 1773 / 2069 / 2400 [rpm]
- External grinding wheel motor power: 4 [kW]
- Inter wheel dimensions: 10-20 / 25-40 / 50-63 [mm]
- Inter grinding wheel speed: 29000 / 16500 / 10500 [rpm]
- Power: 2.2 [KW]
HEADSTOCK
- Maximum machinable diameter: 300 [mm]
- Admitted weight between centers: 100 [kg]
- Workpiece headstock speeds: 0 to 660 [rpm]
- Workpiece headstock cone: CM5
- Workpiece headstock pivoting: -15 to +90 [°]
COUNTER HEADSTOCK
- Tailstock taper: CM3
- Tailstock quill stroke: 30 [mm]
- Table swivel: -18 to +16 [°]
DIMENSIONS
- Floor area: 2,750 x 2,110 [mm]
- Height: 2,280 [mm]
- Weight: 5000 [kg]
Attrezzatura
- Easy CNC by FANUC learning
- 2 electronic cranks
- Interface: RS232 / RJ45
- Direct measurement rules on: X/Z
- Visualization of swivel angle, precision 0.01°
- Part length probe (Z0)
- Advanced against
- Automatic wheel cutting
- Central lubrication
- Paper filtration
- Washing gun
- Integral casing with 2 doors
- Automatic centralized lubrication
- Dust extraction
- Telescope
- Collet chuck with manual clamping

Descrizione

Grinding machine with 2 external wheels left - right. CNC Easy, conversational type, with cycles.
