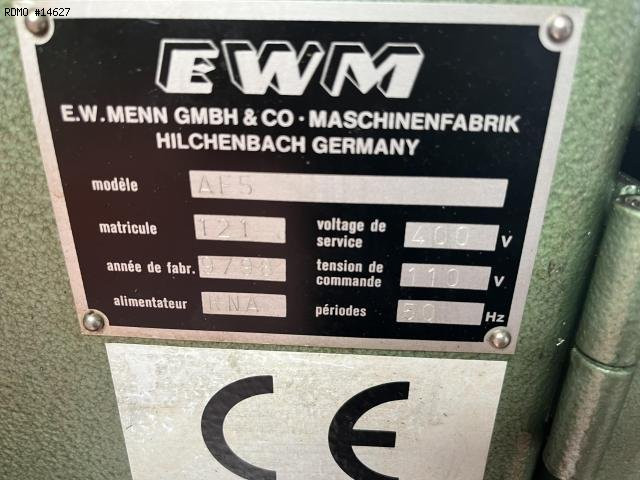

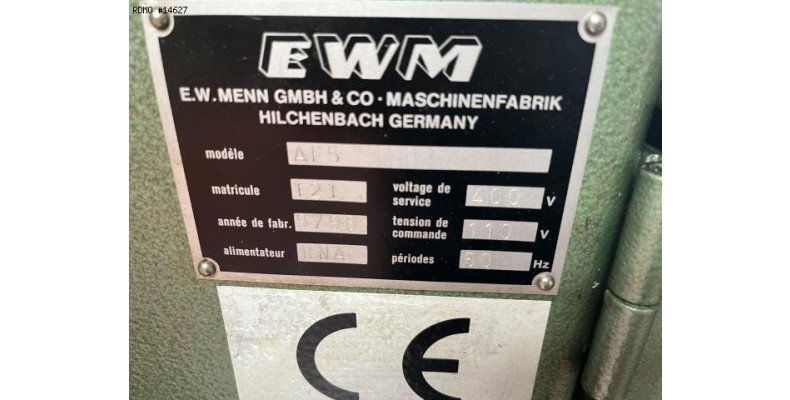

Marca: EWMENN
Modello: AF5/SA20101
Anno: 1998
Nr Serie: Z-98029
Marca: EWMENN
Modello: AF5/SA20101
Anno: 1998
Nr Serie: Z-98029

Caratteristiche & Attrezzatura

Caratteristiche

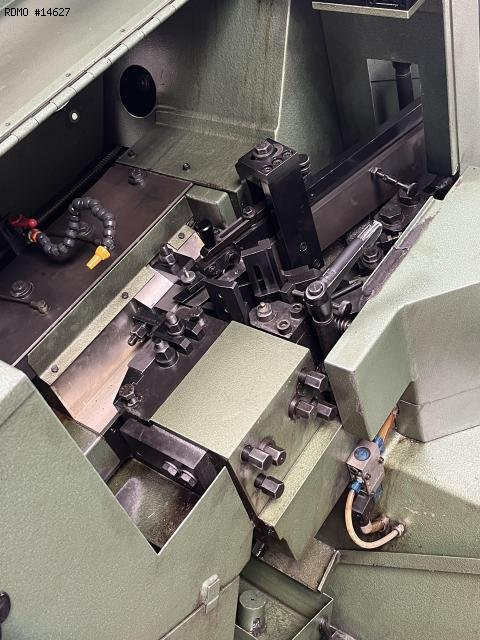

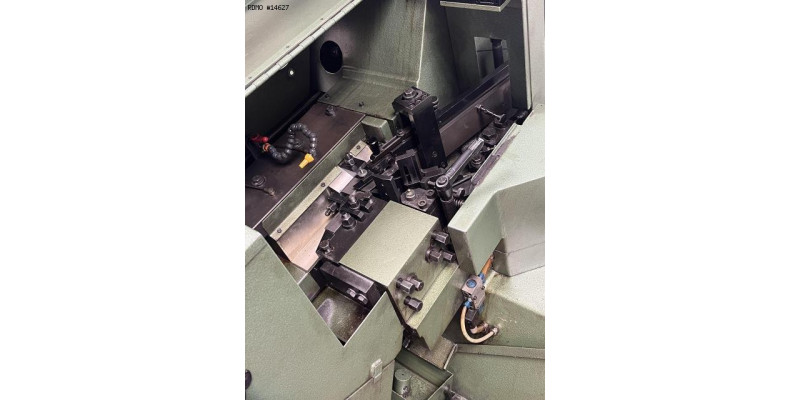

Tool mounting
- in the slide (L x P X H) : 130 x 30 x 58 [mm]
- in the chaser holder (fixed tool) (L x P X H) : 115 x 30 x 58 [mm]

Output data
- Nominal output of main motor : 6,0/7,5 [kW]
- Power consumption : 13 [kVA]
- Connected value : 35 [A]

Output per unit
- min. parts per minute : 140
- max. parts per minute : 400

Compressed air supply
- Operating pressure required : 0,6 Mpa [6 bar]
- Air consumption : less than 0,1 [m³/h]

Machine
- Dimensions (L x W x H) : 2400 x 1380/3100¹ x 1800 [mm]
¹ without/with drive door and control cabinet door (open)
- Weight : 2700 [kg]

Production data (standard version)
- max. nominal diameter : 8 [mm]
- max. shaft length : 110 [mm]
- non-profiled shaft part : 60 [mm max.]
- profiled shaft part : 55 [mm max.]

Slide adjustment zone
- Width : 2,0 à 13,0 [mm]
- Height (in relation to the upper edge of the chaser holder) : -25 à + 60 [mm]
Attrezzatura

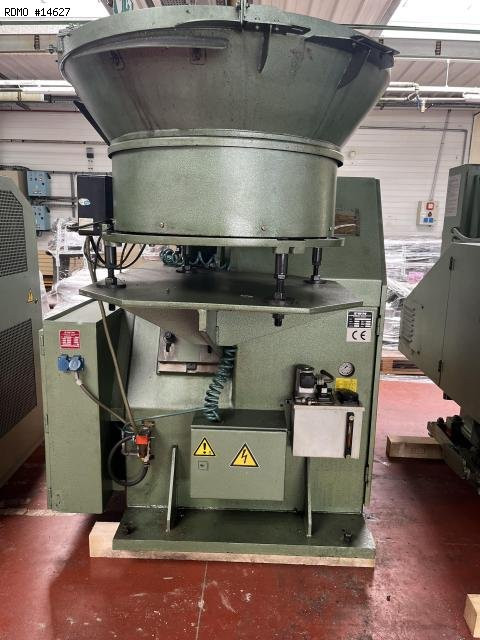

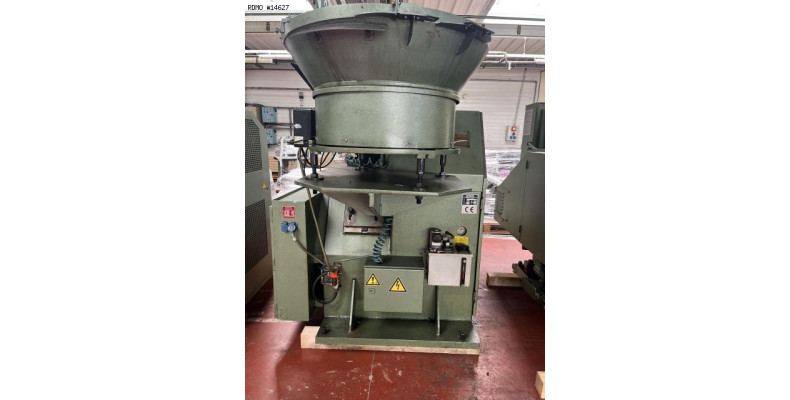

- with vibratory bowl RNA
Specifiche tecniche per il download

Descrizione

Macchine utensili per la vendita

In order to view this video, first you have to authorize the use of web youtube cookies.

Configure
The machine has been added to the quote

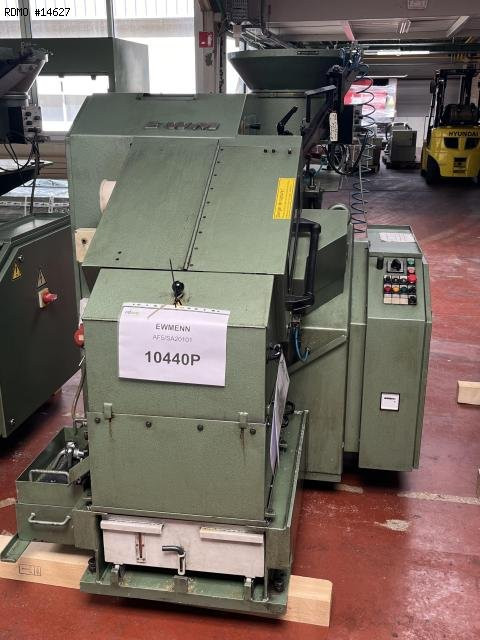

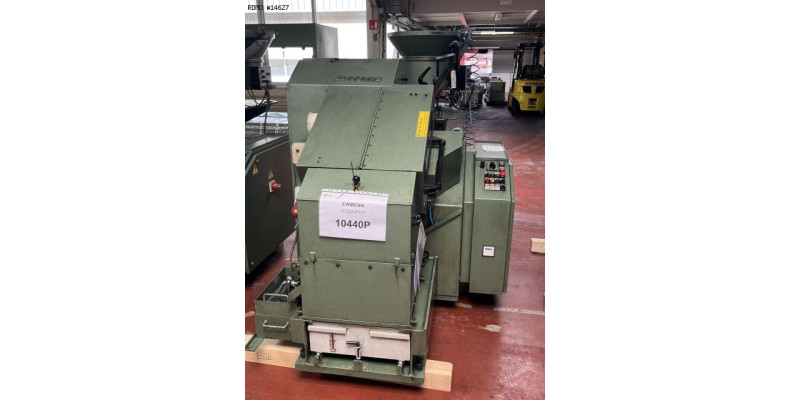

EWMENN AF5/SA20101
