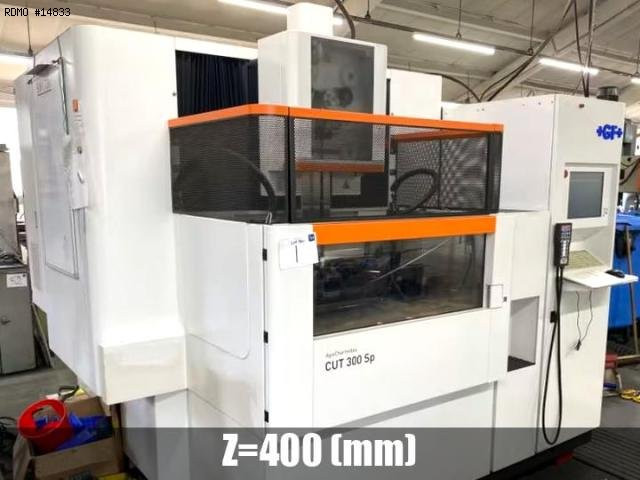

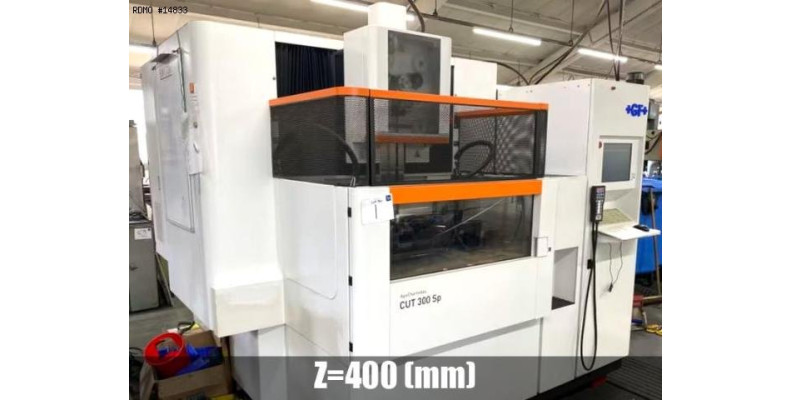

AGIE CHARMILLES CUT 300Sp

Name: Elettroerosione a filo AGIE CHARMILLES CUT 300Sp
Brand: AGIE CHARMILLES
Availability: InStock

Elettroerosione Elettroerosione a filo

14833

Specifiche tecniche per il download

Marca: AGIE CHARMILLES

Modello: CUT 300Sp

Anno: 2015

Nr Serie: 591.063.002.0255

14833

AGIE CHARMILLES CUT 300Sp

Elettroerosione Elettroerosione a filo

Specifiche tecniche per il download

Marca: AGIE CHARMILLES

Modello: CUT 300Sp

Anno: 2015

Nr Serie: 591.063.002.0255

Richieda un prezzo

Caratteristiche

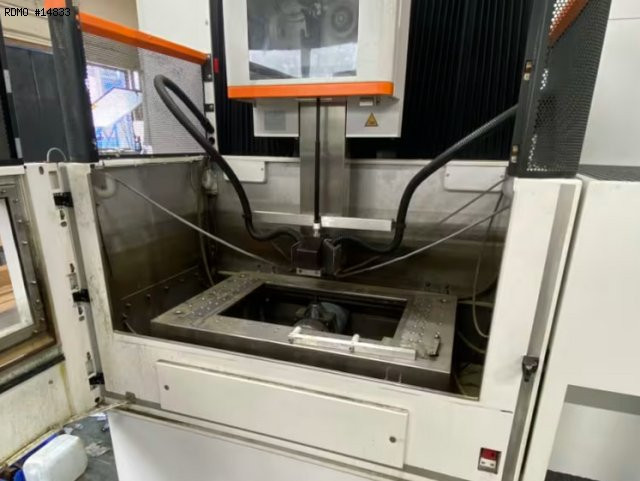

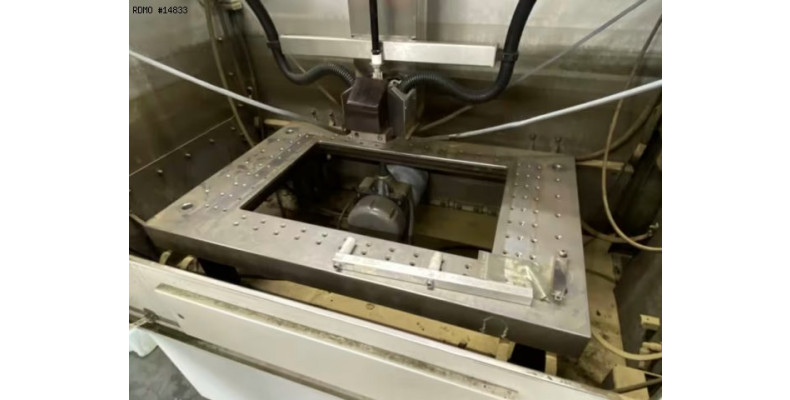

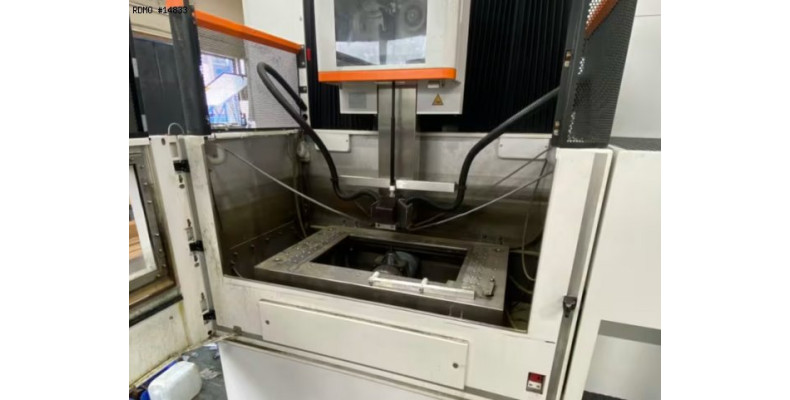

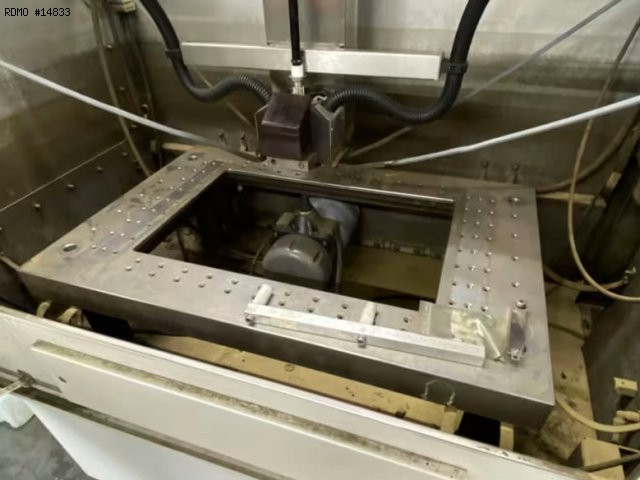

- Table dimensions : 900 x 600 [mm]

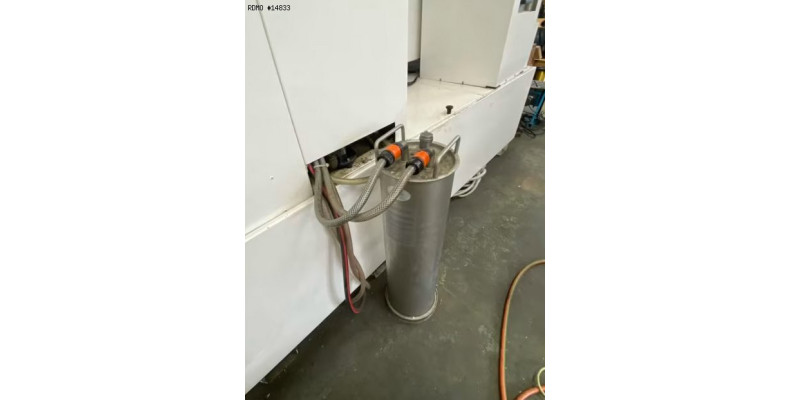

- Dielectric capacity : 1200 [l]
TRAVELS

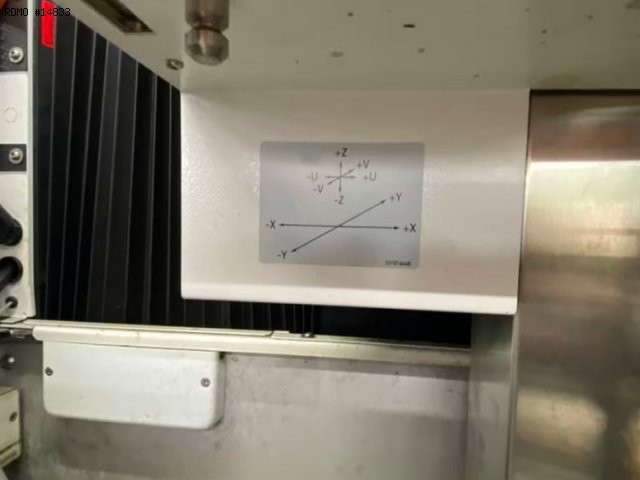

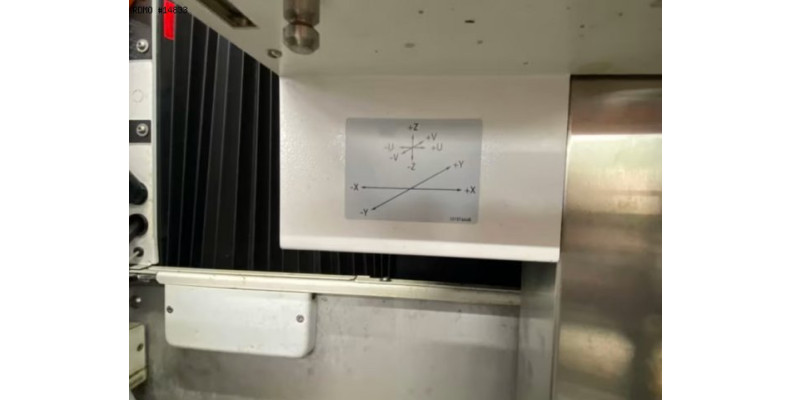

- Travels on X/Y/Z axes : 550 x 350 x 400 [mm]
- Travels on U/V axes : 550 x 350 [mm]
- Rapid traverses rates (X/Y/Z) : 3 [m/min]
- Rapid traverses rates (U/V) : 3 [m/min]
- Max. taper : +/- 30 [°/mm]
PART
- Max. part dimensions : 1200 x 700 x 400 [mm]
- Max. part weight : 1500 [kg]

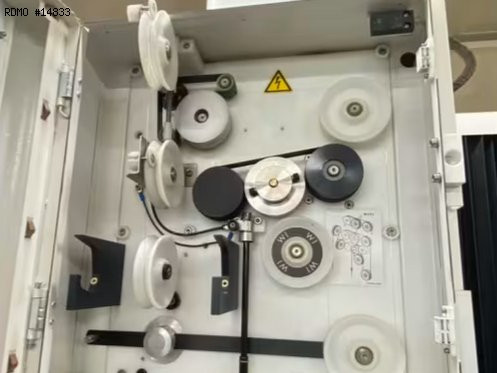

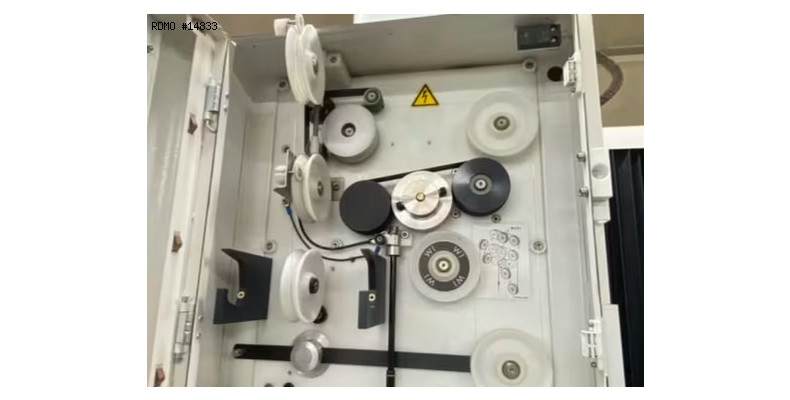

WIRE GUIDE
- Wire diameter : 0.15 - 0.33 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 12 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2600 x 2600 [mm]
- Machine height : 2340 [mm]
- Machine weight : 2850 [kg]

Attrezzatura

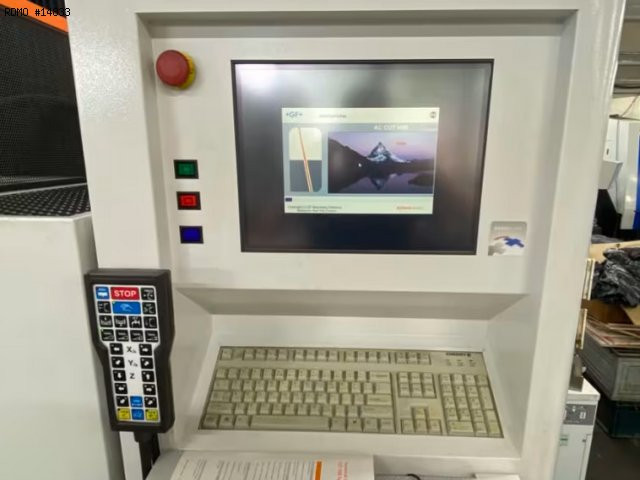

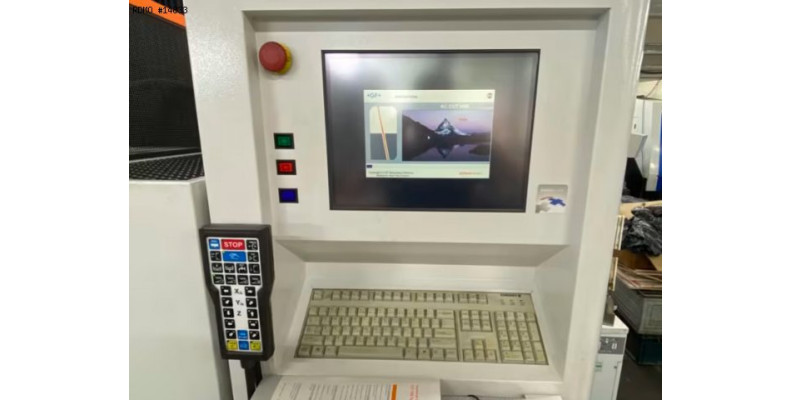

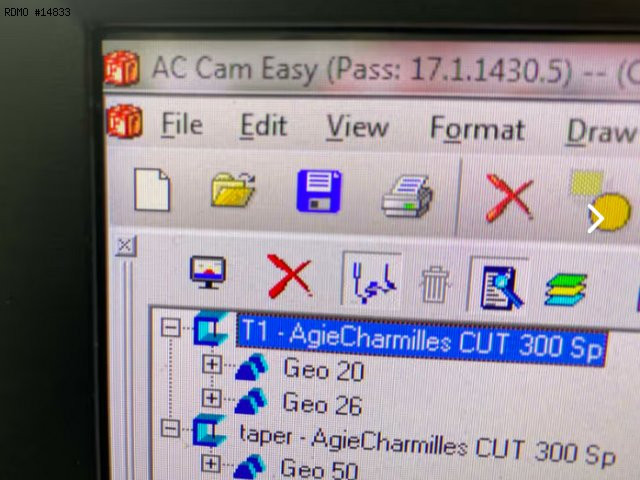

- CNC : CHARMILLES
- Screen : LCD 15'' TFT
- Remote control
