Caratteristiche & Attrezzatura

Caratteristiche
- distance between centres : 600 [mm]
- center height : 175 [mm]
- table orientation : 11 [°]

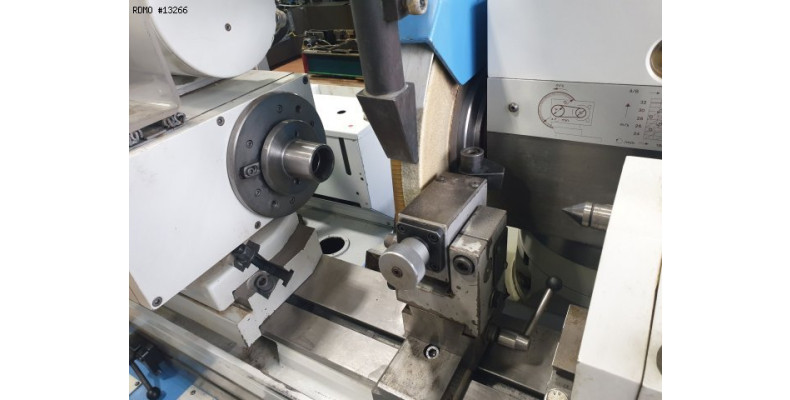

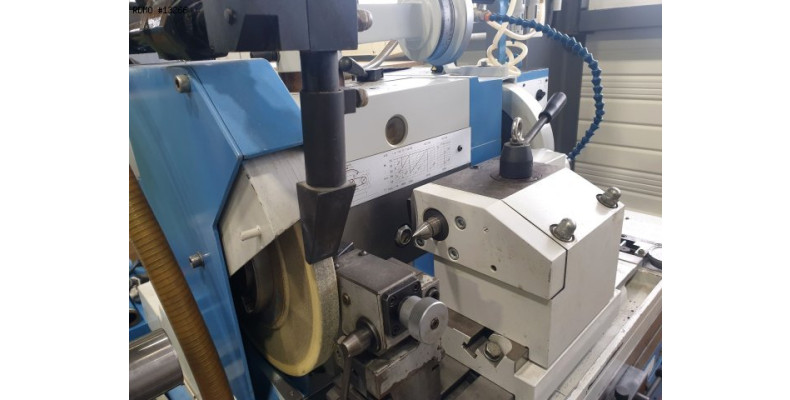

UNIVERSAL WHEELHEAD
- left wheel size : 400 x 50 x 127 [mm]
- right wheel size : 225 x 20 x 76,2 [mm]
- motor power : 3 [kW]
- spindle speeds : 1500 / 1700 / 2200 [rpm]
- orientation : 270 [°]
WORKHEAD
- orientation : 360 [°]
- speeds : 20 - 400 [rpm]
- attachment : Morse 5
- motor power : 0,9 [kW]
TAILSTOCK
- attachment : CM4
- quill stroke : 30 [mm]
DIMENSIONS
- floor space : 2580 x 1680 [mm]
- height : 1670 [mm]
- weight : 2200 [kg]
Attrezzatura

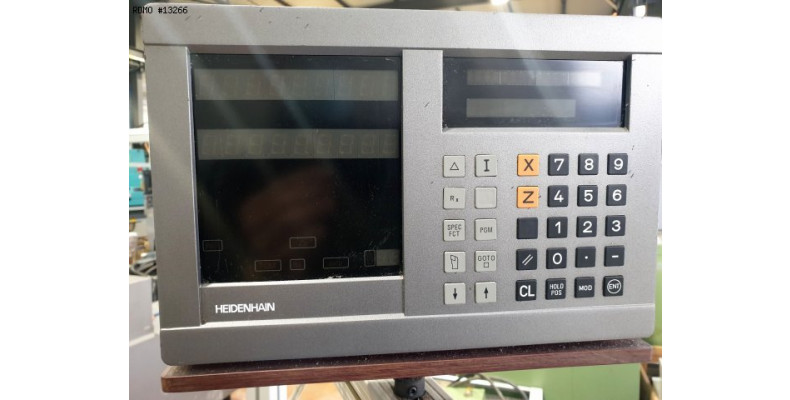

- 2 axes display HEIDENHAIN
- tailstock with hydraulic recoil through pedal

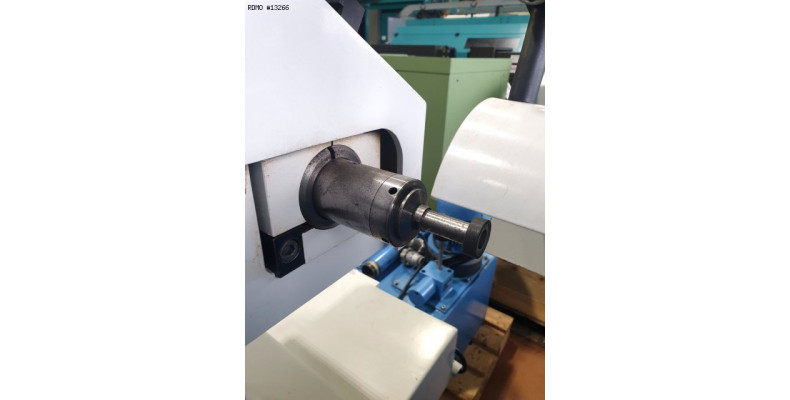

- 1 internal grinding spindle Fischer UJ-50x250 :
23.000 [rpm]
- retractable wheel dresser upon table
- coolant tank with pump

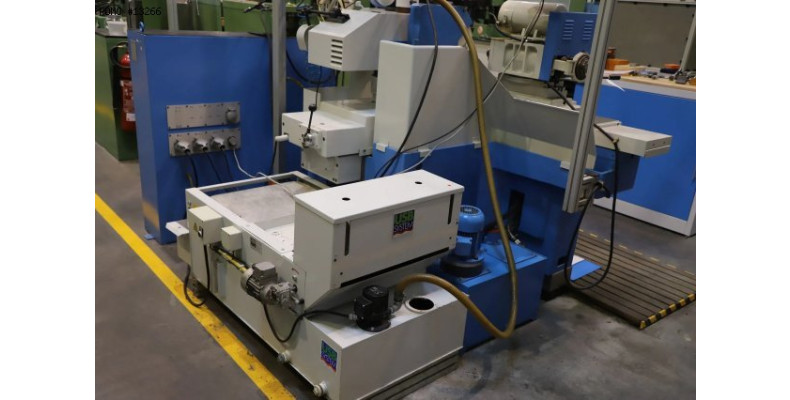

- paper filtering unit : USB SYSTEM

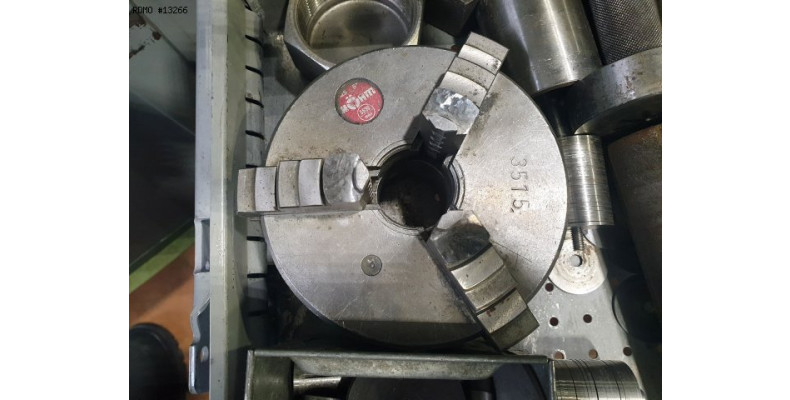

- 1 chuck 3 jaws : Ø 125 [mm]
- 1 collets chuck, with fast & manual clamping

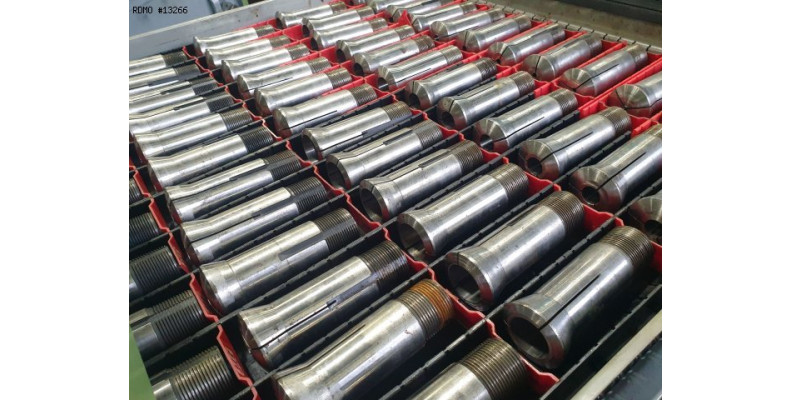

- collets collection

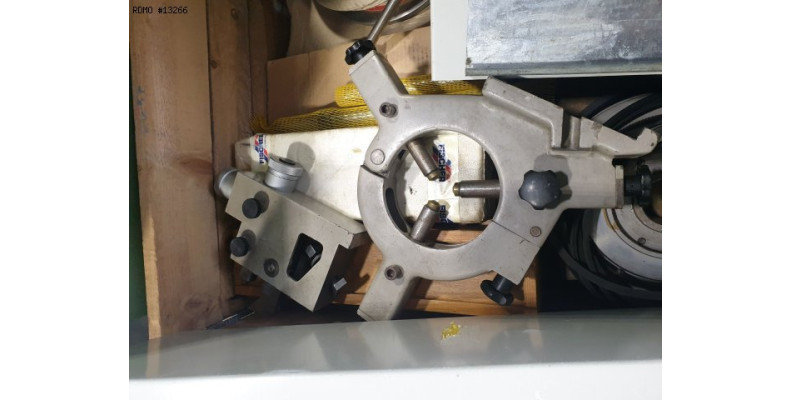

- 1 steady rest 3 points
- 2 steady rests 2 points
- balancing shaft

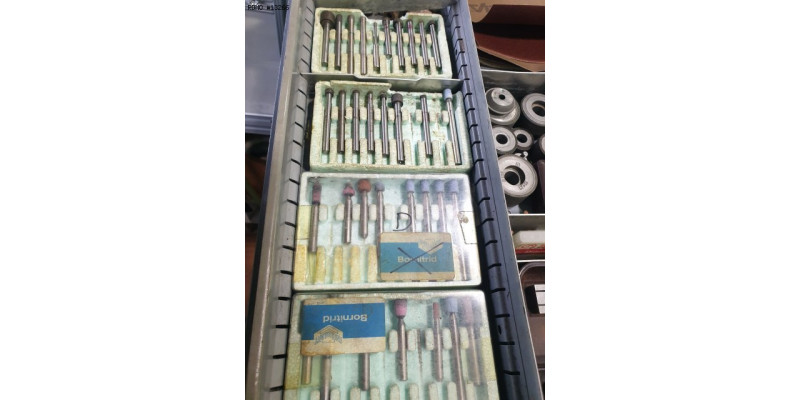

- set of external and internal wheels
- set of external and internal wheels-holders
Specifiche tecniche per il download

Descrizione

internal / external

In order to view this video, first you have to authorize the use of web youtube cookies.

Configure
The machine has been added to the quote

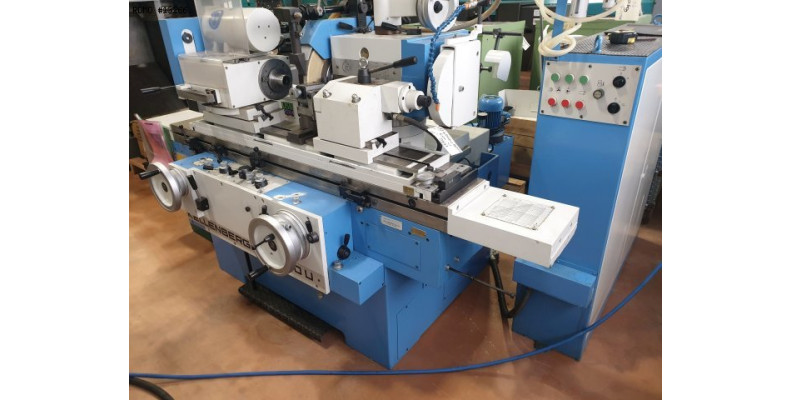

KELLENBERGER 600U
